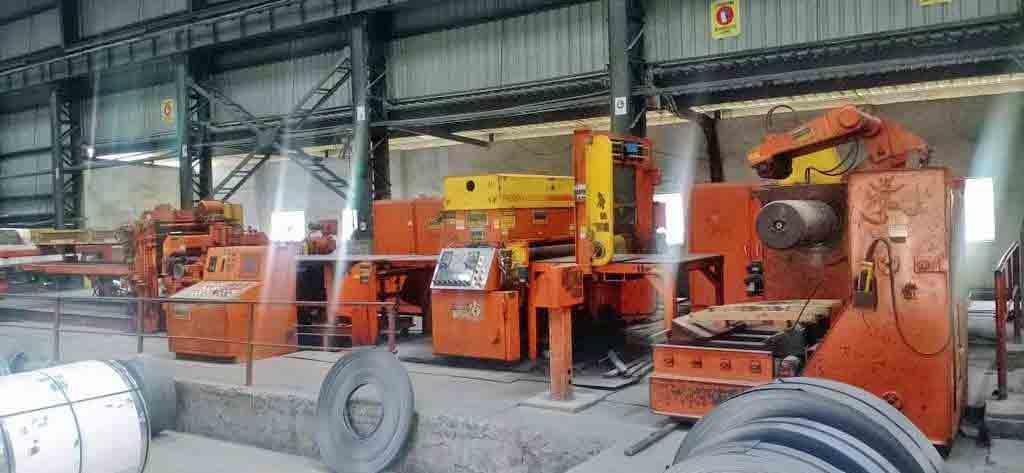

Herr Voss Cut-to-Length Line

-Width:                48" (1220mm)

-Thickness:            0.012" - 0.045" (0.3 - 1.15mm)

-Material:             CR GI

-Line Direction:       Right to Left

Consisting of:

-Entry Coil Car:

  Self-Contained Hydraulics

  Pendant Control

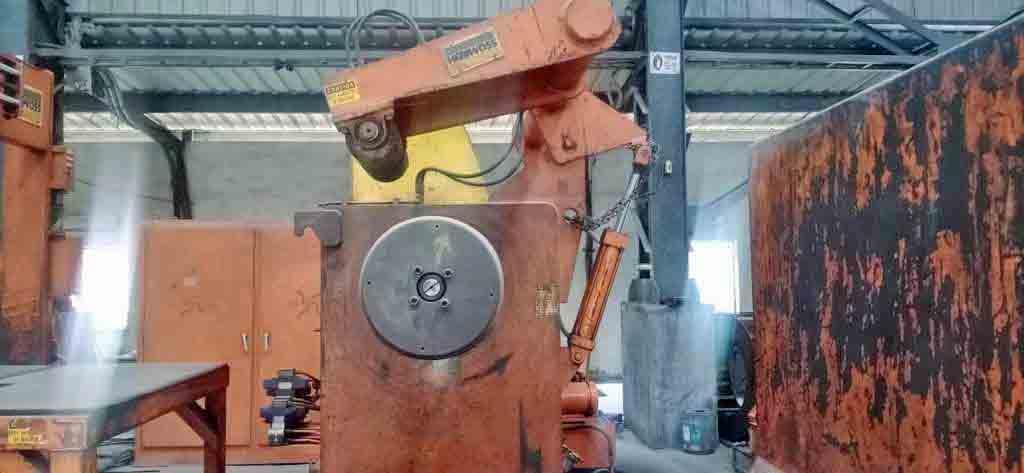

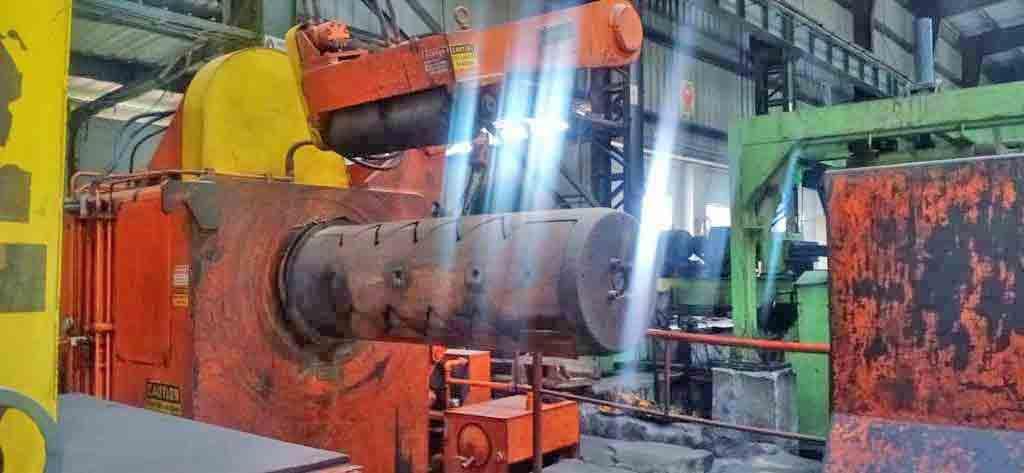

-Uncoiler:

  Hydraulic Expansion

  Pumpkin Tooth Drum

  Powered Holddown Roll

  Threading Drive

  Brake

  Sliding Base

-Automatic Edge Control:

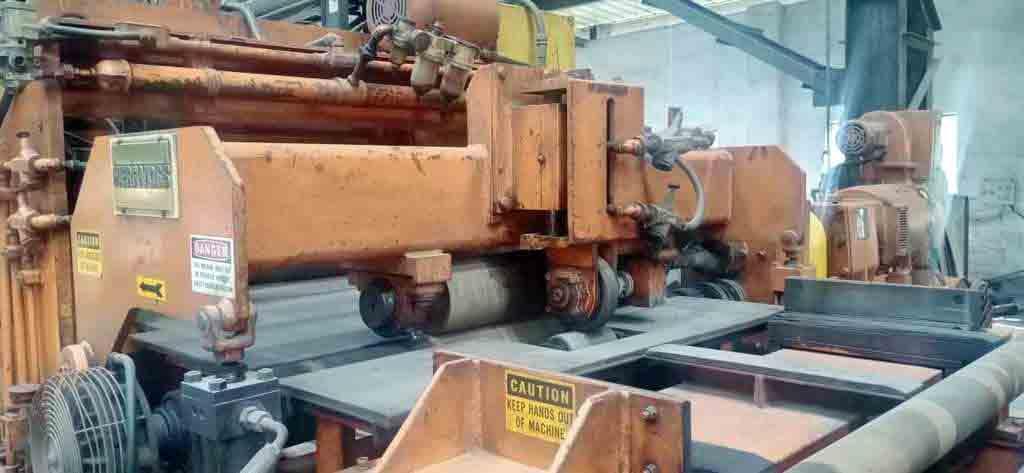

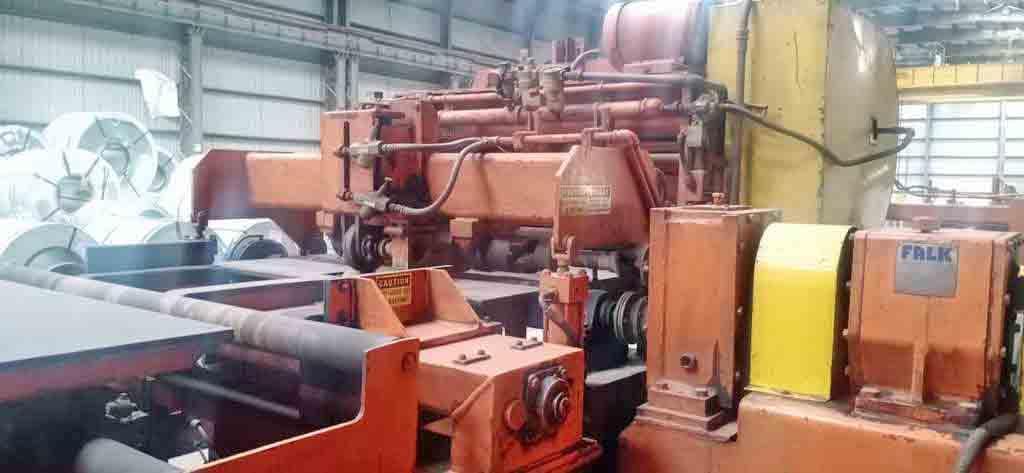

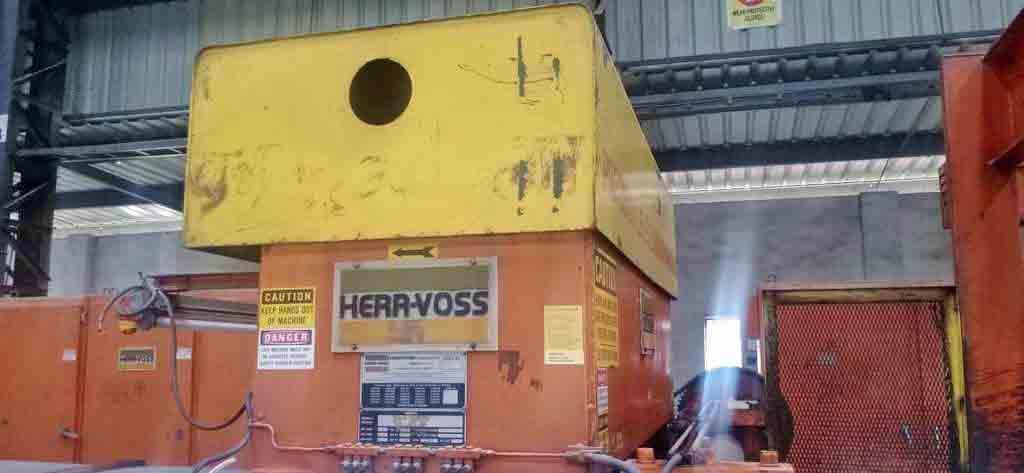

-Herr Voss Precision Leveler:

  19 Work Rolls

  0.875" Dia. Rolls

  9 Flights of Backups

  7 Flights Motorized

  Entry Driven Pinch Rolls

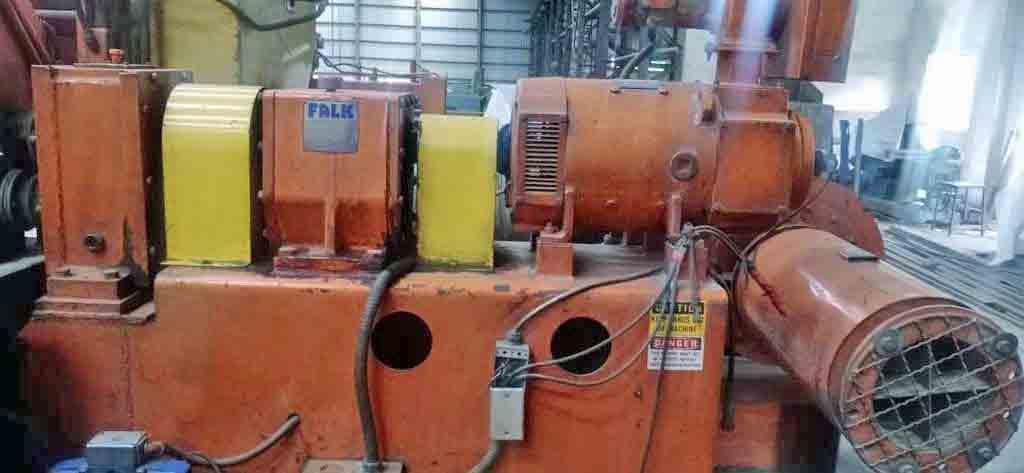

  DC Motor w/Blower

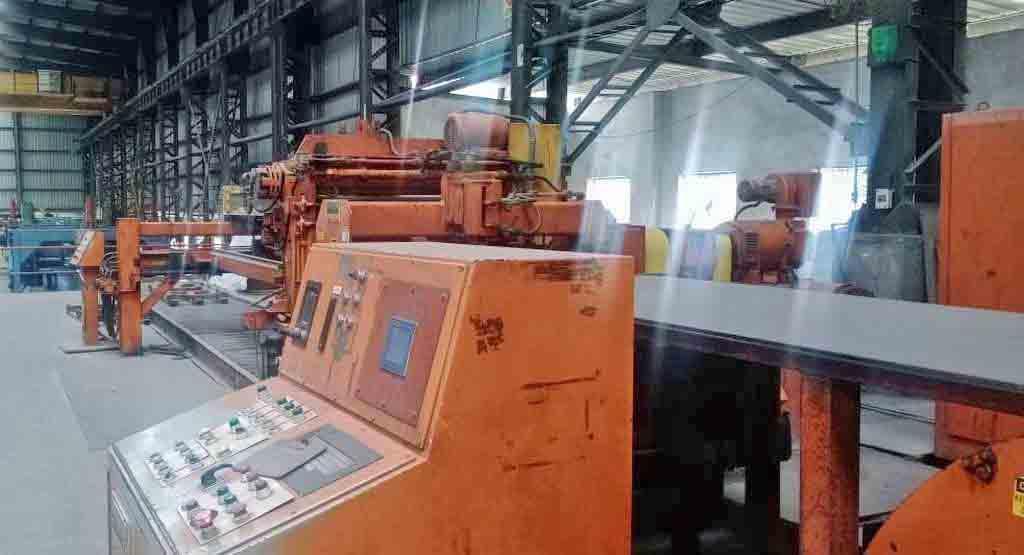

-Operators Panel with Joystick Controls:

-Looping Pit:

-Precision Roll Feed:

  Entry Side Guides

  DC Motor w/Blower

-High Speed Shear:

  AC Motor

  Air Clutch and Brake

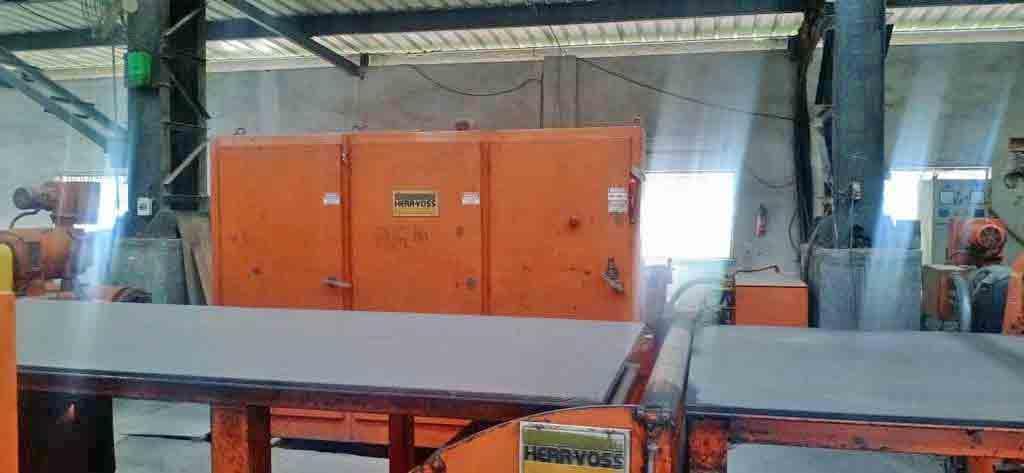

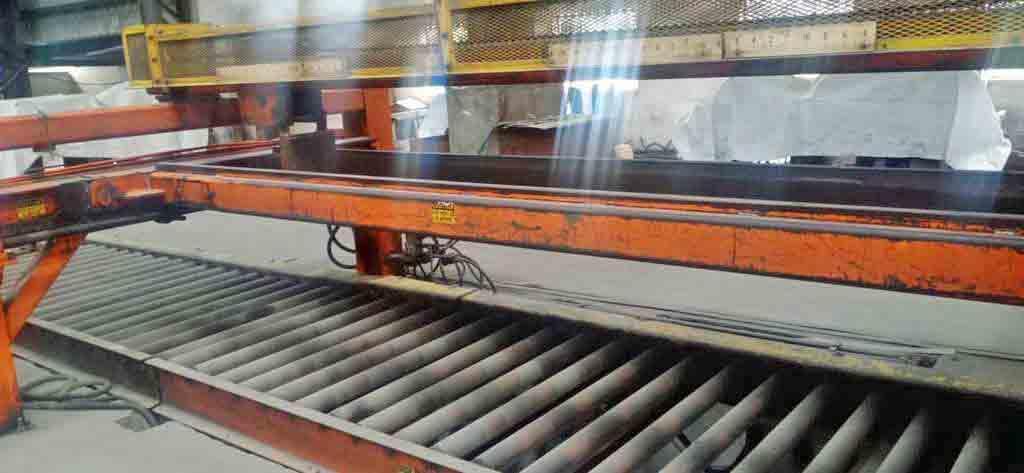

-Automatic Stacker:

  Powered Width Adjustment

  Powered Length Adjustment

  Powered Roller Conveyor

  End Discharge

-Discharge Conveyor:

  Powered Rolls

-Installed and under power; Europe
