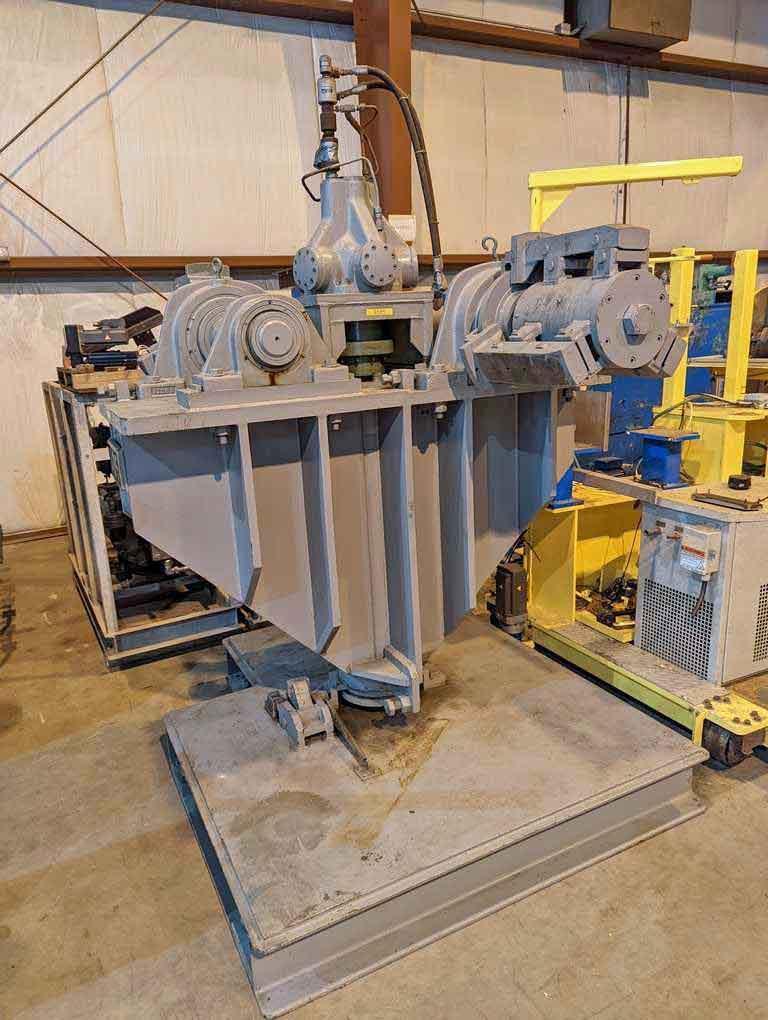

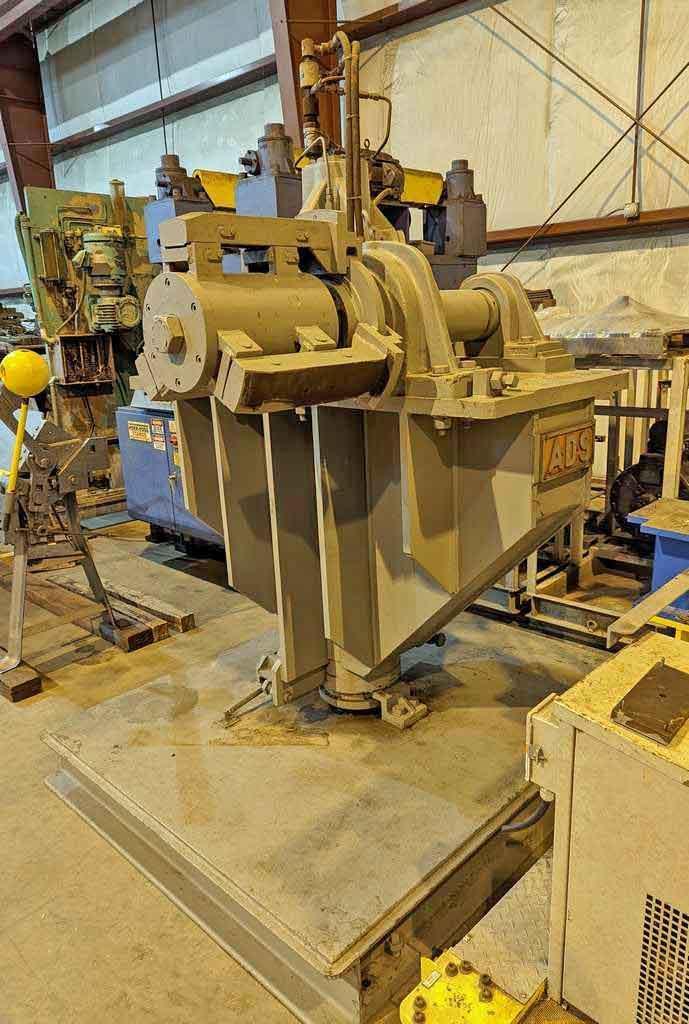

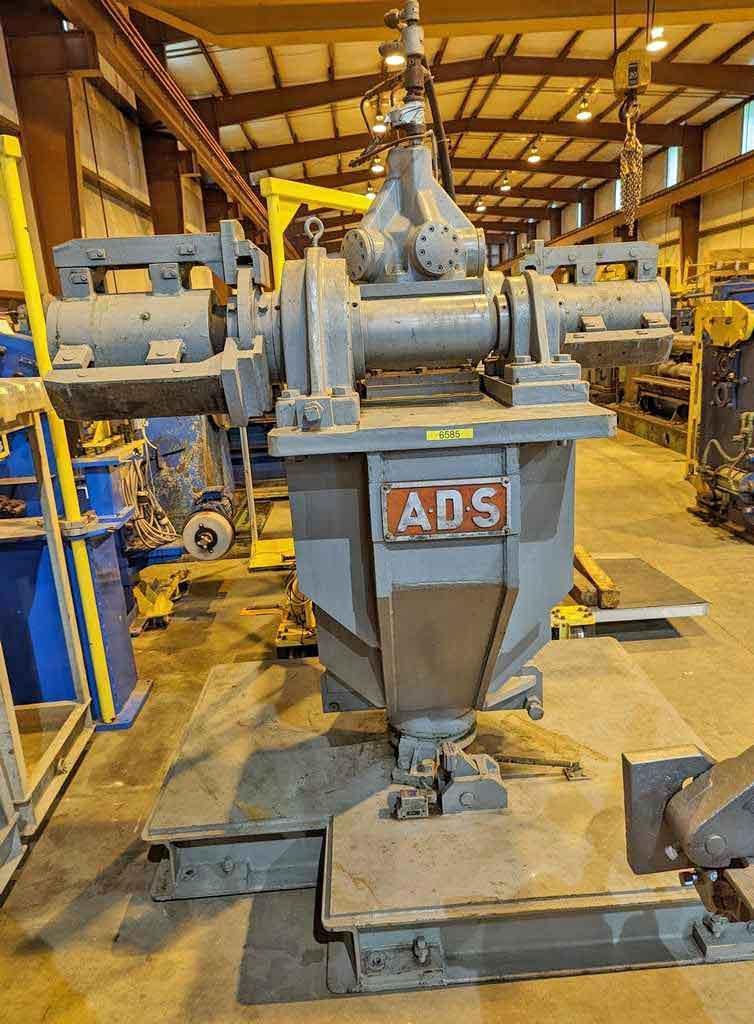

ADS Dbl-End Uncoiler

Coil Capacity:

 Max. Coil Weight:                 4,000 lbs. Each Arm

 Mandrel Face Width:               13"

 Expansion Range:                  19" - 20.5" (approx.)

 Maximum Coil O.D.:                96"

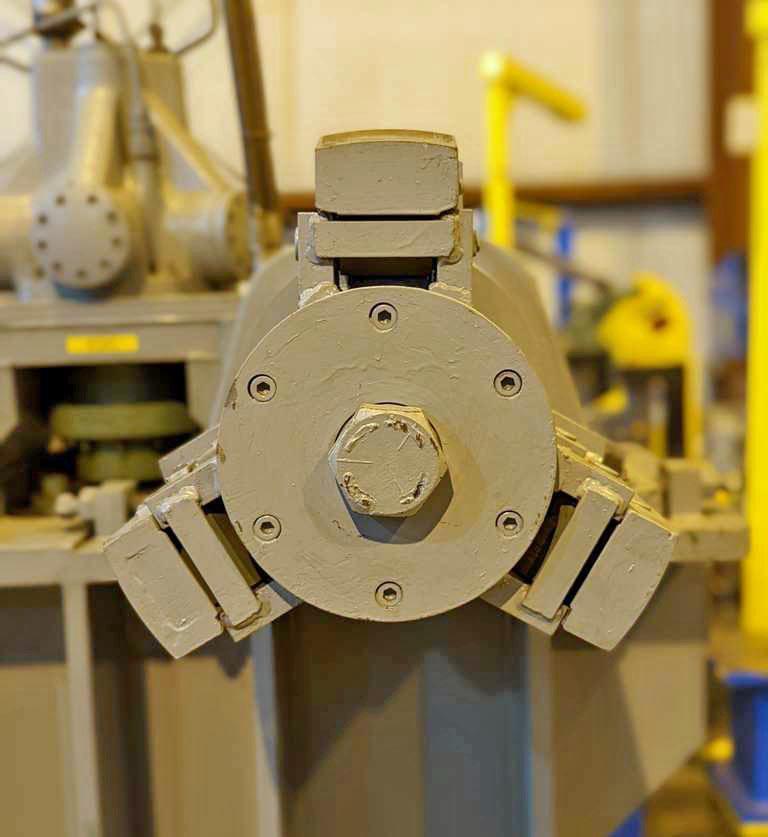

Manual Link Type Expansion

6" Dia. Main Shaft

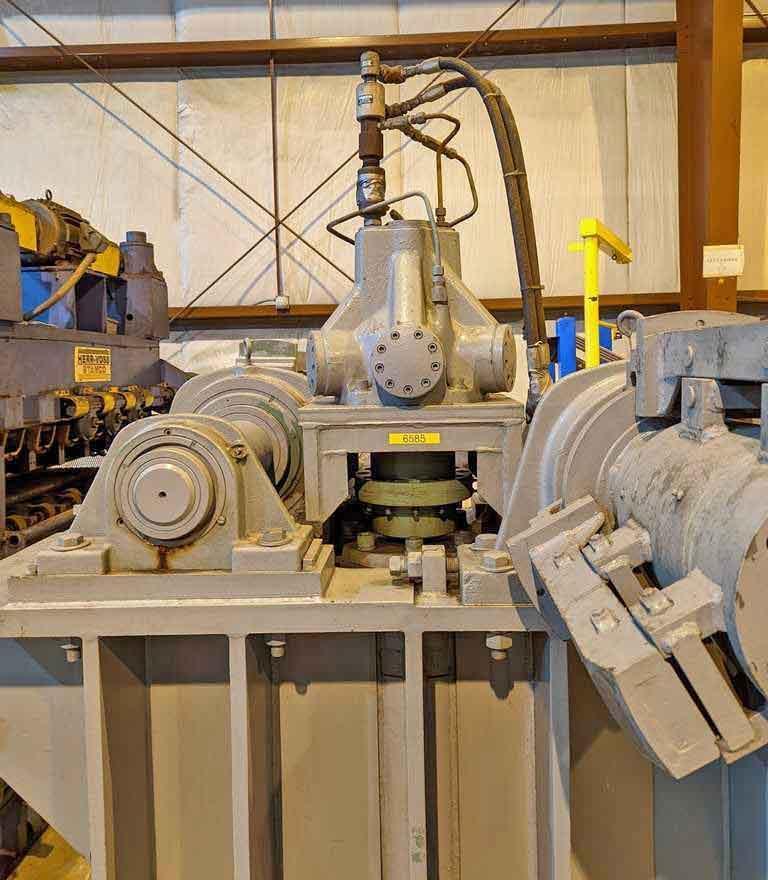

Powered Horizontal Rotation by Hydraulic Motor

Less Threading Drive

Less Brake

Passline Height: 62.5"

Overall Size: 72" L x 65" W x 95" High

In Storage:Toledo, OH
