Material Width: 6" Max.

Material Thickness: 0.250" Max.

Line Direction: Right to Left

Consisting of the following:

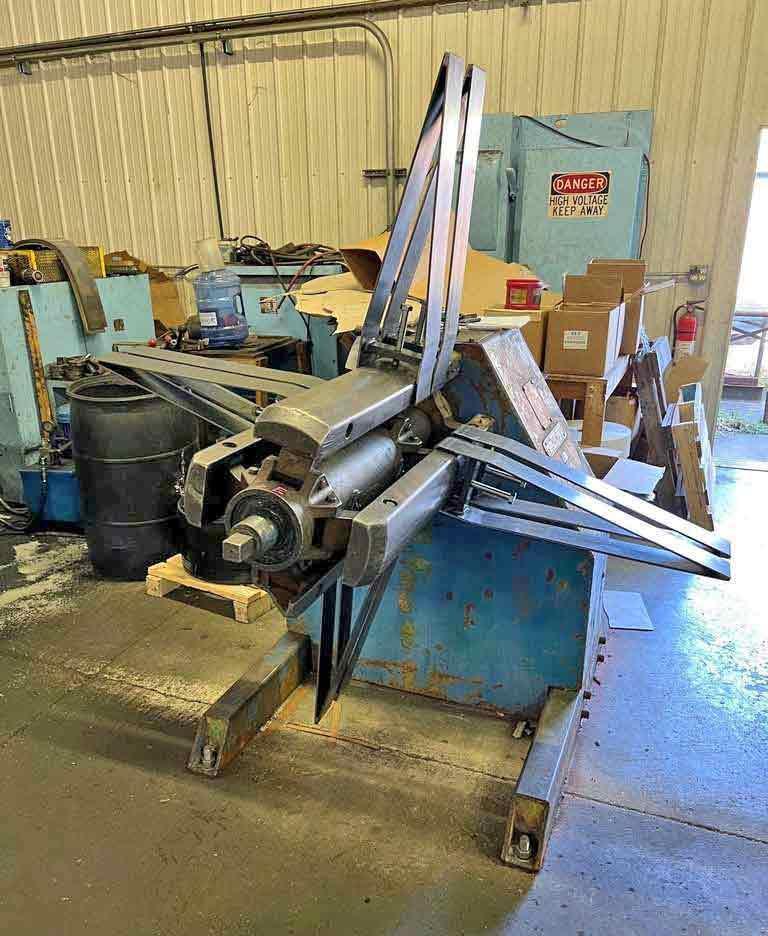

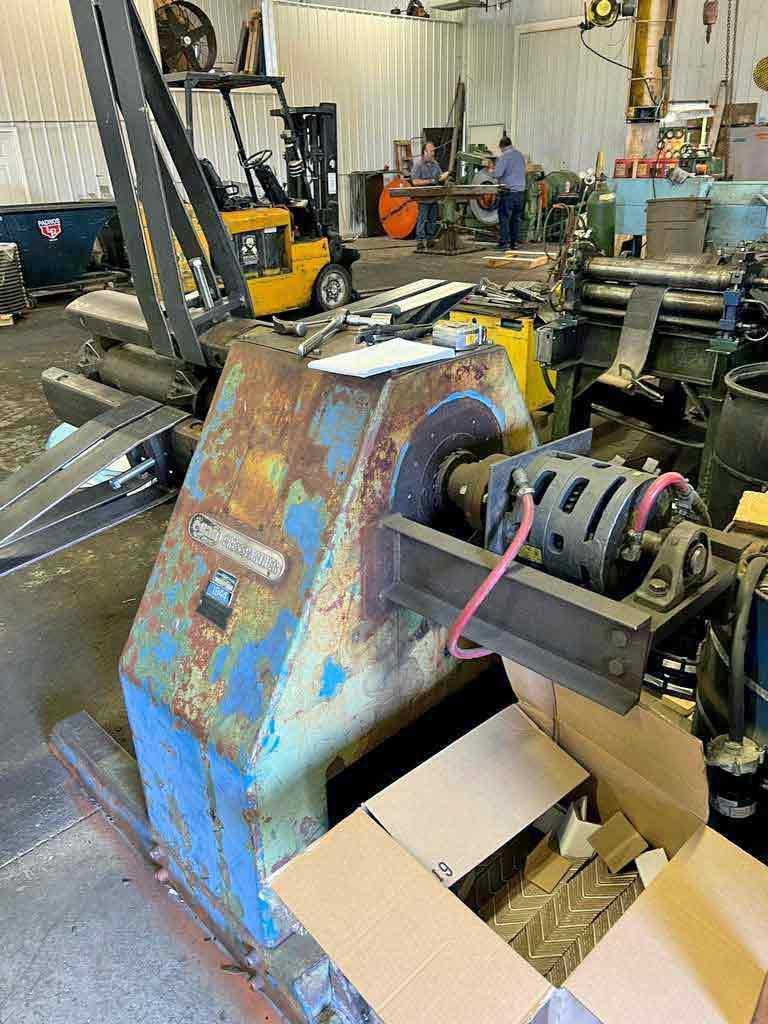

-Uncoiler:  Egan

  Model M601-24

  6,000# x 24" Capacity

  16" - 20" Expansion

  Manual Expansion

  Wichita Water Cooled Brake

  4 Sets of Keepers

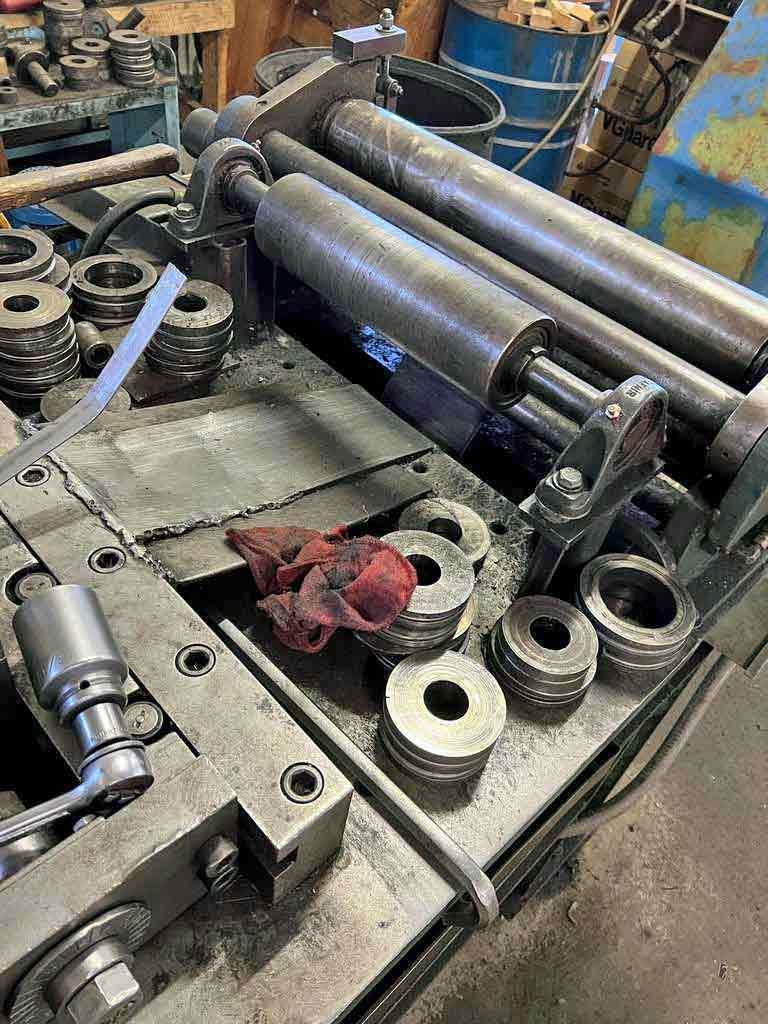

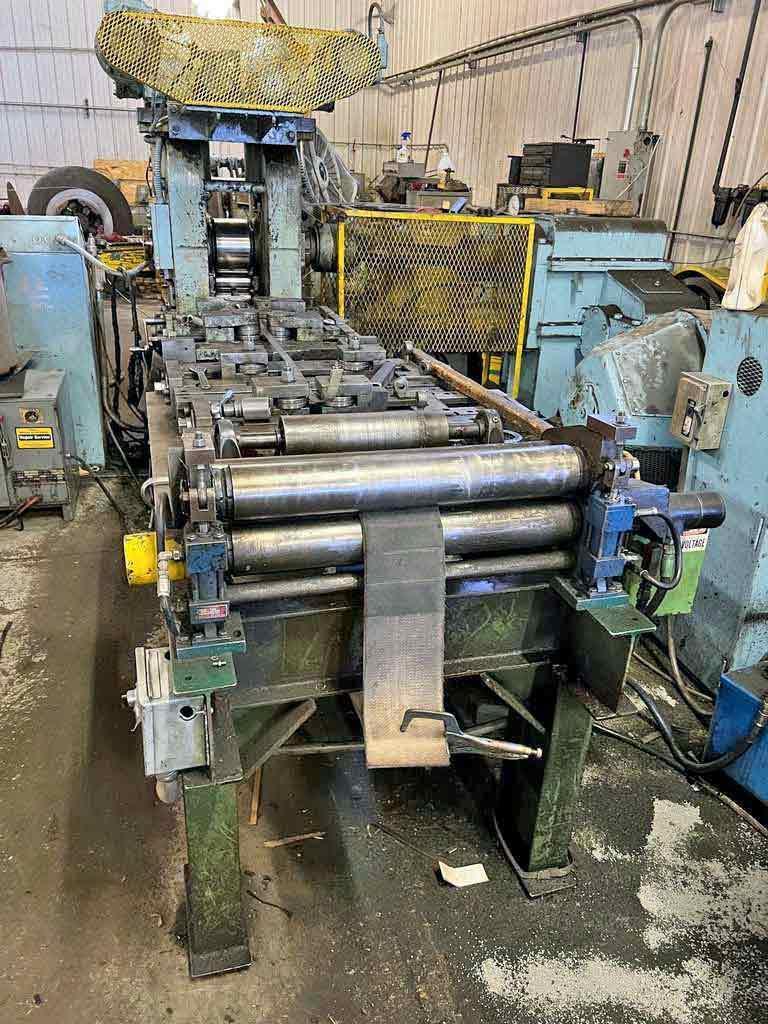

-Entry Table:

  Entry Pinch Rolls, Hydraulic Motor Driven

  Entry Passline Roll

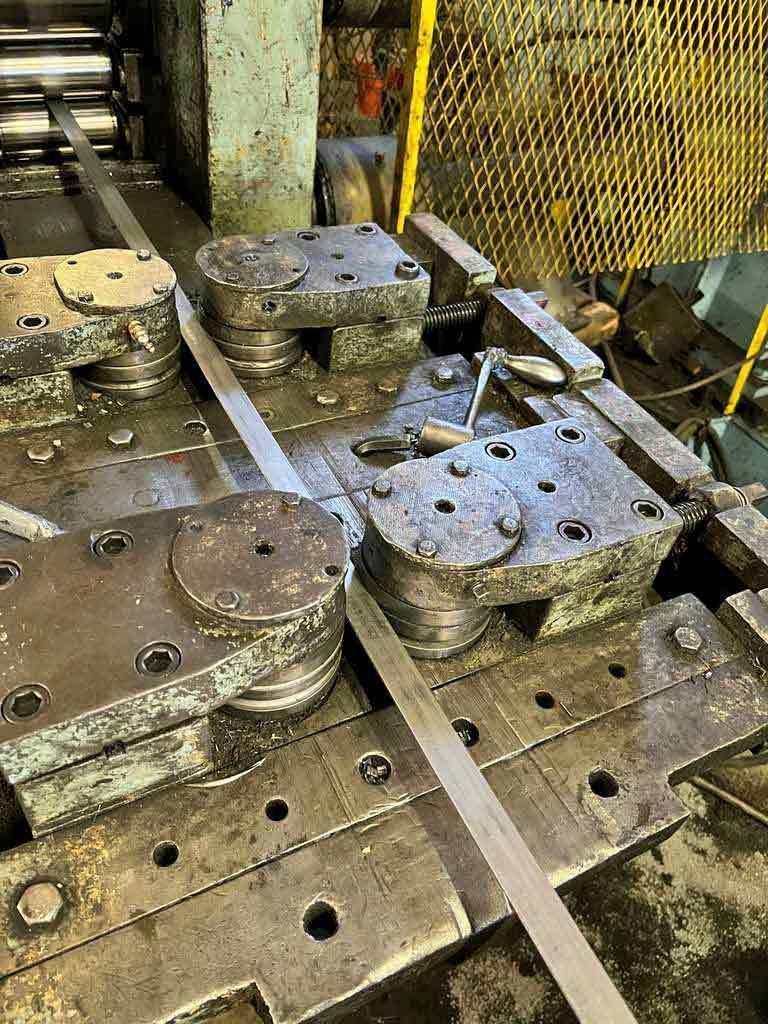

  (4) sets of opposed Edging Dies

    Manual adjustment

  Dies for up to 0.250" thick material

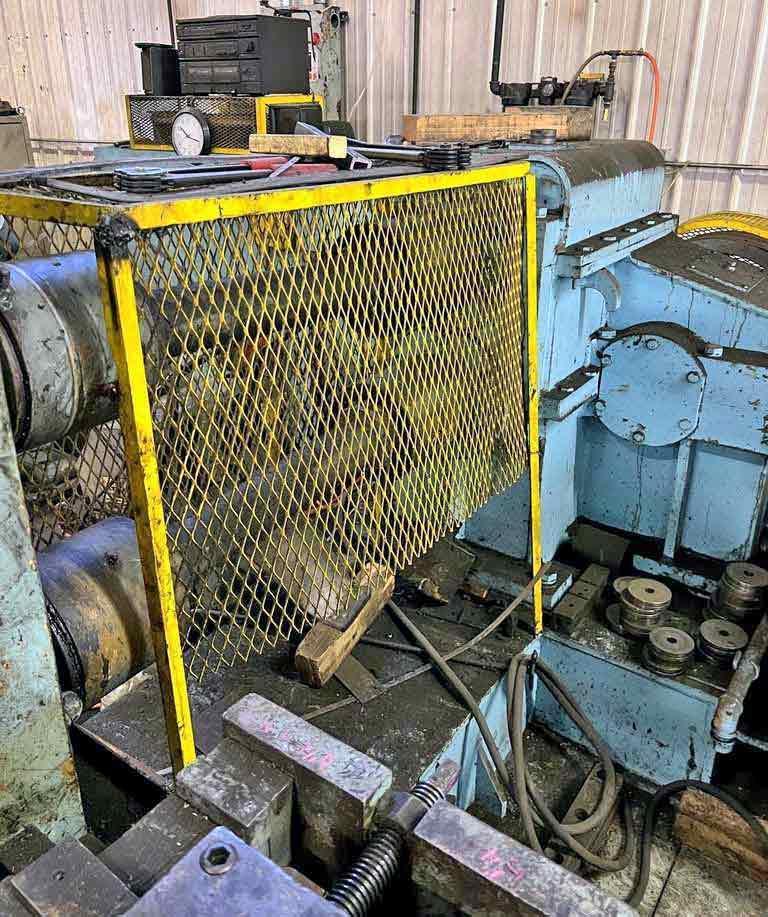

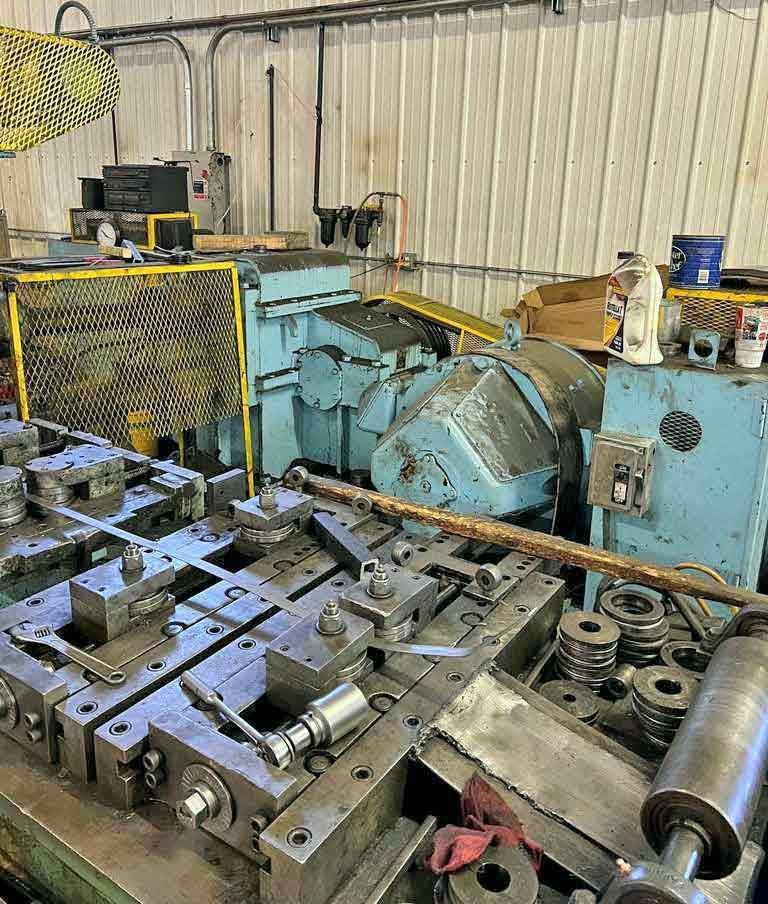

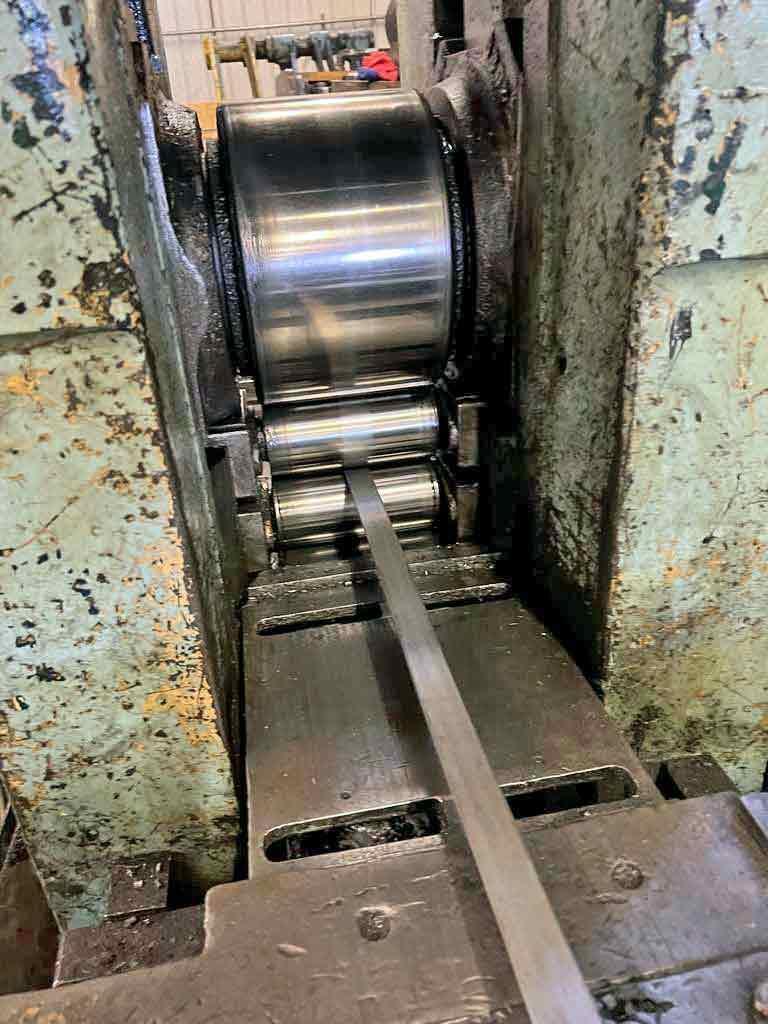

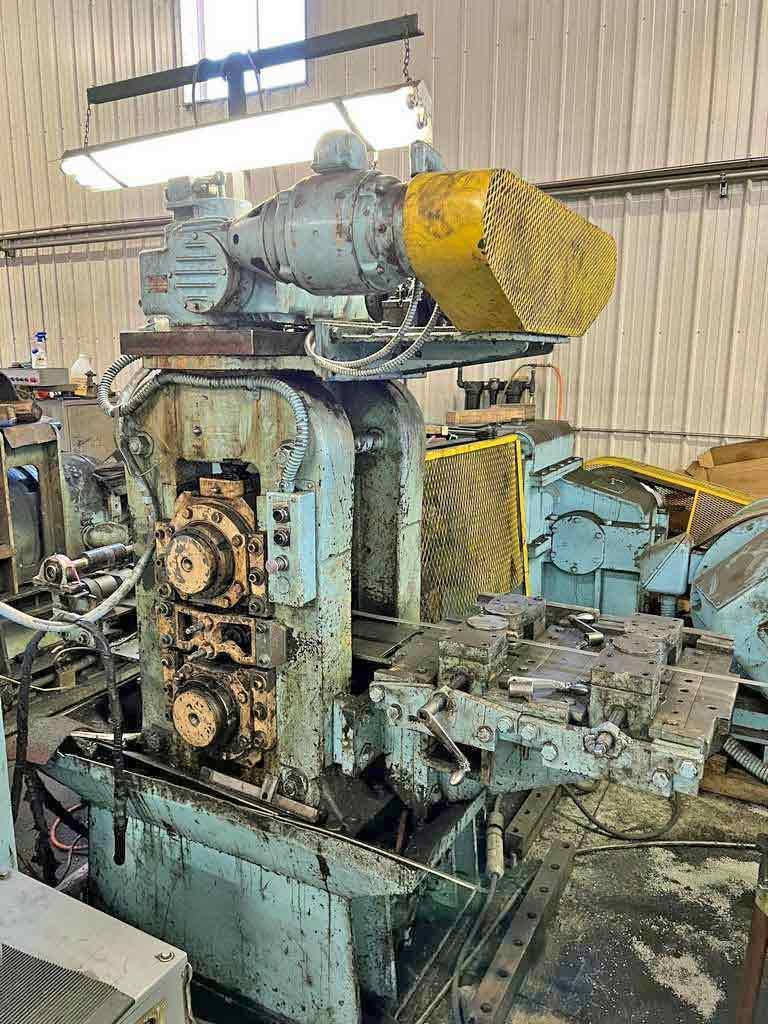

-4 HI Cold Mill:

  6.5" Face x 3" Diameter Work Roll

  6.5" Face x 9" Diameter Back-Up Roll

  Independent Electro Mechanical Screw Downs

  Driven Back-Up Rolls

  60 HP DC Motor with Drive, 300 RPM base speed

  Belt Driven to H&S reducer/pinion stand w/8.8:1 ratio

  Includes 10 Sets of Work Rolls

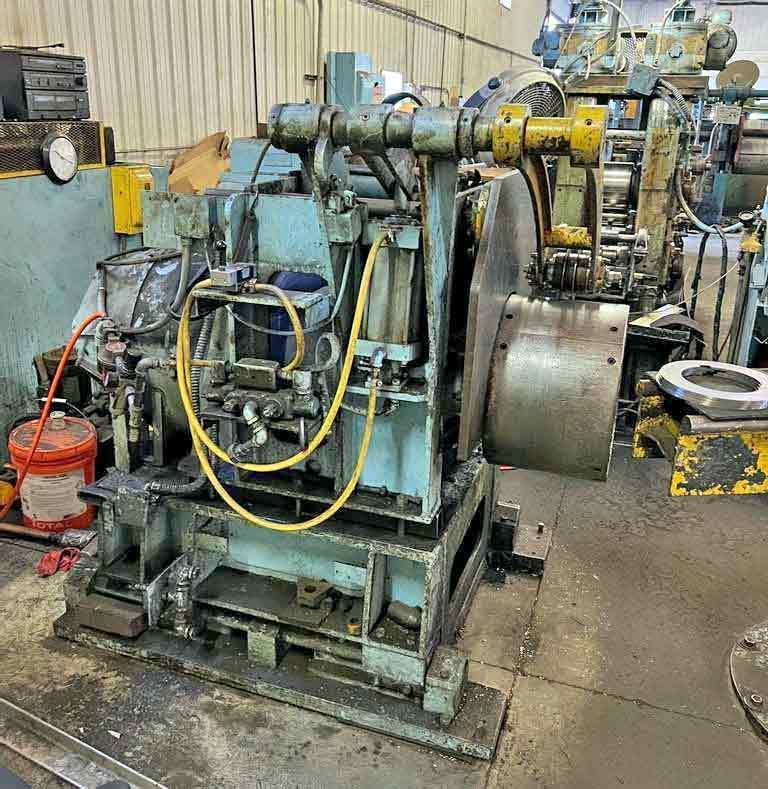

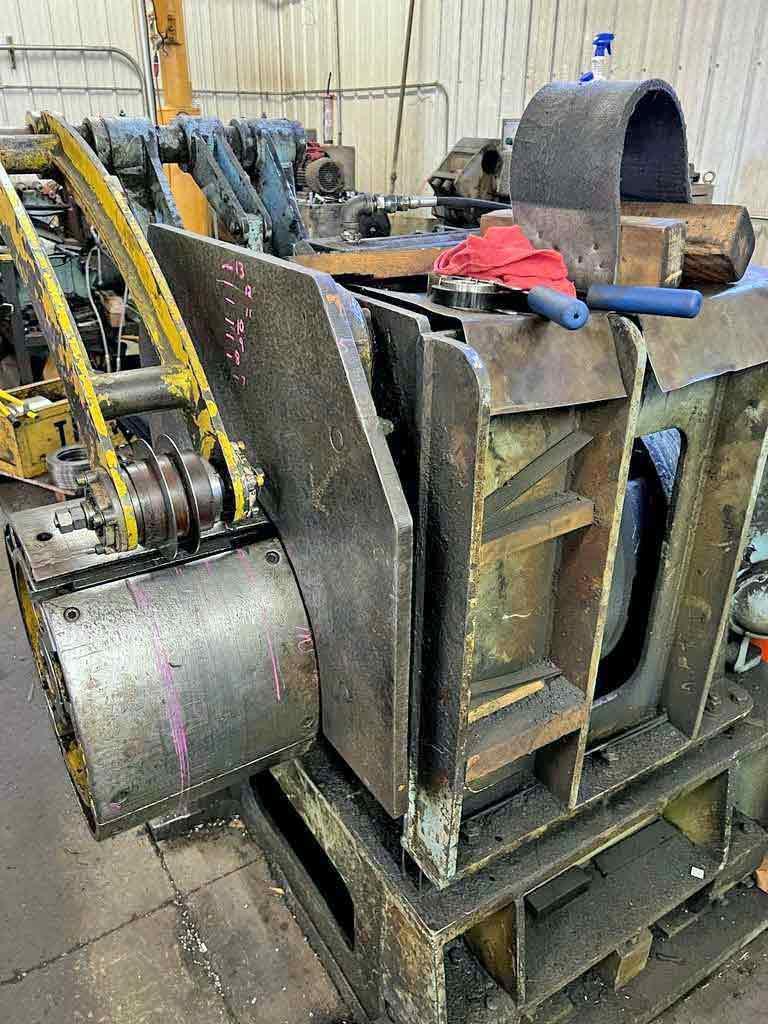

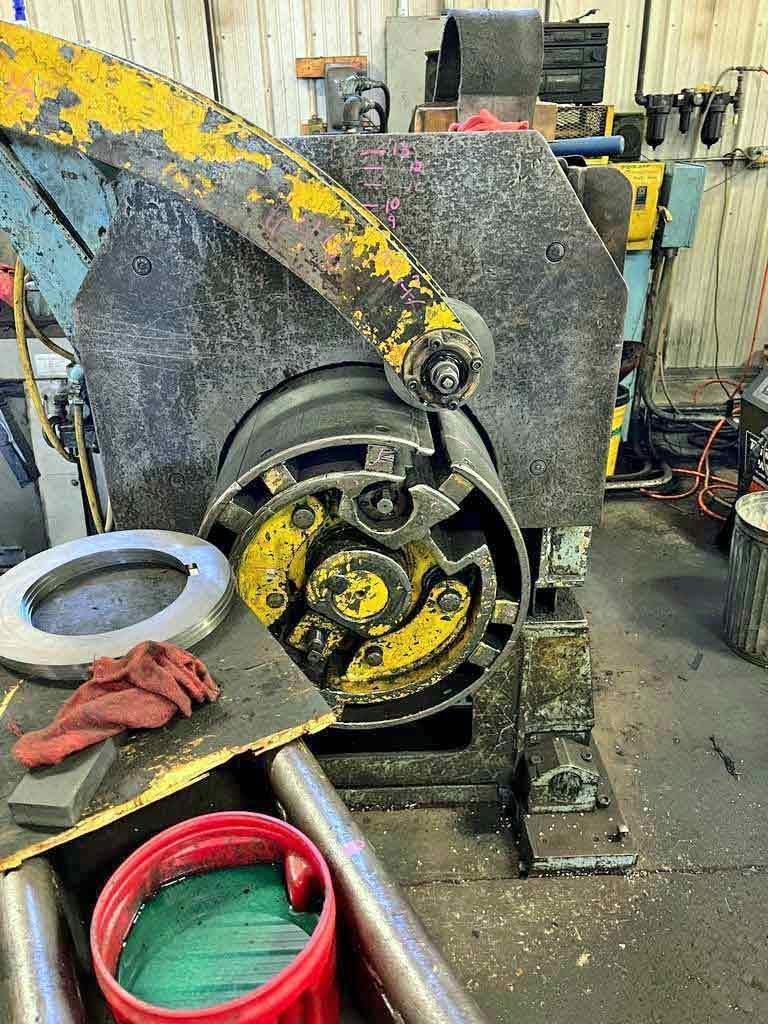

-Recoiler:  Yoder

  6,000# Capacity

  16" Dia. Drum with 20" Pads

  Manual Clamp and Expansion

  Hydraulic Expansion

  Overarm Separator

  Extra Overarm Tooling Bar

  25 HP DC Motor w/Blower

  Gear Reducer, 52 to 168 RPM output

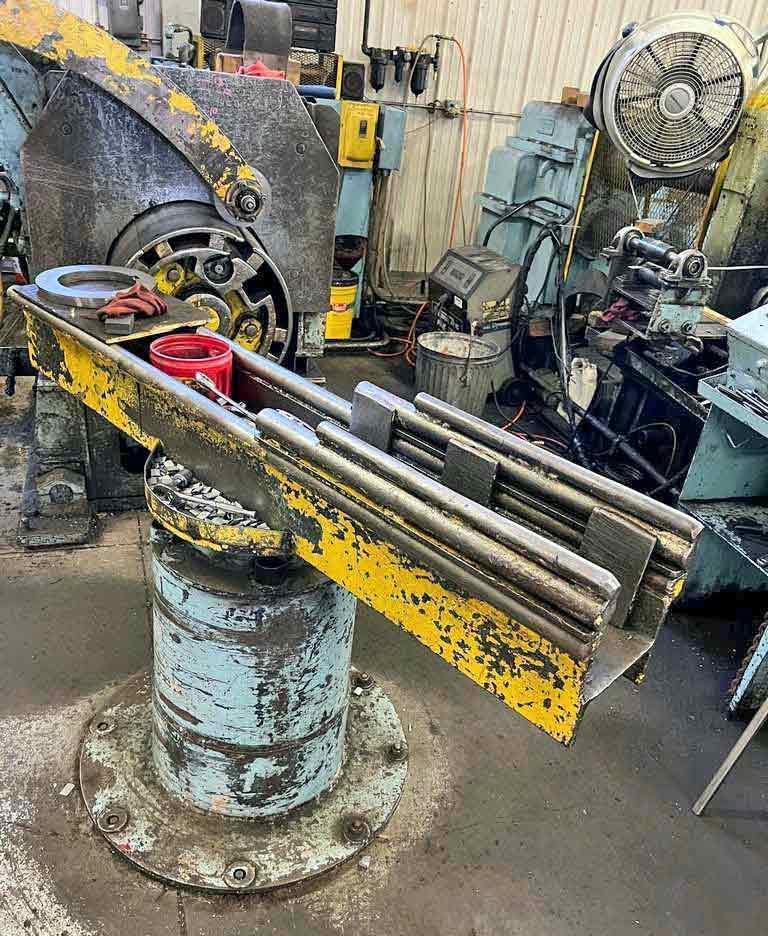

-2 Arm Turnstile:

  One Arm for 16" I.D.

  One Arm for 20" I.D.

  Manual Rotation

  Less Pushoff

-Operators Control Panel:

-Line is installed and running
