Specifications
Equipped With

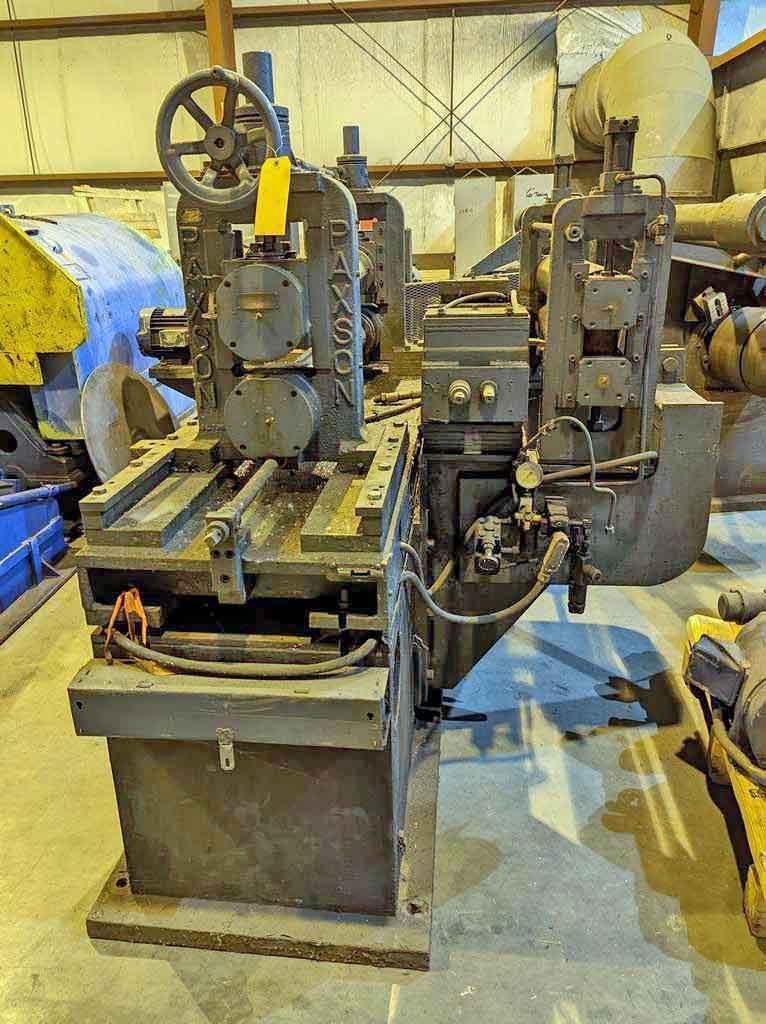

MAKE ..................................... PAXSON SLITTER HEAD
DIAMETER ................................. 5.00" INCHES
FACE ARBORS .............................. 37" INCHES
ENTRY DRIVEN PINCH ROLLS ................. YES
ENTRY SIDE GUIDES ........................ YES ( MANUAL ADJUSTMENT)
PARALLEL ARBOR ADJUSTMENT ................ YES

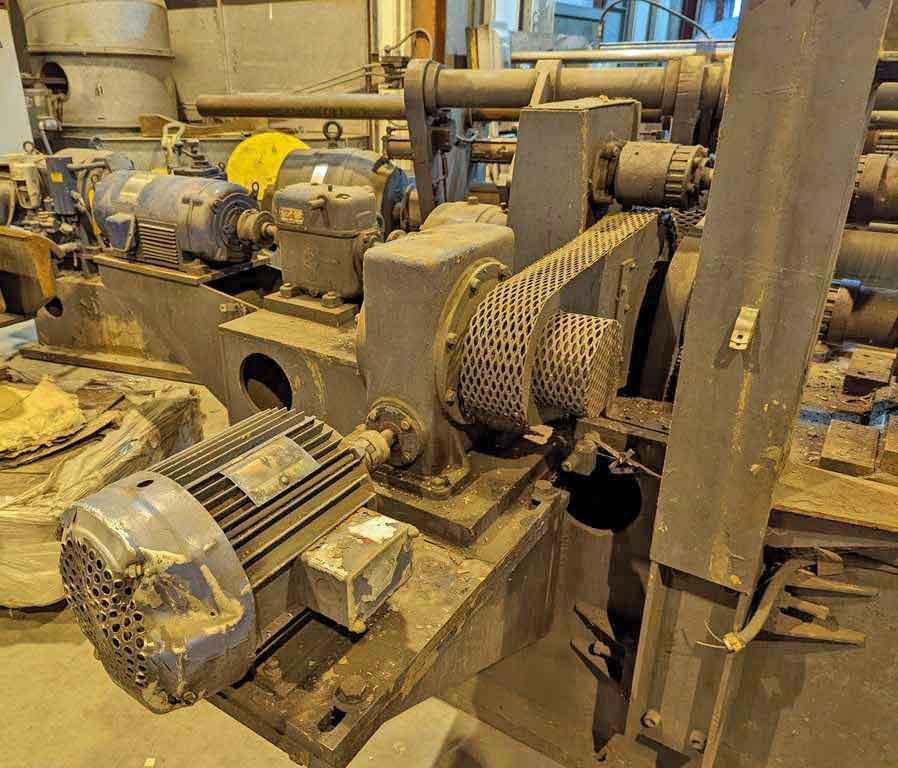

AC MOTOR THREADING DRIVE ................. 7.5 HP 1745 RPM
VOLTS .................................... 230/460

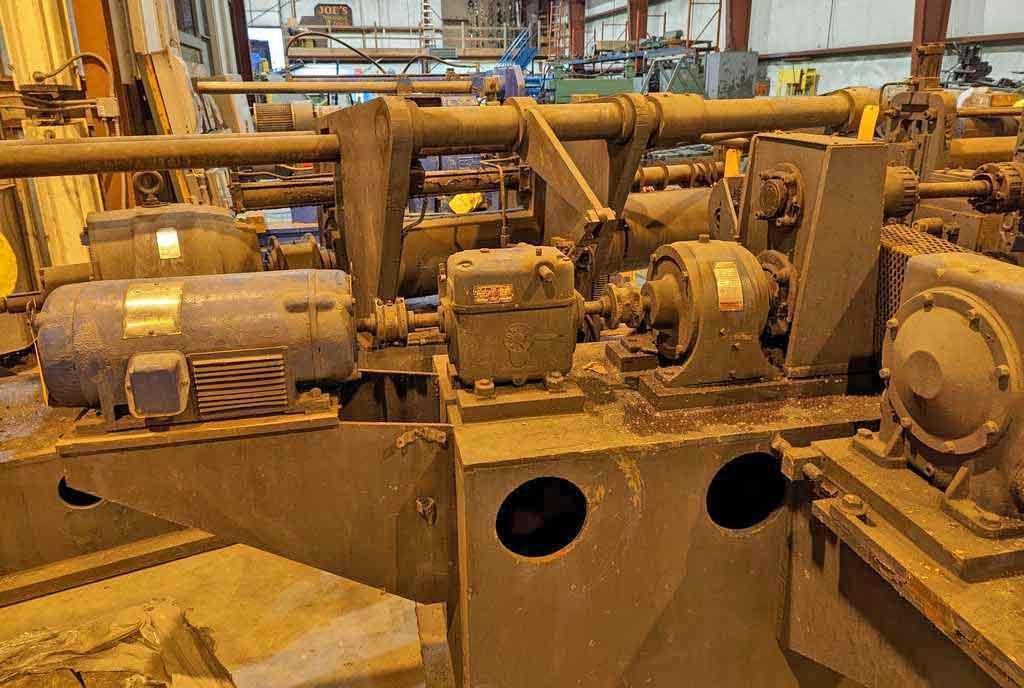

EATON DYNAMATIC AJUSTO SPEDE DRIVE ....... 5 HP 1755 RPM
MODEL DAU 512 TRANSMISSION ............... 1:1 RATIO AND 3:1 RATIO
LINE DIRECTION ........................... LEFT TO RIGHT
OVERALL SIZE ............................. 180" INCHES LENGTH X 94" INCHES WIDTH X 78" INCHES HIGHT
WEIGHT .............................................................. 12,000 LBS
