RUESCH I.D. NO.: ........... N 2236
RUESCH MODEL NO.: .......... 146
MAX. WIDTH: ................ 36"
GAUGE: ..................... 0.125" MAX.

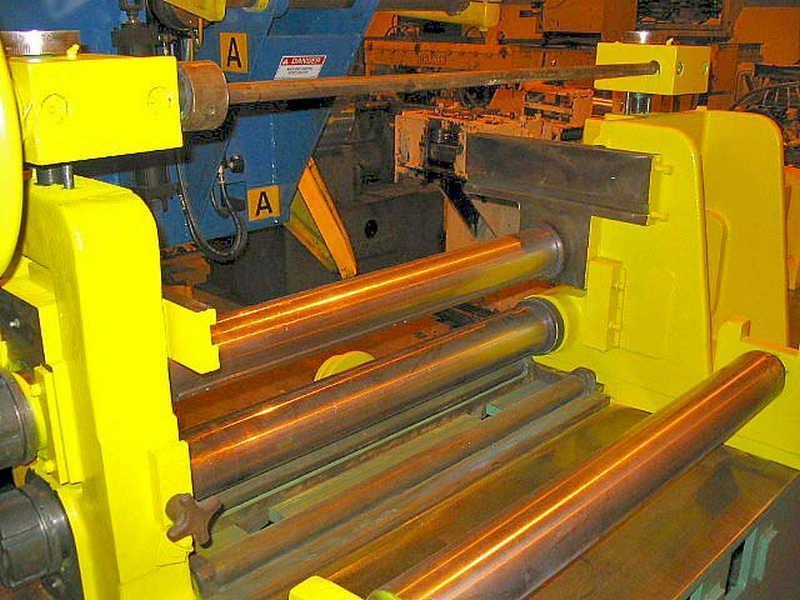

ARBOR SIZE: ................ 4.125" DIA. x 37.385" FACE
PARALLEL ADJUSTMENT TO TOP ARBOR
THE SLITTER IS CURRENTLY SET UP WITH RUBBER STRIPPER RINGS
AND IS READILY CONVERTIBLE TO A RING SLITTER. THERE IS AN
EXIT PASS-LINE ROLL ATTACHED TO THE BASE.
PASSLINE HEIGHT: APPROX. 43"

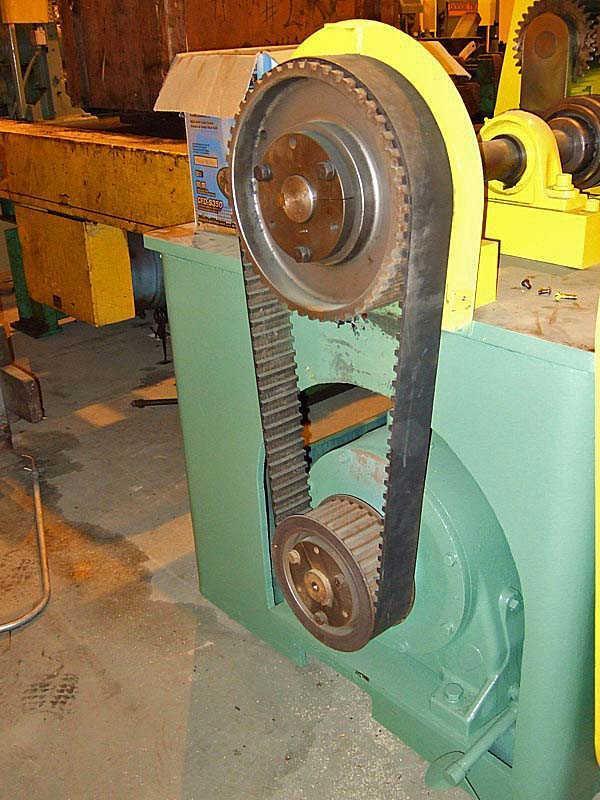

SLITTER DRIVE: EATON ADJUSTO-SPEED MODEL MD 21002-0905,
10 HP WITH CLUTCH/BRAKE, TIMING BELT DRIVE OUTPUT TO
SLITTER INPUT SHAFT. MAX. R.P.M. 1700,
MIN. R.P.M. 100, 220/440 VOLTS.
TOOLING: (4) KNIVES - 6.385" O.D. x 0.250" WIDE
MISC. SPACERS W/RUBBER RINGS
APPROX. SIZE: 125" L x 46" W x 69" HIGH
