Paxson Driven Loop Slitting Line

Line Direction: Right to Left

Consisting of the following:

-Entry Coil Car:

  Pit Type

  Self-Contained Hydraulics

-Uncoiler:

  Hydraulic Expansion

  16" - 20" Coil I.D. Range

  Sliding Base

  Wichita Brake

  AC Motor Threading Drive

-Peeler Table:

  Entry Passline Rolls

  Entry Side Guides

-Slitter Heads:

  (2) Heads (Crane Removal Type)

  Parallel Arbor Adjustment

  DC Motor Drive w/Blower

  Shimless Tooling

-Pit Cross Over Table:

-Tension Stand: Royalton

  Combination Roll and Pad Type

  Entry Separator Tooling Bar

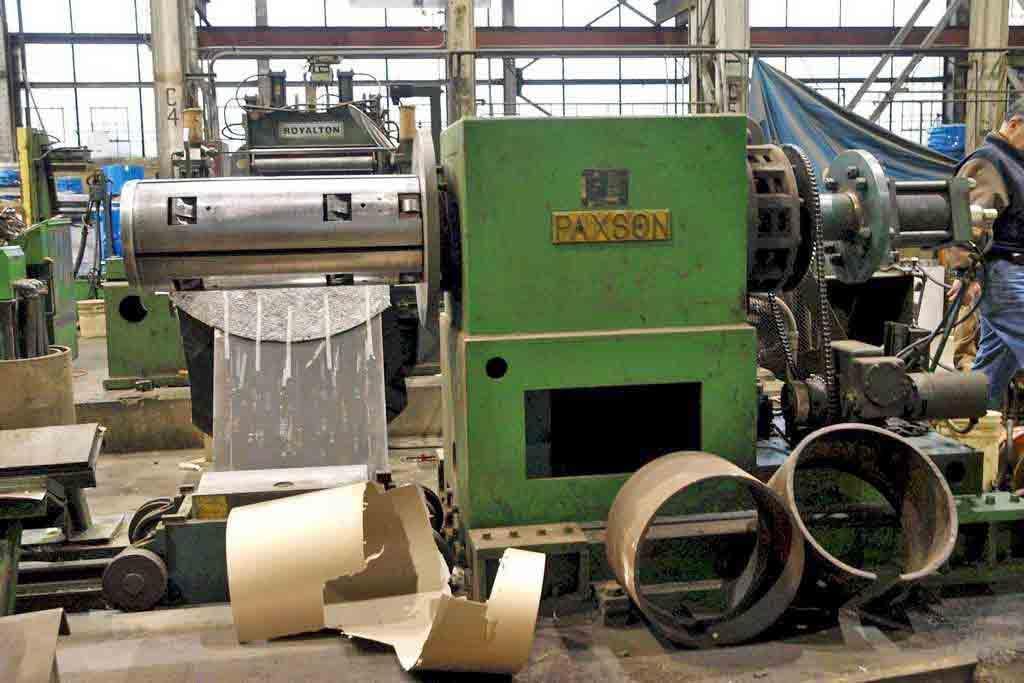

-Recoiler:

  16" Dia. Drum with Pads for 20" Dia.

  Manual Clamp and Expansion

  58" Max. O.D.

  Hydraulic Pushoff

  Overarm Separator

  DC Motor w/Blower

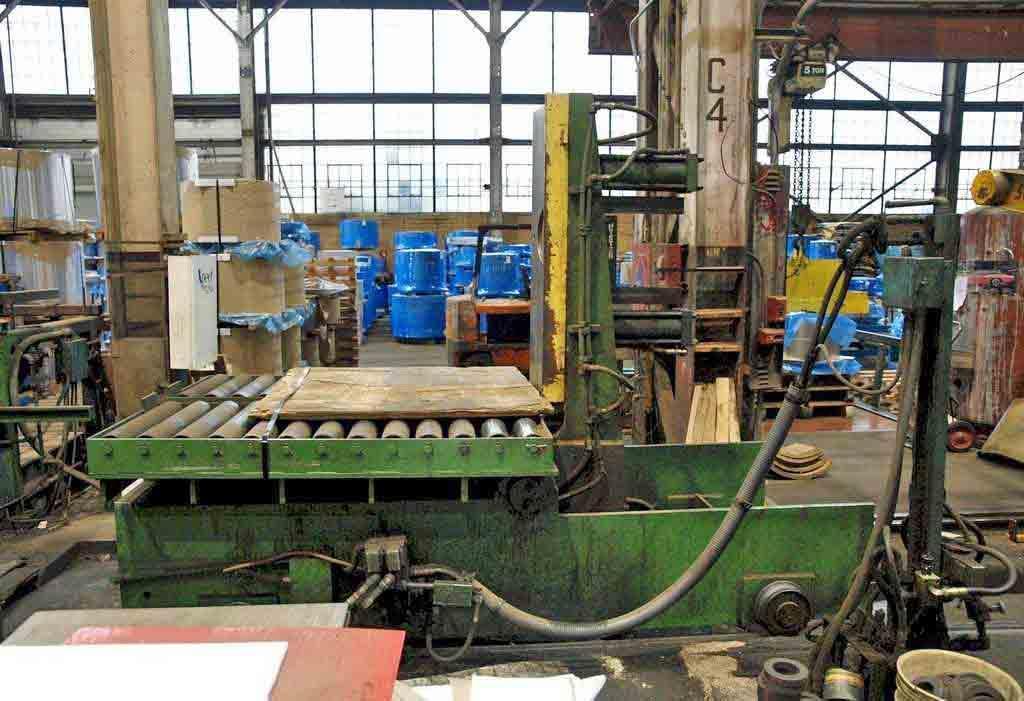

-Exit Coil Car/Upender:

  Hydraulic Cylinder for Tipping

  "V" Cradle with Twin Hydraulic Cylinder Lift

  Conveyor Rolls on Flat side

  Hydraulic Motor Driven for Traversing

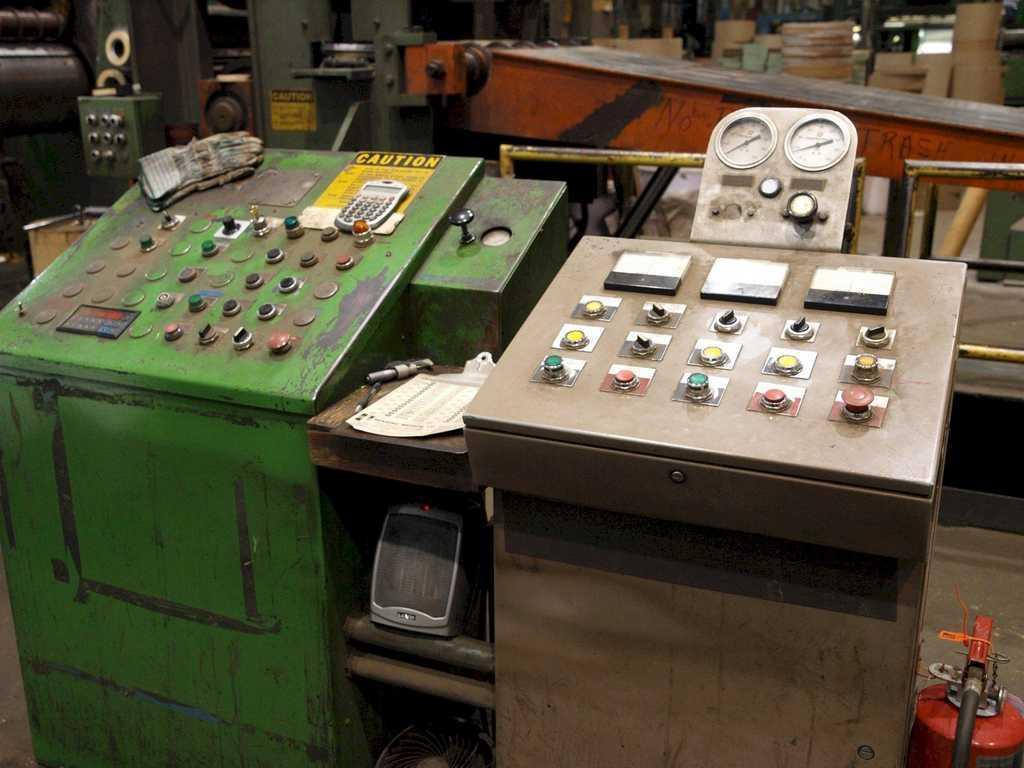

-Operators Control Panels:
