Specifications
Equipped With

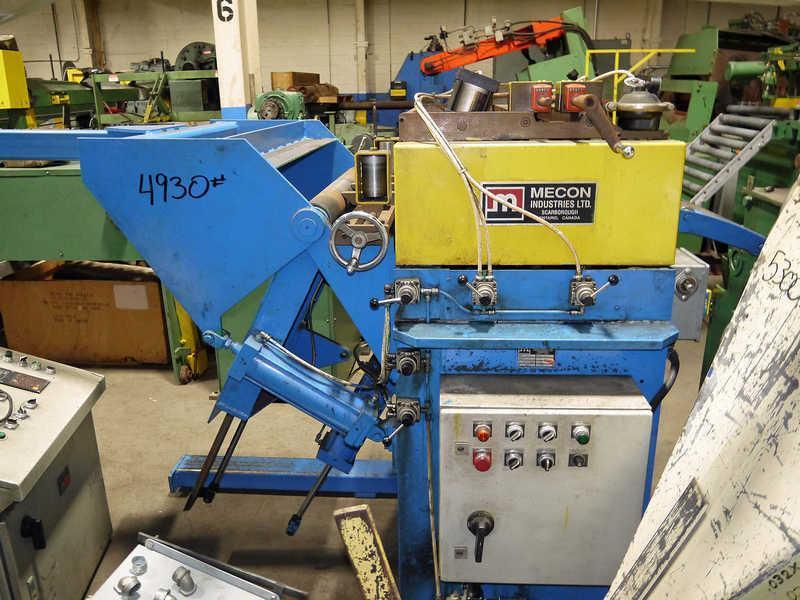

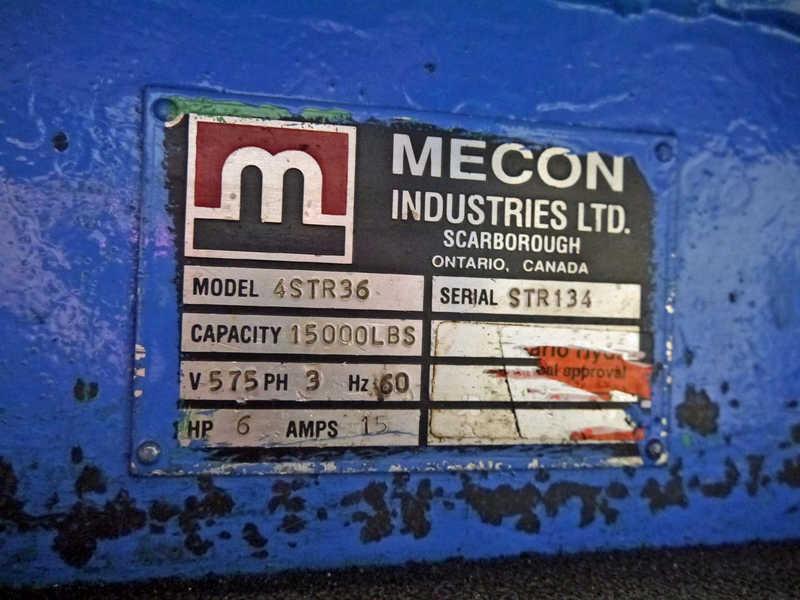

MAKE ................................ MECON
CAPACITY ............................ 36" INCHES X 0.200" INCHES X 30,000 PSI
CAPACITY ............................ 36" INCHES X 0.150" INCHES X 60,000 PSI
CAPACITY ............................ 36" INCHES X 0.110 INCHES X 90,000 PSI
ENTRY PEELER & HOLDOWN ROLLER ....... YES
ENTRY EDGE GUIDS .................... MANUAL ADJUSTMENTS
ENTRY PINCH ROLLS ................... 3.25" INCH DIAMETER X 35" INCH FACE (2 SETS)

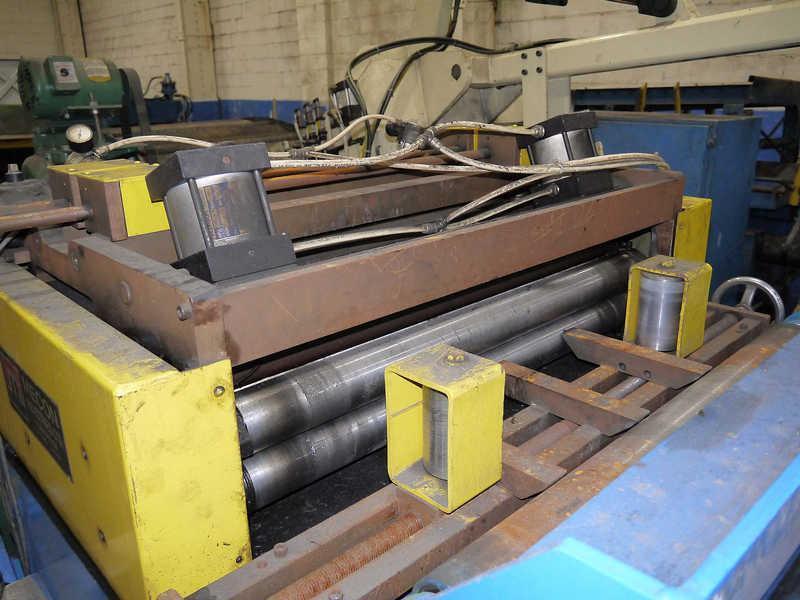

WORK ROLLS .......................... 7 (3 OVER 4)
EXIT PINCH ROLLS .................... 3.25" INCH DIAMETER X 38" INCH FACE
LOOP CONTROL ........................ SONA-TROL
LINE DIRECTION ...................... LEFT TO RIGHT
GEAR REDUCER ........................ 20:1 RATIO
OPERATING MANUAL AND DRAWINGS ....... YES
OVERALL SIZE ........................ 123" LENGTH X 70" INCH WIDTH X 78" INCH HIGH
APPROX WEIGHT ....................... 4,930 LBS
