32" x 0.078" x 11,000# Atkin Cut To Length Line STOCK#3205

Brand
ATKIN

Model

Stock #

Condition
Good

Year
1996

Location
Toledo, Ohio
United States

Specifications

Max Weight 11000 pounds
Max Coil Width Capacity 32 inches
Max Stock Thickness Capacity At Full Width .078 inches

Equipped With

Materials:                  Pre-Painted Steel, Pre-Painted Aluminum
Material Width Range:       6" - 32"
Thickness Range:            0.009" - 0.078" @ 70 - 100 FPM (Approx.)
Thickness Range:            0.009" - 0.039" @ 140 FPM
Maximum Tensile:            50,000 PSI (Approx.)
Maximum Yield:              50,000 PSI (Approx.)
Maximum Coil Weight:        11,000#
Coil I.D.:                  16" - 20"
Maximum Coil O.D.:          60"
Line Direction:             Left to Right
Pass Line:                  42"
Length Accuracy:            0.0078"
Sheet Length:               4 - 78"
Max. Stack Height/Weight:   20" / 2,200#
Mode of Operation:          Loop / Grip Feed
Line Speed:                 0 - 140 FPM
20" Blanks:                 65 per minute
78" Sheets:                 17 per minute

Consisting of the following:

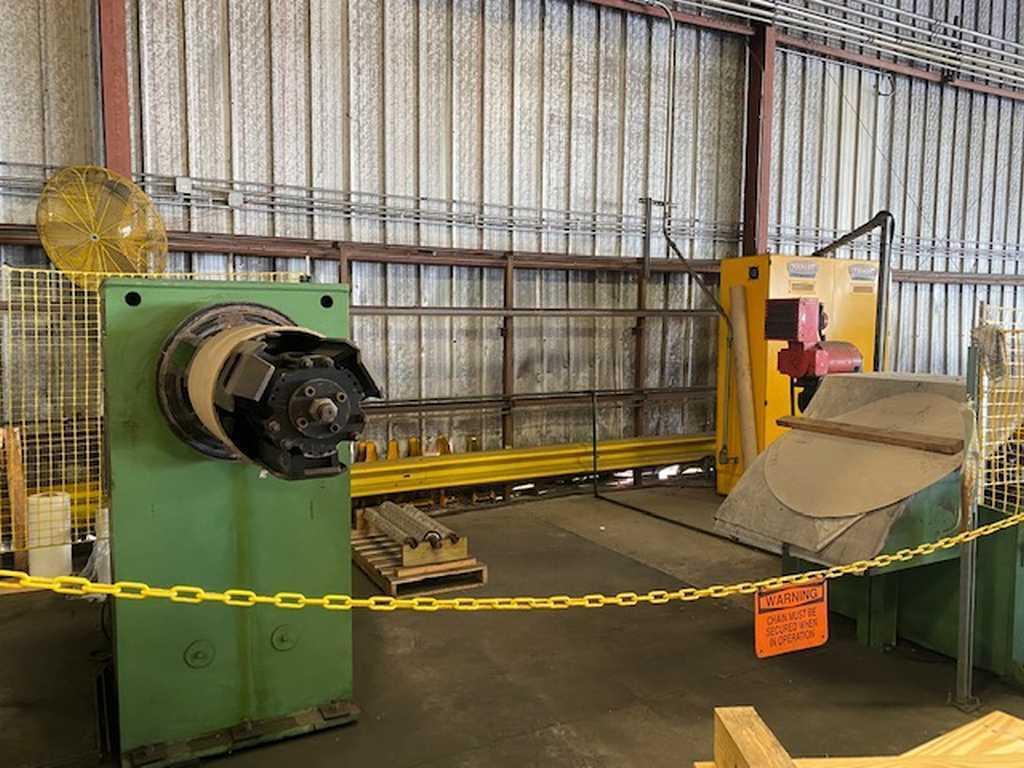

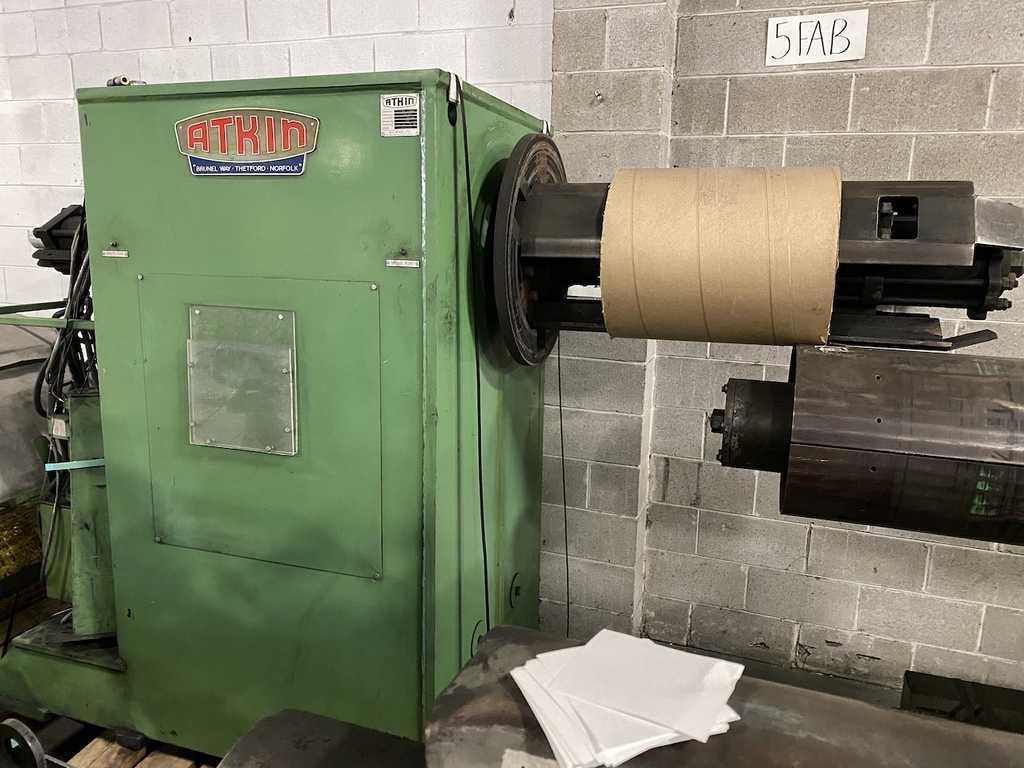

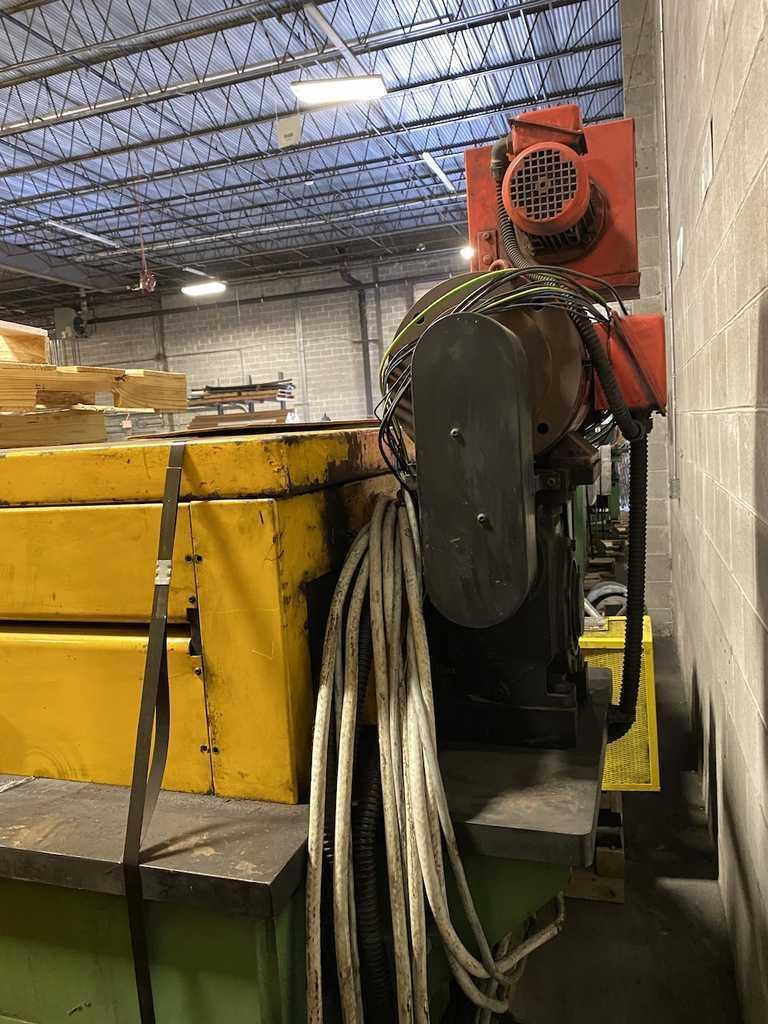

-Uncoiler:
  Single Mandrel Type

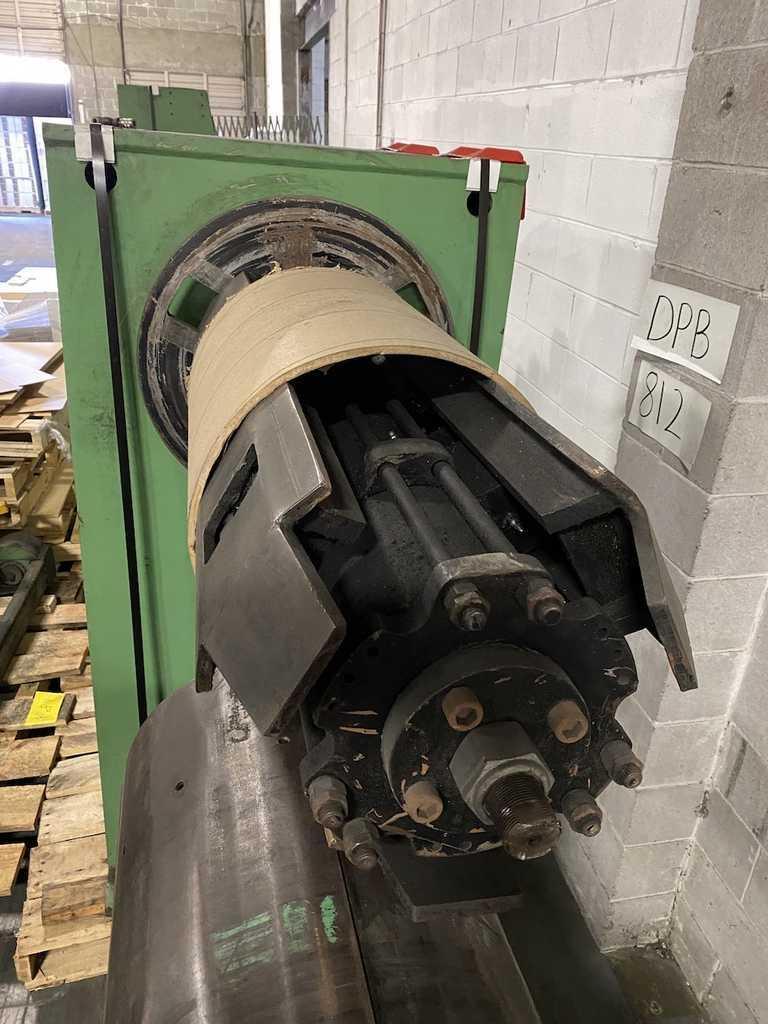

  Powered Expansion
  Powered Feedup
  Disc Brake
  Front Loop Control

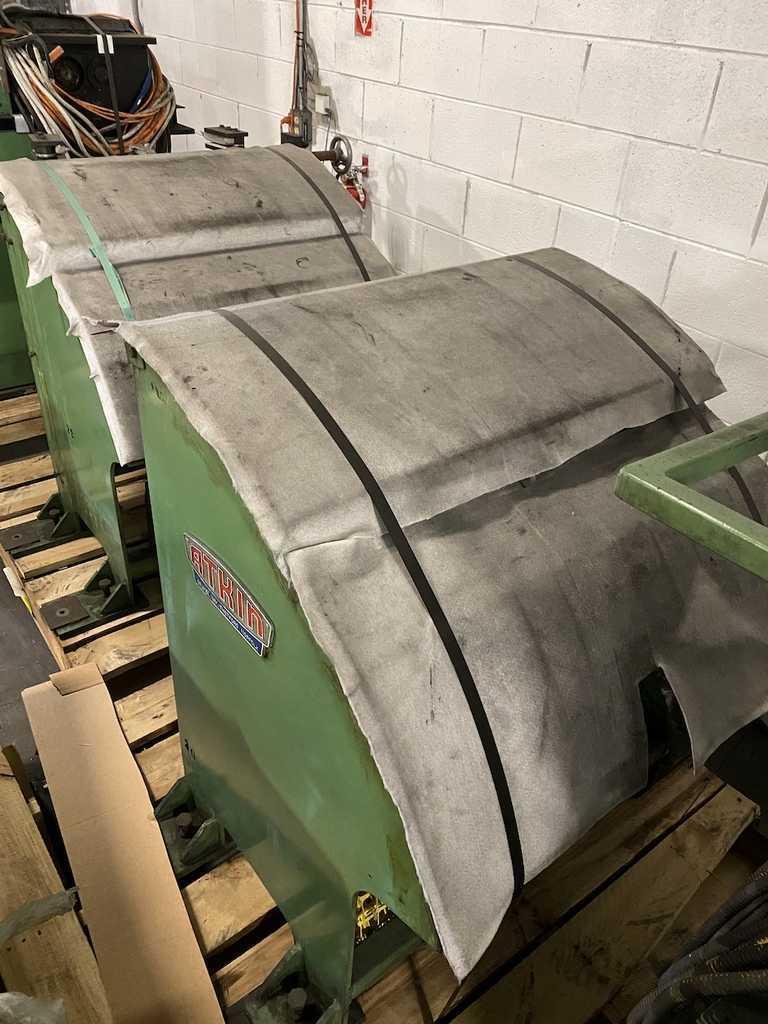

-Flattener:
  Entry Cantenary Table
  Manual Entry Side Guides
  Powered Entry Pinch Rolls
  Seven (7) Work Rolls in 3/4 Configuration
  Powered Exit Pinch Rolls
  Manual Exit Side Guides
  Machine Mounted Controls
  30 HP Motor

-Loop Section:
  Entry Cantenary Table
  Track Mounted Cross Over Table
  Exit Cantenary Table
  Inspection Table

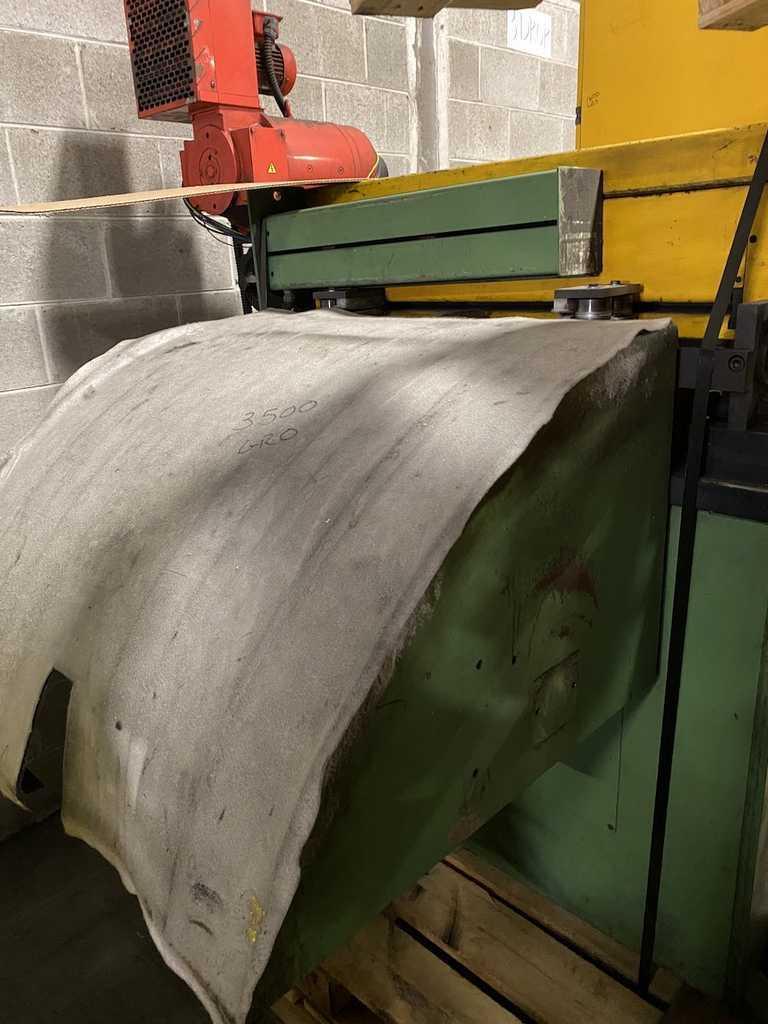

-Roll Feed Unit:
  Mounted to Shear
  Manual Entry Side Guides
  Capable of 330 FPM

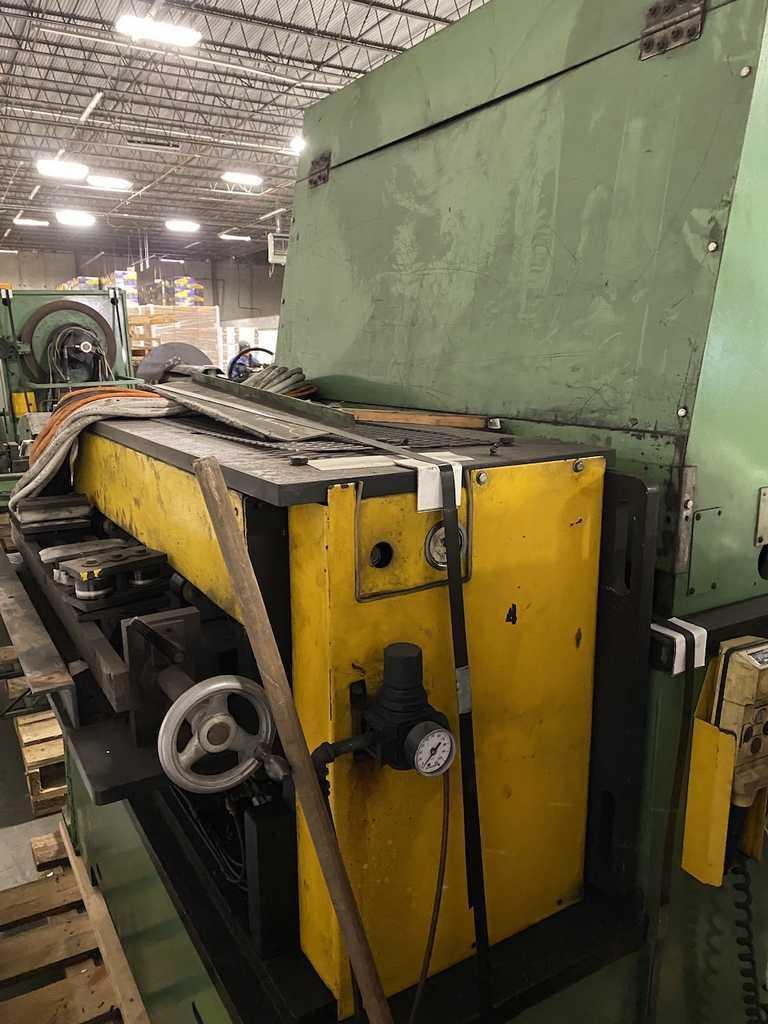

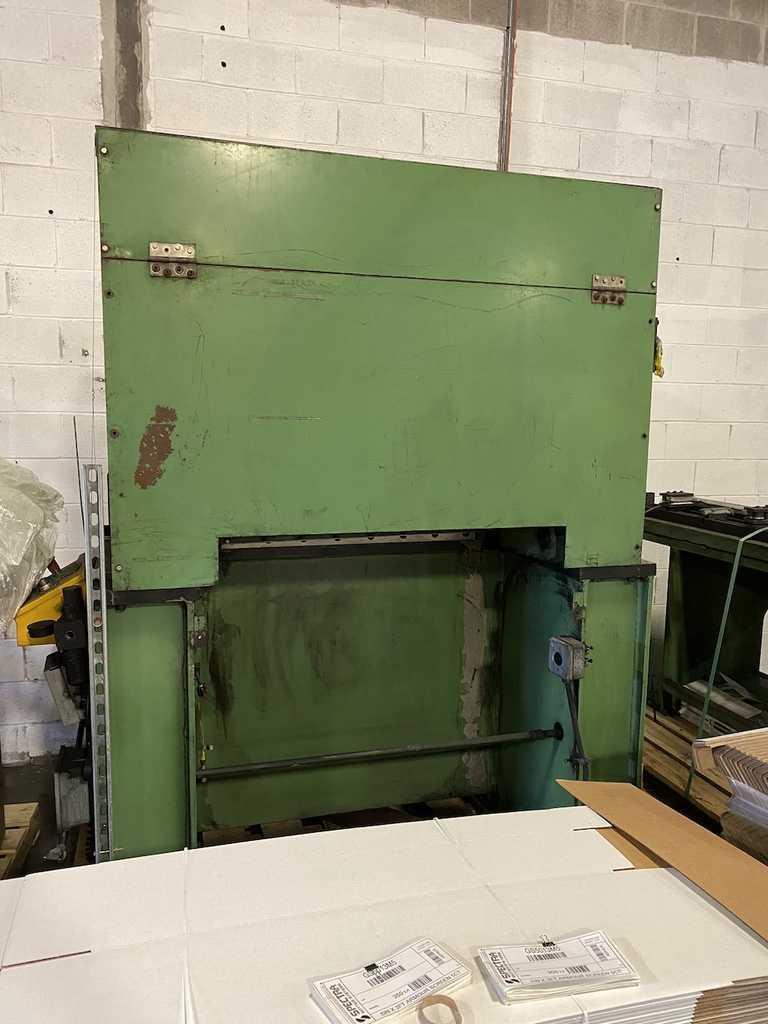

-High Speed Shear:
  Down Cut Type
  Single Rake Blade

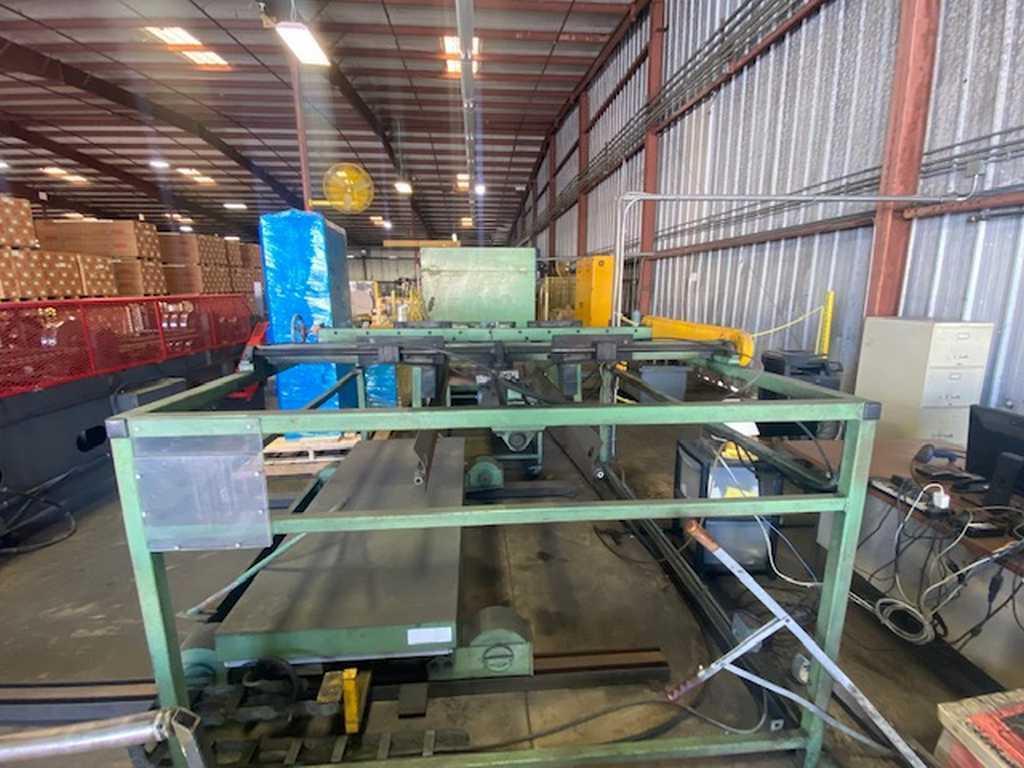

-Runout Table:
  Powered Belt Conveyor Top

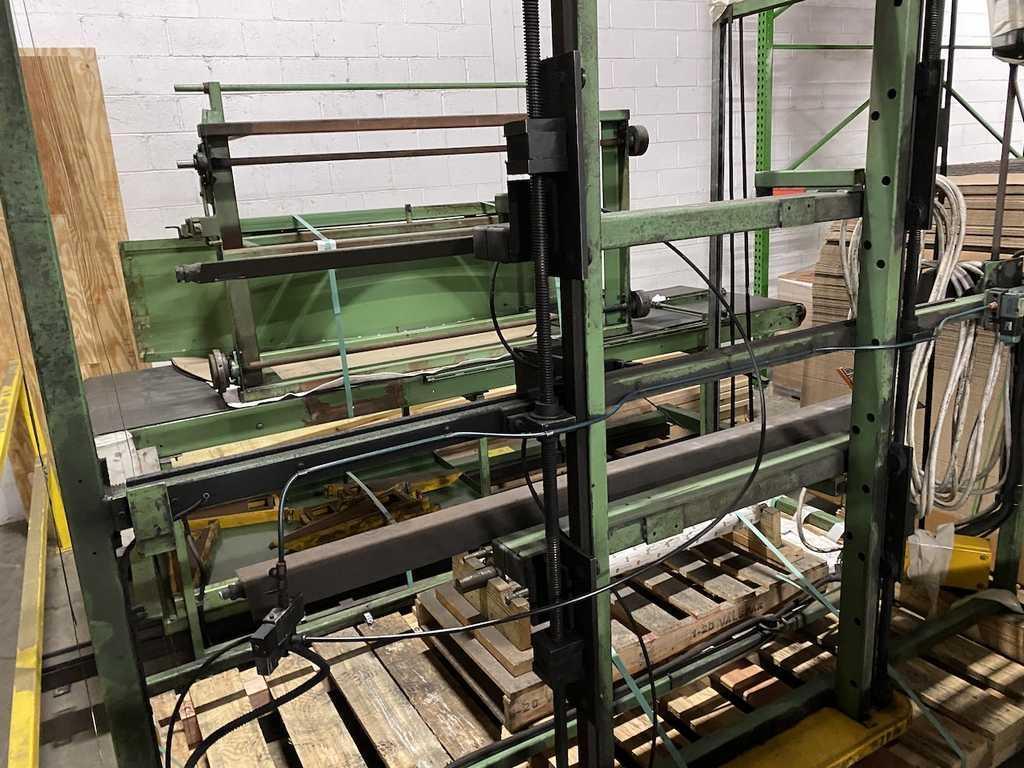

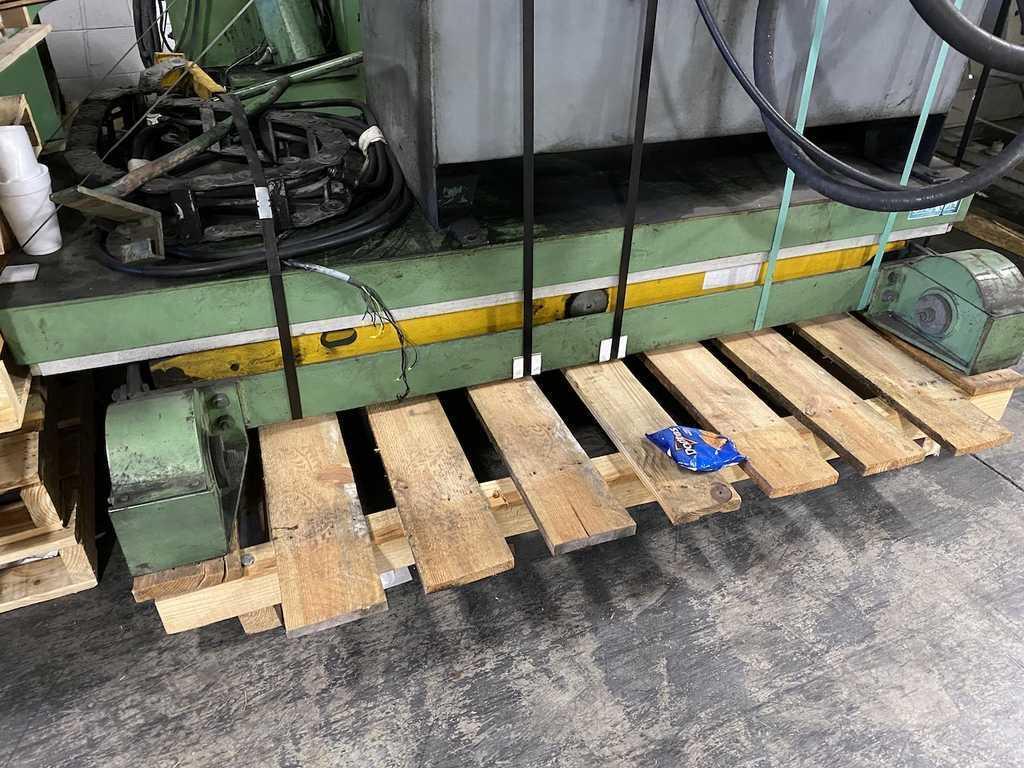

-Stackers:
  "Slide-Out" Type
  Manual Width Adjustment
  Manual End Stop
  Powered Scissor Lift Table with Side Discharge

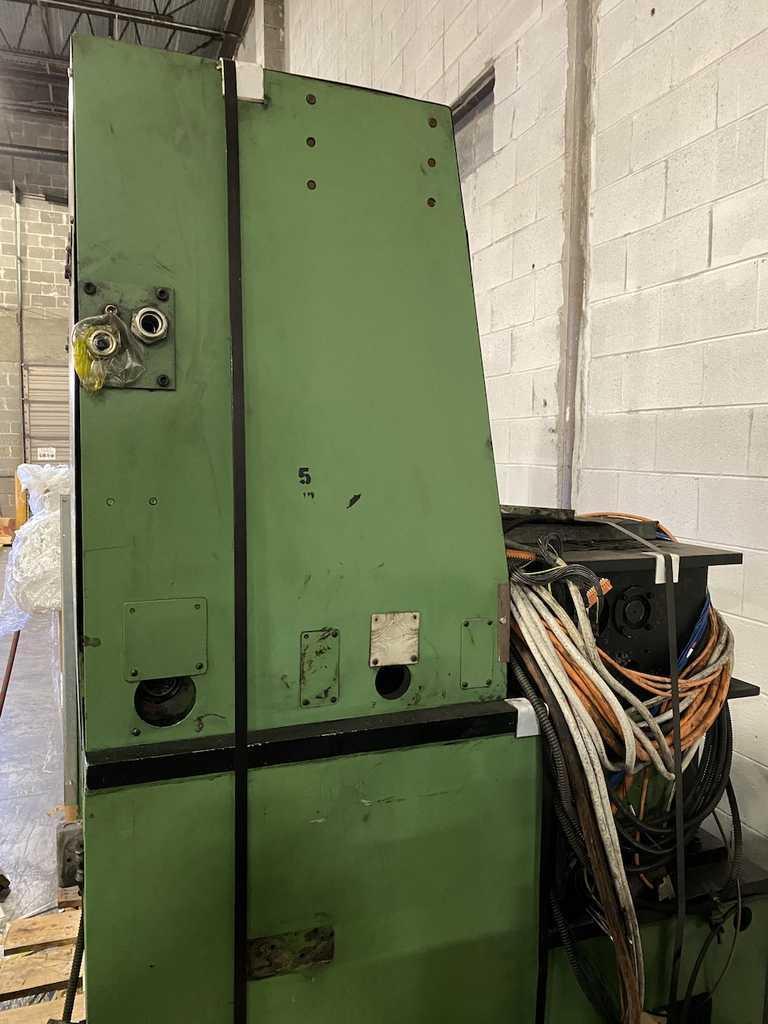

-AC/DC Control Cabinet

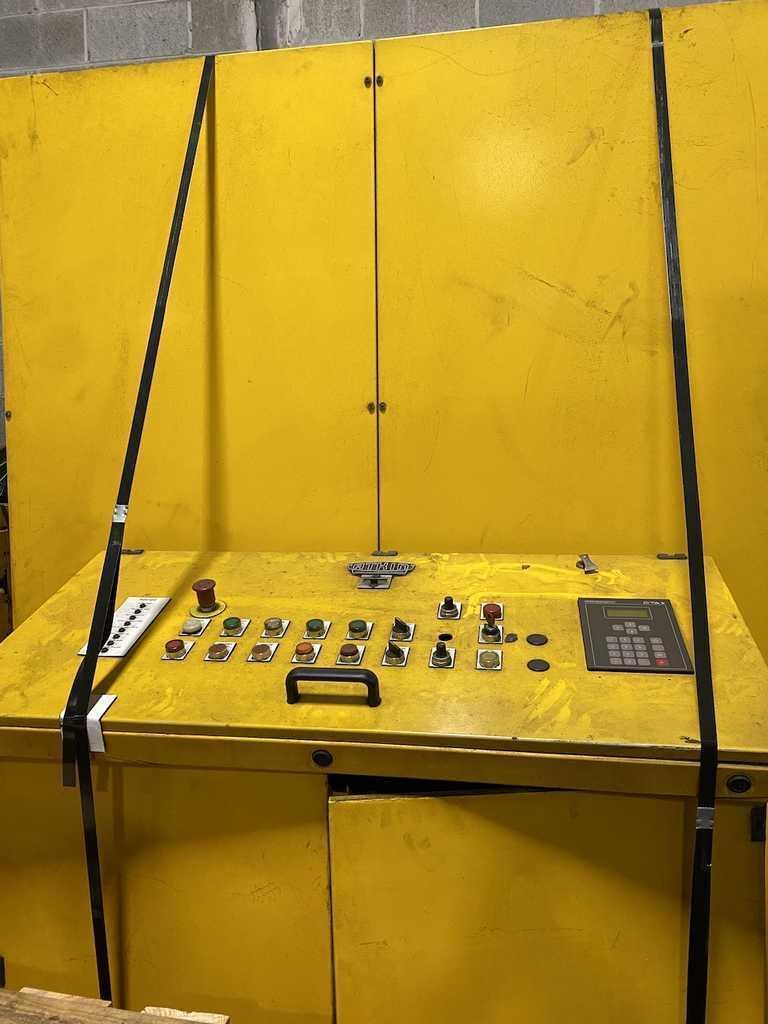

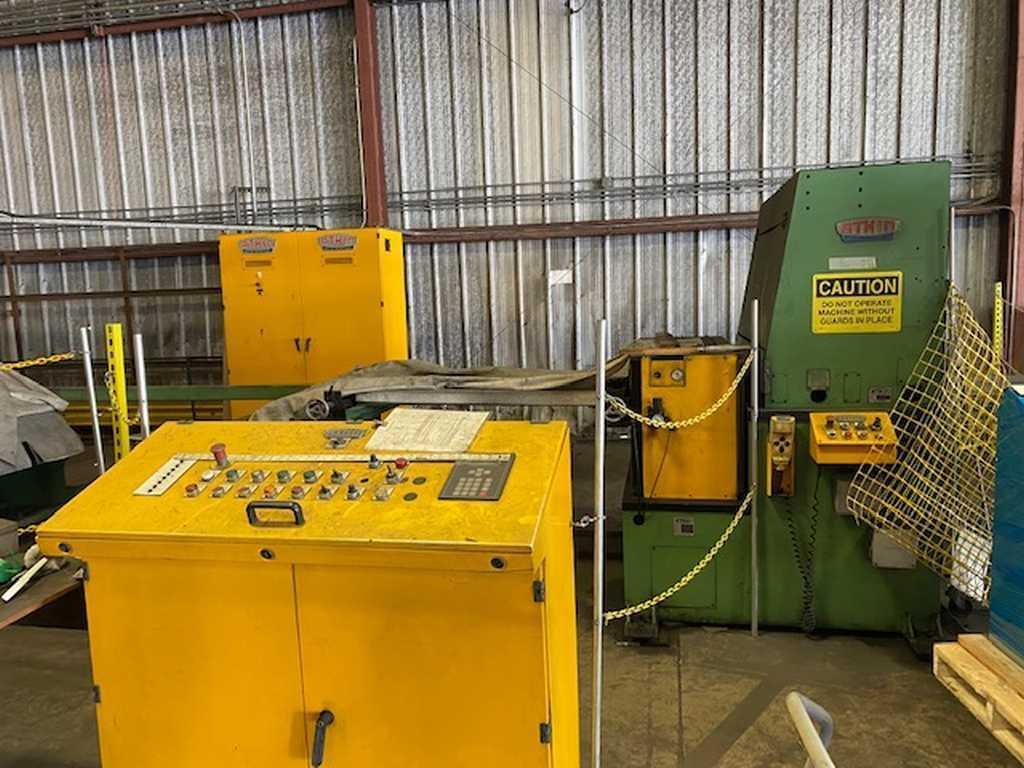

-Main Operators Control Console:
  Indramat CTA4 Controller

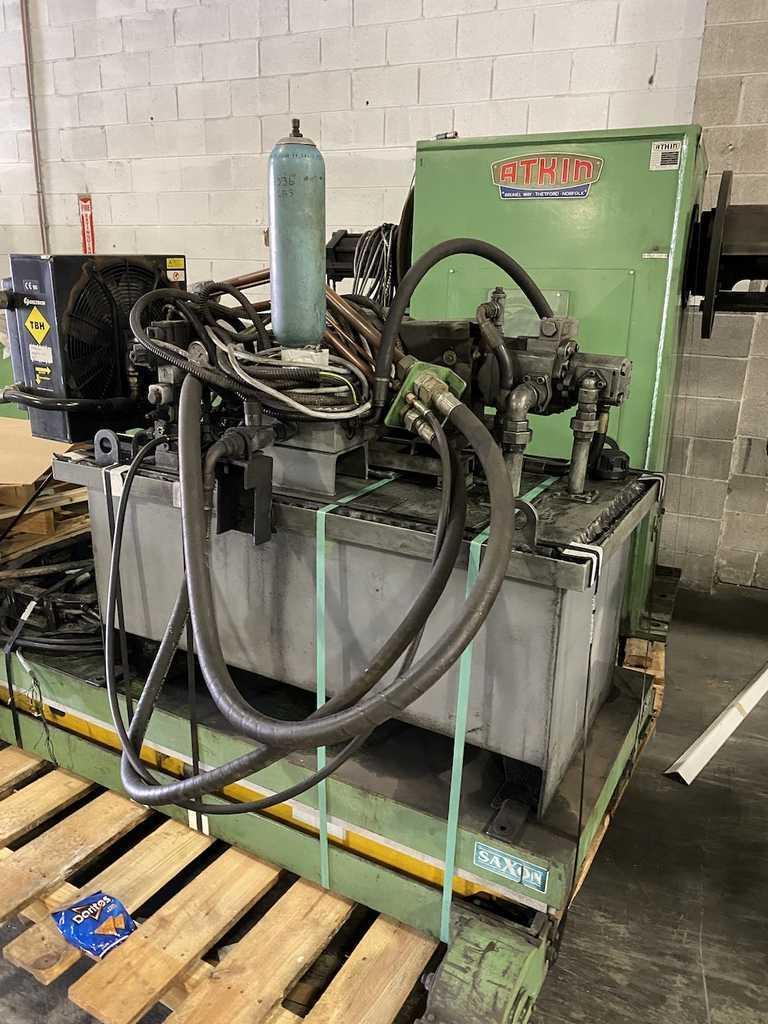

-Hyraulic Power Unit

-Drawing and Manuals
