Specifications
Equipped With
-Coil Width:? 30"
-Coil Weight:? 20,000 LBS.
-Gauge Range:? 0.017" - 0.090"
-Sheet Length:? 12'
-Line Direction:? Right to Left
Consisting of the following:
-Coil Car:
Model BGY-20-24
Above Floor Design
V-Shaped Design
44" Wide Platform
-Uncoiler:
Model #20030-DSJ
Serial #28382
20,000 Lbs. Capacity
36" Face Mandrel
16" - 20" I.D.
Powered Expansion
(4) Segment Mandrel
Sliding Base
Wichita Water Cooled Brake
Powered Holddown Roll
72" O.D. Capacity
Passline: 67.5" floor to center of mandrel

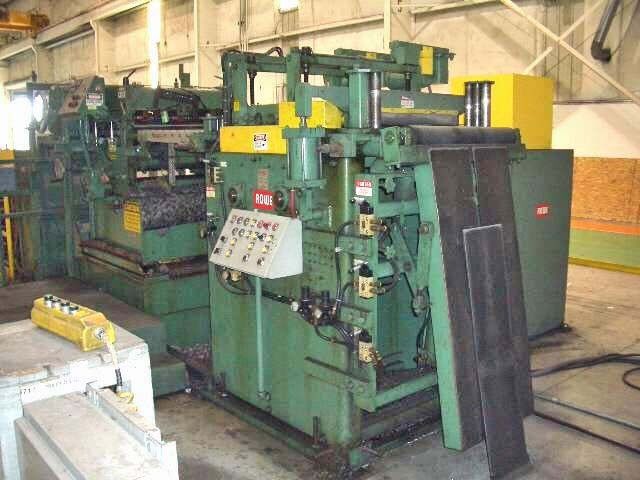

-Peeler Table:
(Attached to Straightener)

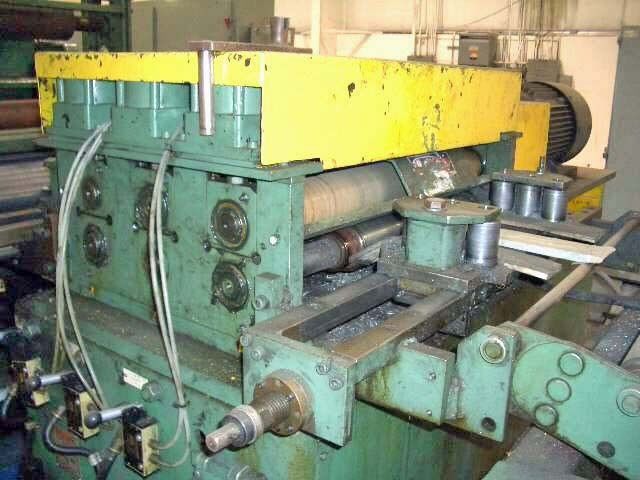

-Straightener:
Model:? C4-30
Serial #28383
Entry Side Guides
Thickness:? 0.020" - 0.150"
Dual Set of Entry Pinch Rolls
7 Work Rolls, 3 over 4
Exit Pinch Rolls
Exit Side Guides
Max. Speed: 250 FPM
Passline: 66"
-Looping Table:
Model #TT30
Serial #28386

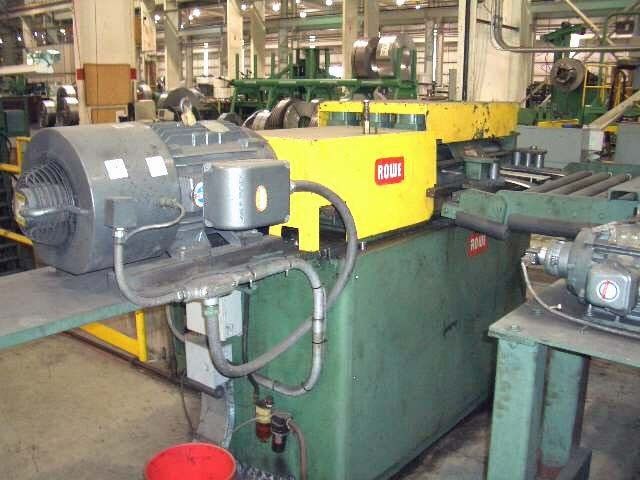

-Roll Feeder:
Model #FDC-255-430
Serial #28388
Thickness:? 0.020" - 0.090"
Entry Side Guides, Manual Adjustment
6 Rolls
Exit Side Guides
25 HP AC Motor, 1780 RPM, 230/460 V
Passline: 48.5"
-Vinyl Applicator
Serial #28389
Top / Bottom

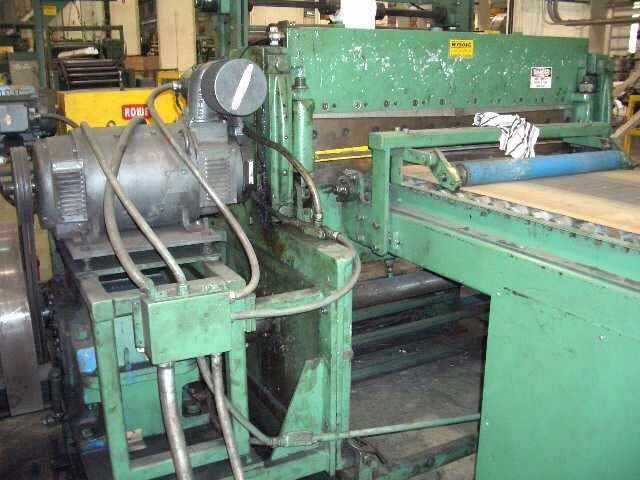

-Shear:? Wysong
Model:? 1052
Serial #P75 174
Capacity: 52" x 0.105"
Mechanical Down Cut
53" Blade Length
Bow Tie Blade
20 HP DC Motor, 1750/2300 RPM, 500 V
Wichita Air Clutch and Brake
Passline: 46.5"
-Belt Conveyor:
Model CVR-30-12
Serial #28391
33" Wide Belt
15' Long
Passline: 48"

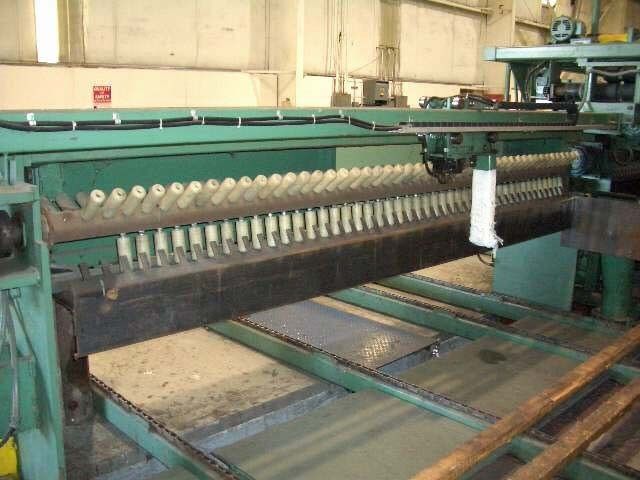

-Stacker:
Model: STKR-DT-BX-30-12
Serial #28392
12 FT. Sheet length max.
10,000# Stack Capacity
3 Segment Drop Type Design - Neoprene Covered Flippers
Motorized Back Stop
Powered Width Adjustment
Scissors Lift Table
Side Discharge (to either side)
Air Blower

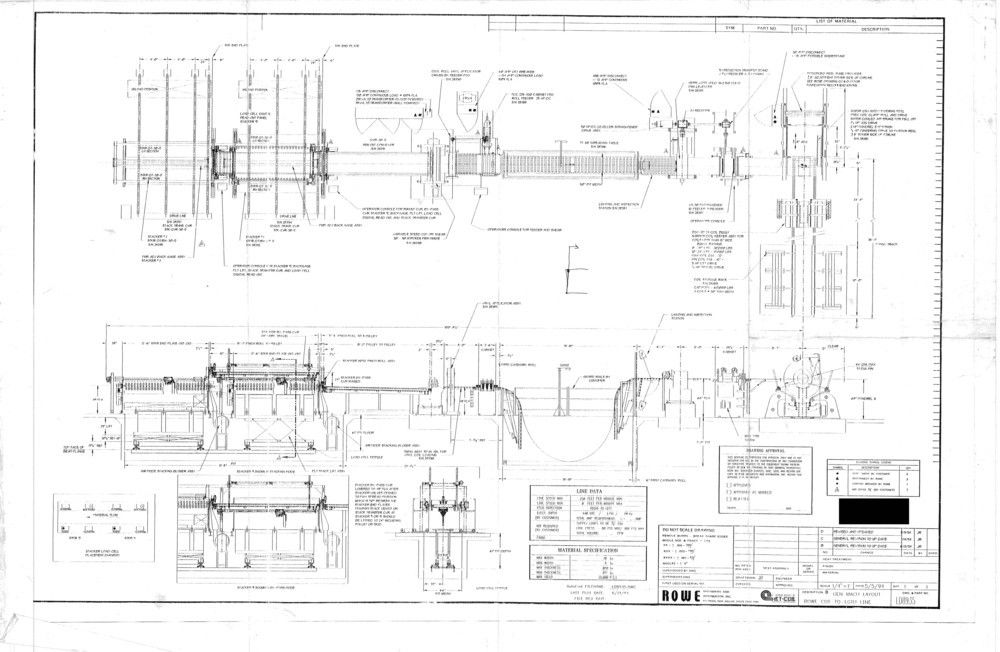

-Line Layout, Foundation and Electrical Drawings included.
