Specifications
| Max Width of Workpiece |
26 inches |
Equipped With
-Double Loop Design
-26" Wide
-10,000 lb. Coil Weight
-60" Max. Coil O.D.
-Line Direction: Left to Right
Consisting of the following:

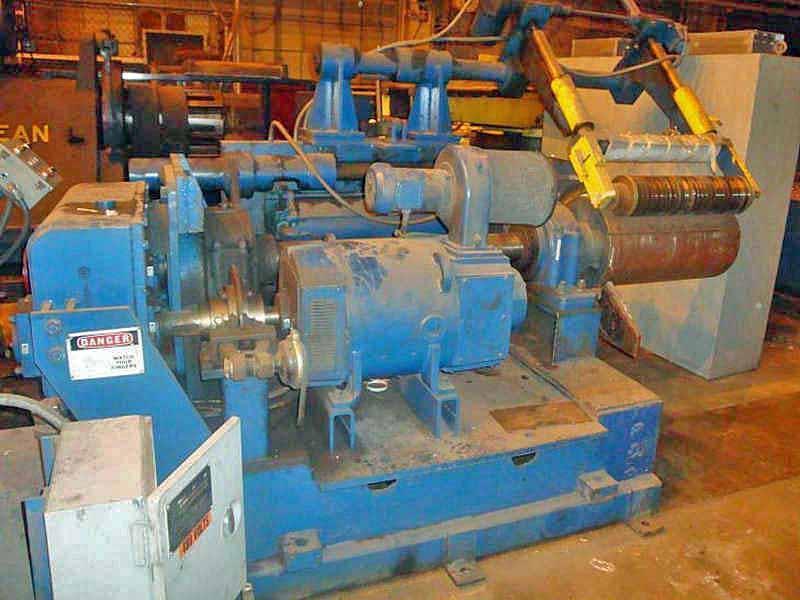

-Stamco Mandrel Uncoiler:
28.5" Face 4 Segment Mandrel
Hydraulic Expansion
30 HP Louis Allis DC Motor (Rebuilt July 1997)
300/1800 RPM, 240 V
Reducer W/5.2:1 Ratio
48" Passline Height

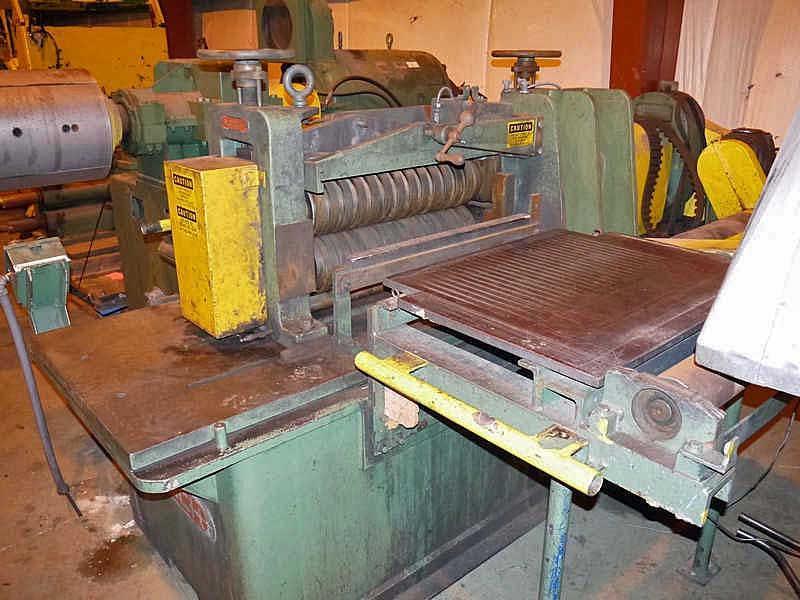

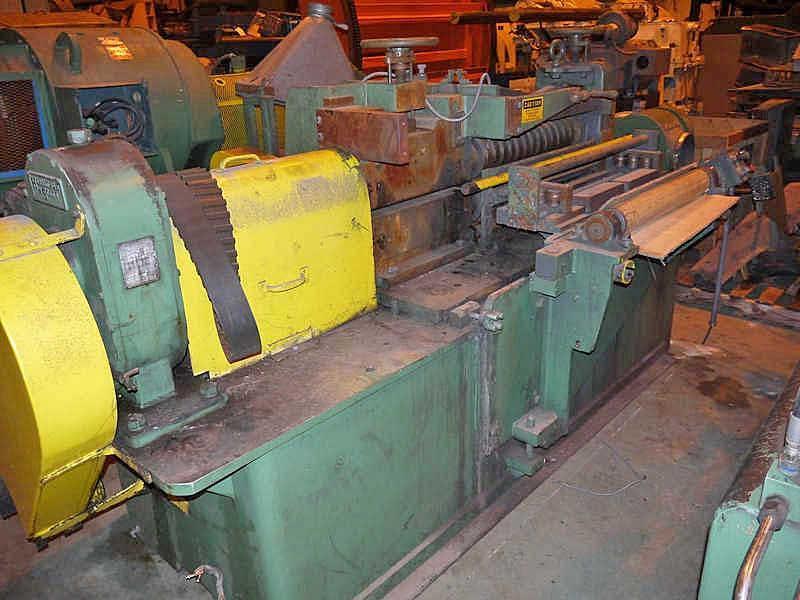

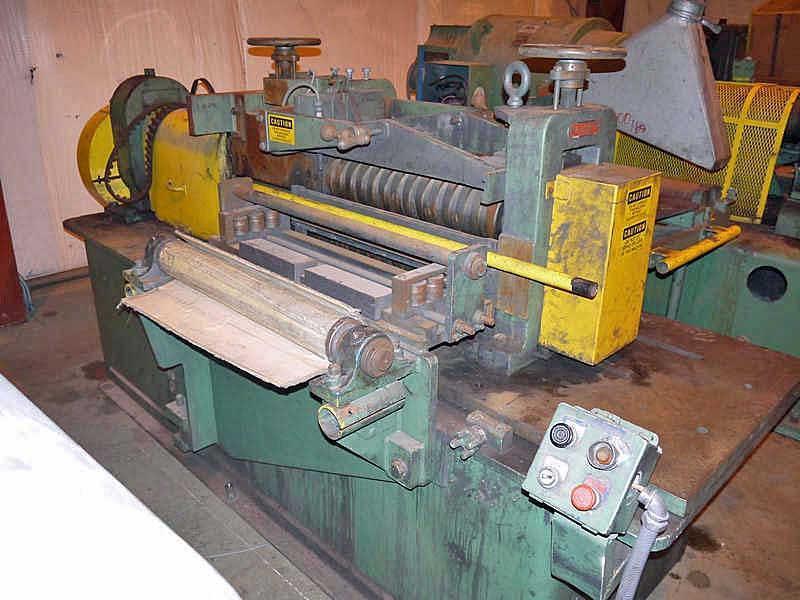

-Ruesch Removable Slitter Heads: (Two Heads)
Model: #146
N2059, S/N: 6716
4.125" Dia. Arbors
Ring Slitter Arrangement
30 HP Reliance DC Motor Drive
1150/2600 RPM, 240 V
Horsburgh and Scott Reducer W/1:1 Ratio
Belt Driven
-Ruesch Scrap Chopper:
Model #245
Blower Unit
-5 HP Hyd. Power Unit

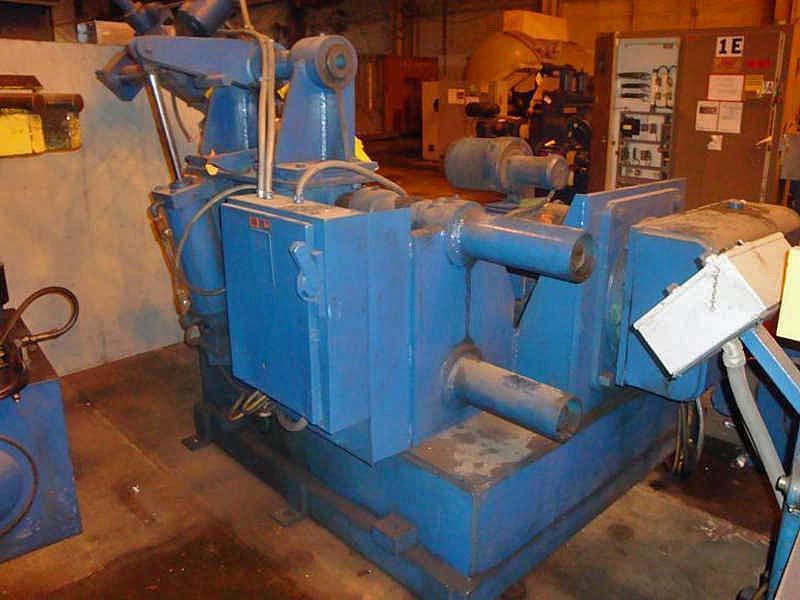

-Ruesch Tension Stand:
Hydraulic Cylinder for retraction
Pad Type
Air Bag Type

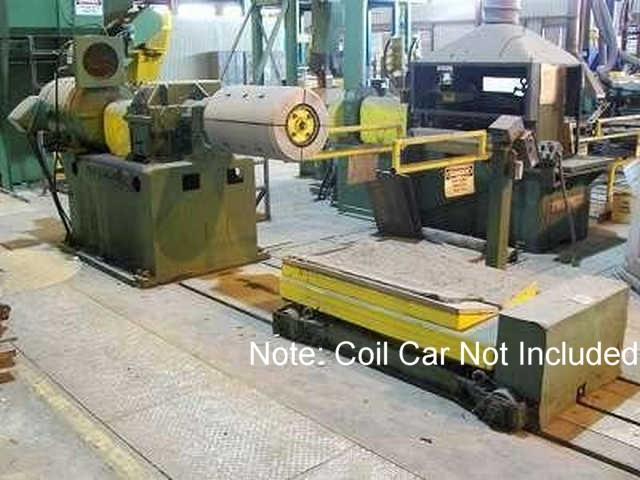

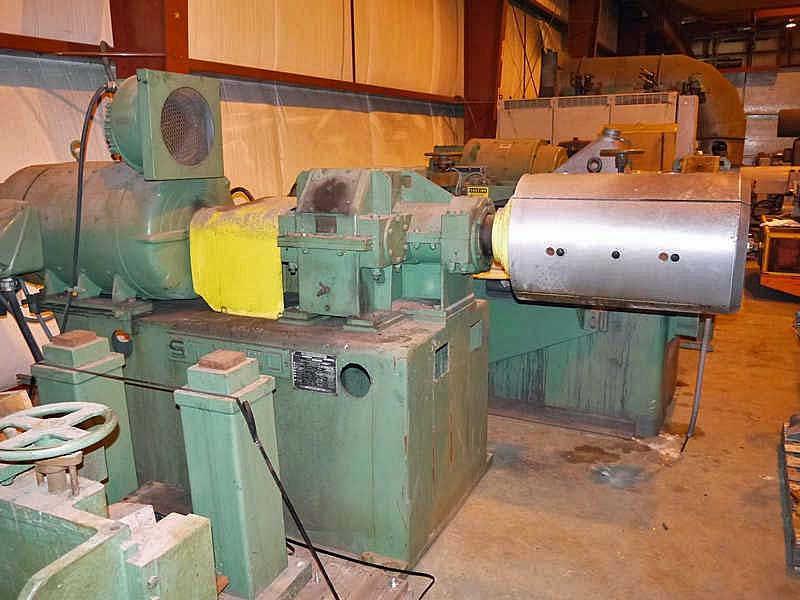

-Recoiler - Ruesch:
16" Dia. x 30" Face drums
Manual Expand & Grip
Hydraulic Pushoff
Overarm Separator
40 HP DC, 850 / 2550 RPM
Reducer: 7.59:1 Ratio
-Southworth Exit Coil Car:
