-Double Loop Design
-26" Wide
-10,000 lb. Coil Weight
-60" Max. Coil O.D.
-Minimum thickness .002" to .005"
-Maxium thickness .100"
-1500 FPM line speed
-Line Direction: Left to Right
Consisting of the following:
-Stamco Mandrel Uncoiler:
28.5" Face 4 Segment Mandrel
Hydraulic Expansion
30 HP Louis Allis DC Motor (Rebuilt July 1997)
300/1800 RPM, 240 V
Reducer W/5.2:1 Ratio
48" Passline Height

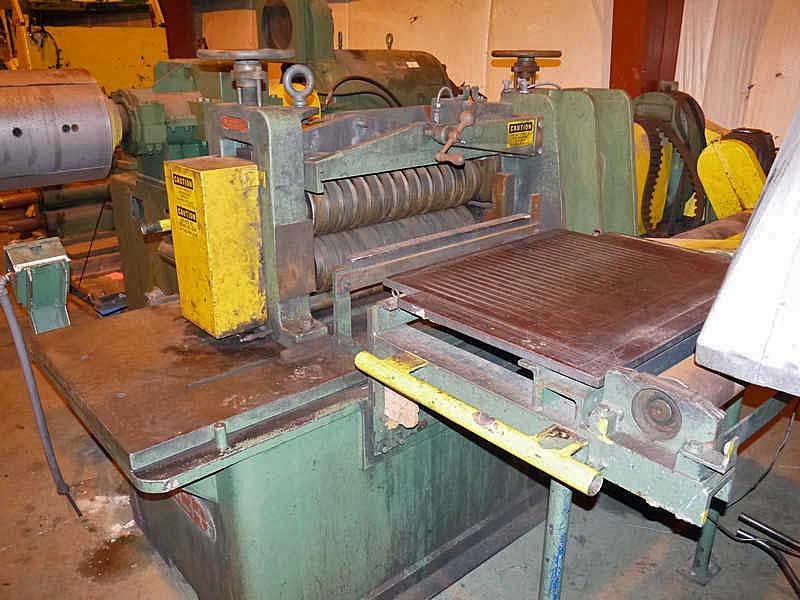

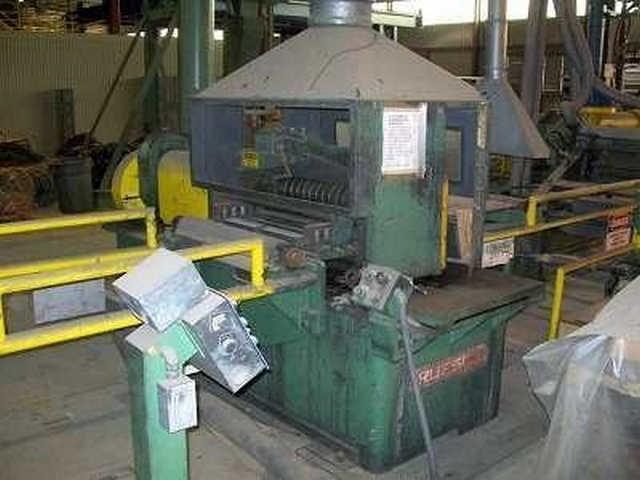

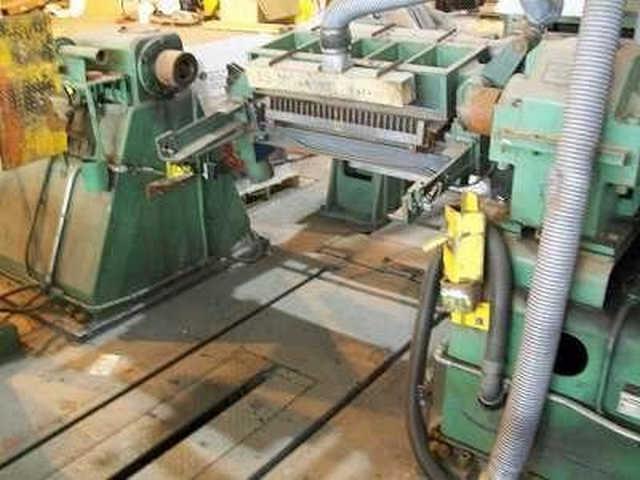

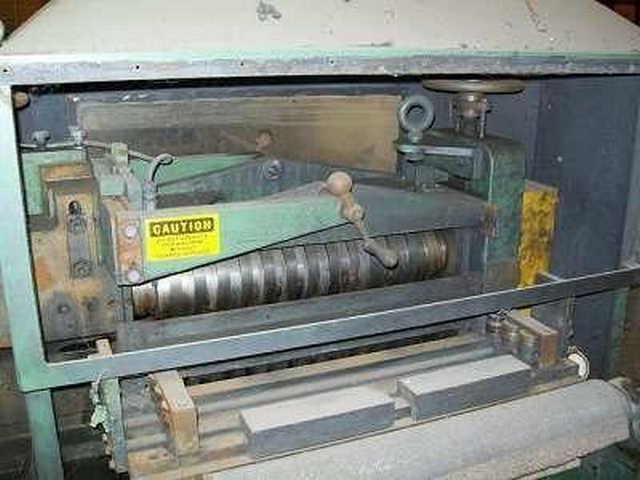

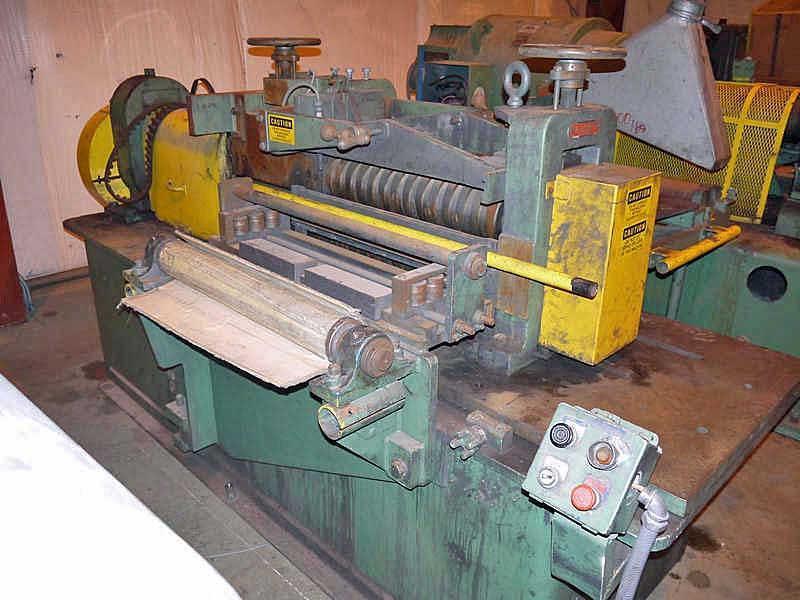

-Ruesch Removable Slitter Heads:
Model: #146
N2059, S/N: 6716
4.125" Dia. x 26" Arbors
Ring Slitter Arrangement
30 HP Reliance DC Motor Drive
1150/2600 RPM, 240 V
Horsburgh and Scott Reducer W/1:1 Ratio
Belt Driven from motor

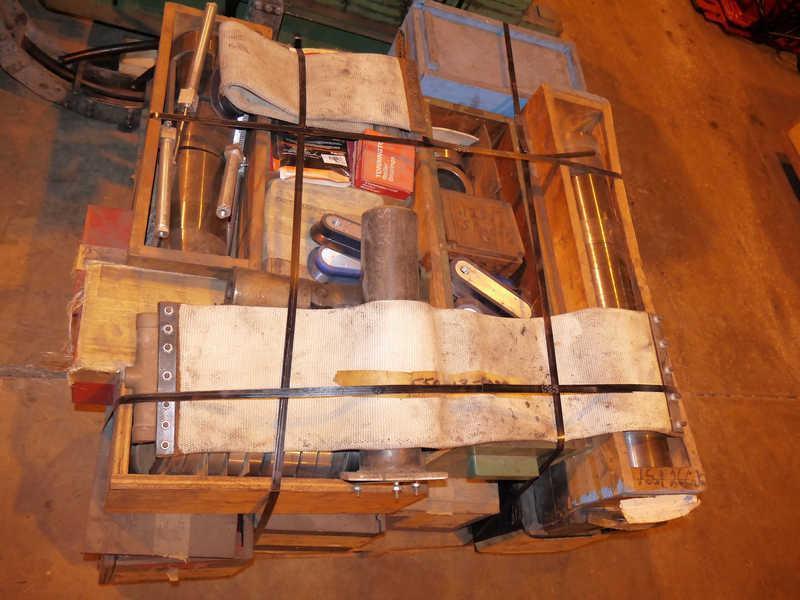

Slitter Tooling
-Ruesch Scrap Chopper:
Model #245
Blower Unit
-5 HP Hyd. Power Unit
-Ruesch Tension Stand:
Hydraulic Cylinder for retraction
Pad Type

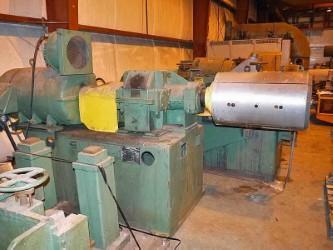

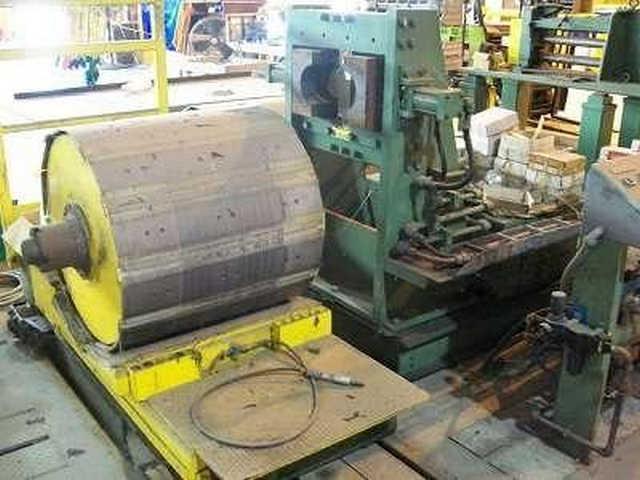

-Recoiler:
Double Support with Drop-Im Drums
32" Dia. x 30" Face drums, air expansion / collapse
Hydraulic Drum engagement
50 HP Reliance DC Drive Motor (Rebuilt July 1997)
300/1800 RPM, 240 V

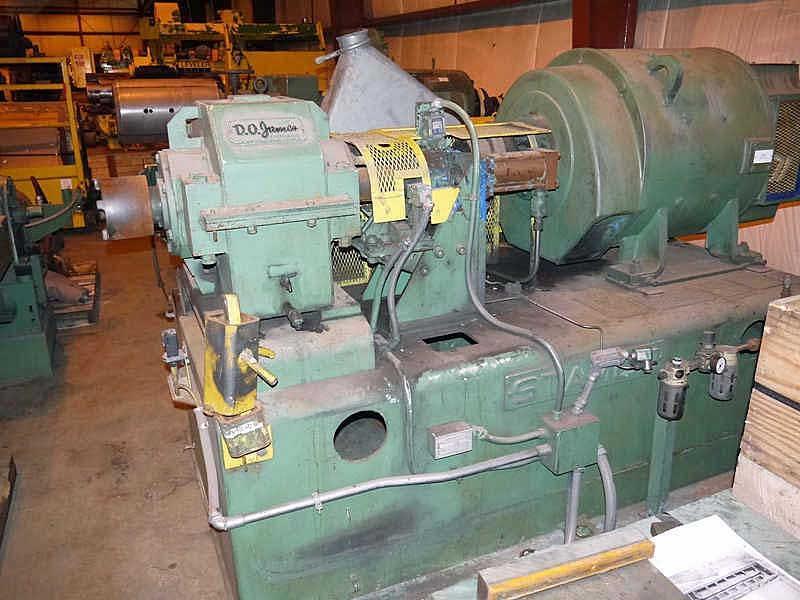

D.O. James Reducer W/3.14:1 Ratio

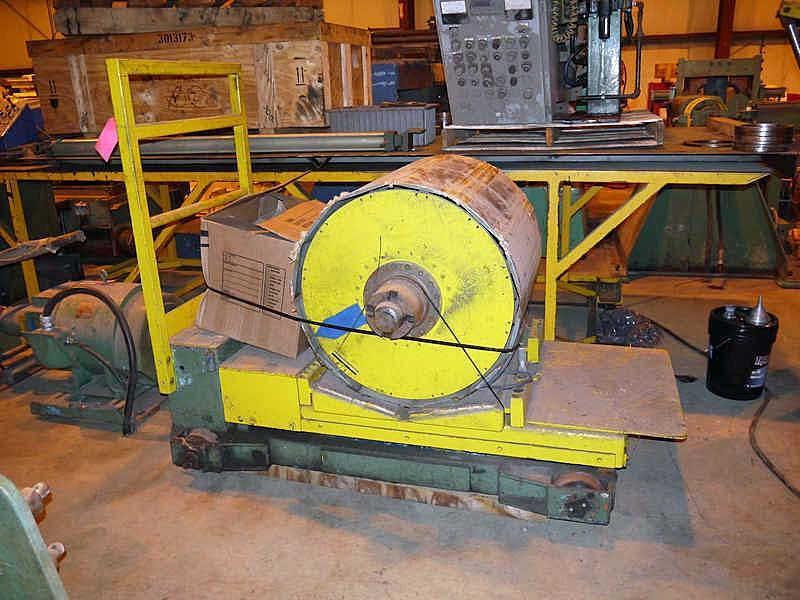

-Southworth Exit Coil Car:
-Southworth Mandrel Extractor Car
