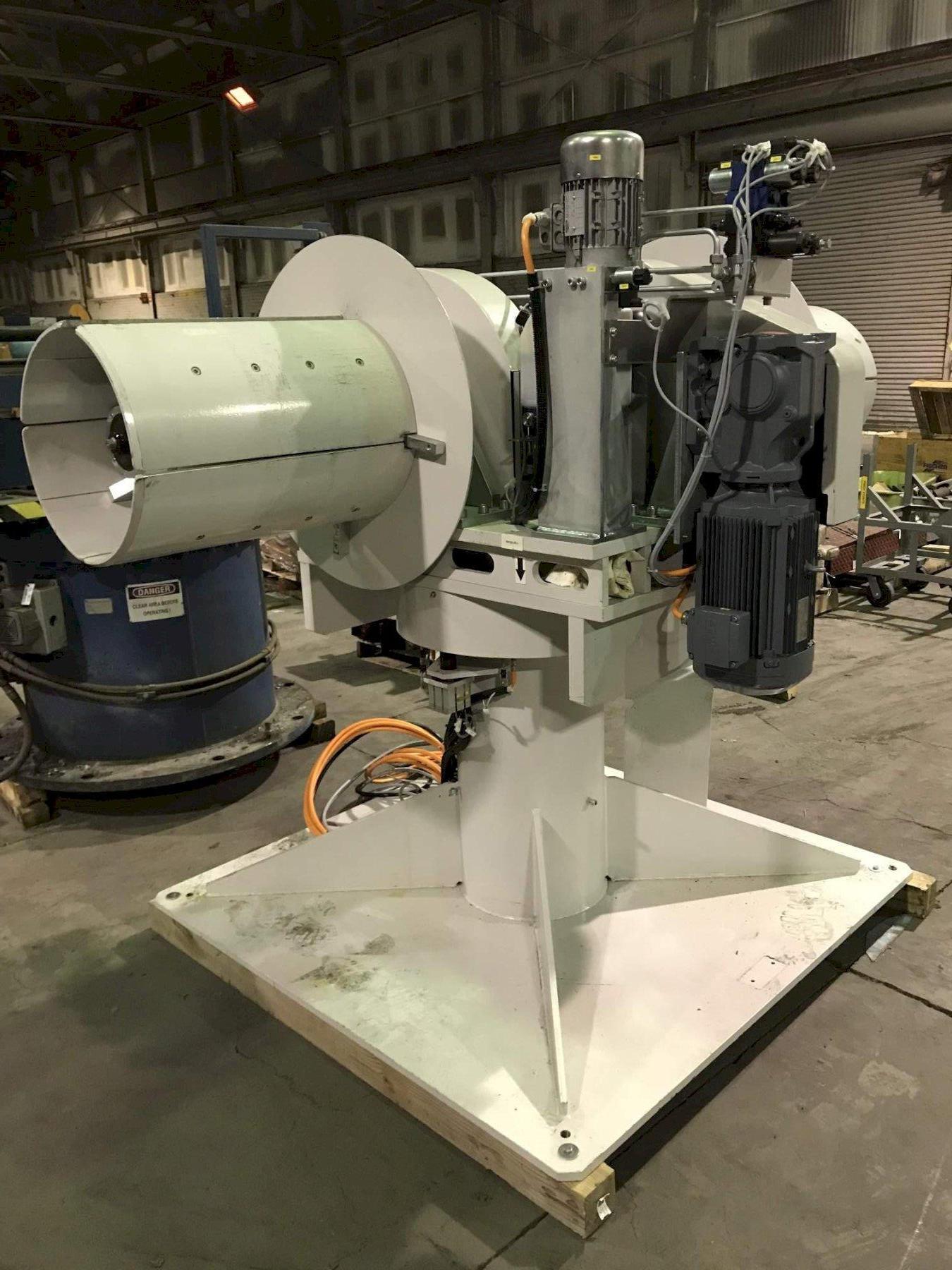

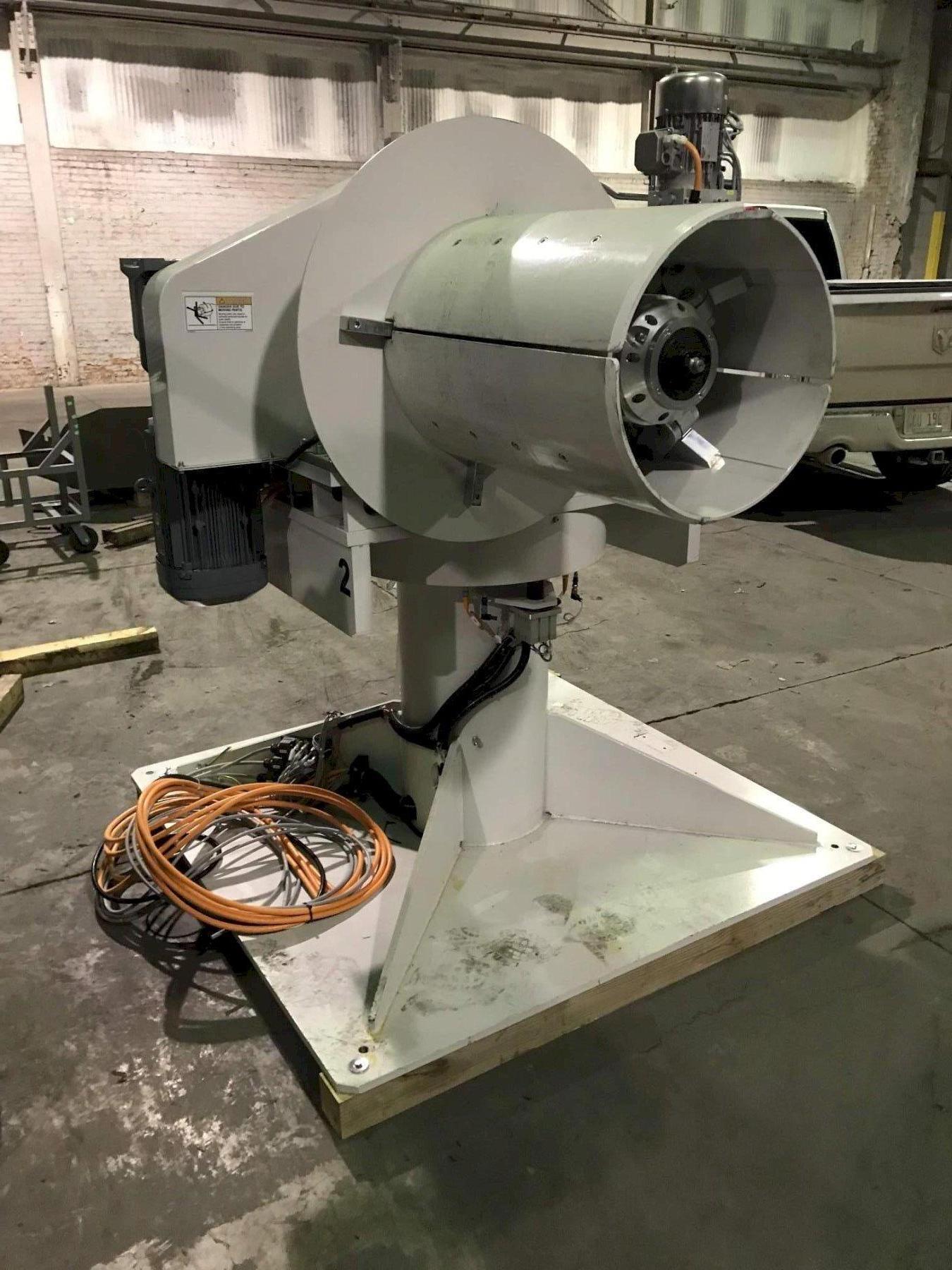

Weight Capacity:

6,000# Max. Capacity

24" Mandrel face

18"-20" Mandrel ID

Hydraulic expansion of mandrels

Approx. 51.5" from floor to center line of manrel

SEW Eurodrive AC Servo Motors(2-two) that drive each mandrel:

type: DFT90S6

50 Hz-7.5 KW S1, 1470/283 RPM,  220-242/380-420 Volt,  Amp 26.50/15.20

60 Hz-7.5KW S1, 1775/341 RPM, 254-277/400-480 Volt,  Amp 24/13.80

3 phase

Hydac Motor for Hydraulics:  Self Enclosed HPU

Hydac & Rexroth Valves

Powered rotation of base(electric motor driven)

Powered Locking Pin

59" x 59" platform size

82.25" end of mandrel to end of mandrel

84"L x 66"W x 6'H
