24" x 5.00" x 20,000# Stamco/Nash Slitting Line

Brand
Not Specified

Model

Stock #
2065

Condition
Used

Year

Location
Toledo, Ohio
United States

Specifications

Max Width of Workpiece 24 inches

Equipped With

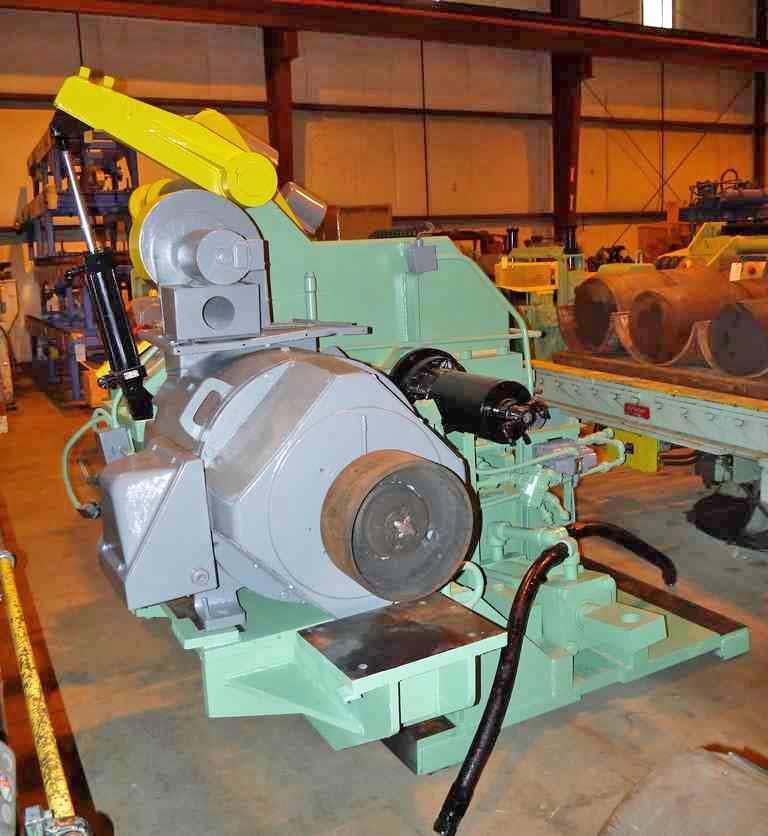

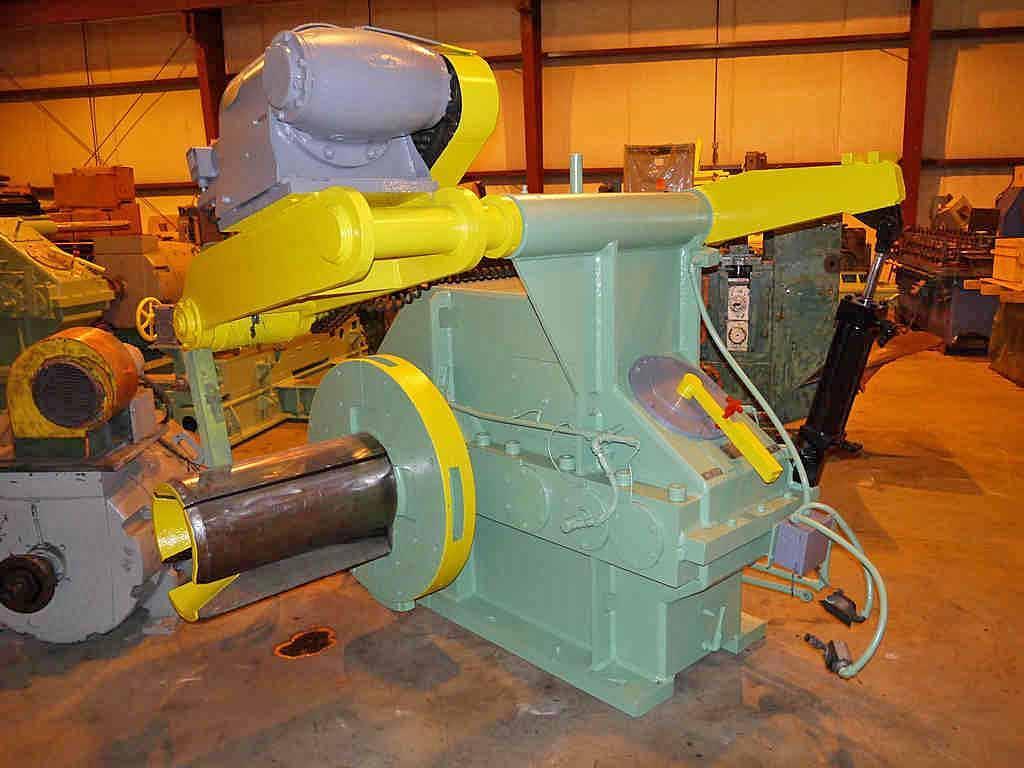

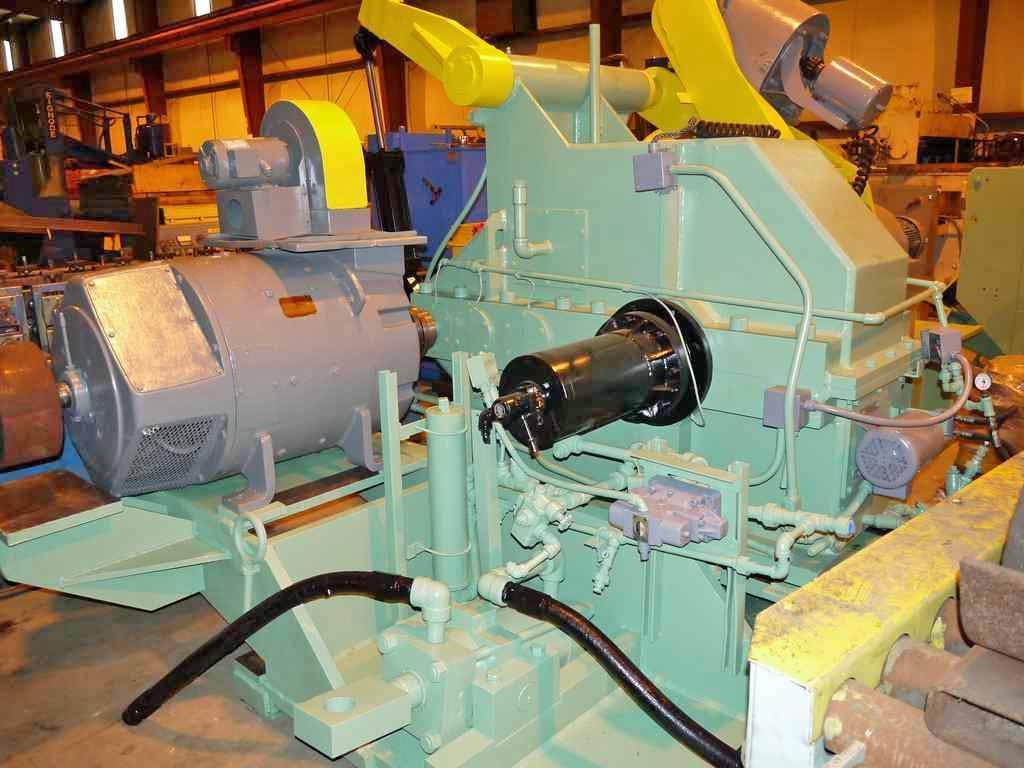

-Uncoiler:
  Hydraulic Expansion
  16" - 20" Coil I.D. range
  4 Segment Mandrel
  28" Mandrel Face width
  Powered Holddown Roll
    AC Motor thru Reducer
  60" Coil O.D. Max.
  Less Sliding Base
  2 Speed Gearbox
  60 HP GE DC Motor, 500/2000 rpm, 240 v
  Hyd power unit for Edge Control

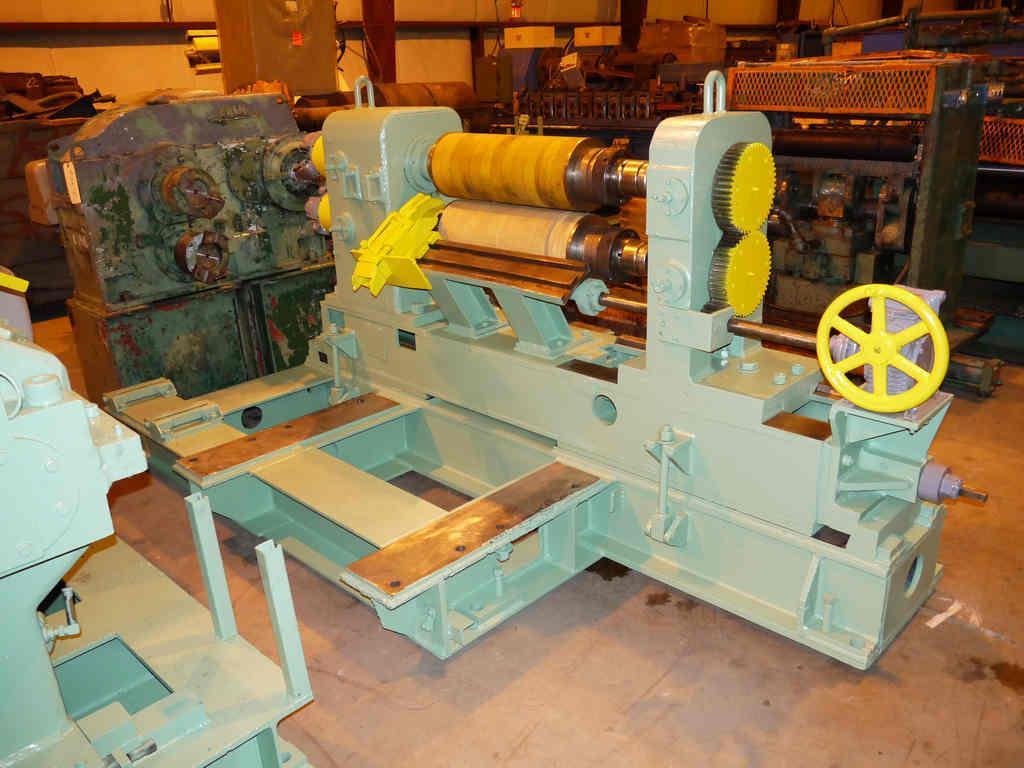

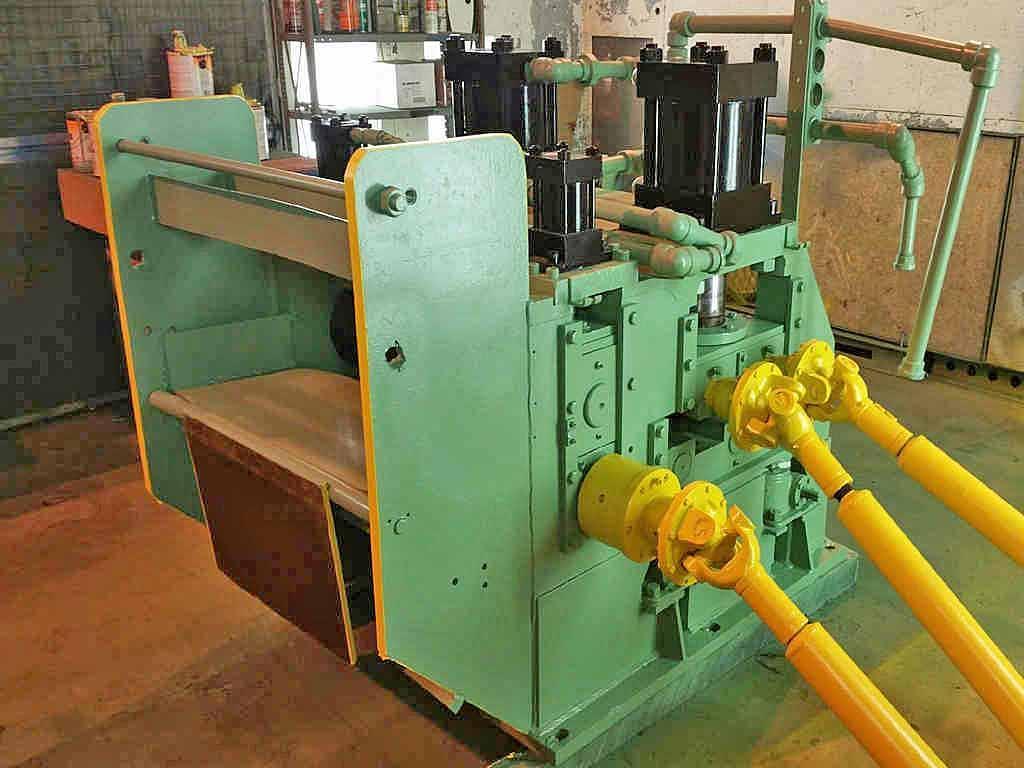

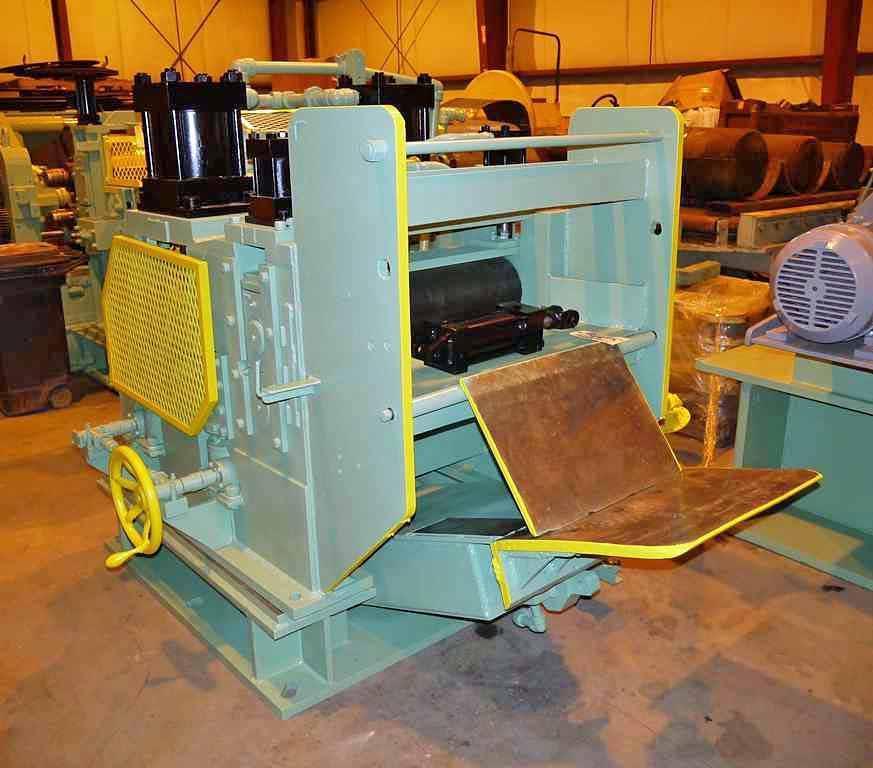

-Entry Coil Flattener:
  5 Work Rolls, 2 over 3 Rolls
    5" dia. x 30" face rolls
    Top rolls driven
  Entry driven Pinch Rolls
    7.5" dia. x 30" face rolls
    Top Roll rubber covered
    Bottom Roll driven
  7.5 HP AC motor drive, 1760 rpm, 460 v
    Falk reducer w/45.65:1 ratio
    Line speed: 50 fpm

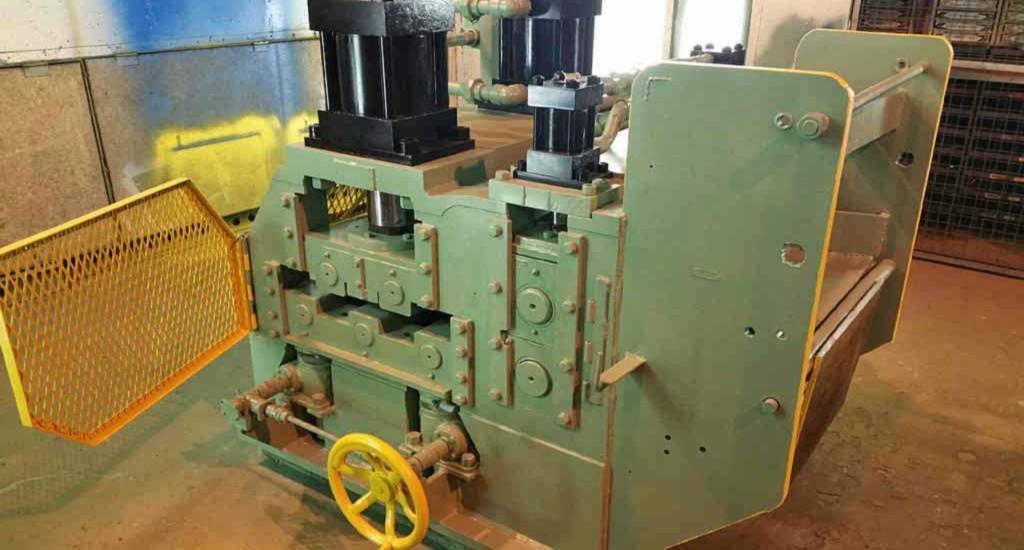

-Entry Crop Shear:
  Hydraulic upcut type
  Entry and Exit passline rolls
  Blade size: 30" x 3" x 1"
  Traversing base by hyd. cylinder
  Overall size: 42" L x 25" W x 60" High

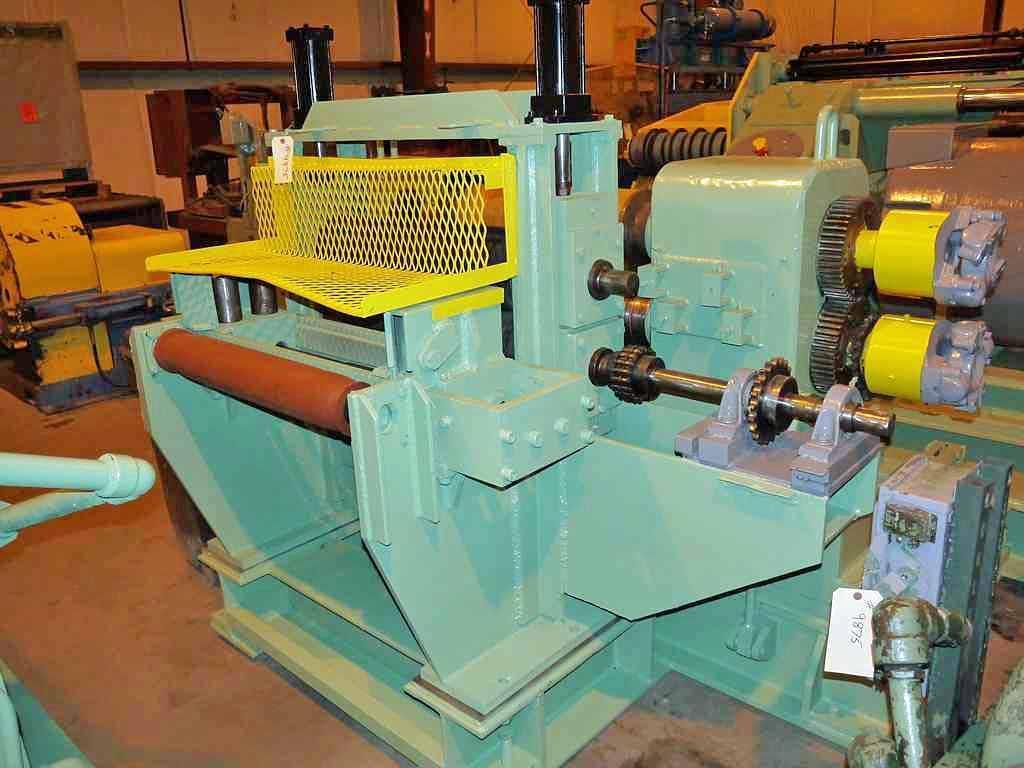

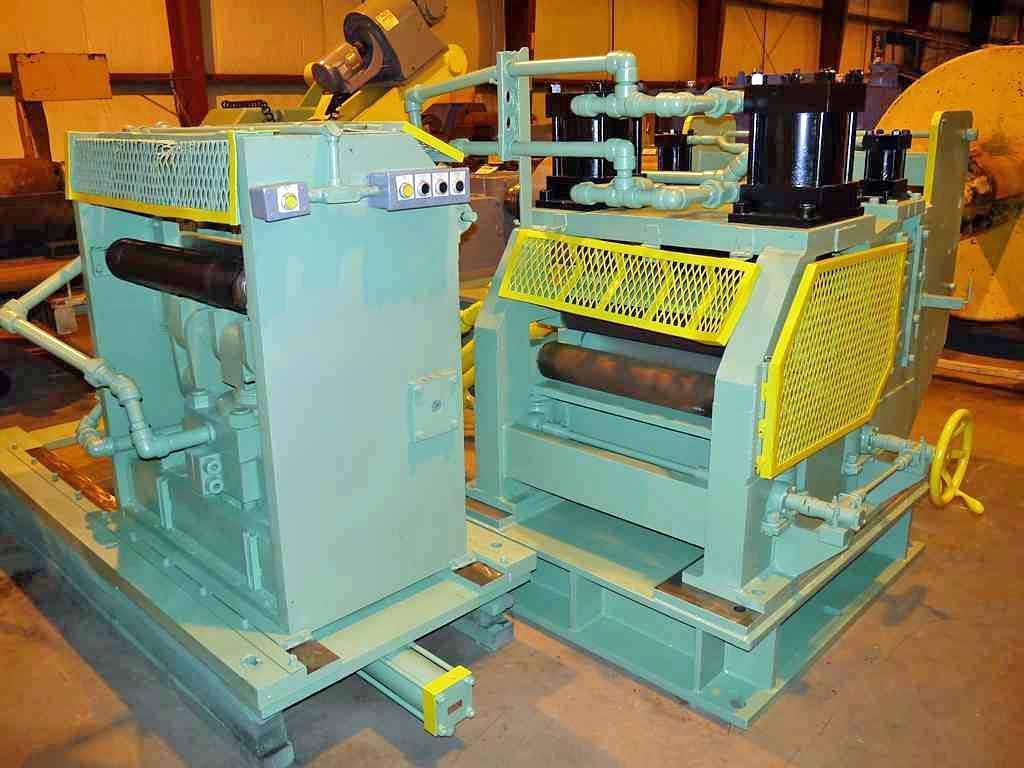

-Driven Pinch Rolls:
  8" Dia. x 30" face width Rolls, rubber covered
    Bottom Roll driven
    Air cylinder loaded
  Entry Side Guides, manual adjustment
  Entry Passline Roll
  Passline: 31"
  15 HP AC motor
  Overall size: 76" L x 36" W x 59" High

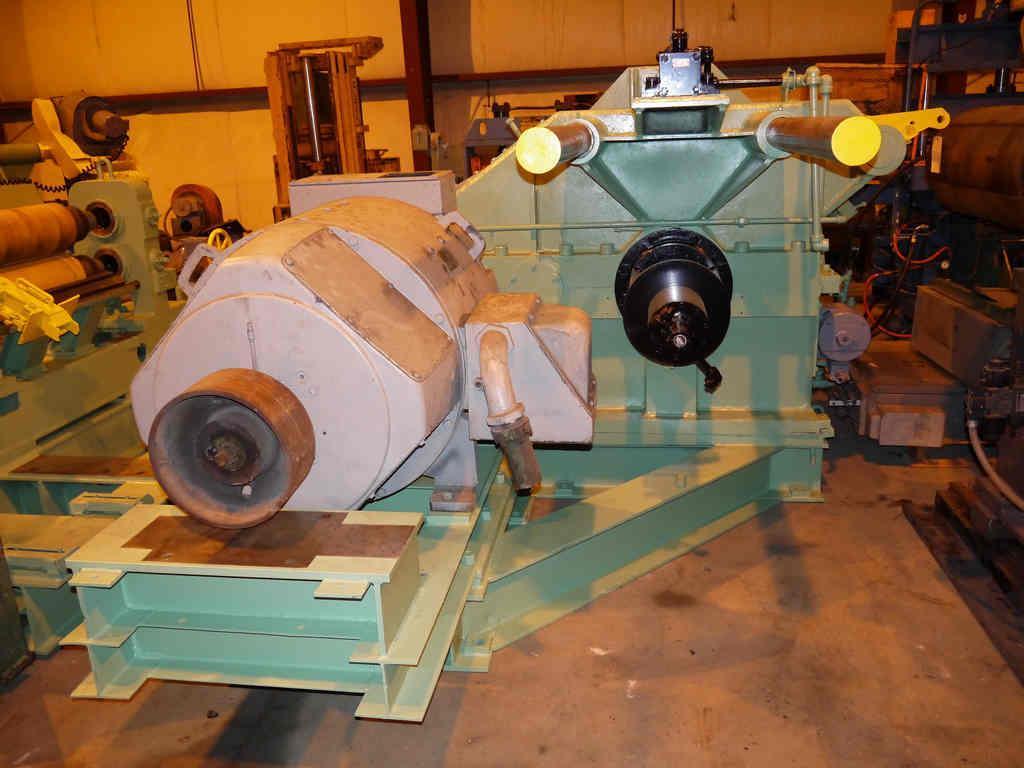

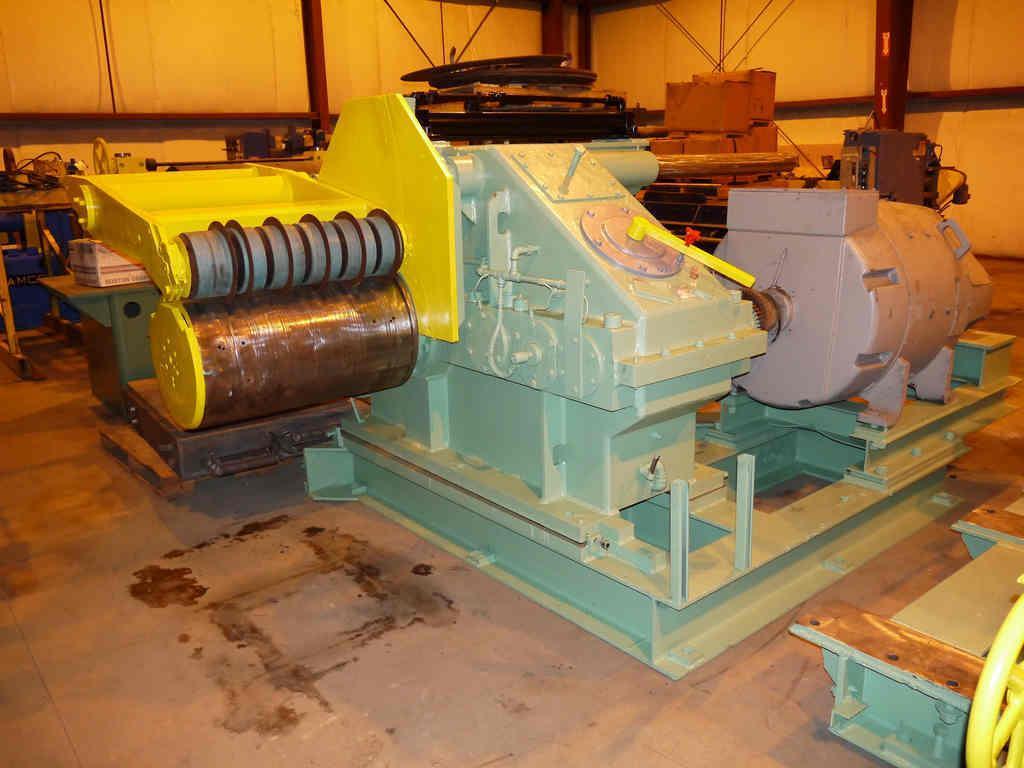

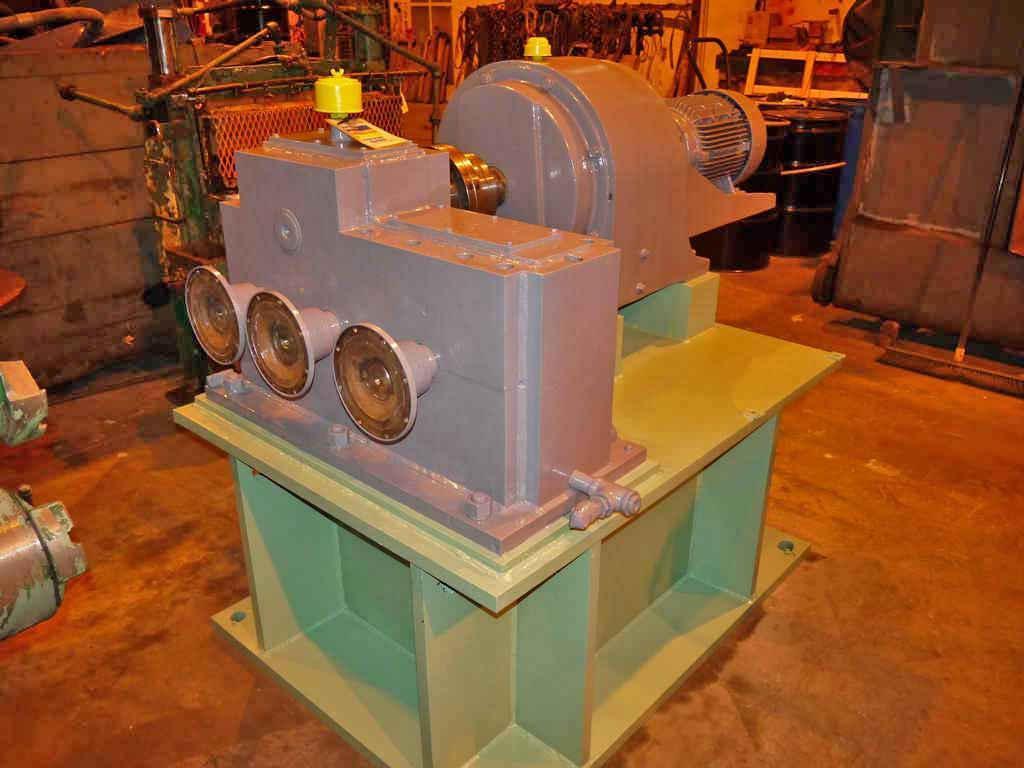

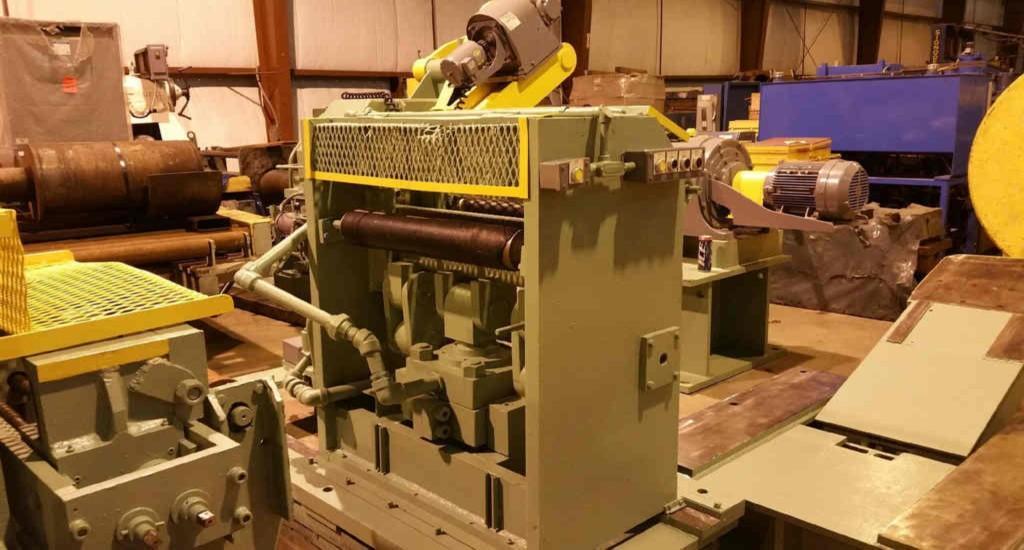

-Slitter Head:
  Removable Head
  5" dia. x 30" face Arbors
  Double eccentric arbor adjustment
  125 HP GE DC Motor, 650/1900 rpm, 240 v
  Falk reducer w/9.212:1 ratio, rated at 125 HP
  Less Slitter Tooling

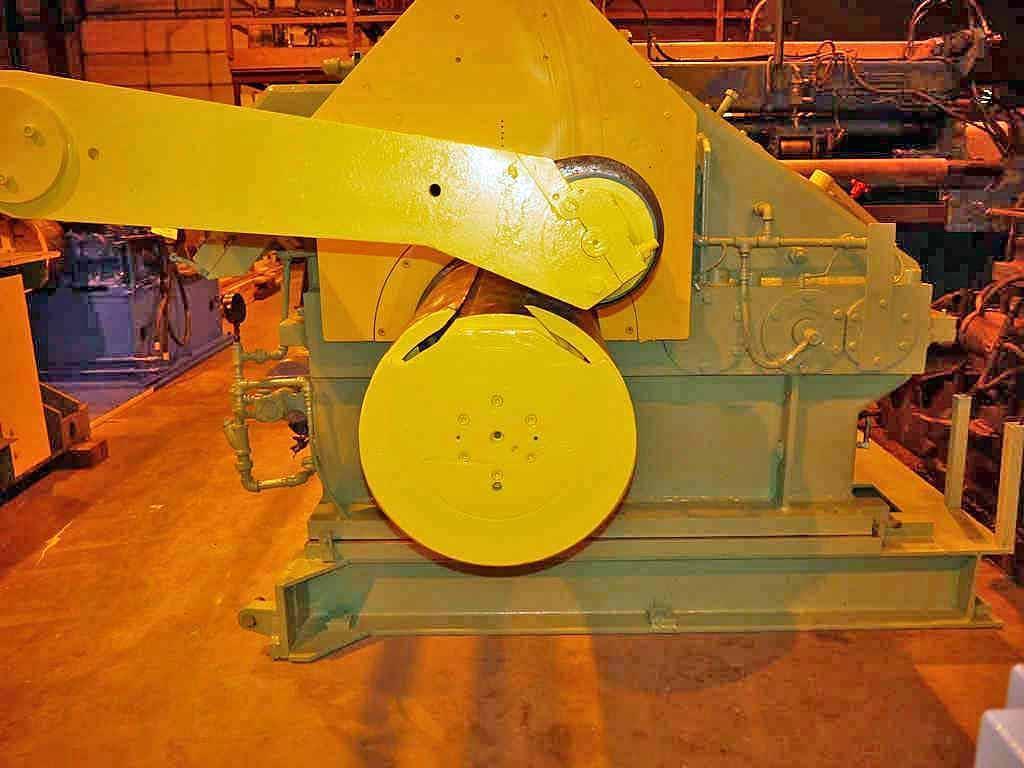

-Scrap Winder:
  Production Machinery
  Hydraulic motor driven
  Oscillate wind
  Approx. 17" W x 30" dia. scrap ball capacity
  Manual dump
  Self contained Hyd. Power unit
    20 HP AC motor, 1750 rpm, 230/460 v
    Vickers pump

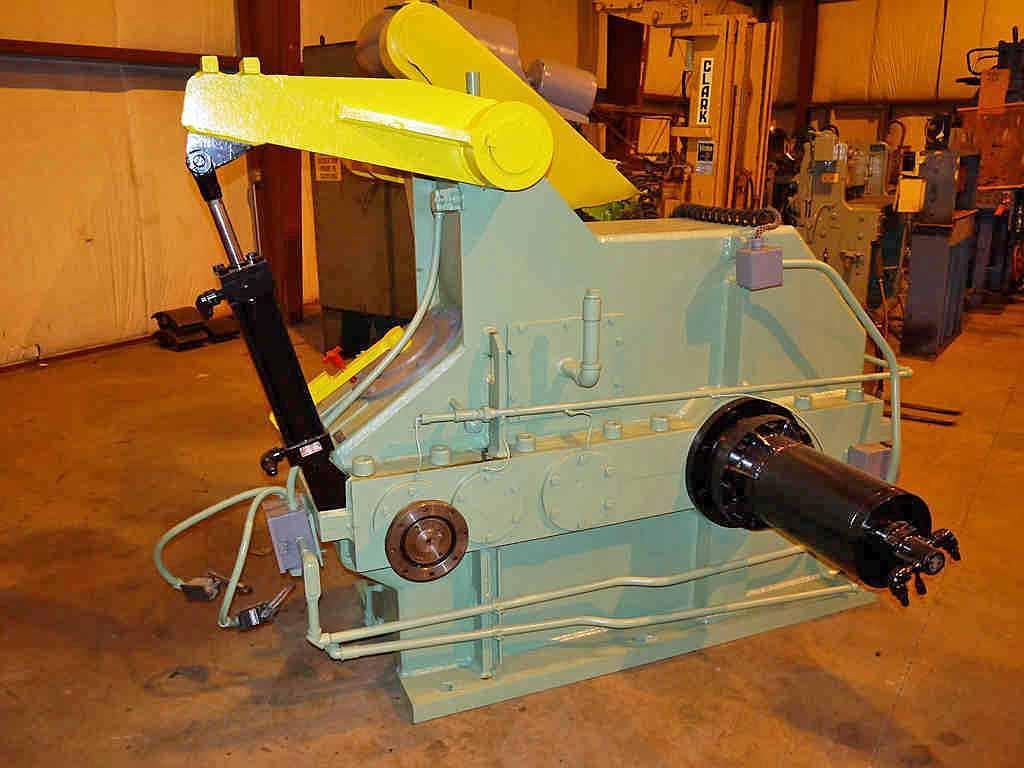

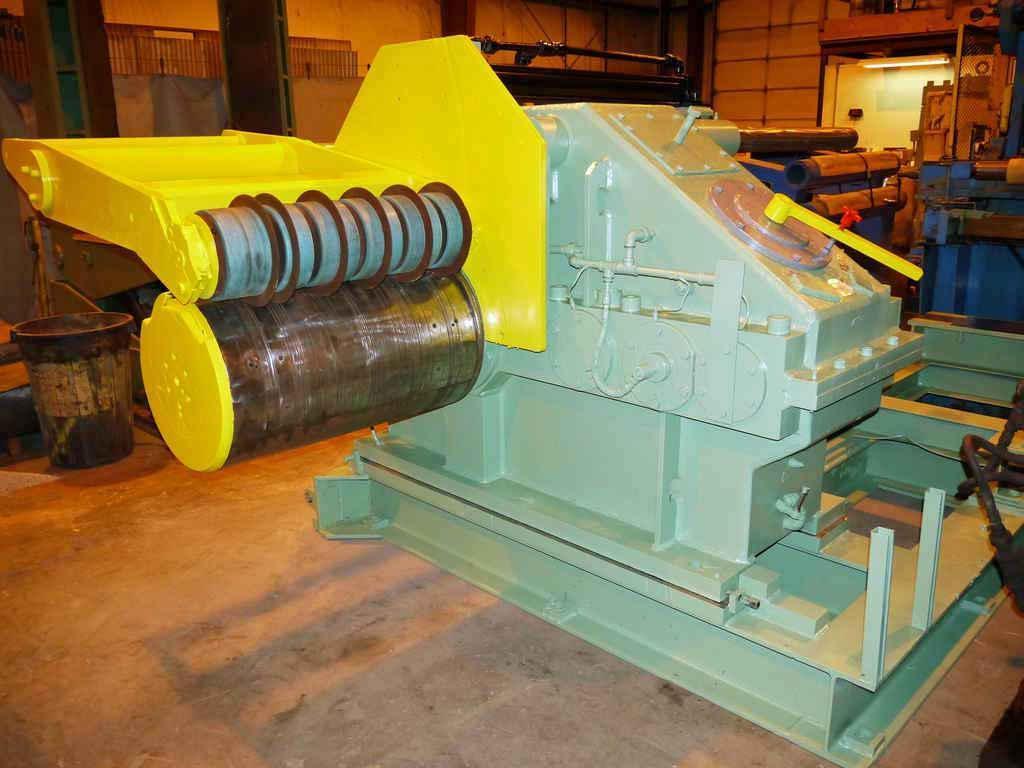

-Recoiler:
  20" dia. x 32" face Drum
  Hydraulic clamp and expansion
  Hydraulic Pushoff
  Overarm Separator
  60" Coil O.D. Max.
  2 Speed Gearbox w/8.5:1 and 21.3:1 ratios
  75 HP GE DC Motor, 300/1800 rpm, 240 v
  Additional Drums included: 12", 14", 16" and 18" I.D.

-Hydraulic power unit:
  20 HP AC motor, 1750 rpm, 230/460 v
  Vickers pump
  Overall size: 87" L x 42" W x 60" High

-Less Electrics
