-Material Width: 24"
-Thickness Capacity: 0.017" - 0.080"
-Coil Weight Capacity: 10,000 lbs.
-Coil I.D. Range: 16" - 20" Entry and Exit
-Coil O.D. Capacity: 72"
Consisting of:

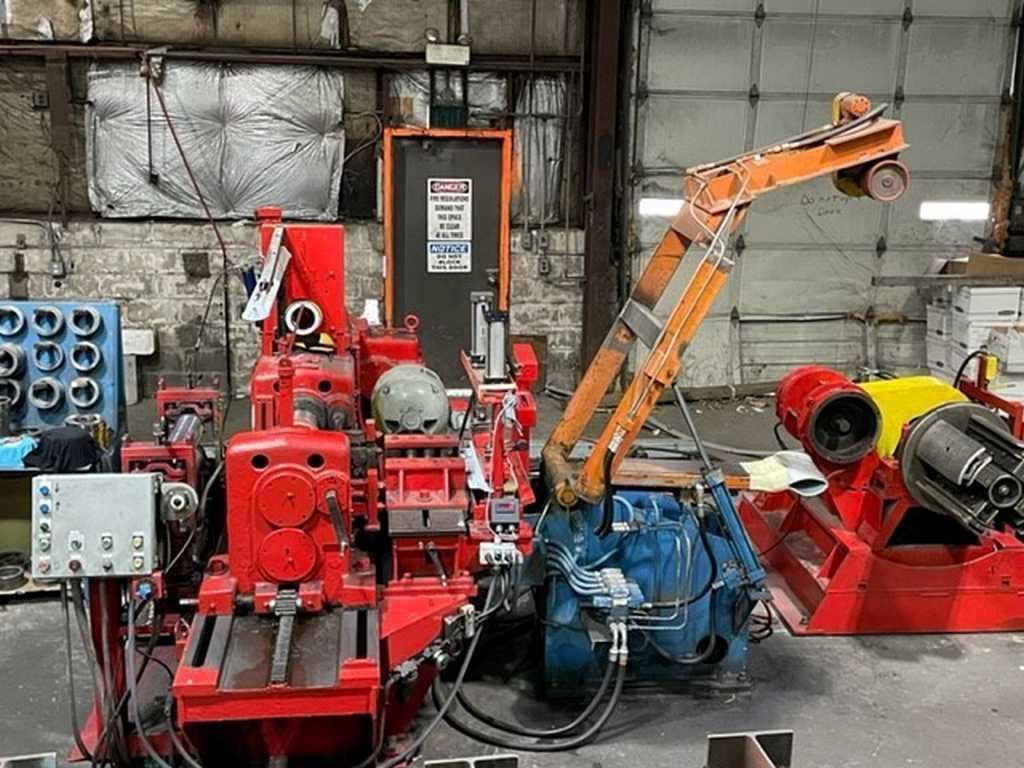

-Uncoiler:
Hydraulic Expansion
Wichita Brake
-Peeler/Holddown Unit:
Powered Holddown Roll

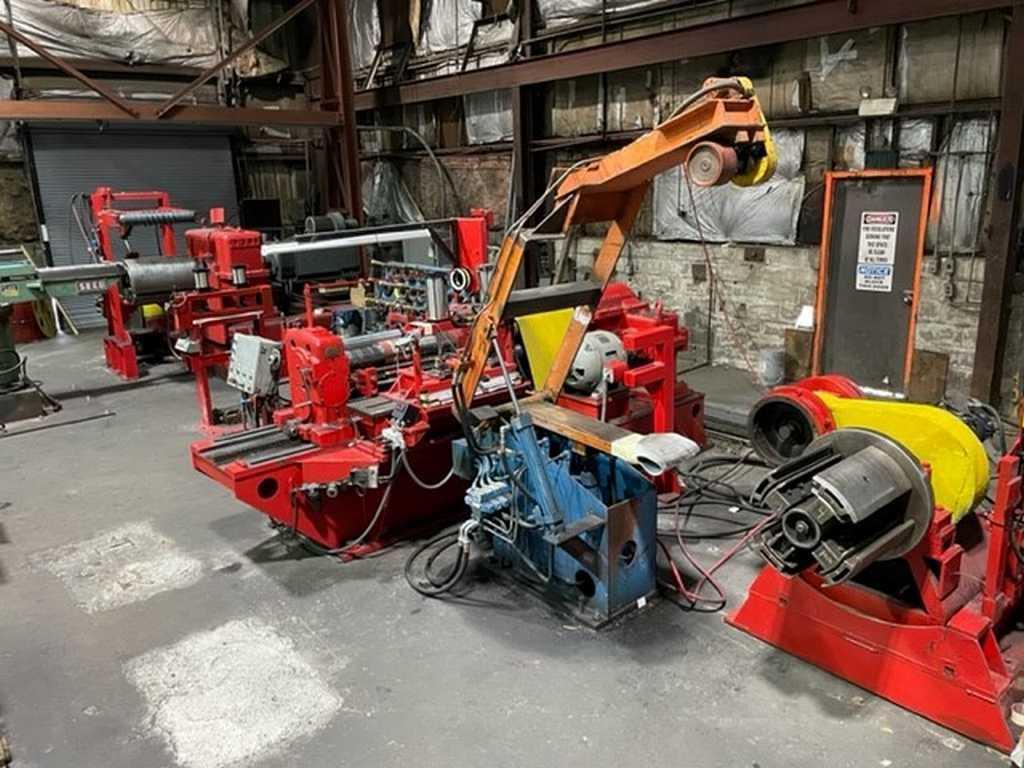

-Slitter Head:
4.5" Dia. Arbors
Entry Tension Pad
Air Cylinder Loaded
Entry Side Guides
Eccentric Arbor Adjustment
Exit Pinch Rolls
15 HP AC Drive Motor
Slitter Tooling: Knives and Spacers
-Tension Stand:
(2) Air Cylinders for Pad Pressure

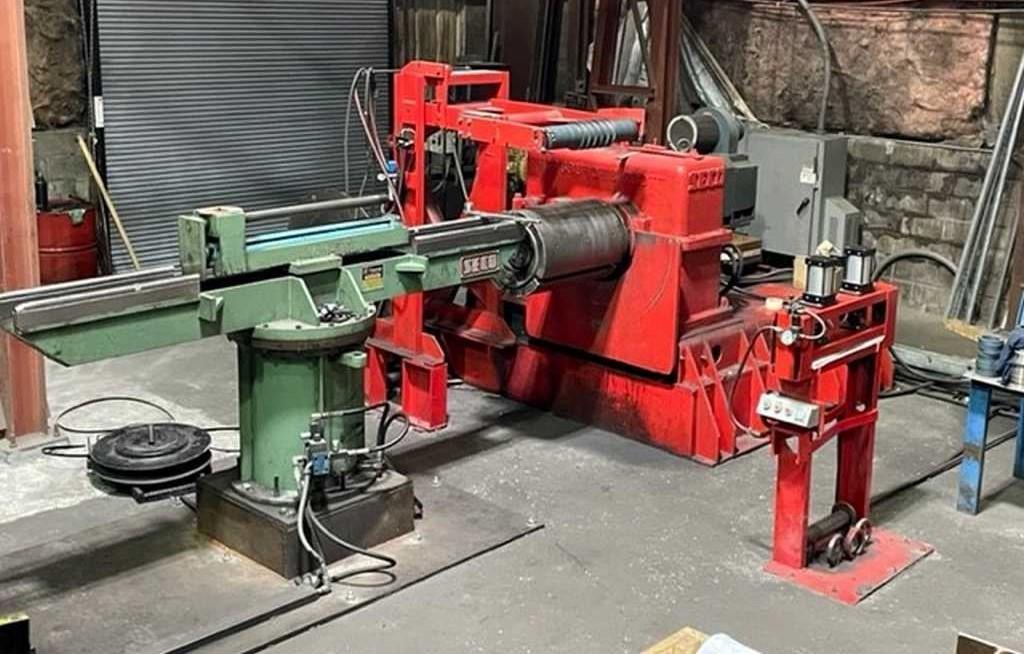

-Recoiler:
16" Dia. Drum w/Pads for 20"
Manual Clamp and Expansion
Hydraulic Pushoff
60 HP DC Motor w/Blower
-Free Standing Overarm Separator:
-Exit (2) Arm Turnstile:
C-Hook Type Arms
Manual Rotation
Hydraulic Pushoff

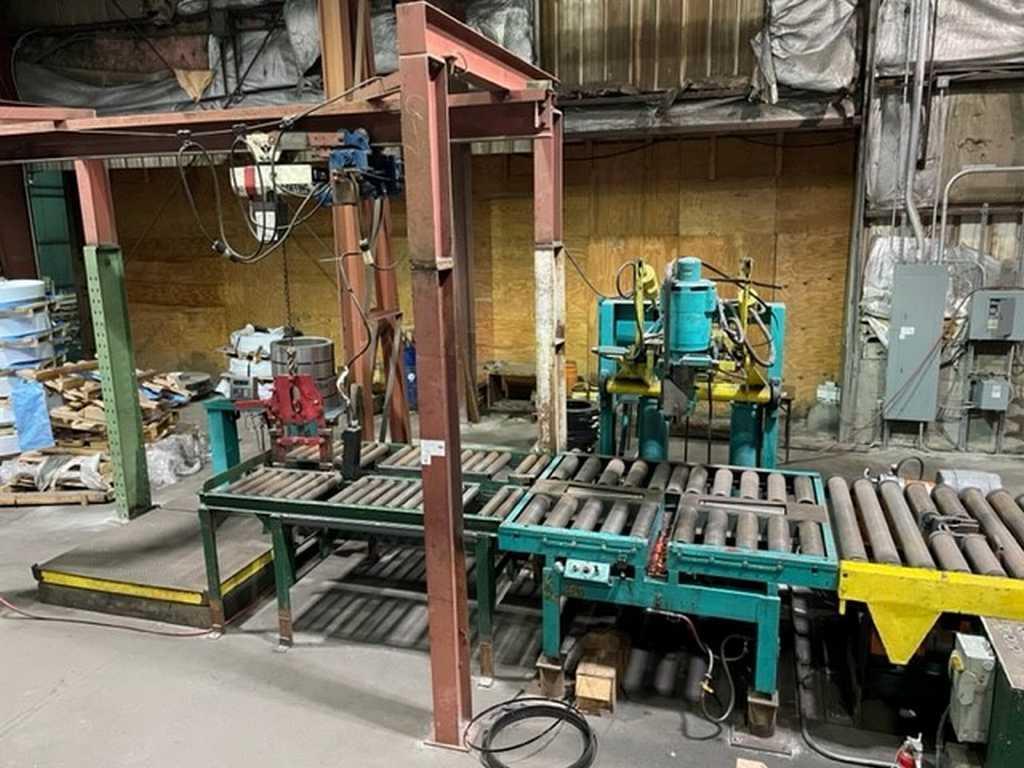

Coil Packaging Line:
Capacity: 6,000#
Consisting of:
-Downlayer:
In Line Discharge
Powered Conveyor Rolls
-Banding Table:
Signode Bander M20SV-5820
(2) Tapered Turning Rolls
-Exit Conveyor Section:
Idler Conveyor Rolls
Slots for I.D. Grab
-Jib Crane with I.D. Grab:
-Exit Scale:
10,000# Capacity w/Digital Readout
-Line is installed and running
