SERIAL ........................ C0693003

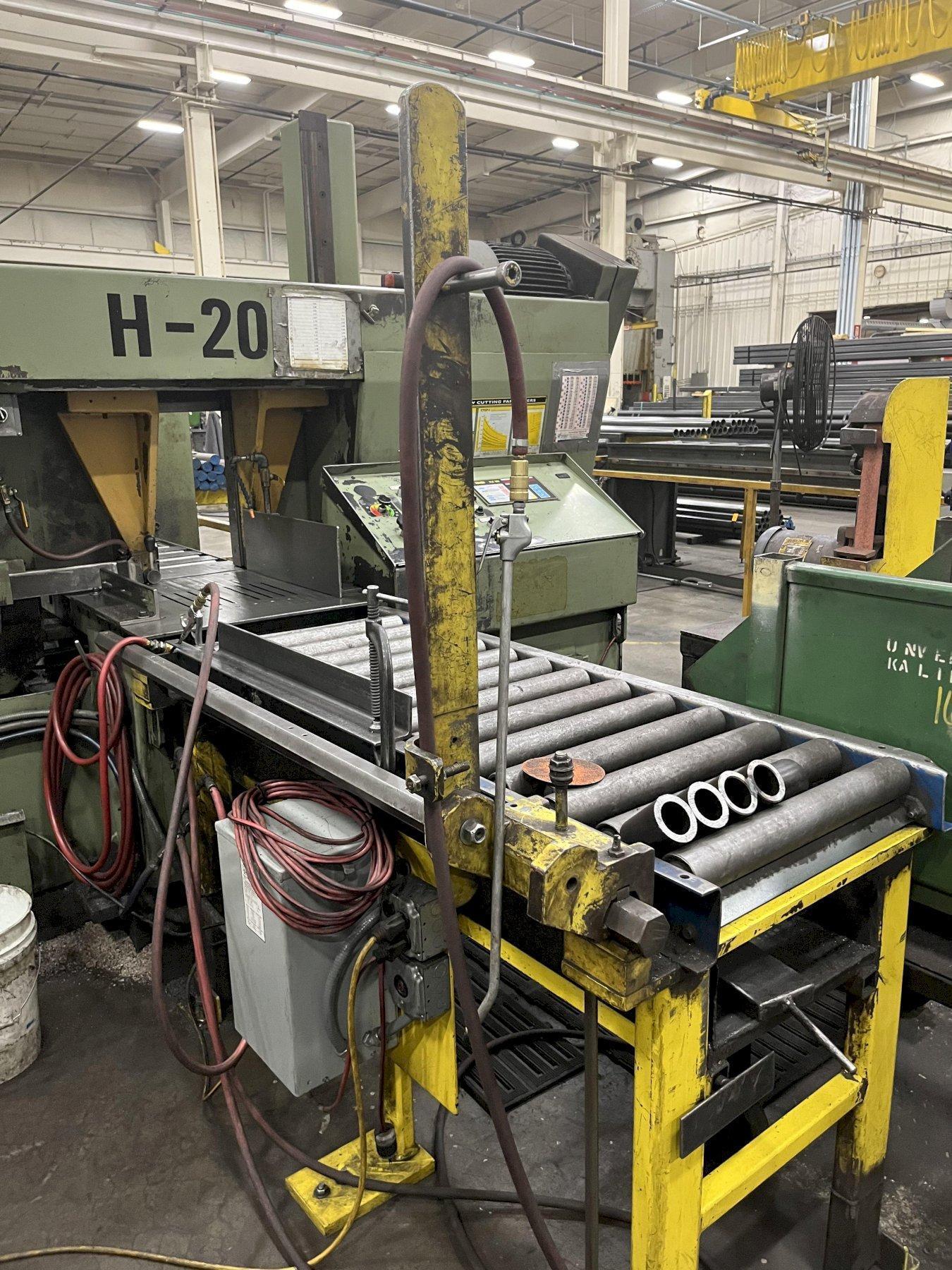

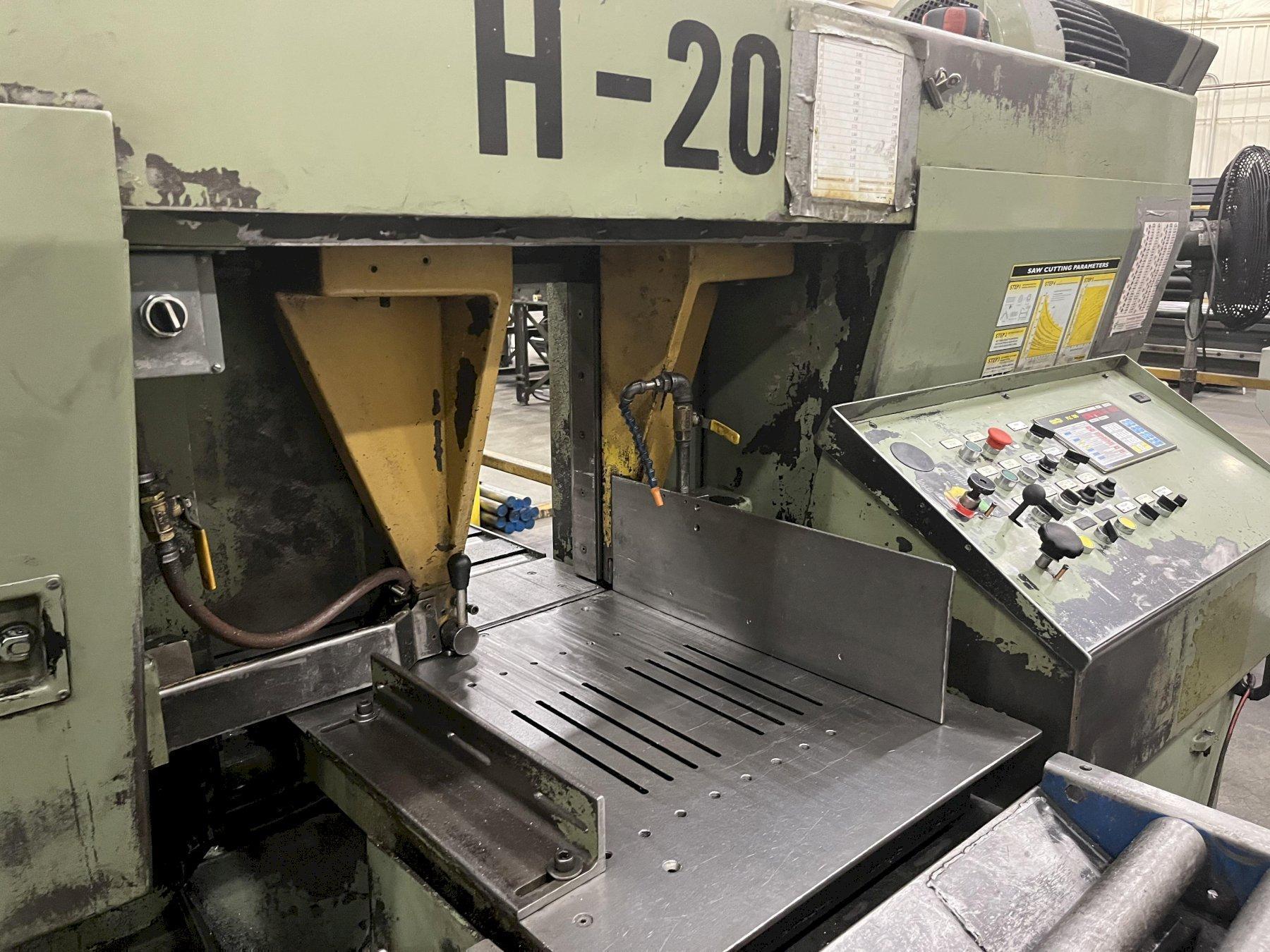

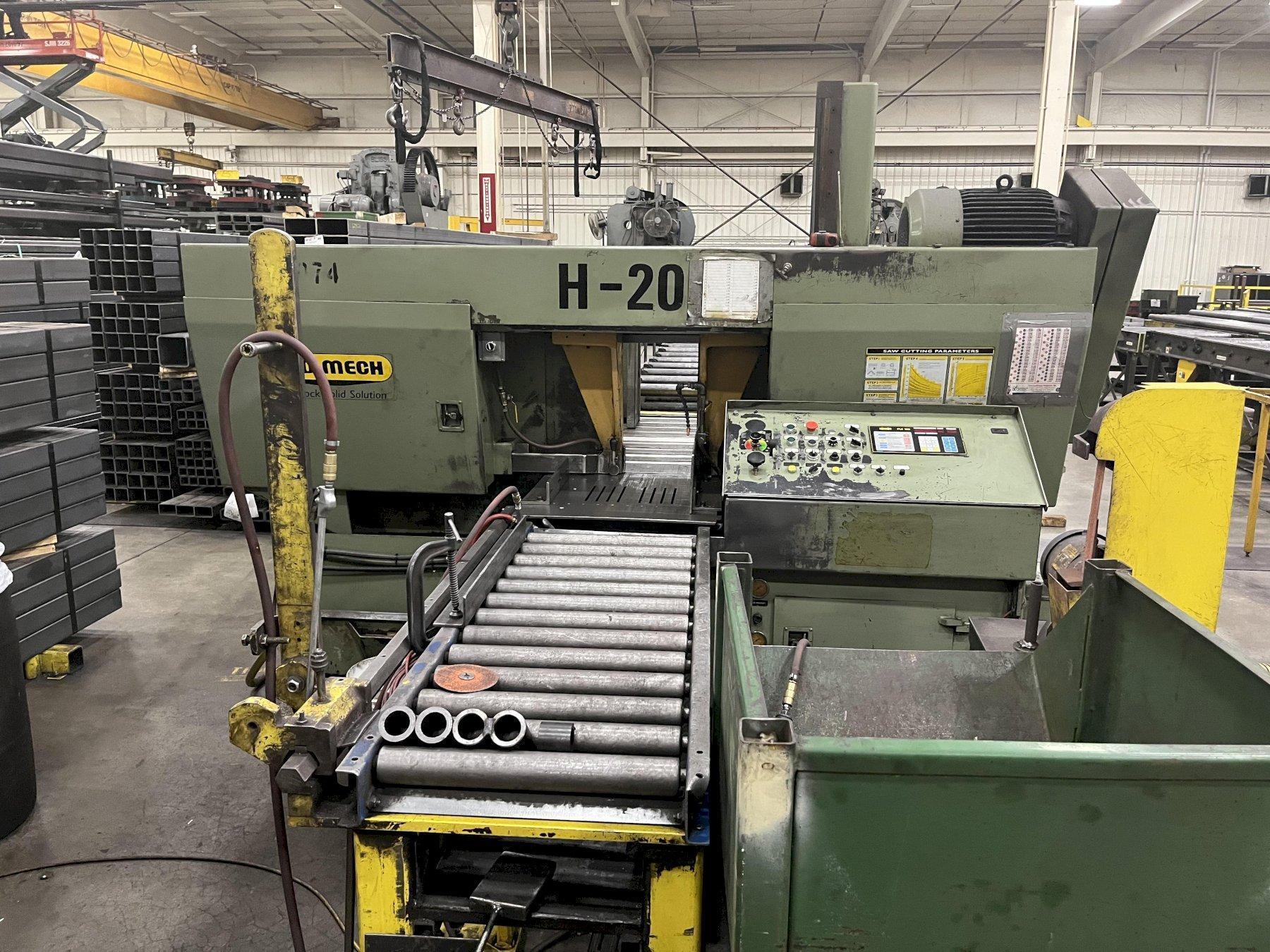

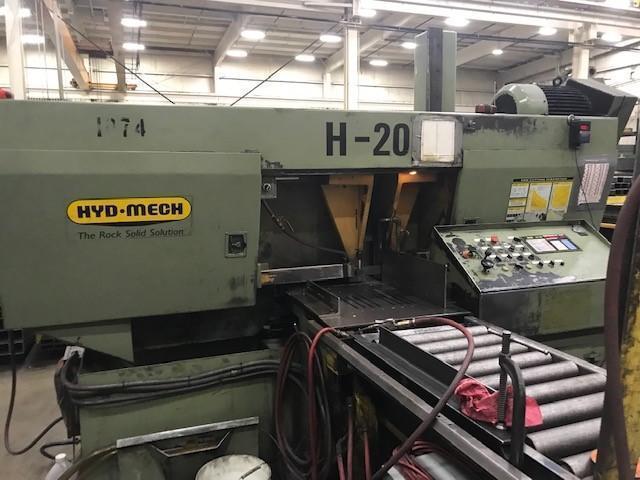

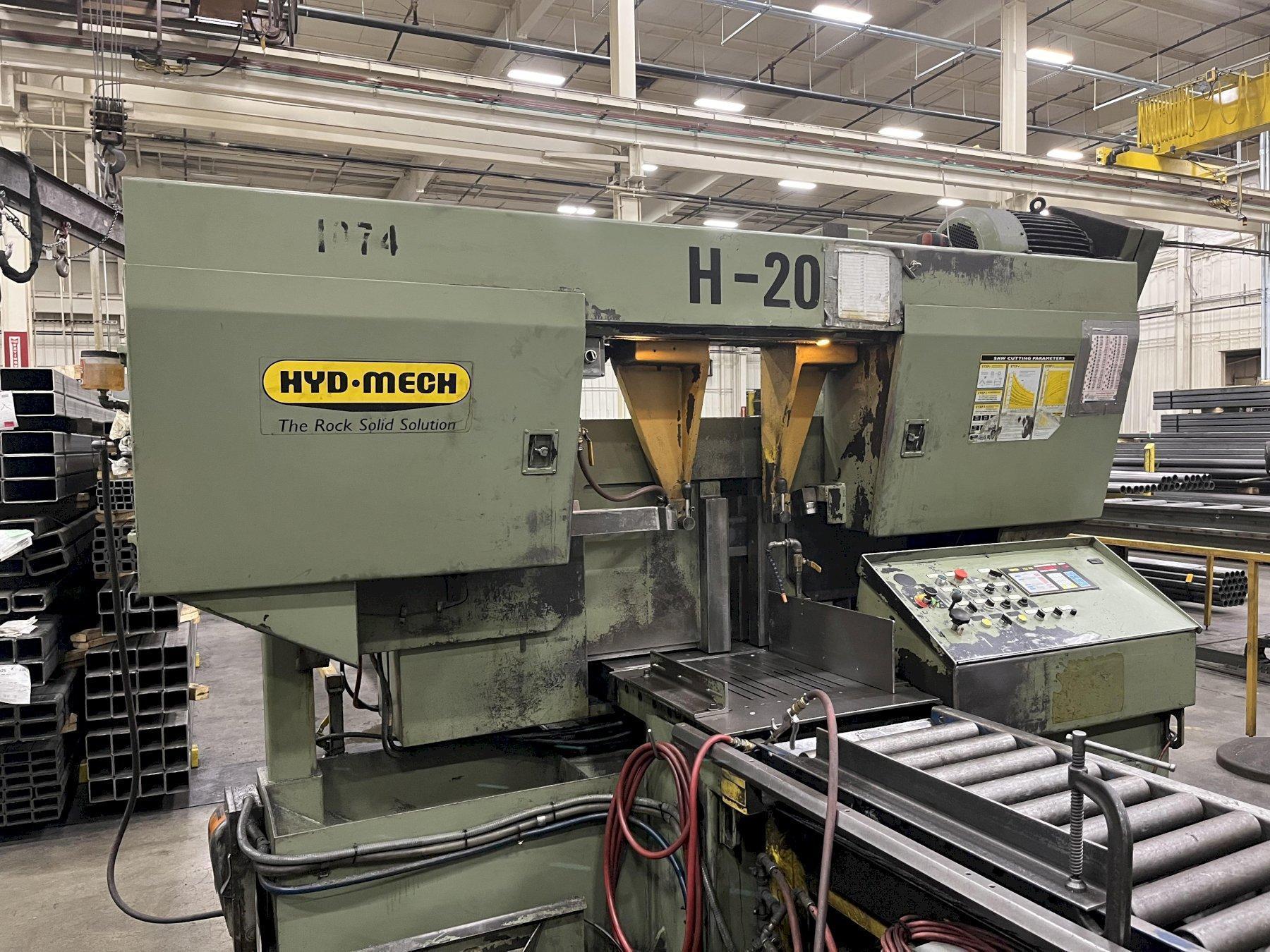

MODEL ......................... H-20A
YEAR NEW ...................... 1997

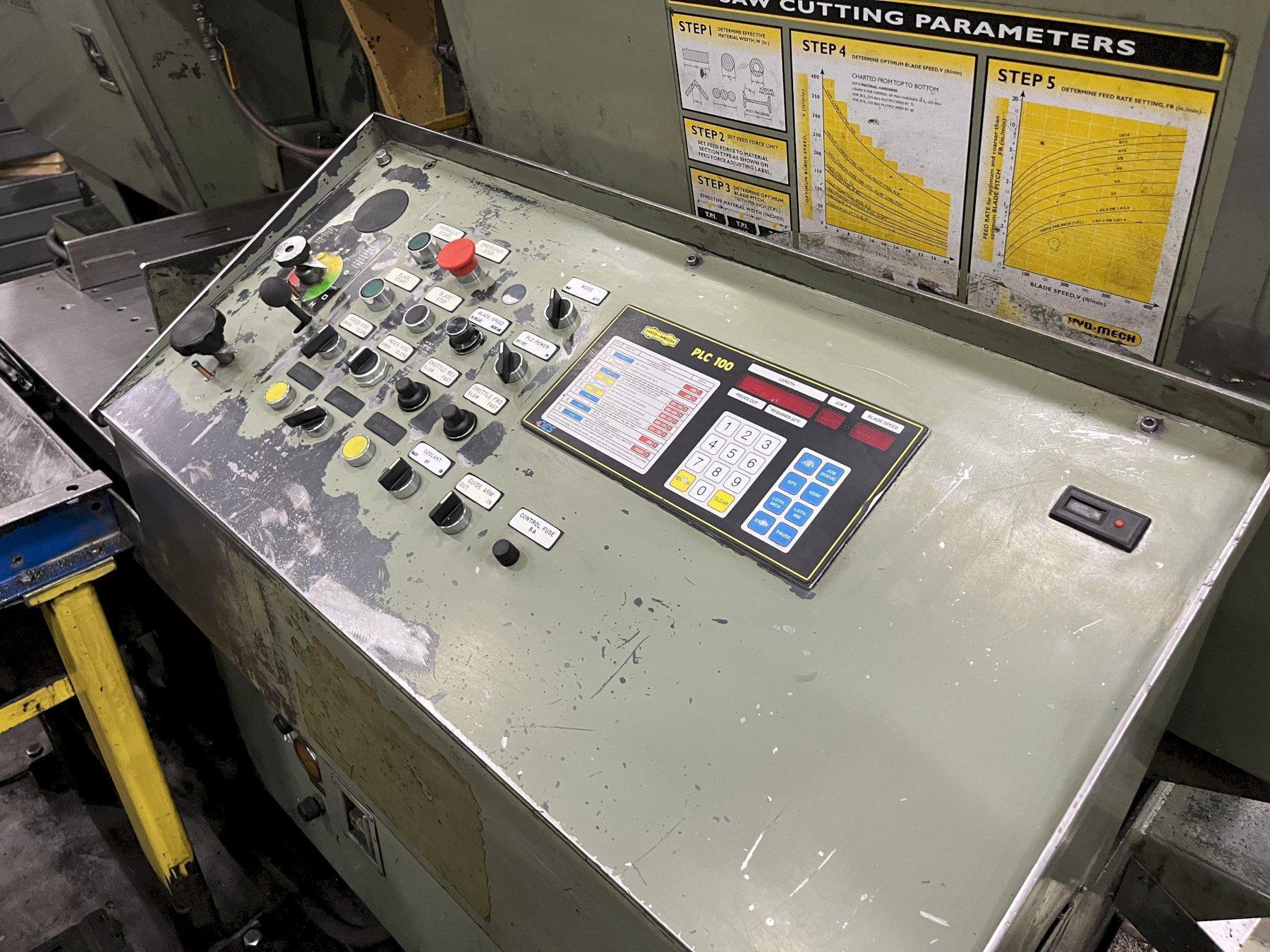

PROGRAMMABLE CONTROLLER ....... YES, PLC 100
CUTTING CAPACITY (SQUARE) ..... 20" W X 20" H
CUTTING CAPACITY (ROUND) ...... 20" DIAMETER
WORKLOAD WEIGHT CAPACITY ...... 8,000 LBS
BLADE SPEEDS (VARIABLE) ....... 45 TO 265 SFPM
BLADE SIZE .................... 22'2" X 2" X .050"
CUTTING FORCE ................. 0 TO 500 LBS
SHUTTLE STROKE ................ 0 TO 33" (220" MAXIMUM)

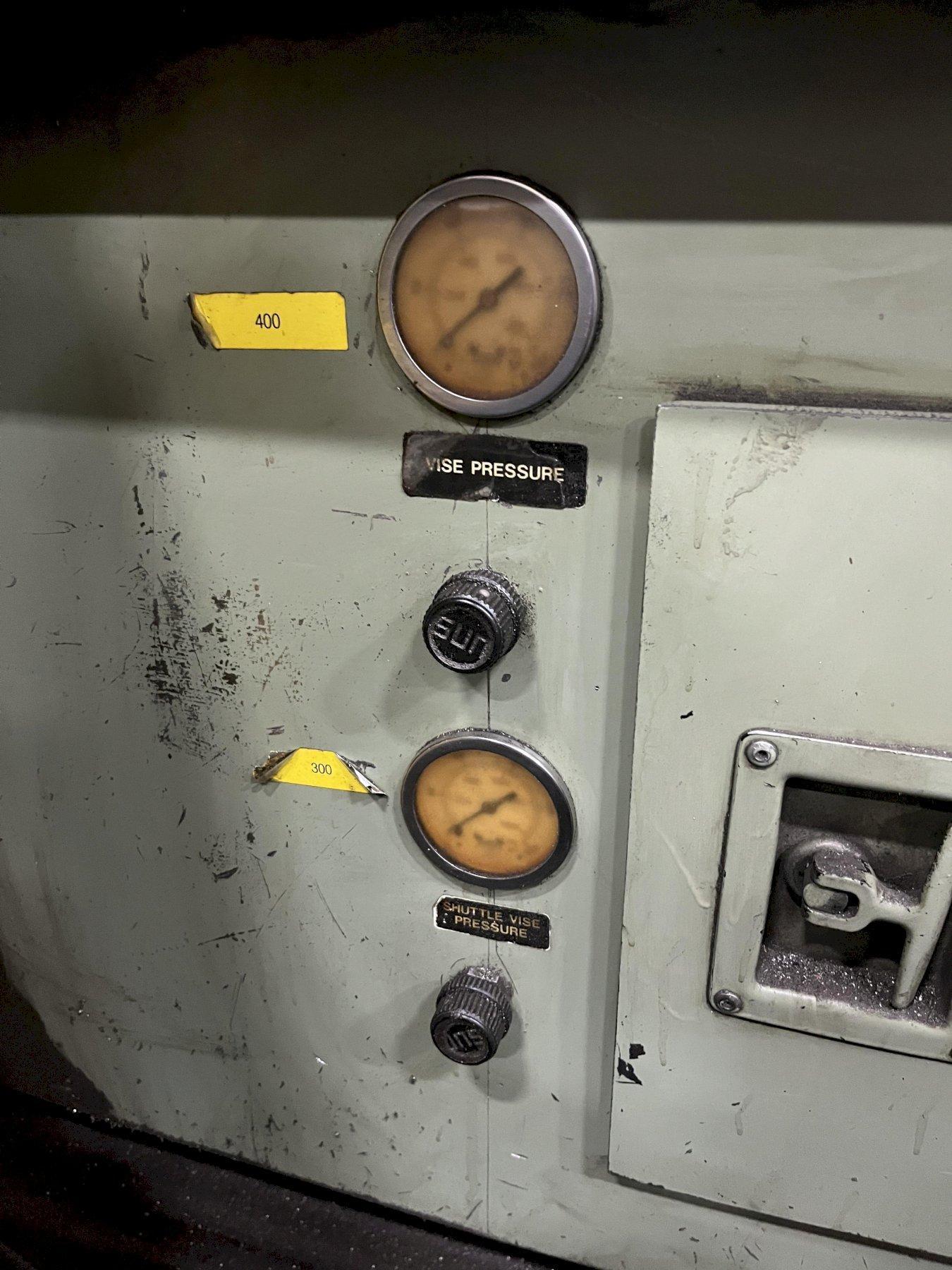

CLAMPING FORCE (VARIABLE) ..... 150 TO 900 PSI

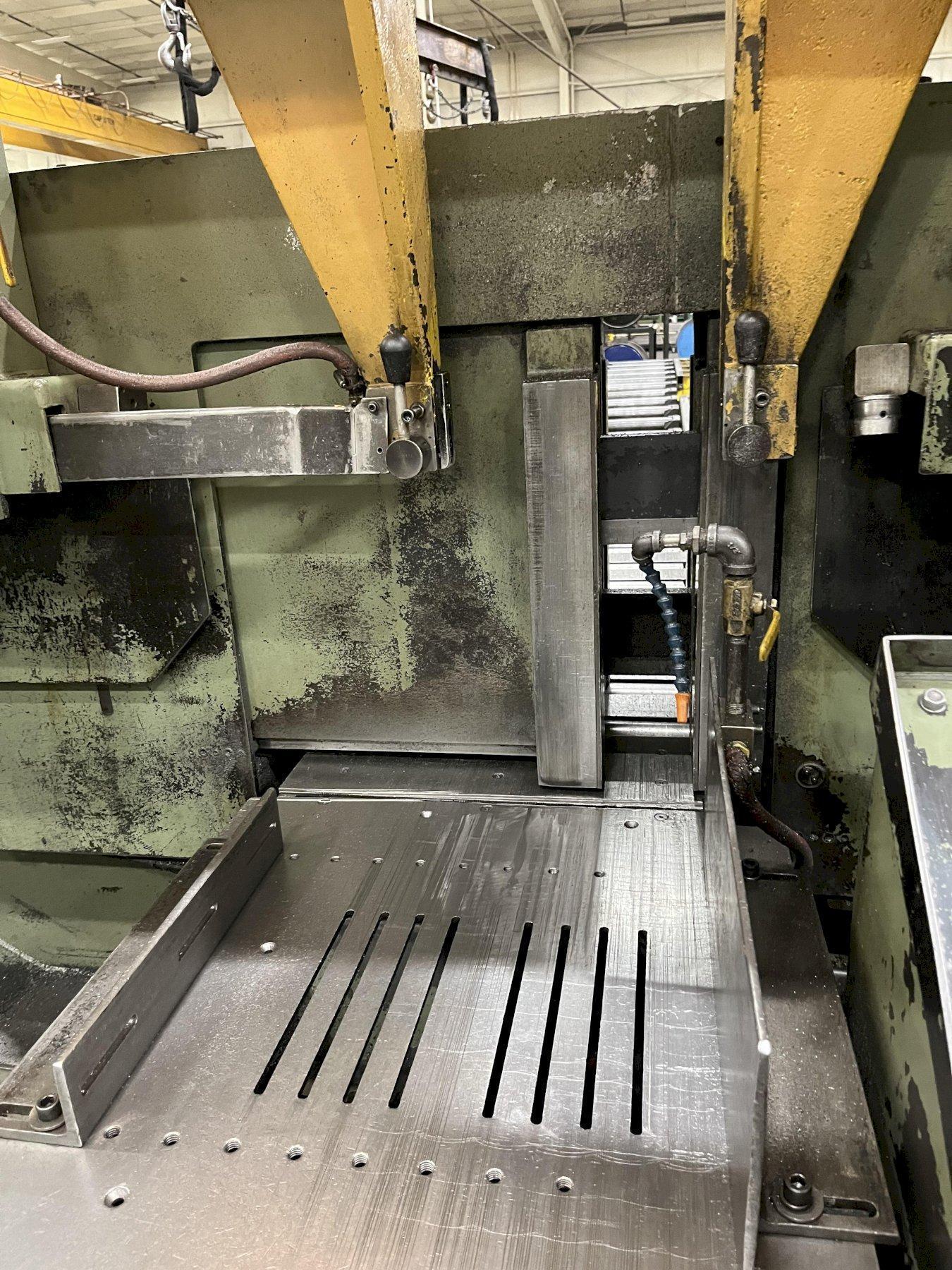

HYDRAULIC VISES ............... YES
HYDRAULIC BLADE TENSION ....... YES

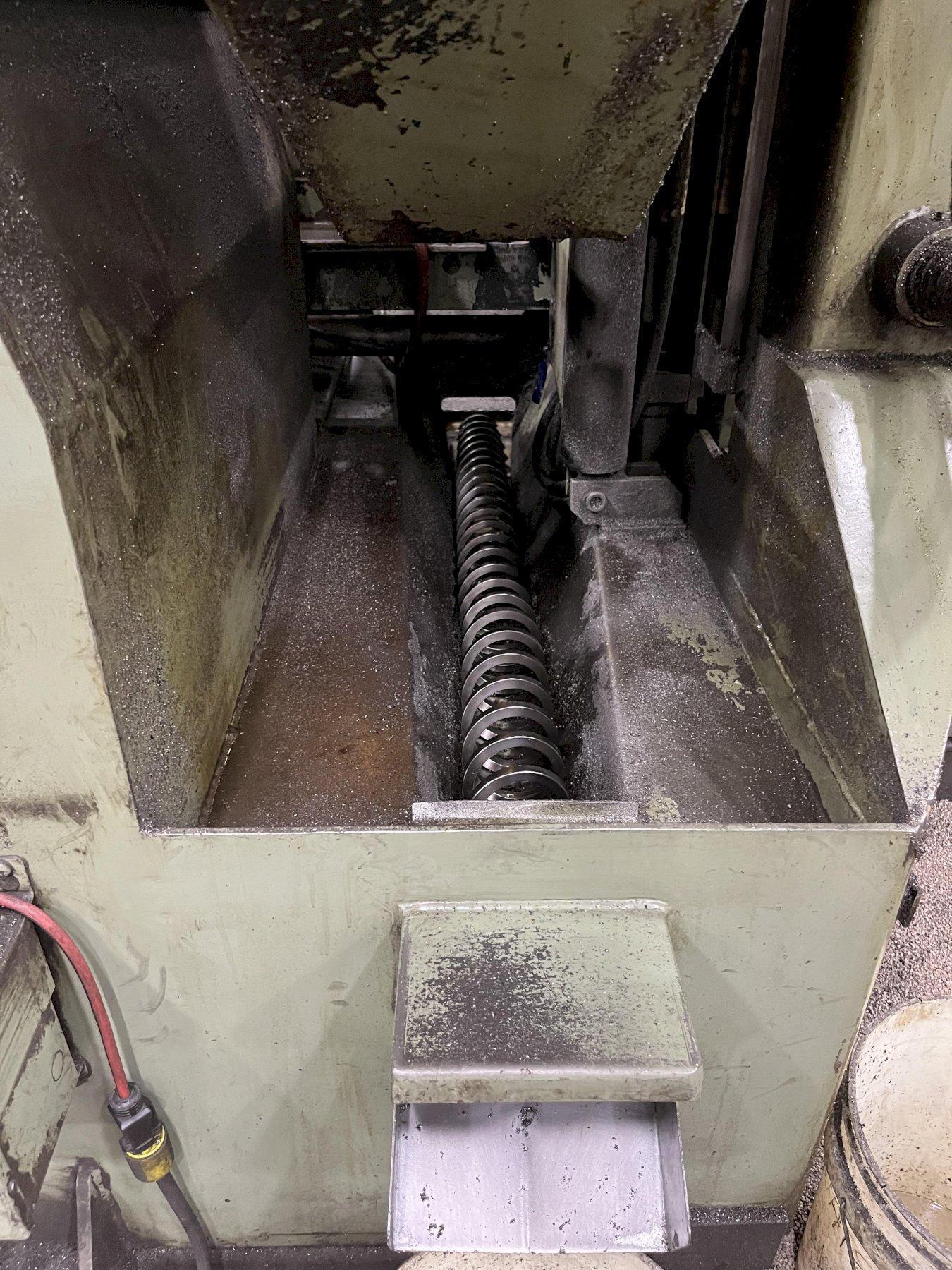

HYDRAULIC CHIP AUGER .......... YES
POWER BLADE BRUSH ............. YES
HYDRAULIC BLADE GUIDE ARM ..... YES
DIGITAL DISPLAY COUNTER ....... YES
COOLANT ....................... YES
HYDRAULIC MOTOR ............... 3 HP
BLADE MOTOR ................... 10 HP
