Specifications
Equipped With
SERIAL .................... 841205
NEW ....................... 11.24.2015

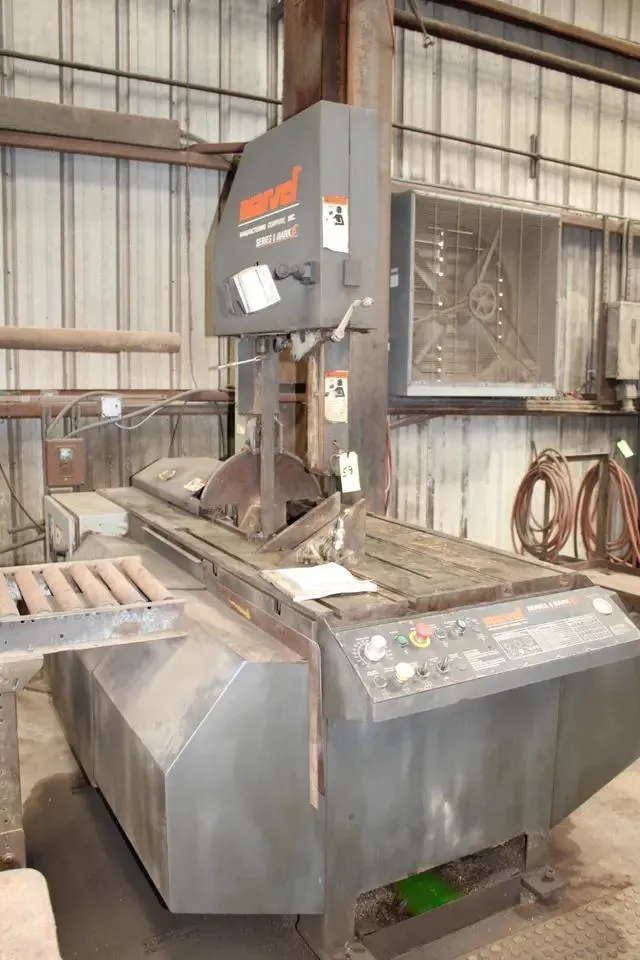

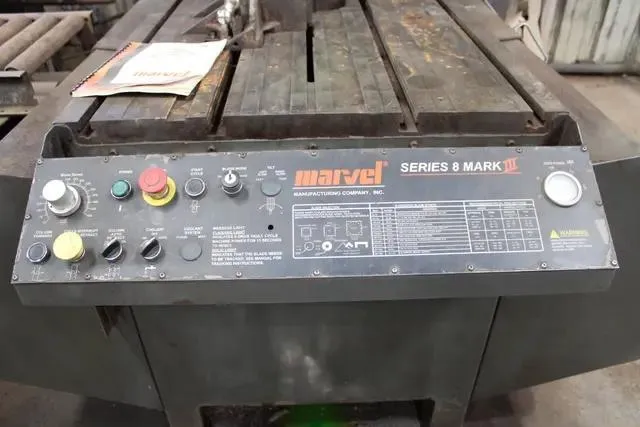

MODEL ..................... 8 MARK III
CAPACITY................... 22" X 18"
CAPACITY AT 45 DEGREES .... 18" X 14-1/2"
AREA OF TABLE ............. 33" X 24"
BLADE SPEEDS (VARIABLE)..... 50 TO 450 FPM
FEED PRESSURE .............. 0 TO 140 LBS.
BLADE SIZE ................. 15'4" X 1.25" X .042"
HEAD TILT LEFT & RIGHT ..... 45 DEGREES
TABLE HEIGHT ............... 34-1/2"
COOLANT .................... YES
BLADE GUIDES ............... UPPER & LOWER ROLLER TYPE
MANUAL TABLE VISE .......... YES
MOTOR ...................... 5 HORSEPOWER
