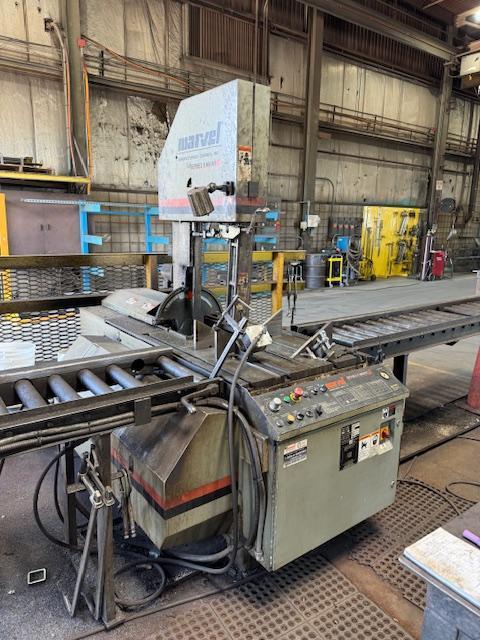

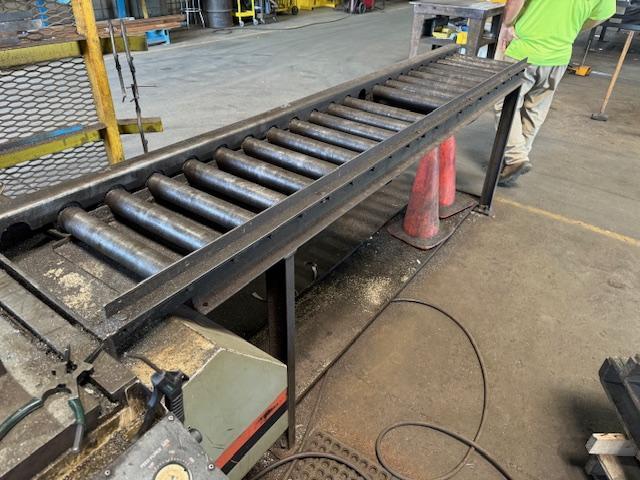

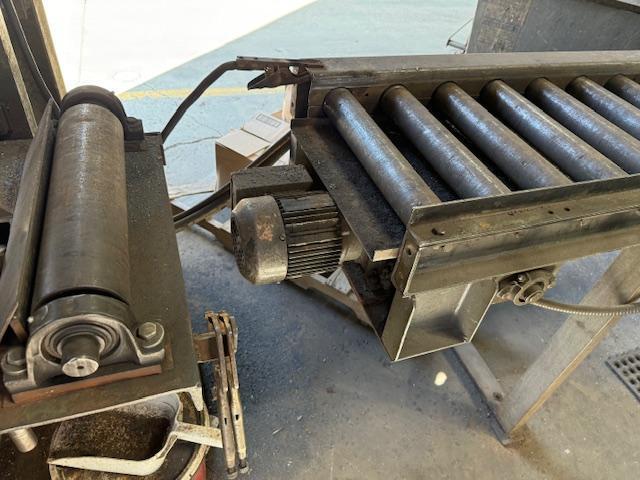

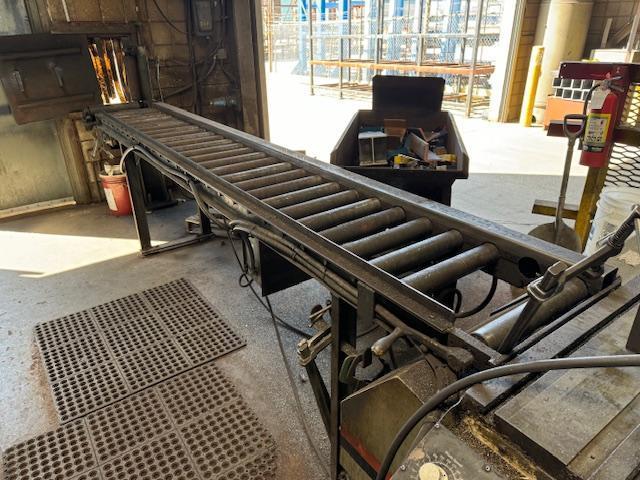

Machine Specifications:
Year 2011
Capacity at 90°: 18” horizontal, 22” vertical
Capacity at 45° Rgt: 18” horizontal, 14.5” vertical
Capacity at 45° Lft: 18” horizontal, 13” vertical
Capacity at 60° Rgt: 18” horizontal, 9.7” vertical
Capacity at 60° Lft: 18” horizontal, 7.3” vertical
Capacity at 3° Cant: 17.5” horizontal, 22” vertical (Column in forward cant position)

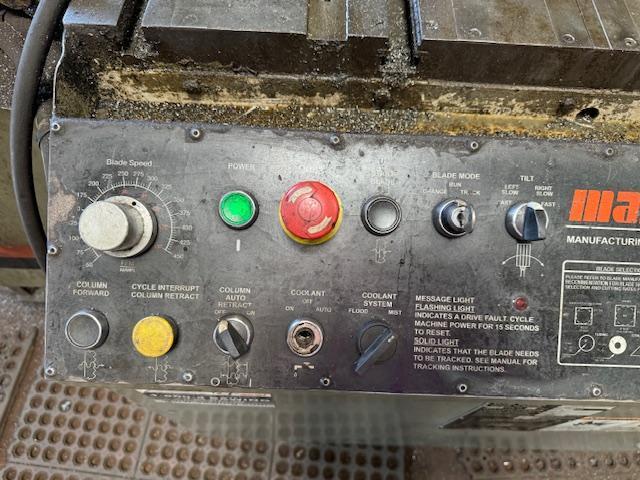

Speed Range: 50 – 450 fpm infinitely variable speed drive system.
Feed Range: 0 – 250 lbs. infinitely variable w/ control on operators panel and Automatic Column Return. Column feed is mechanical w/ Marvel clutch power feed.
Work Table: 24.25” x 33”, t-slotted accepting .625” t-bolts, 4-slots
Wheel Diameter: 19” cast iron wheels
Table Height: 38”
Blade: 15′ 4″ long x 1.25″ wide, .042″ thick
Main Motor: 5 H.P., 1800 RPM, totally enclosed fan cooled.
Coolant Pump: 1/8 H.P. 3600 RPM totally enclosed, built in integrally.
Std Machine Color: Machine Tool Gray
Air Required: 5 cfm, 80 psi min.
Power: Available voltage: 208V, 240V, 480V or 575V, 3ph, 60Hz.
Specific voltage must be specified when ordering.

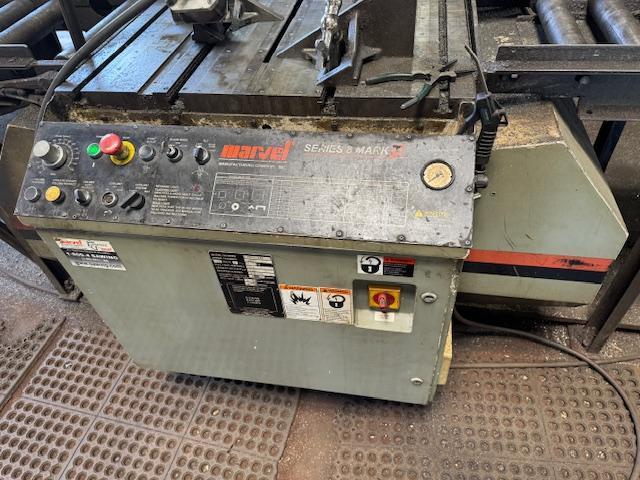

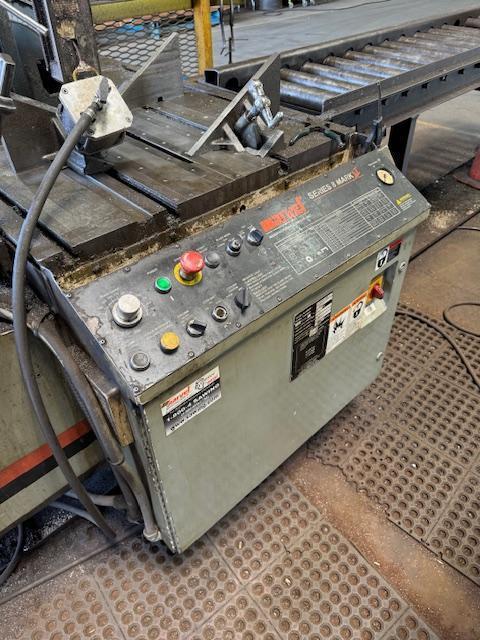

Machine Features:
Blade Break/Stall Detection:
Standard equipment, shuts off machine in the event of blade breaking or stalling.

Miter Cutting:

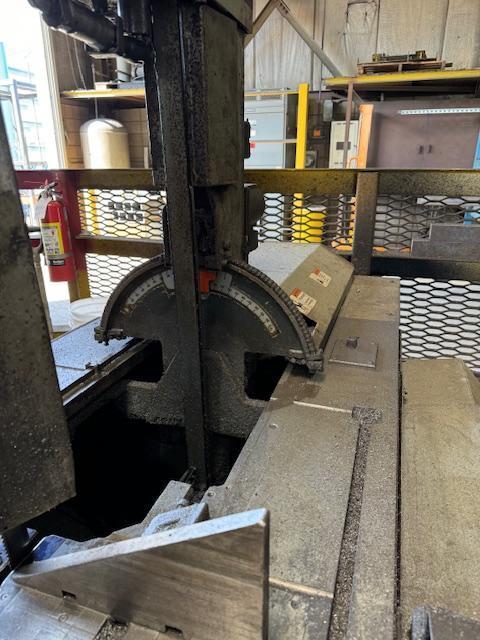

Column and blade tilt up to 60° right and left of vertical; work always stationary. Manual tilt standard with Sure-Lock and Built-in protractor. Electric Power tilt optional.

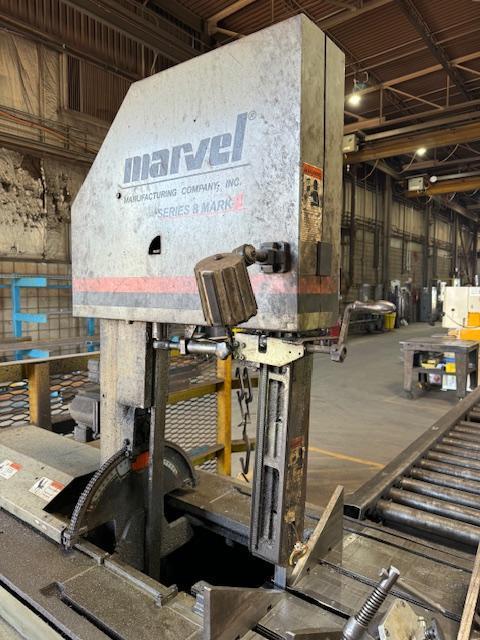

Saw Column:
Marvel patent pending Quick Change Column is standard on all machines. Allows column to be set either upright or at a 3° forward cant. Column travels on recirculating linear ball bearing rails.

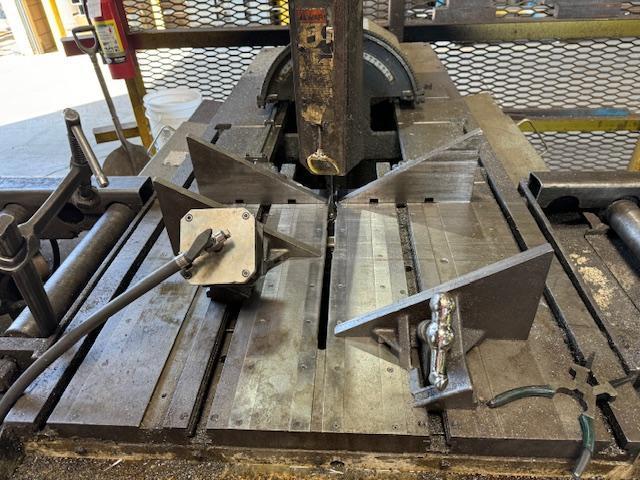

Quick-Action Vise:
Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of blade.
Jaws are 6” (152 mm) high, 12” (305 mm) wide.

Automatic Stops:
Adjustable stops can be pre-set to stop advance and return of blade and to stop motor at any location within the 18” (457 mm) travel of the blade.

Coolant System:
Built in with flood system. Available with added optional lubrication system, options codes ML1 and ML2 controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons.

Flushing Hose:
Washes chips from hard to get at places reducing clean-up time.
