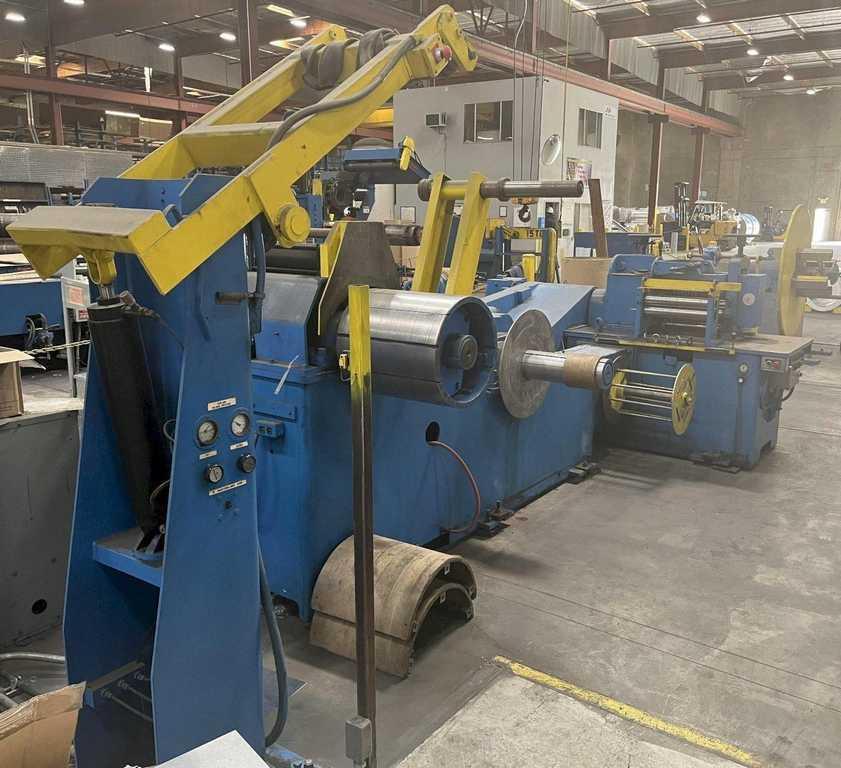

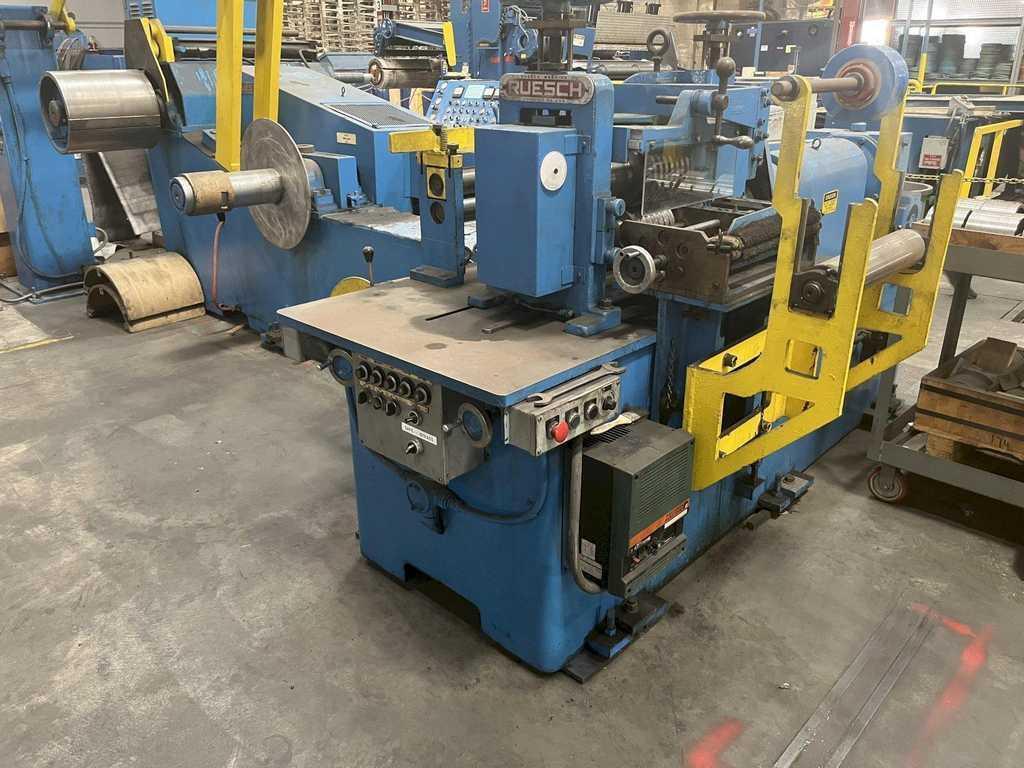

18" Ruesch Slitting Line
-Line Direction: Left to Right
-Main Motor: 30 HP DC
-DC Drive: Variable Speed
Consisting of the following:

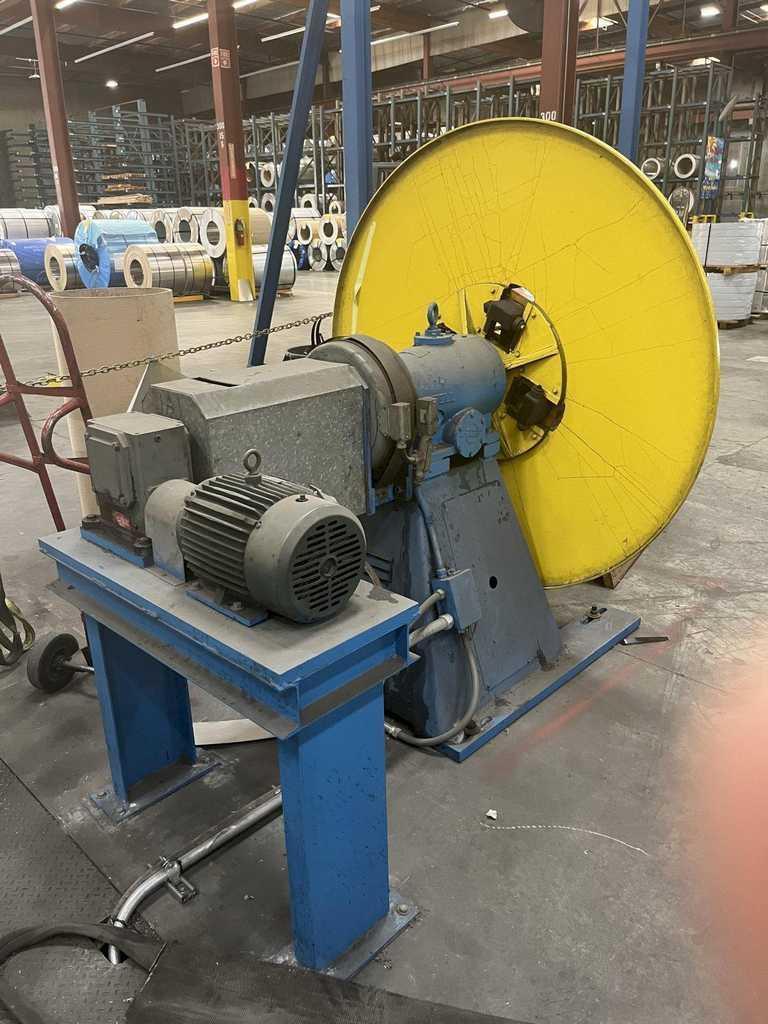

-Littell Uncoiler:
Model: 40-12
Coil Width: 12"
Coil Weight: 4,000 lbs.
Coil I.D.: 16" - 20"
Manual Expansion
Coil O.D.: 60"
AC Drive Motor thru Right Angle Reducer

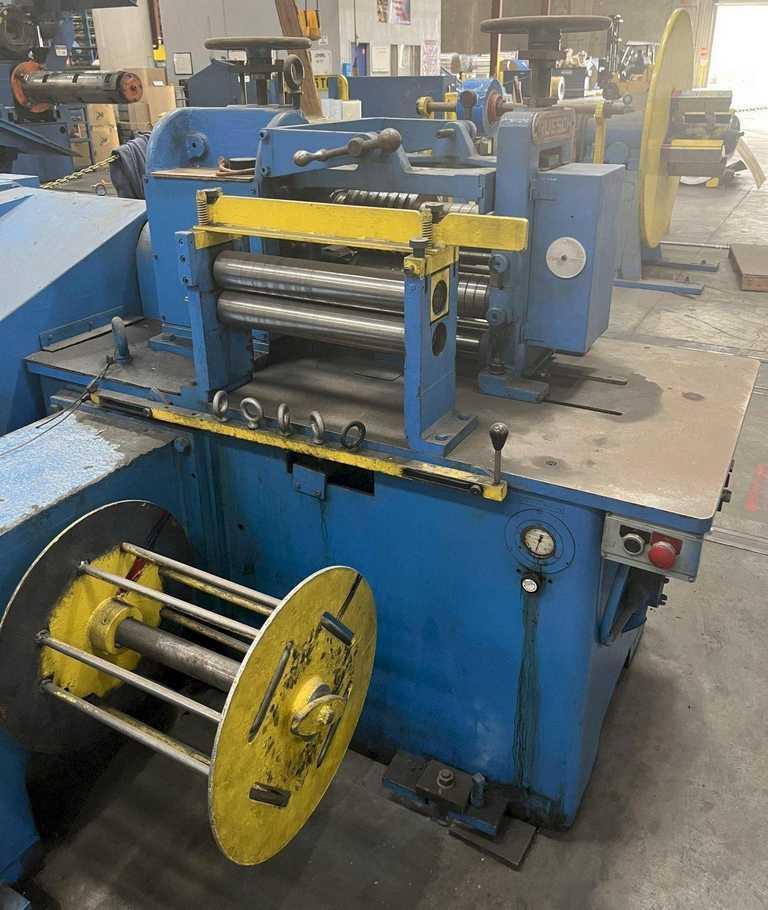

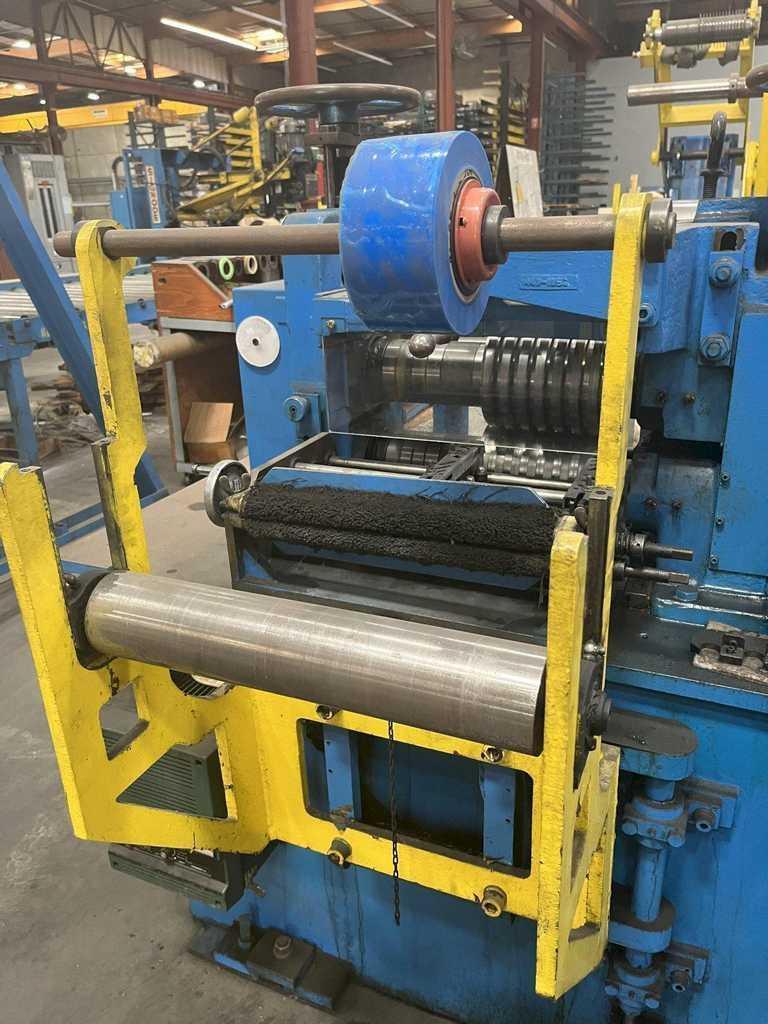

-Slitter Head:
Entry Pasline Roll
Entry Edge Guides

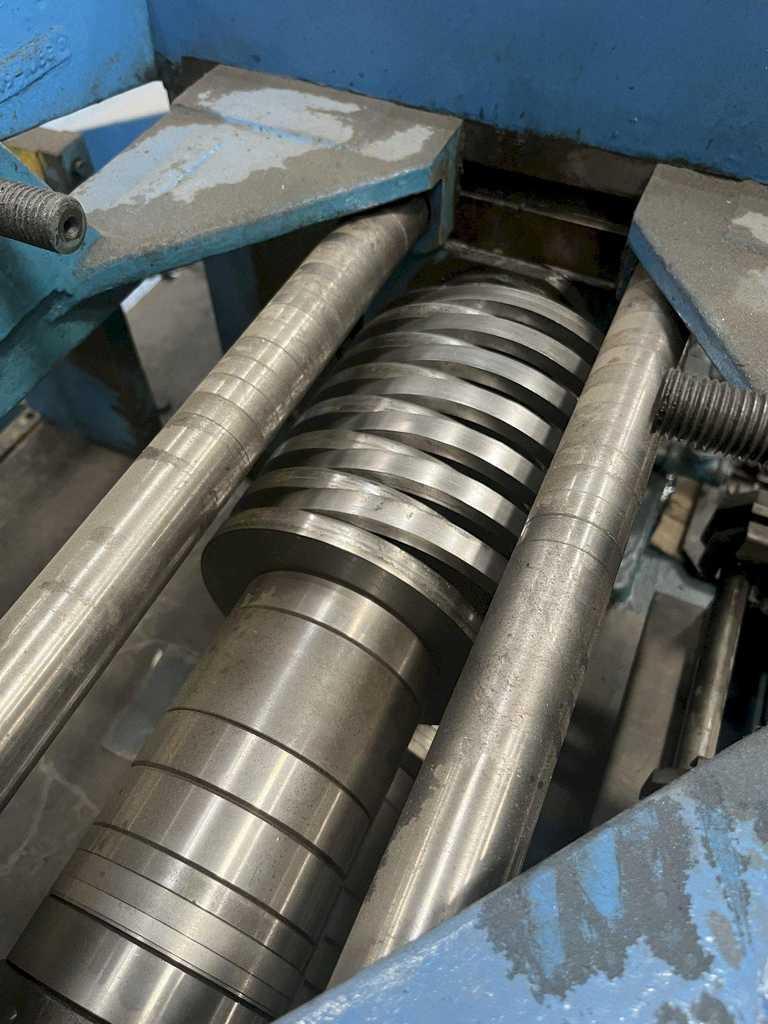

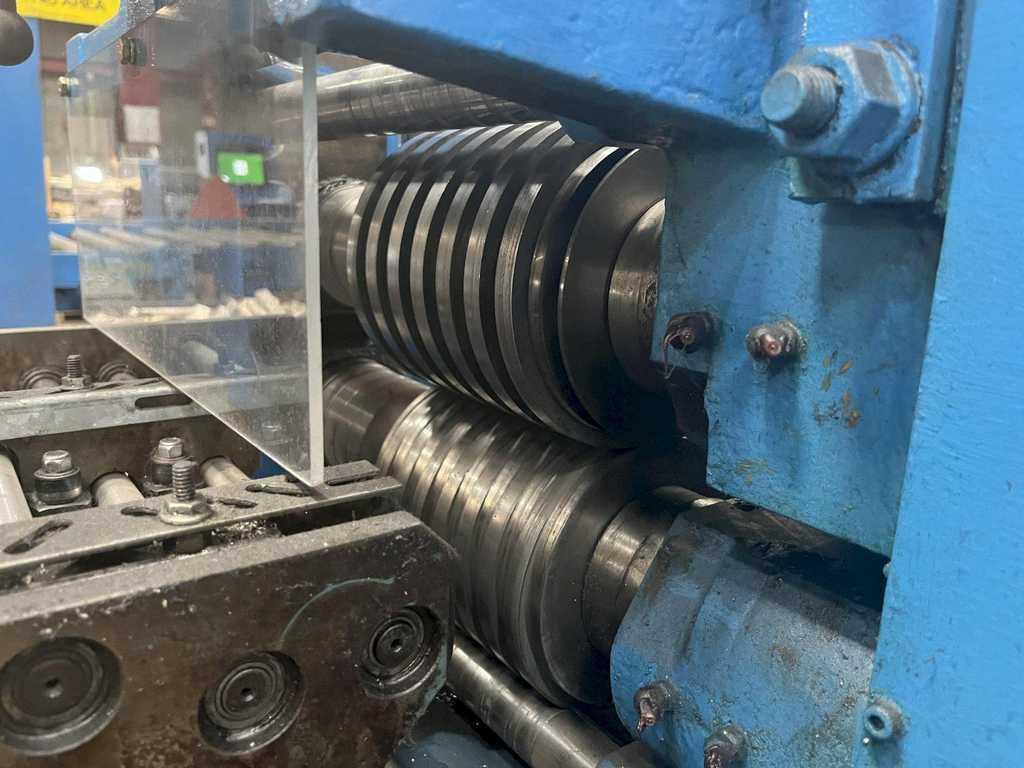

2.875" Dia. x 14" Face Arbors
Steel Stripper Ring Assembly
Exit Pinch Rolls

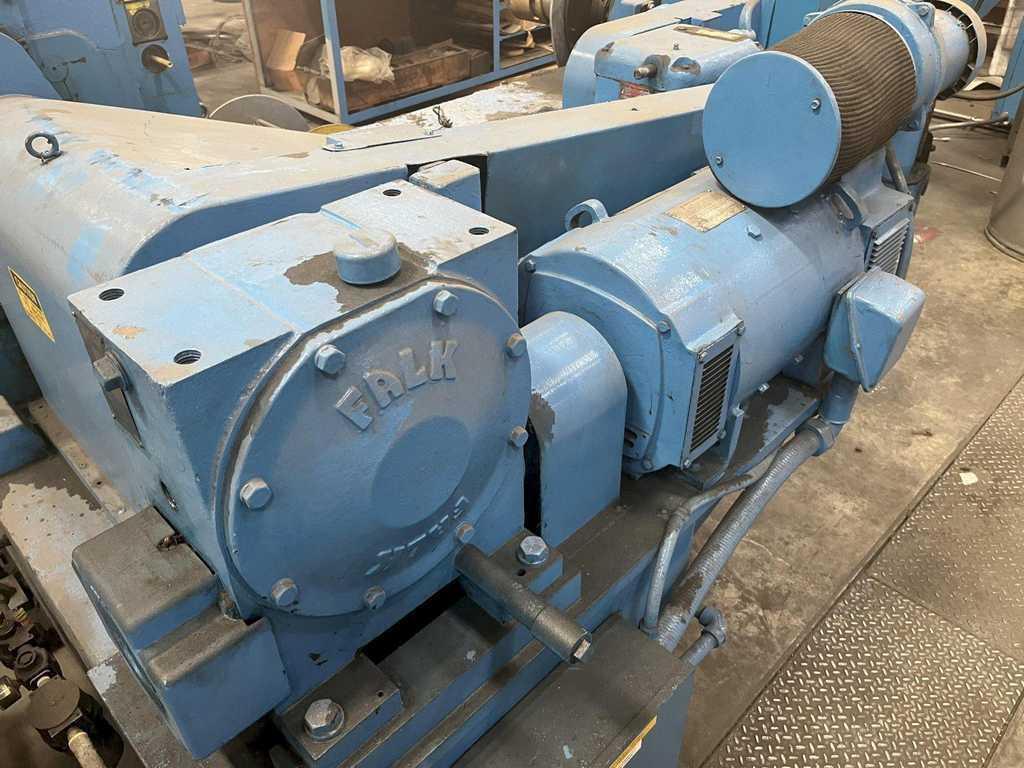

30 HP DC Motor, 1750/2300 Rpm, 240 V
2 Speed Transmission
Common Drive with Recoiler

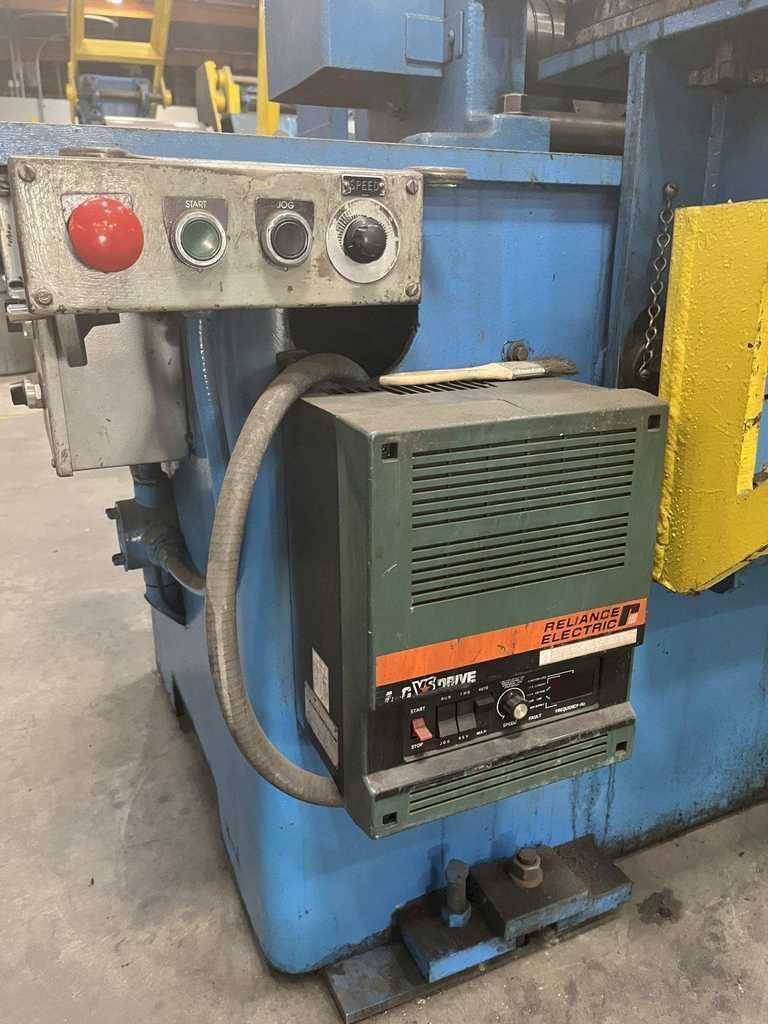

Reliance VS Drive
-Scrap Winder:

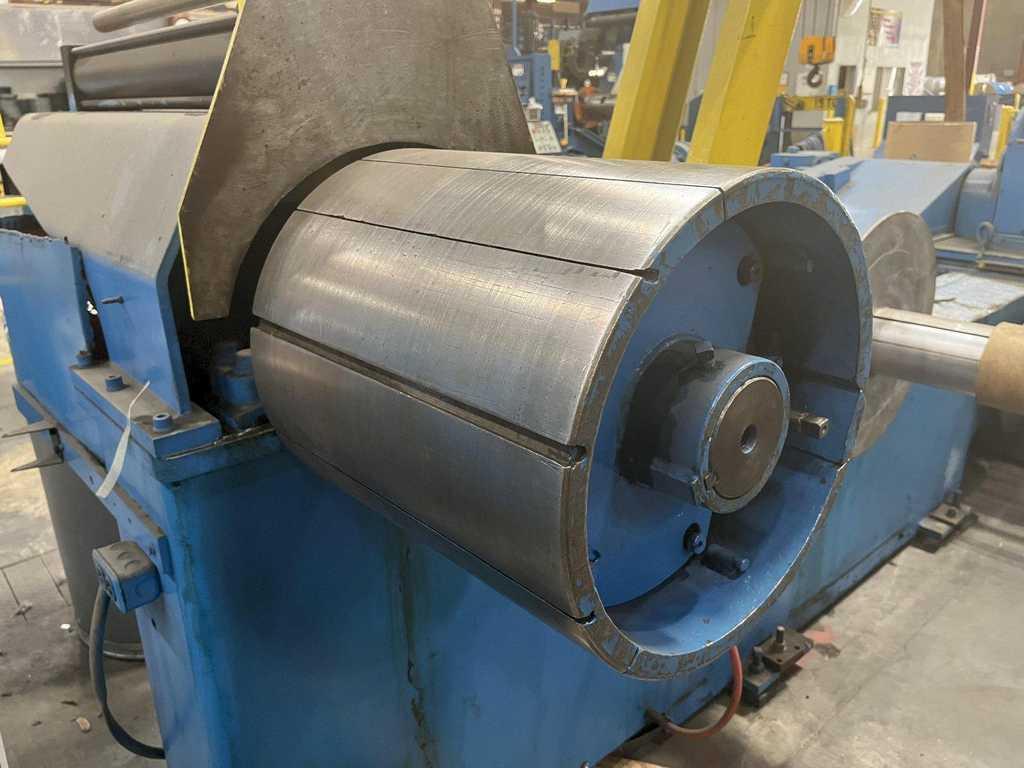

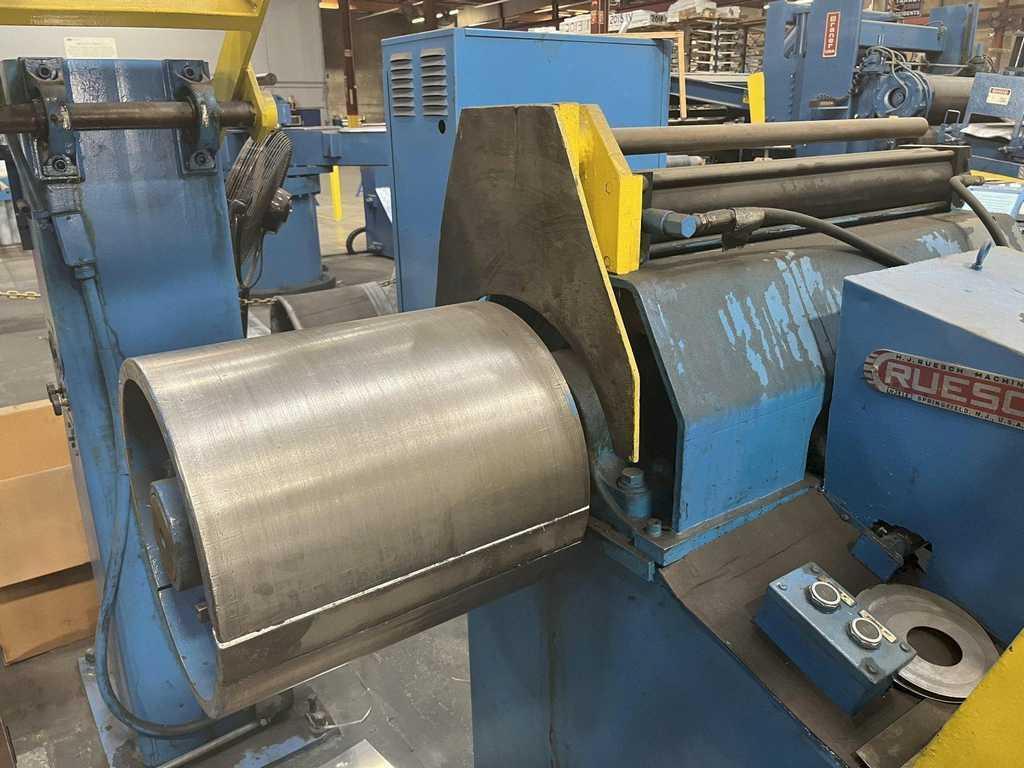

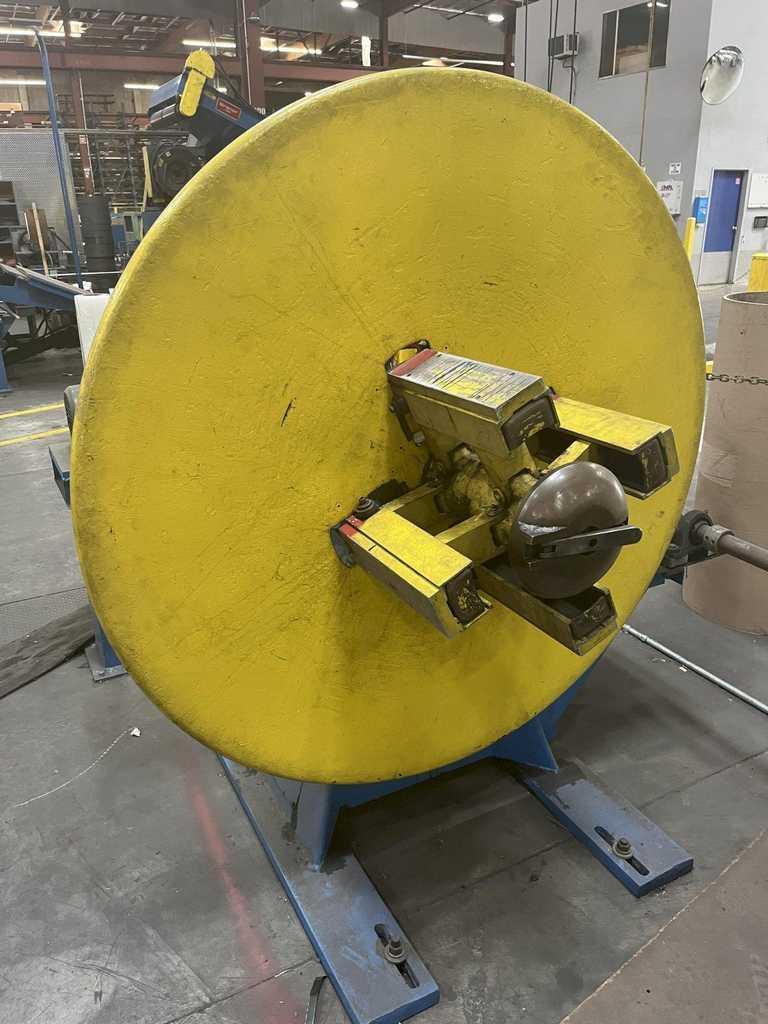

-(2) Recoilers:
Recoiler #1: 12" & 14" Dia. Drums
Recoiler #2: 20" Dia. x 16" Face Drum w/24" Pads
Manual Expansion
Material Slot (No Gripper)
Hydraulic Pushoff
-Freestanding Overarm Separator:
-Single Arm Turnstile:
Motorized Pushoff
