Diameter of Arbors: 2.875"
Maximum Coil Width: 18"
Maximum Coil Weight (Uncoiler): 6,000 lbs.
Maximum Coil Weight (Recoiler): 6,000 lbs.
Thickness Capacity (Mild Steel): 0.005" - 0.060"
Cutting Capacity (Mild Steel): 16 Cuts in 0.010"
6 Cuts in 0.040"
Line Speed: 0 - 250 FPM
Line Direction: Right to Left

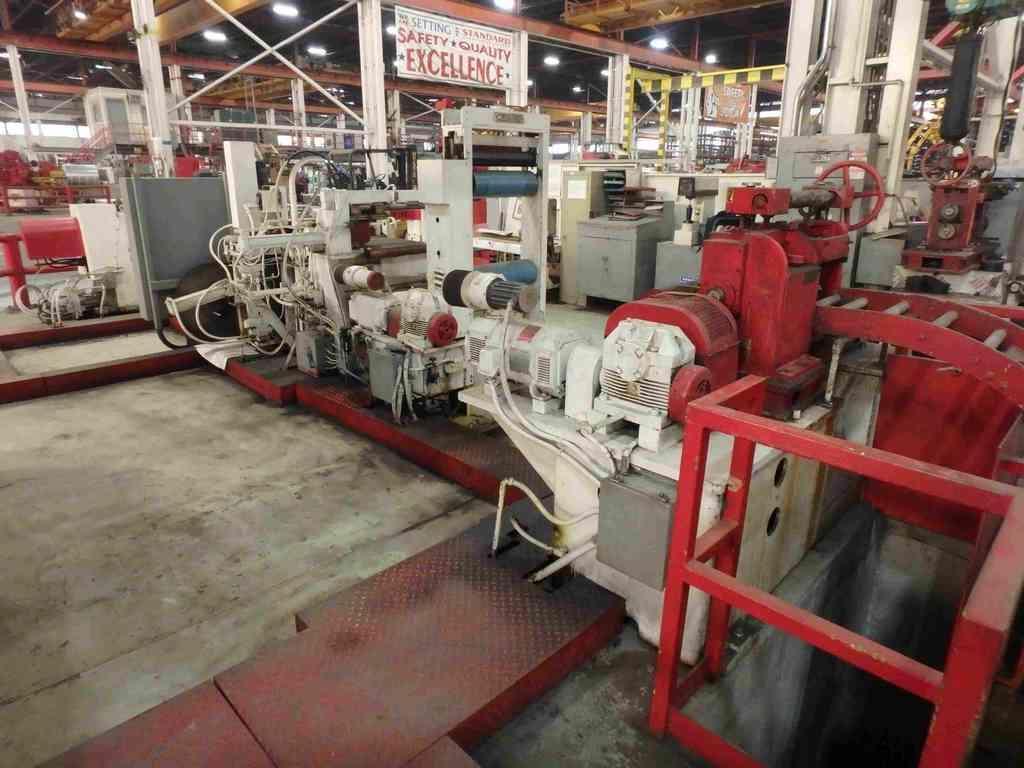

Consisting of the following:
-Entry Coil Car:
Scissors Lift Type
36" Wide Bed

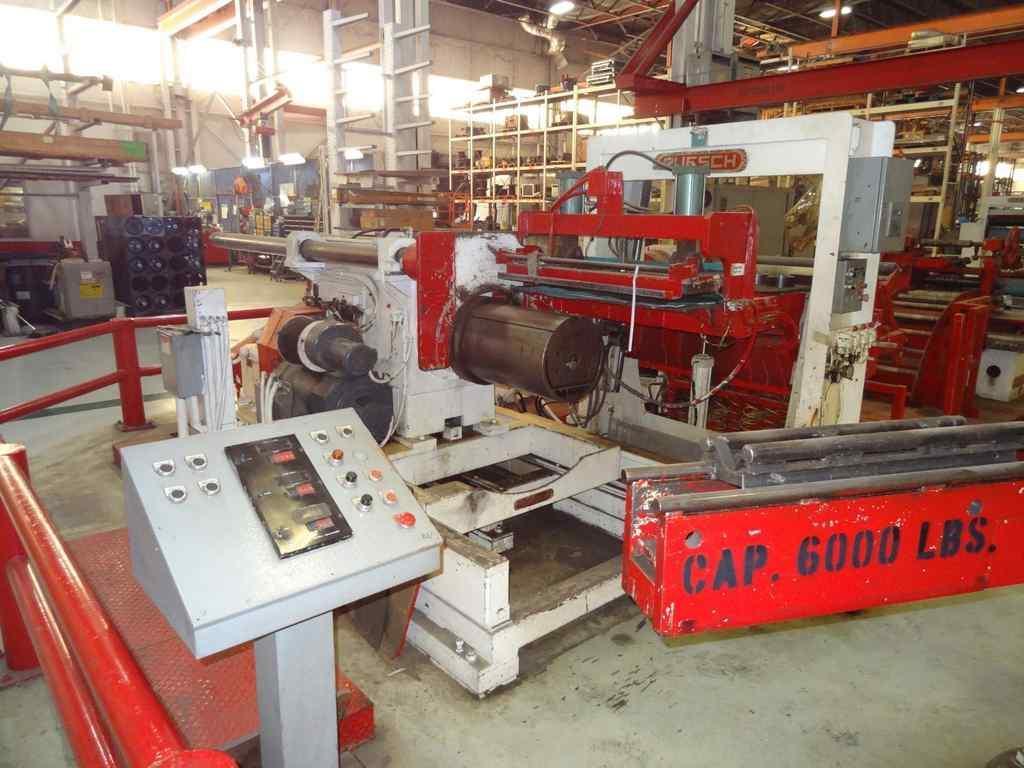

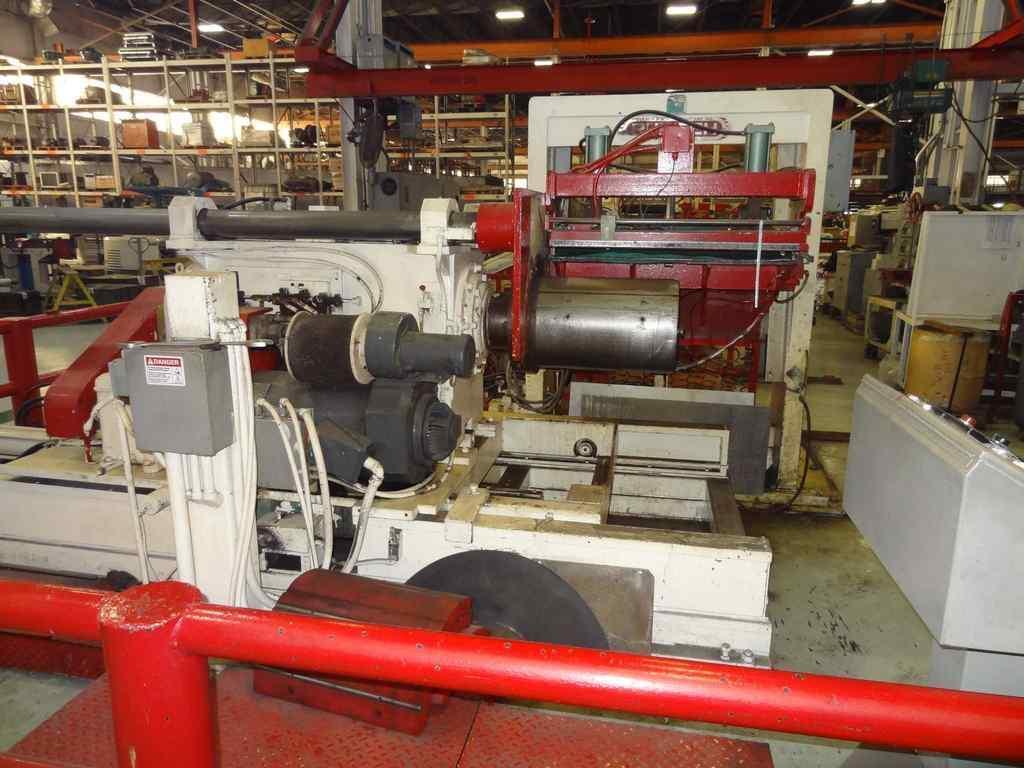

-Ruesch Uncoiler:
6,000 lbs. Capacity
Model: N3022B
S/N: 6195
28" Mandrel Face Width
Hydraulic Expansion
3 Segment Mandrel
12" to 16" I.D. Range W/Pads
Sliding Base
Brake

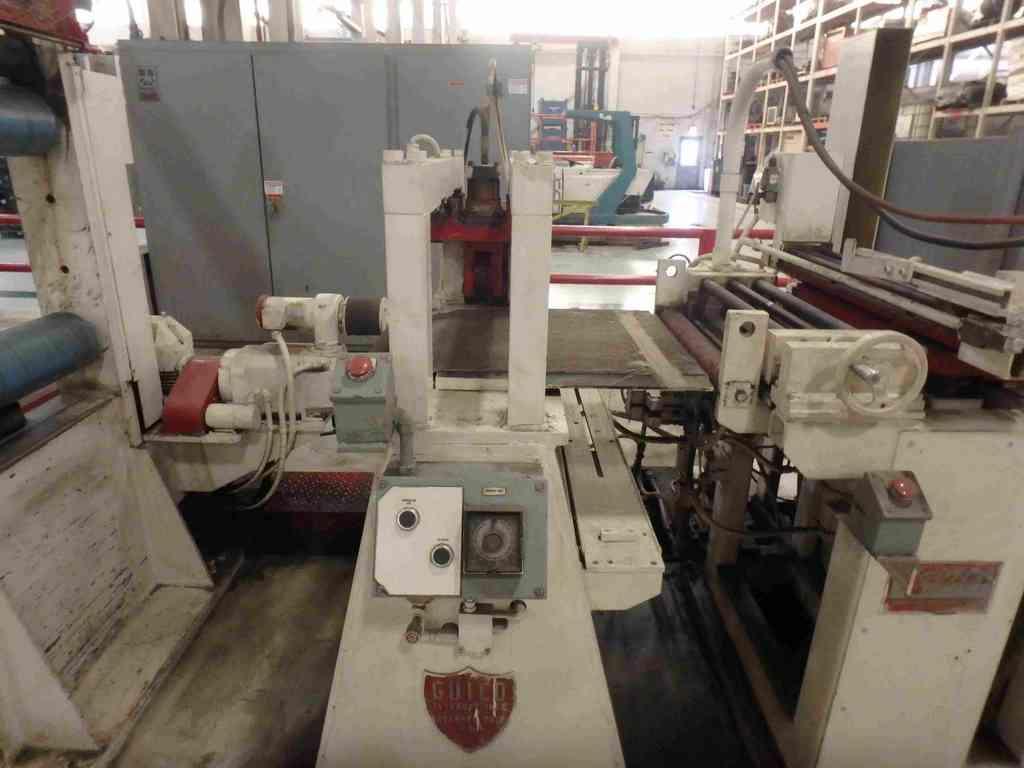

-Guild Butt Welder:
Roller Type Shear
Holddown and Contact Welder Head.

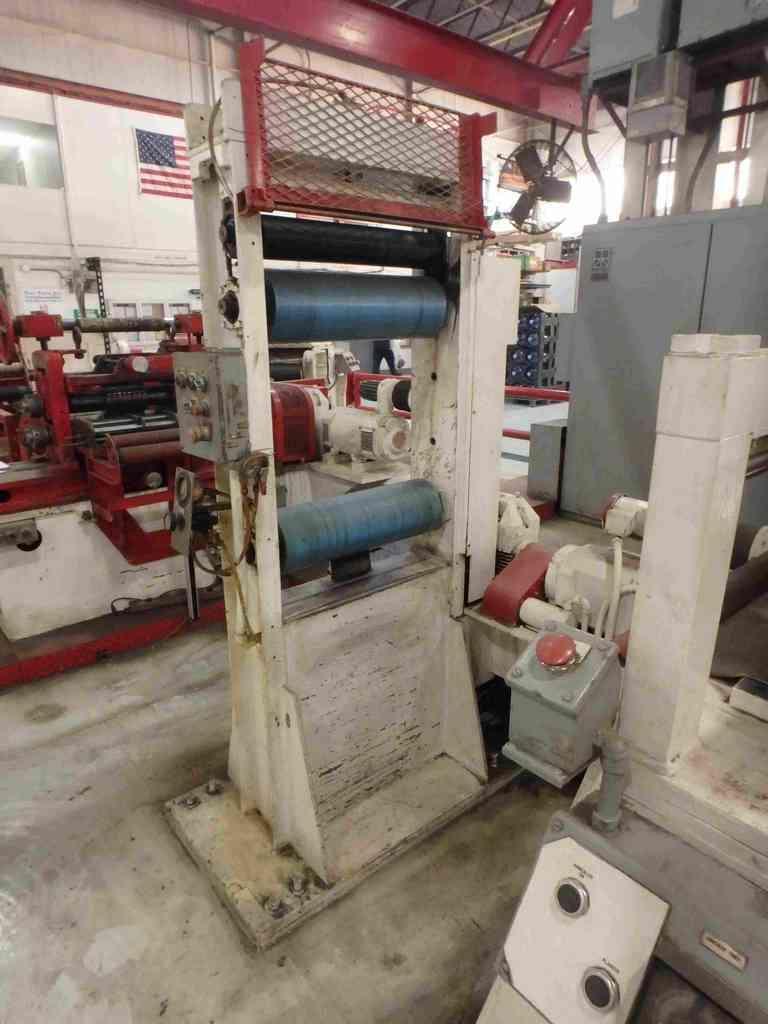

-Bridle Stand:
(2) - 7" Dia. x 22.5" Face Urethane Covered Rolls
(1) - 4" Dia. x 22.5" Face Urethane Covered Roll
5 HP DC Motor, 1750 RPM, 180 V., with Blower

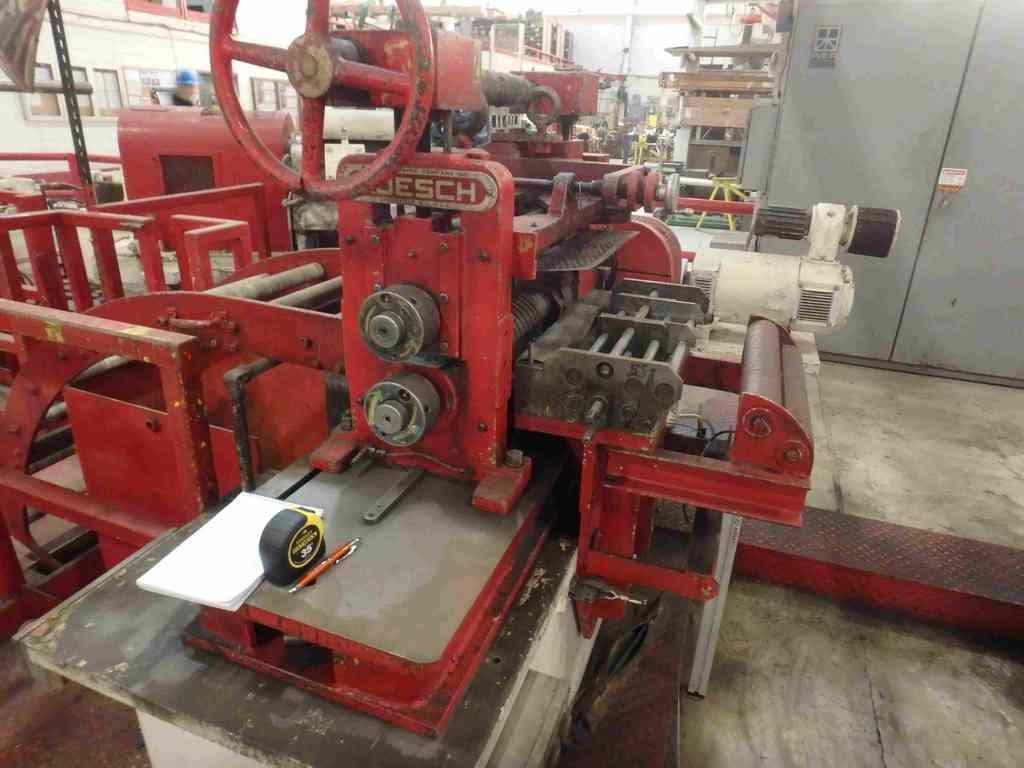

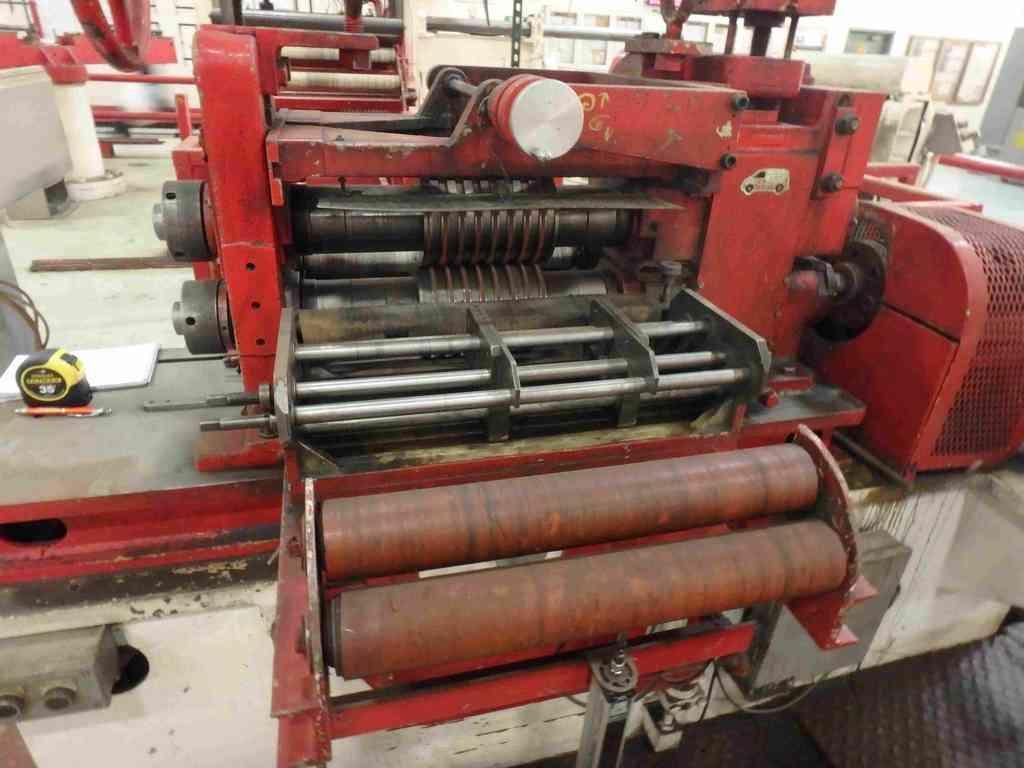

-Ruesch 18" Wide Slitter Heads:
(2) Heads
2.875" Dia. x 18" Face Arbors
Entry Side Guides, Individual Manual Adjustment
Swing Open Design for ease of tooling change.
Steel Stripper Ring Assembly and Rubber Strippers
10 HP DC Motor, 1750/2300 RPM, 240 V
Reducer w/5:1 Ratio
Secor Mentor II Drive
1/4" Min. Slit

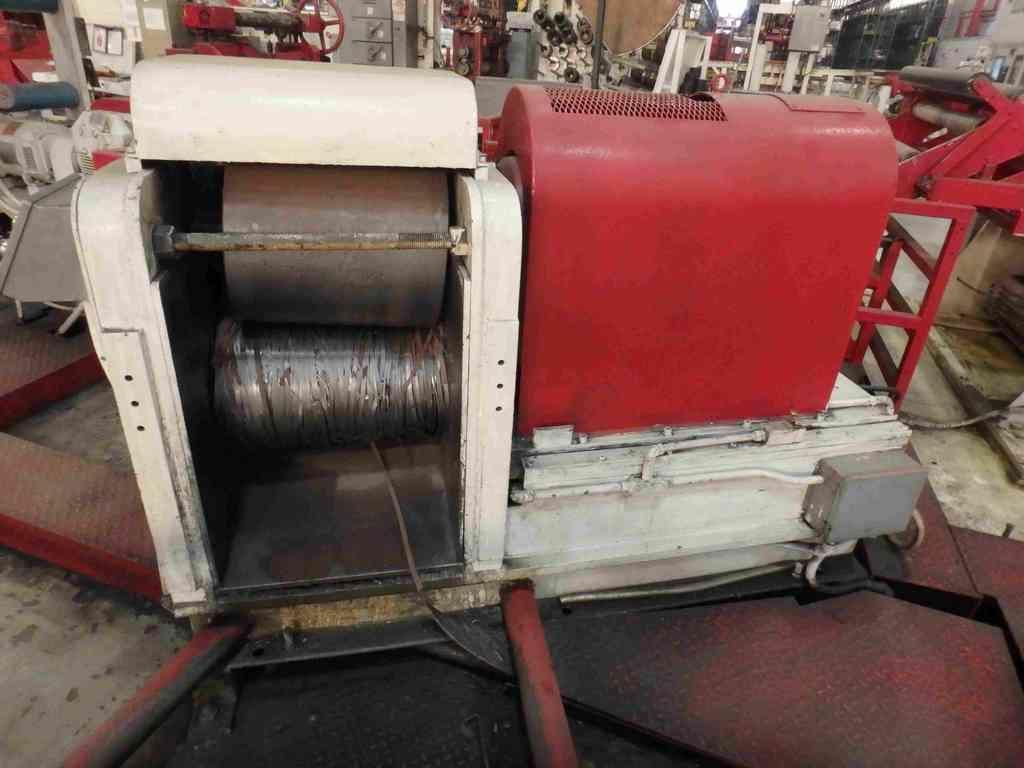

-Scrap Baller:
Approx. 20" Dia. x 19" Scrap Ball Capacity
Electric Brake
Hydraulic Cylinder Scrap Ball Eject
Drive: 10 HP DC Motor, 850/1750 RPM, 240 V with Blower

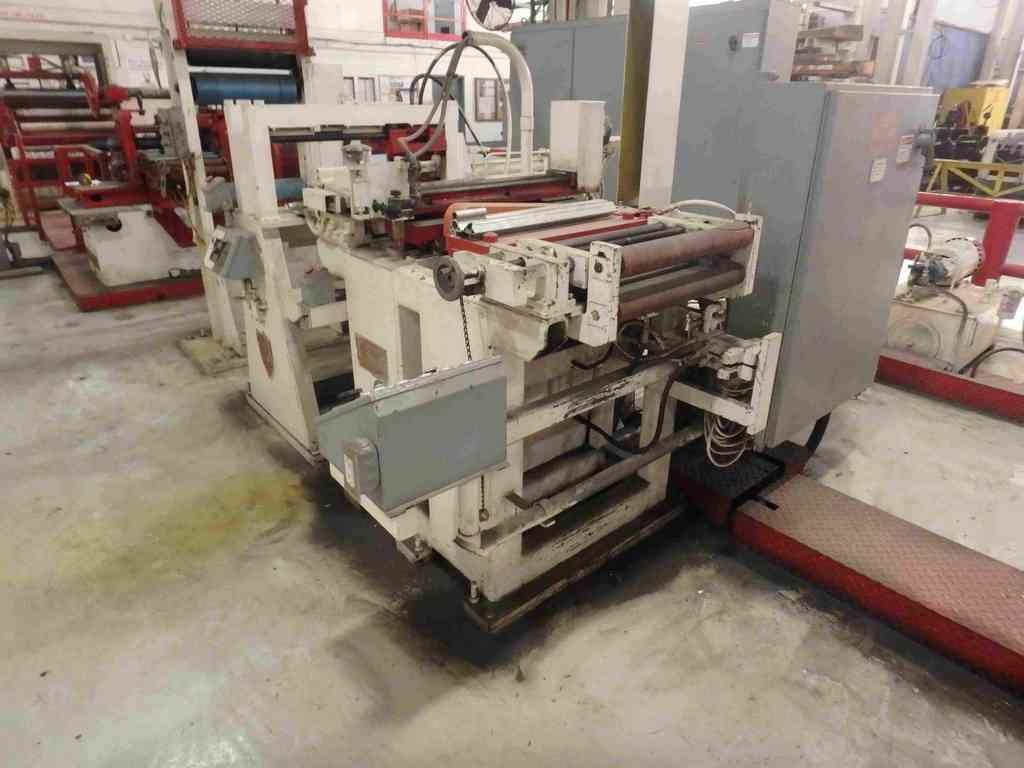

-Drag Board Tension Stand:
Entry Catenary Pit Rolls
Entry Passline Roll
-Recoiler:
6,000# Capacity
(1) - 12" Dia. x 24" Face Drum
(1) - 16" Dia. x 24" Face Drum
Drum has Hydraulic Expansion
Hydraulic Pushoff
Traversing Base
40 HP DC Drive Motor
Drive-All 2 Speed Transmission
-Hydraulic Power Unit:
3 HP AC Motor, 1725 RPM, 208-230/460 V
Vickers Pump
15 Gallon Reservoir

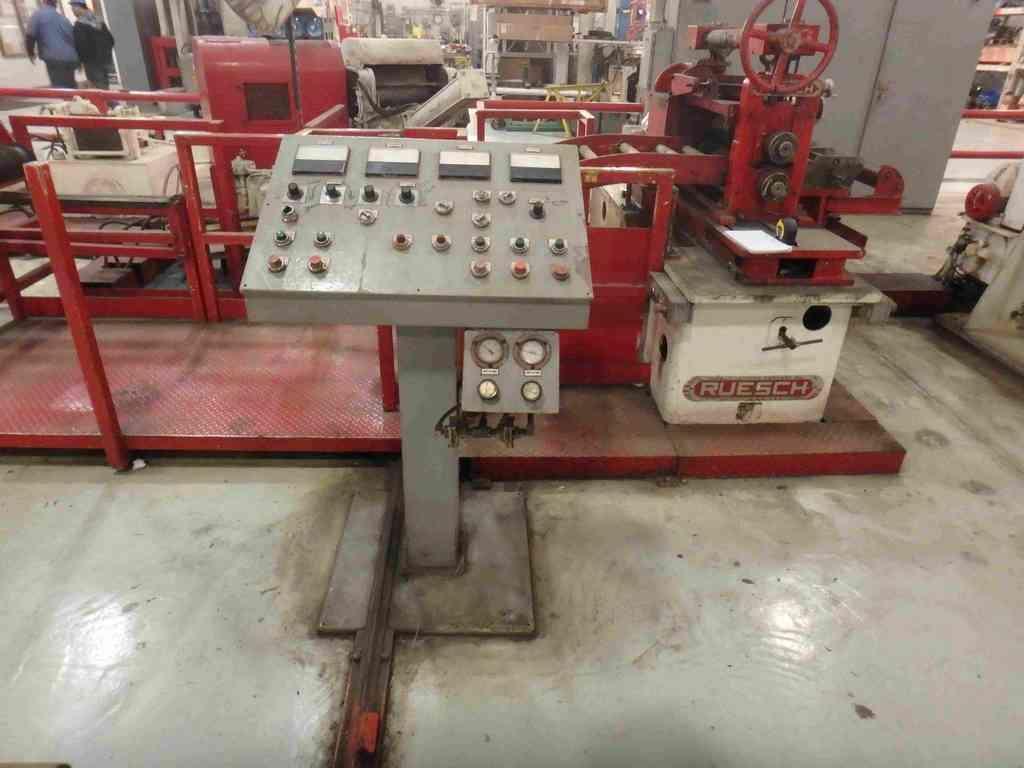

-Main Operators Panel:
-Main Electrical Panel:
-Transformer: 63 KVA Sylvania, 460 V to 460 V Y/266V

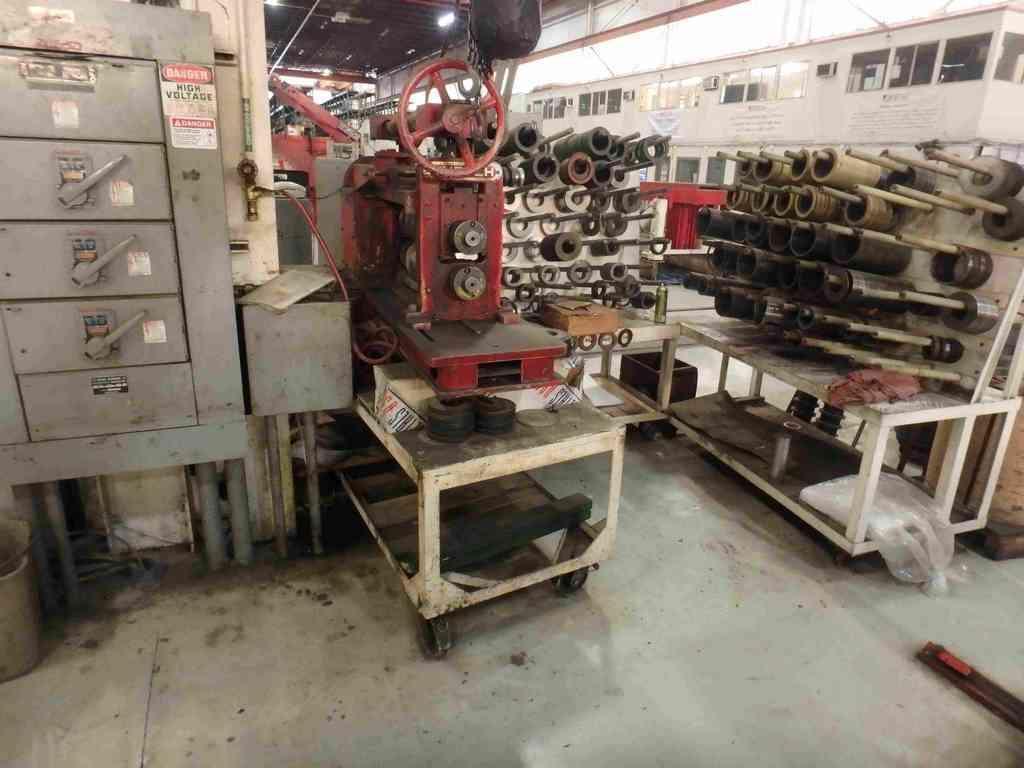

-Tooling Cart:
-Tooling: Includes Knives, Spacers, Rubbers and Steel Stripper Rings
at least 2 Full Set of Tooling.
