Specifications
Equipped With

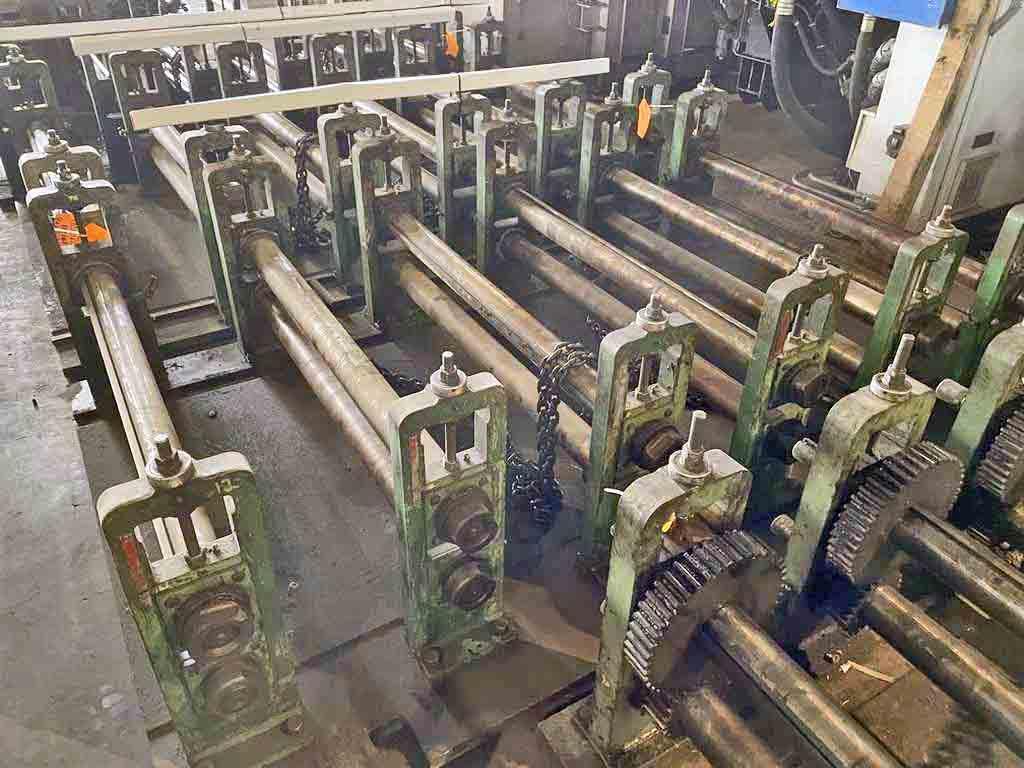

-18 Stands

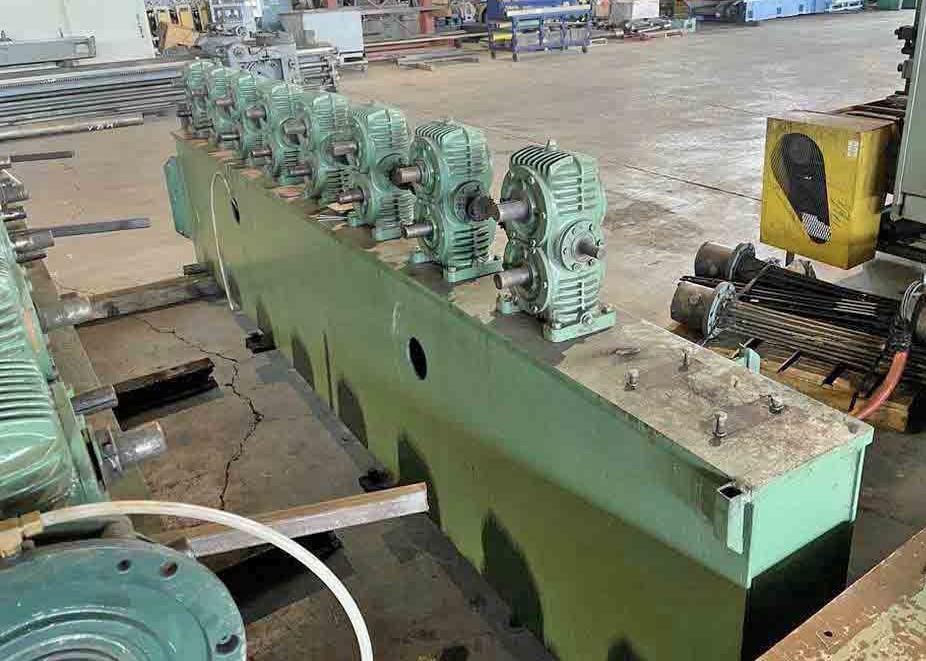

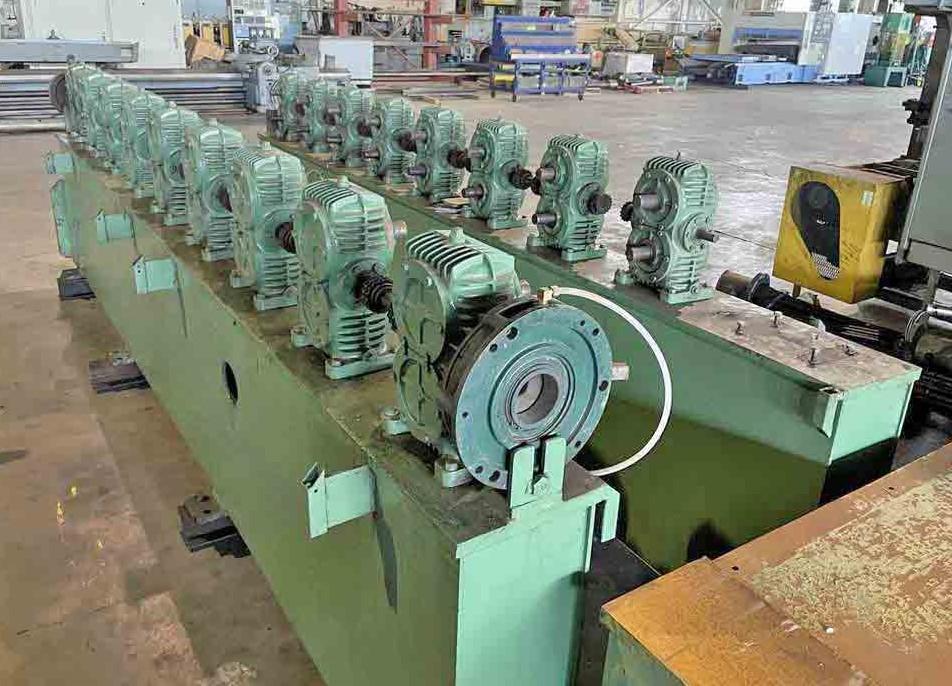

-17 total drive boxes; 2 bases with 9 on one, and 8 on the other.
-Output shaft dia. 1.500" and Input shaft 1.000" dia.
-48" Roll Space
-2.0" wide gear on half of the shafts

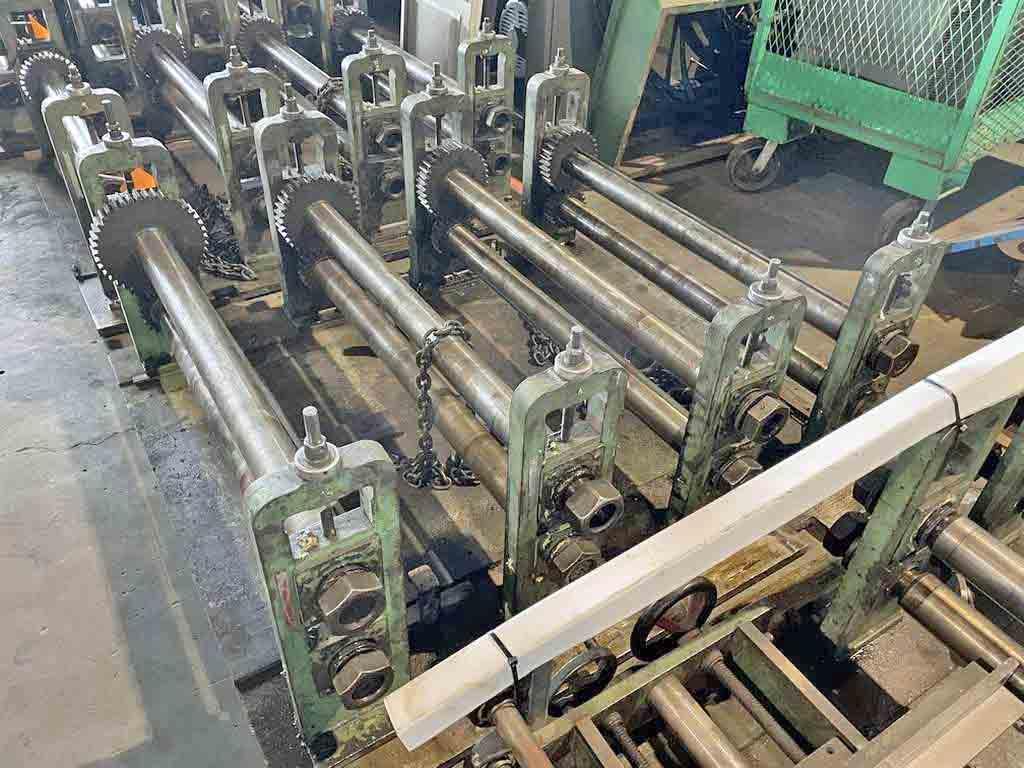

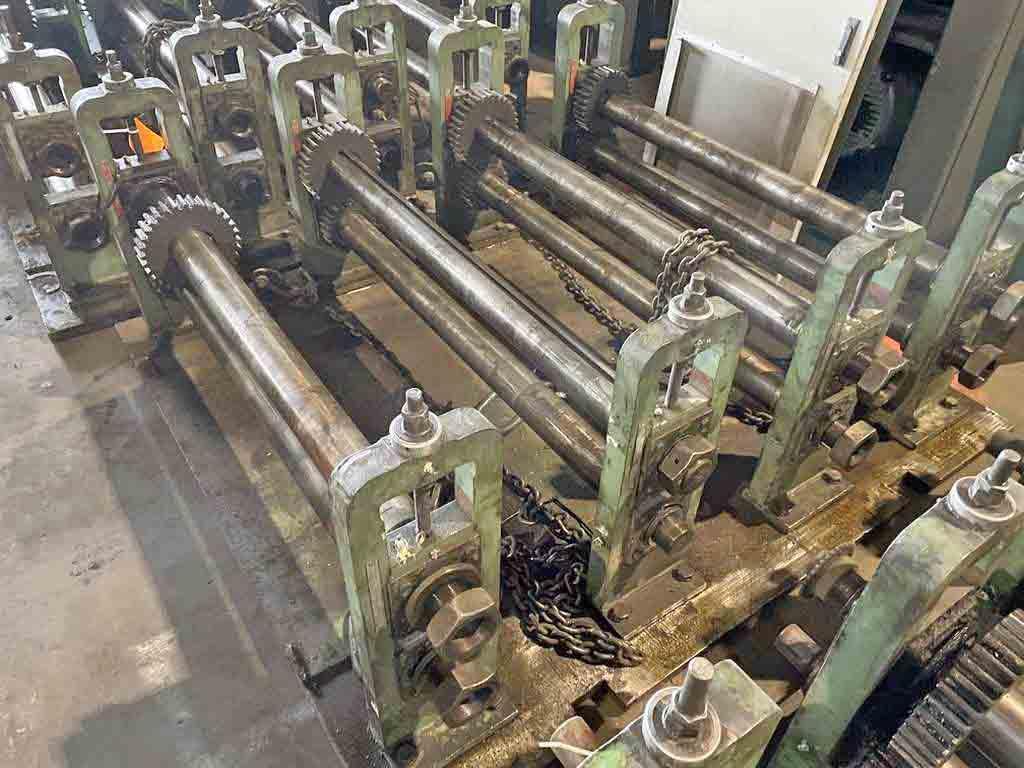

-3.5" Dia. Spindles, 1.875" drive OD, 2.5" threaded shaft OD
-18" Horizontal Centers
-8.5" Base to Center of Bottom Arbor, mounting base 1.500" thick
-26" Floor to top of main base
-2 Bases, capable of holding 10 Stands each
-6" - 11" Vertical Adjustment

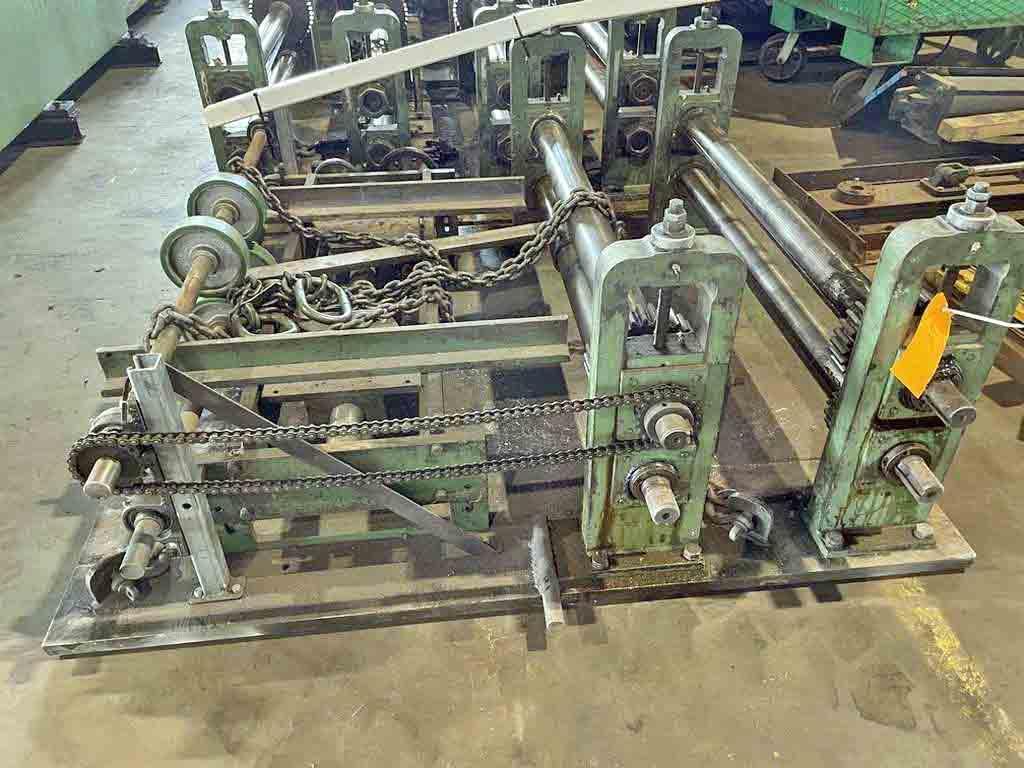

-3 Sets of 6 Stand Rafts
-3 Sets of 4 Stand Rafts
-Entry Raft with entry stand, guide table
-Main drive motor 50HP AC, 1770 rpm
-4 speed drive-all gear box w/1.61:1, 1.50:1, 1.33:1 and 1.00:1 ratios

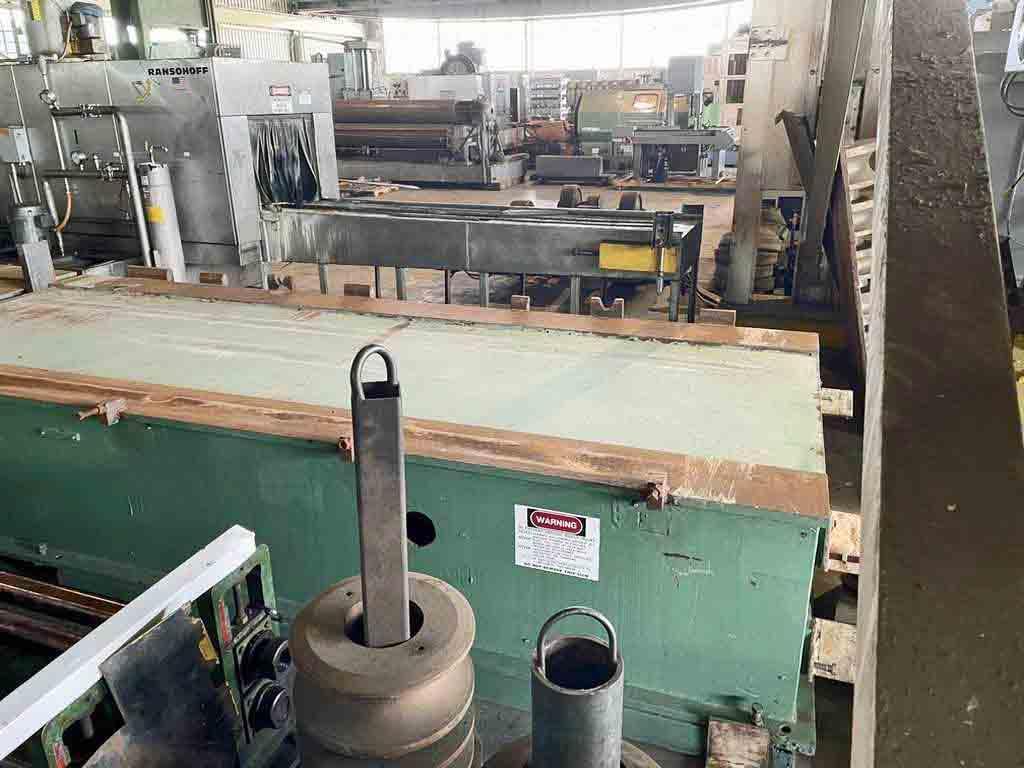

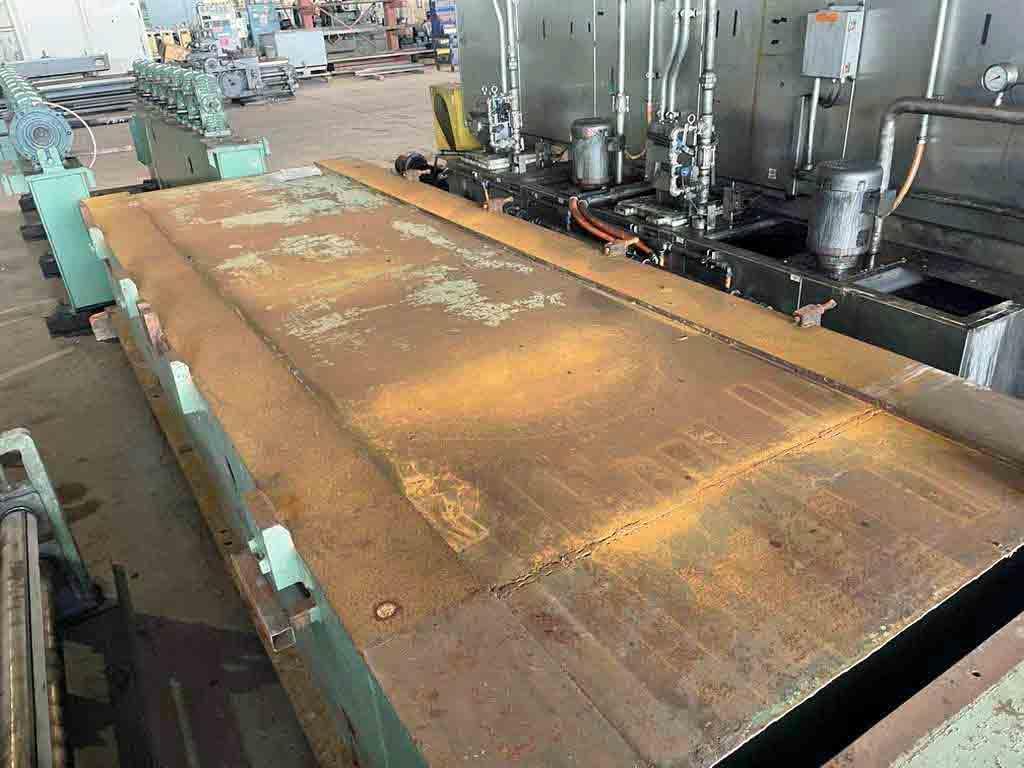

-2 Bases (1) 64" W x 178" L
(1) 64" W x 160" L
