Specifications
Equipped With

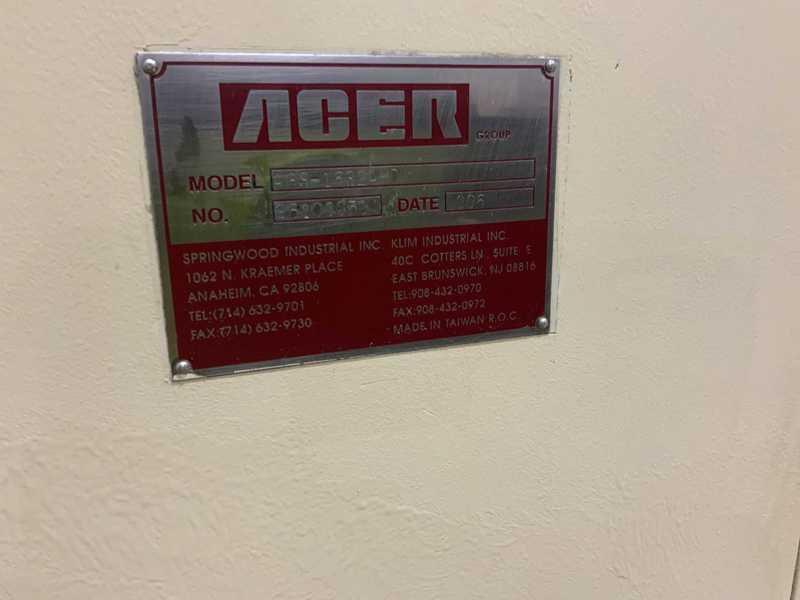

SERIAL ................................... 96100959

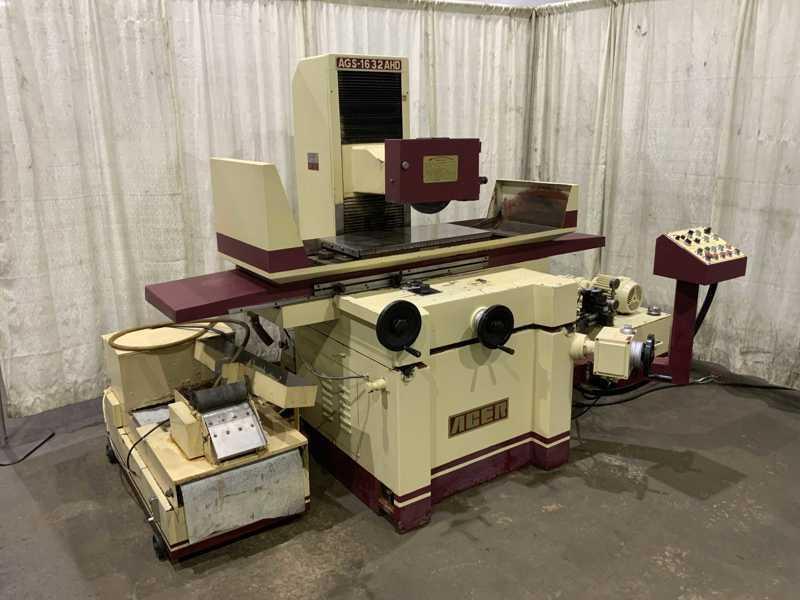

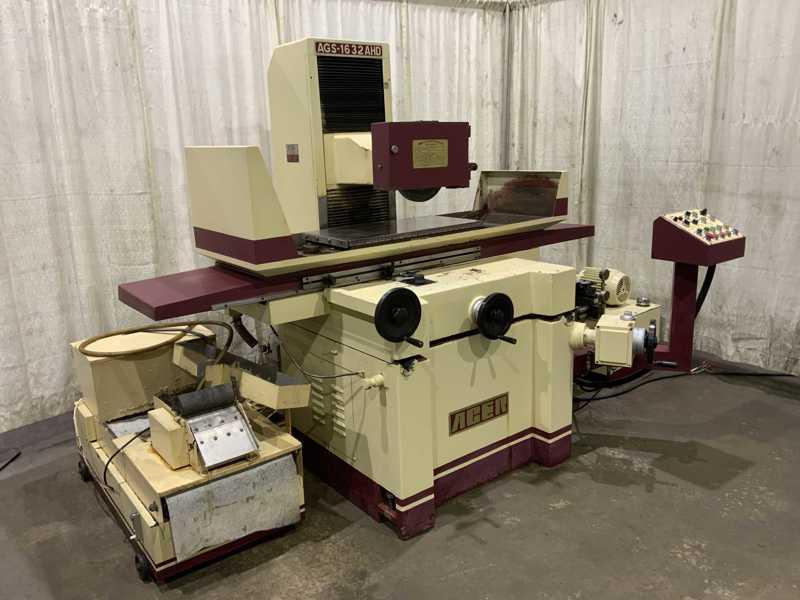

MODEL .................................... AGS1632AHD
YEAR NEW ................................. 1996

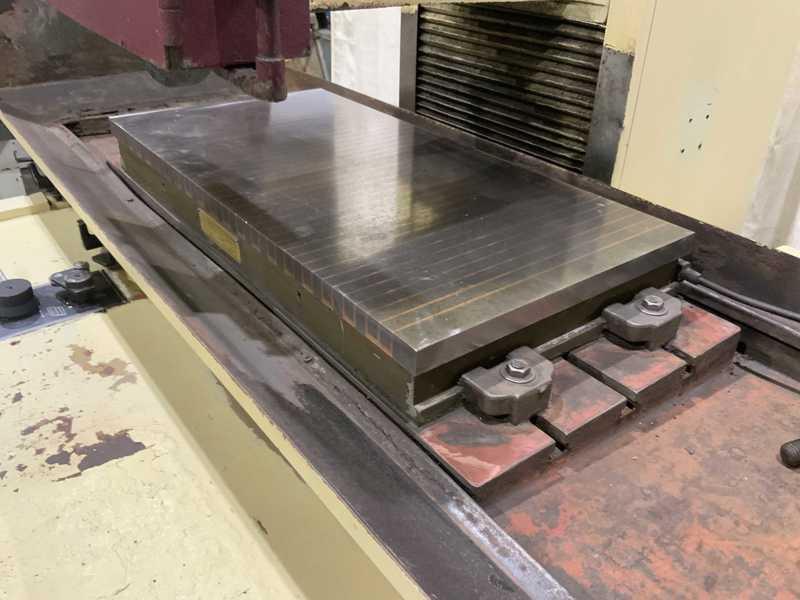

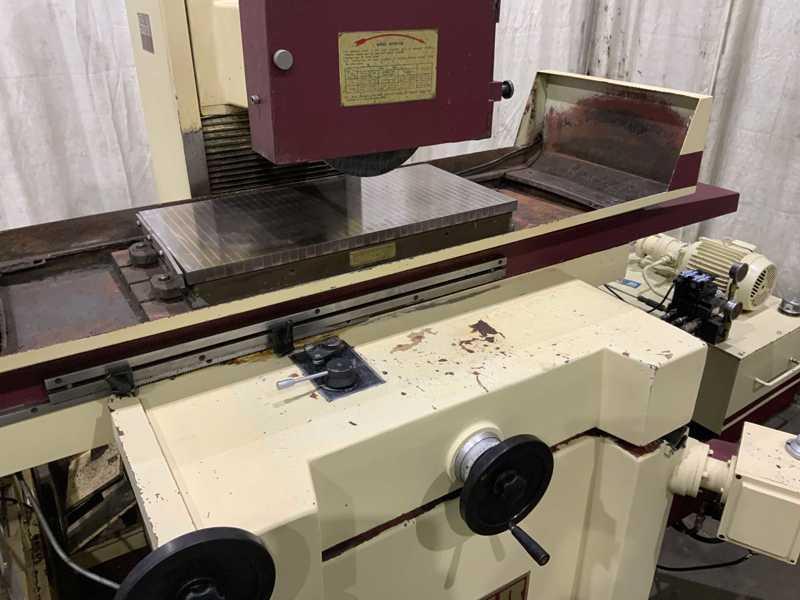

CHUCK SIZE ............................... 15-3/4 x 31-1/2"
HEIGHT UNDER NEW WHEEL (OVER TABLE) ...... 18"
CHUCK THICKNESS .......................... 3"
LONGITUDINAL TABLE TRAVEL ................ 33"
CROSS TRAVEL ............................. 17-3/4"
HYDRAULIC TABLE TRAVEL ................... 16 TO 80 FPM
INCREMENTAL DOWNFEED RATES (6) ........... .001"PER REVOLUTION
POWER SPINDLE ELEVATIONS ................. YES
WHEEL SIZE ............................... 14" X 5" X 2"
MAXIMUM WORKPIECE WEIGHT ................. 1,600 LBS.

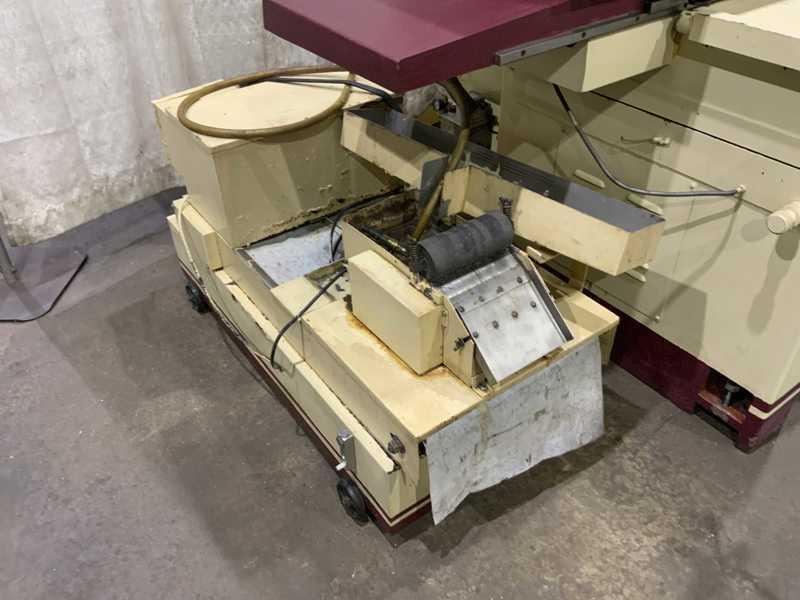

COOLANT WITH MAGNETIC FILTER ............. YES
PAPER COOLANT FILTER ..................... YES
AUTOMATIC LUBE SYSTEM .................... YES
SPINDLE MOTOR ............................ 7-1/2 HORSEPOWER

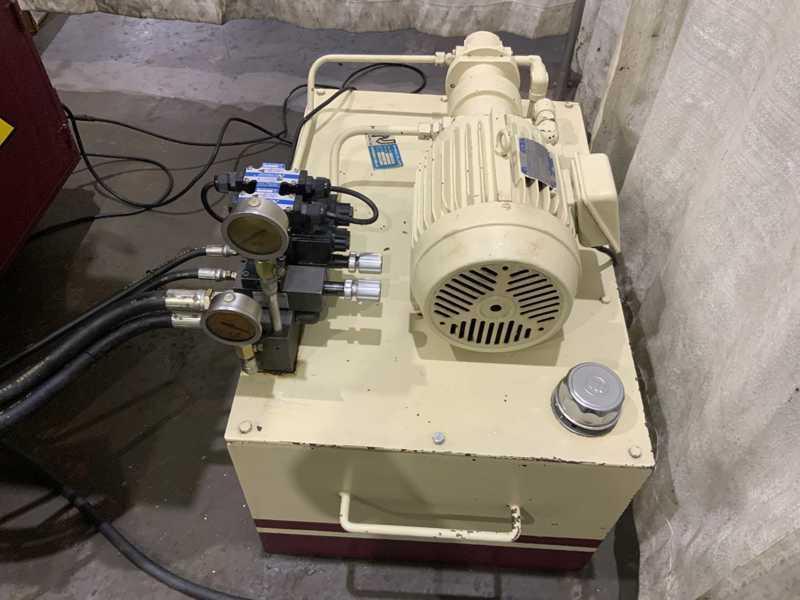

HYDRAULIC MOTOR .......................... 3 HORSEPOWER
