HYD-MECH

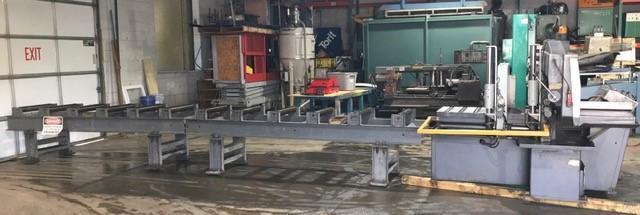

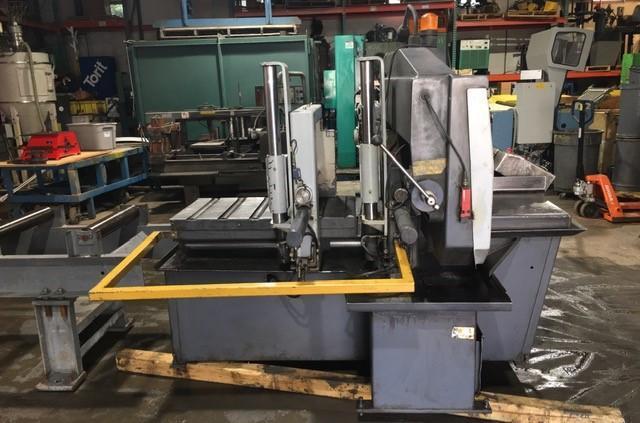

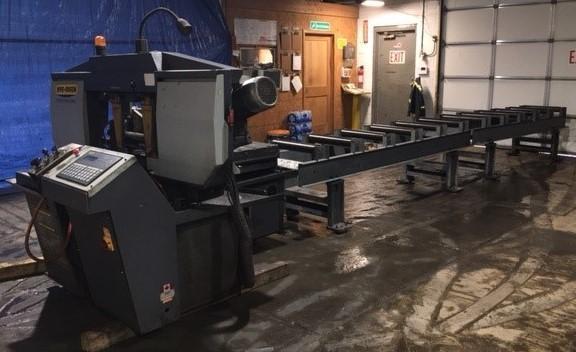

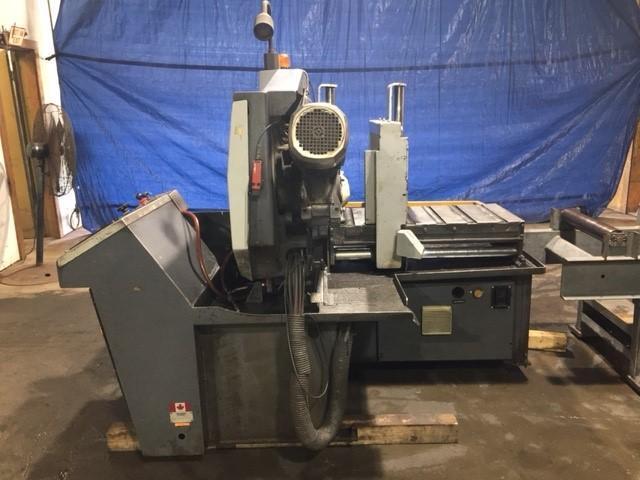

16" x 20" S-23A - Automatic Horizontal Pivot Band Saw With Bundling
YEAR ............... 2011

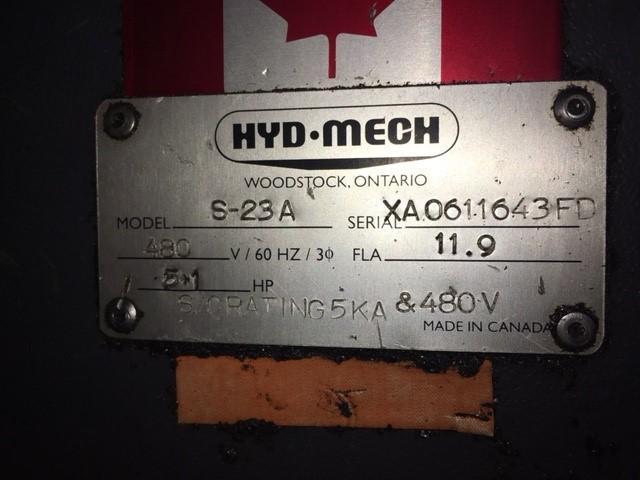

MODEL .............. S-23A
SERIAL ............. XAO611643FD
VOLTS .............. 480
CAP AT 90
RECTANGLAR ......... 16"H X 20"W
ROUND .............. 16"
CAP AT 45
RECTANGULAR ........ 16"H X 14"W
ROUND .............. 14"
CAP AT 30
LESS THE CONVEYORS
RECTANGULAR ........ 16"H X 8.5"W
ROUND .............. 8.5
BLADE
LENGTH ............. 16'10"
WIDTH .............. 1 1/4"
THICKNESS .......... 0.042"
SHUTTLE STROKE ..... 29"
PHASE .............. 3
HP ................. 5 + 1
METER .............. YES
COOLANT PUMP ....... YES
WORK LIGHT ......... YES
OVERALL DIM ........ 102"W X 95"L X 78"
WIEGHT ............. 4300 LBS
FULL CAPACITY BUNDLING
