Specifications
Equipped With

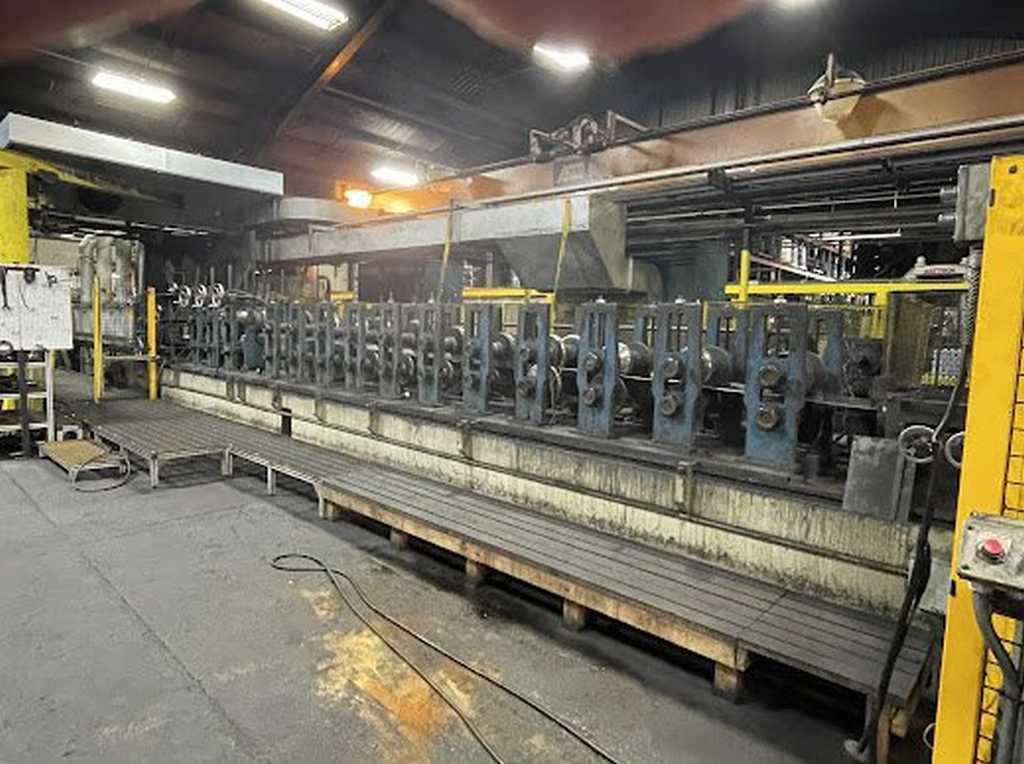

Bradbury Rafted Rollformer
-Series: AM 400
-Model: 425-22-16, Geared Head
-Entry Edge Guides
-16 Rafted Forming Stands on an extended Base
(61 Stands Total)
-22" Roll Space
-3.50" Diameter Spindles
-6" to 14" Vertical Spindle Adjustment Range
-21.50" Horizontal Center Distance
-4 Roll Mill Tech Weld Box
-Speed: 30 - 150 FPM
-150 HP DC Drive
-Equipped with Reverse, Jog and Dynamic Braking

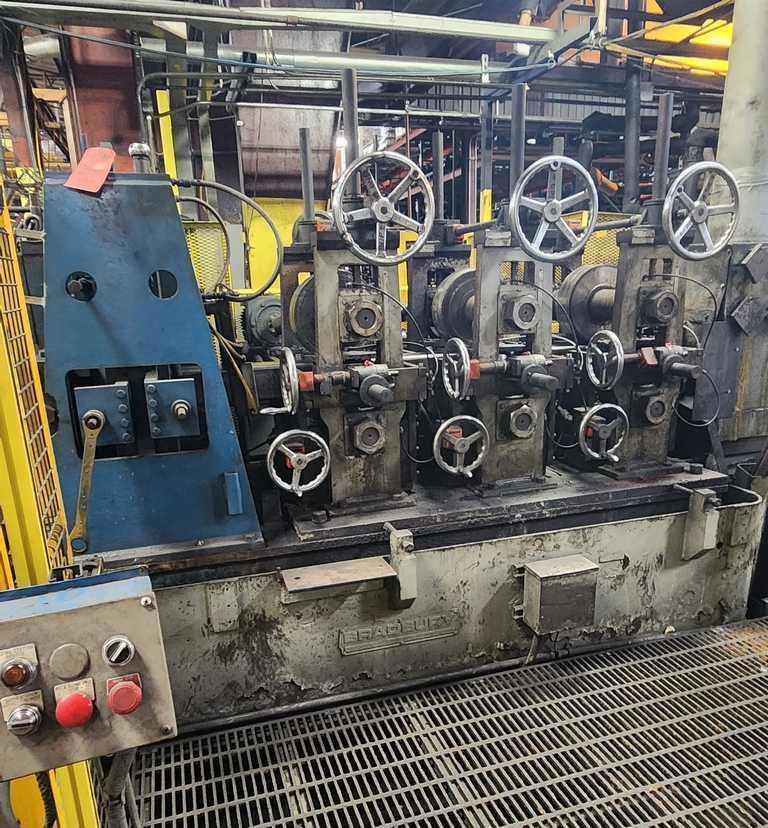

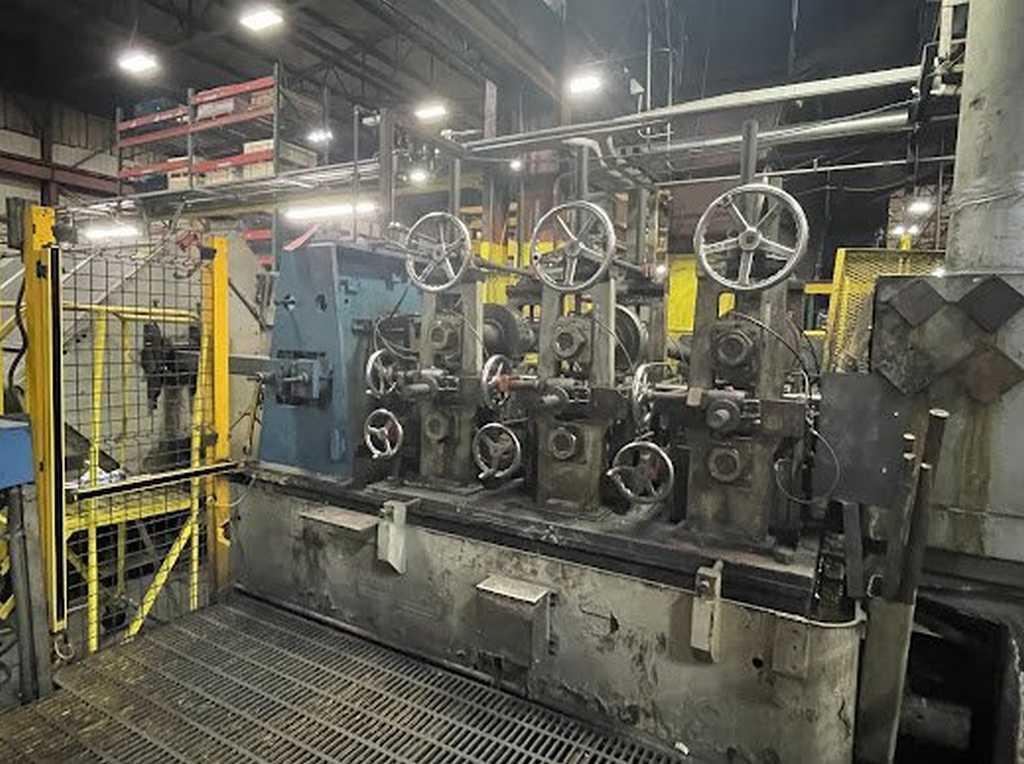

Bradbury Rafted Sizing Stand:
-(3) Sizing Stands mounted on a separate Base
-Rafted Turkshead
-Driven by 30 HP DC Motor
-Line Direction: Right to Left
-Removed and in storage; St. Louis, Missouri area
