Specifications
Equipped With

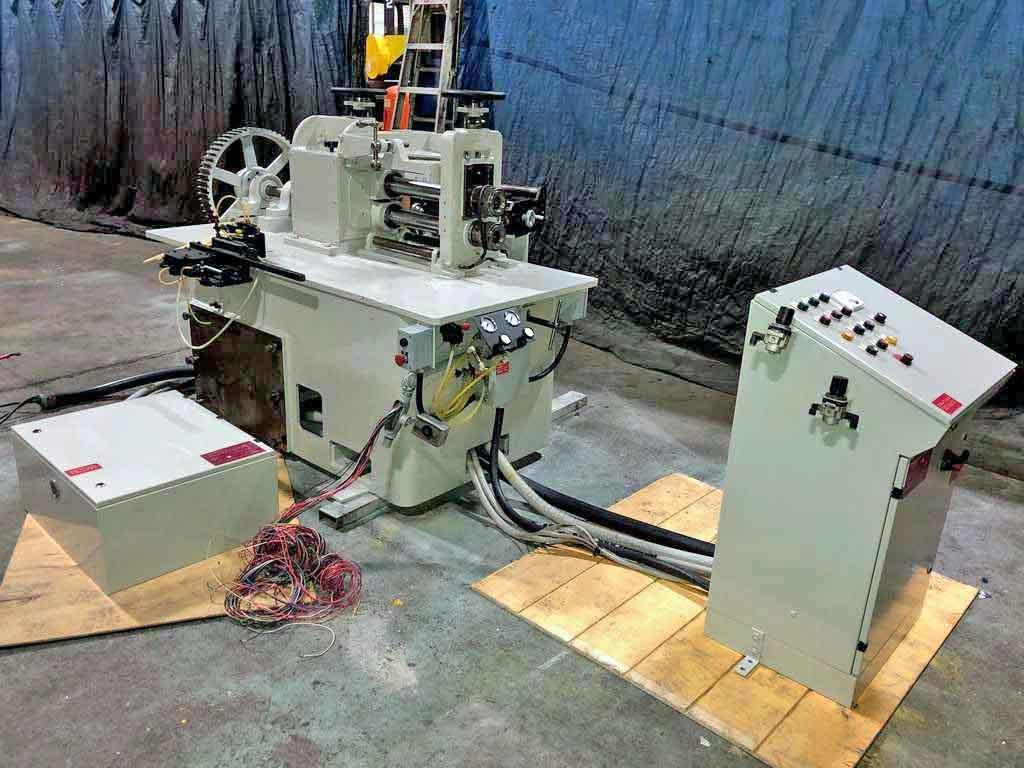

Ruesch Precision Slitting Line
Model 149 Integral Slitter - Recoiler Assembly
Completely Reconditioned in 2021
Capacity: 14" x 0.005" - 0.060"
Line Direction: Right to Left
Consisting of:

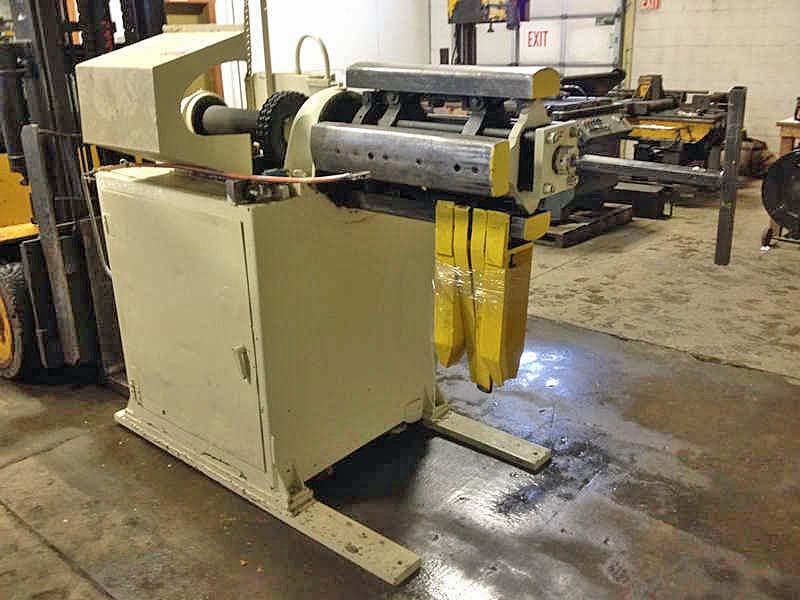

-Uncoiler: Rowe
Model 16040-DS/L
Capacity: 16,000# x 40"
20" - 24" Coil I.D. Range
Powered Expansion
1.5 HP AC Motor
4 Segment Mandrel
60" O.D. Capacity
Driven for Loop Control
3 HP AC Motor
Electric Clutch
Less Loop Arm
Includes 4 Keepers
Overall Size: 108" L x 82" W x 61" High
Approx. Weight: 6,000 Lbs.

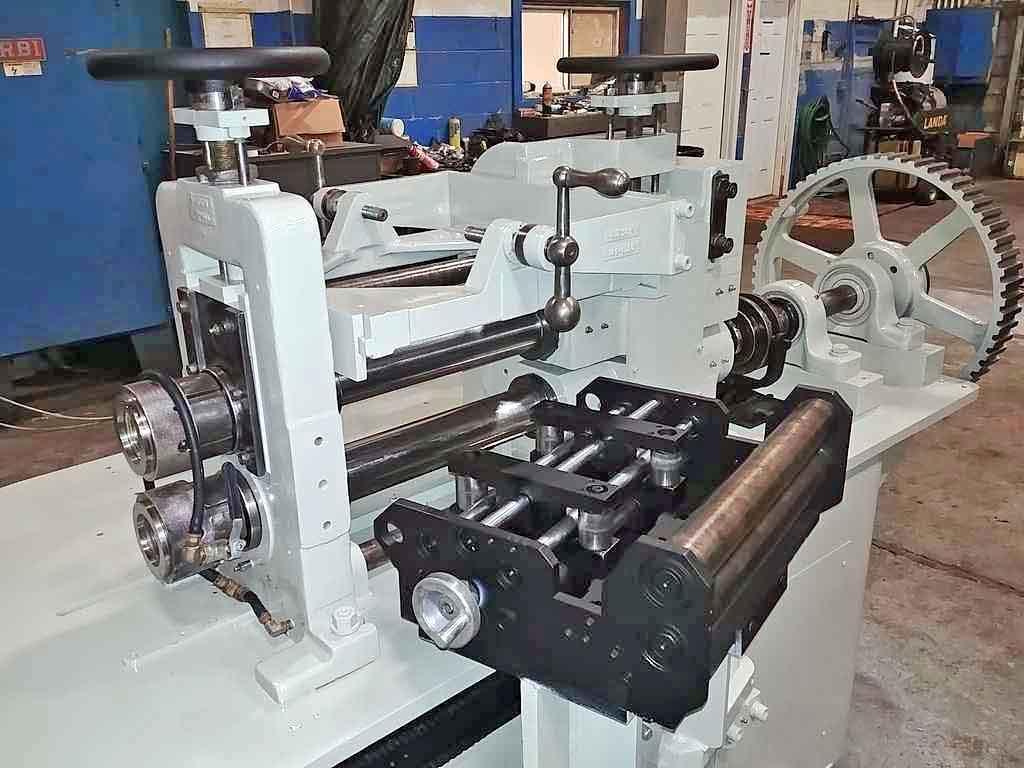

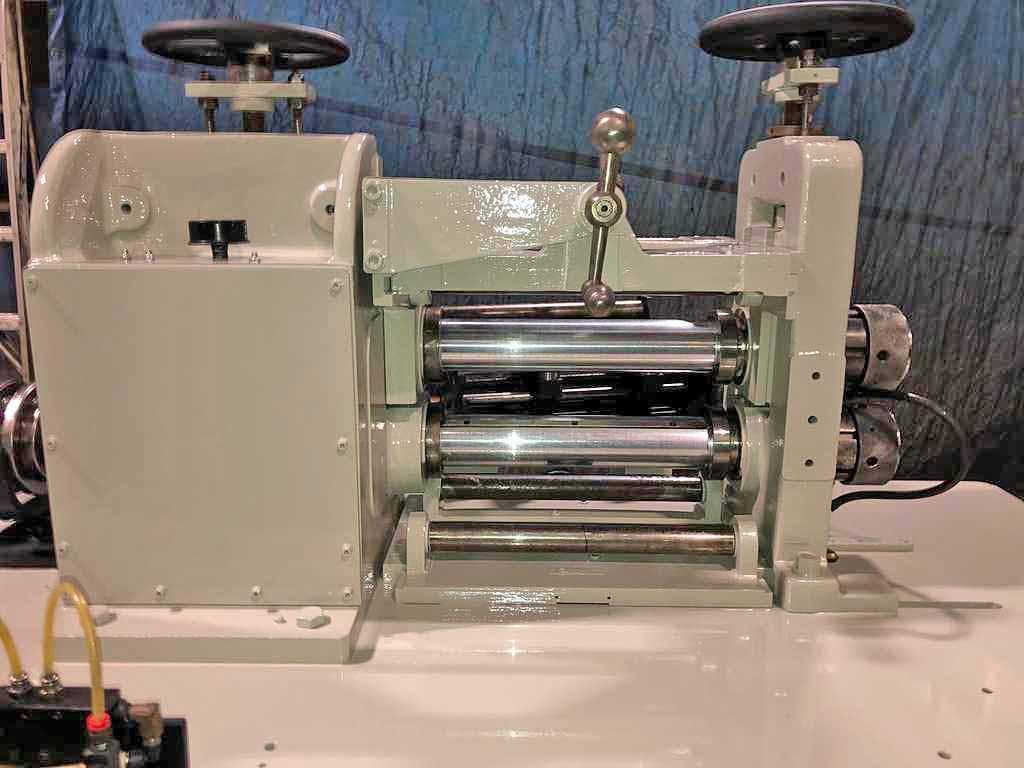

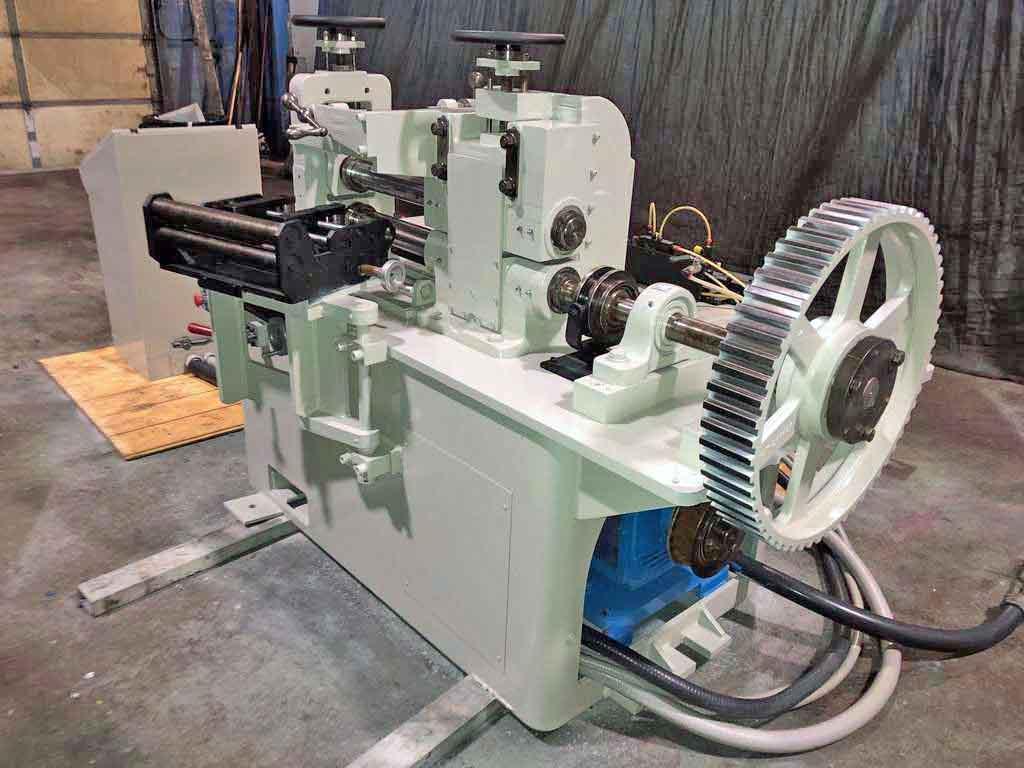

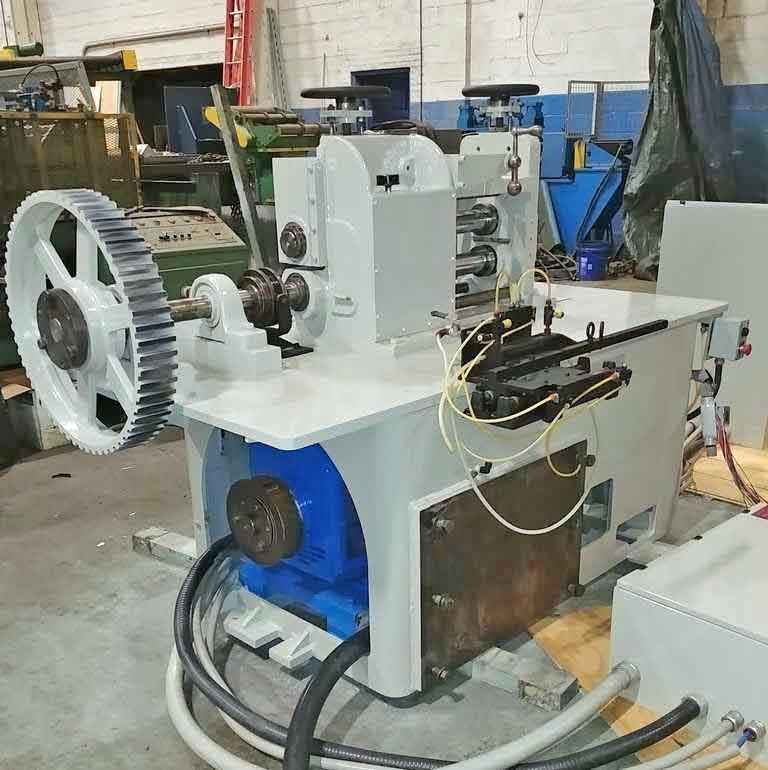

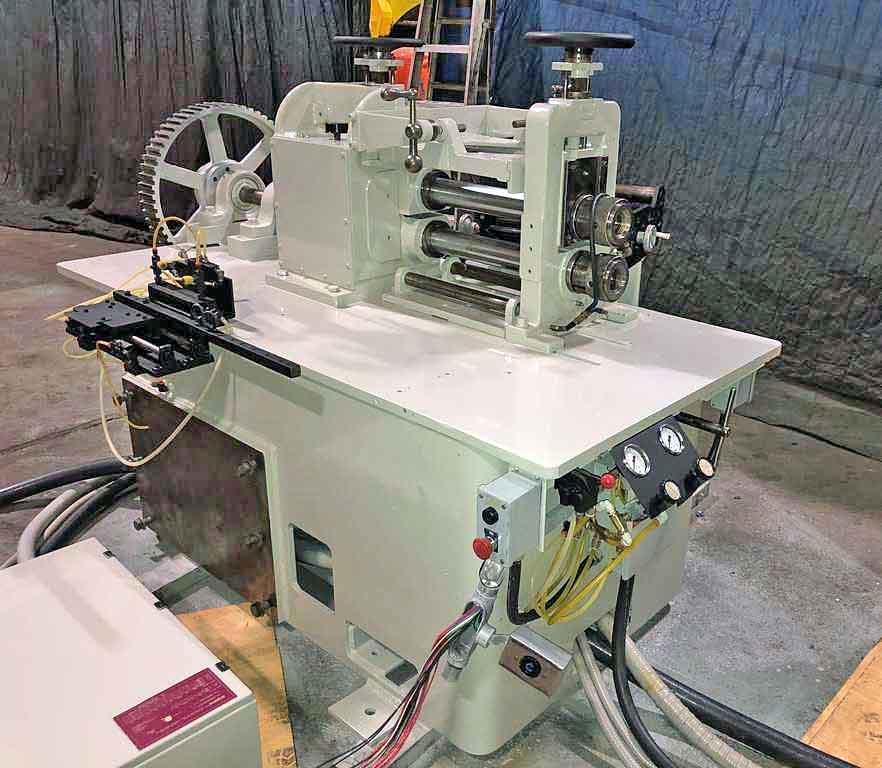

-Slitter Head:
N 2535
2.875" Dia. x 14.5" Face Arbors W/Jet Nuts
Entry Passline Roll

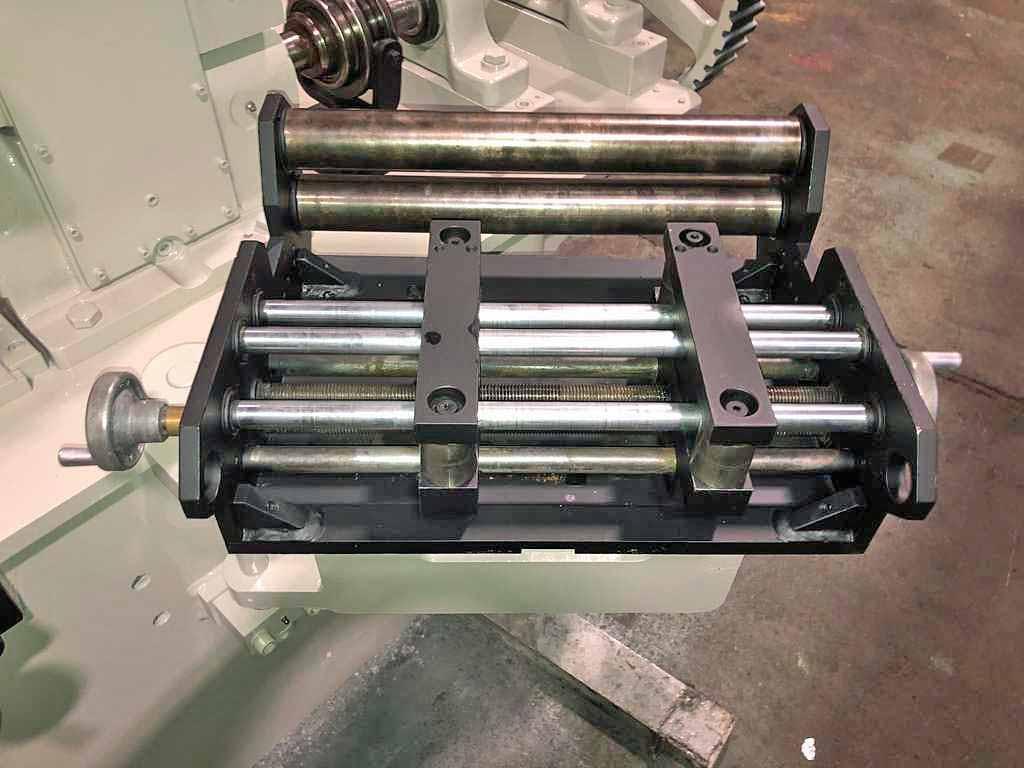

Entry Side Guides, Manual Adjustment
Steel Stripper Ring Assembly
Exit Scrap Guides, Air Cylinder Operated
30 HP DC Motor, 230 V

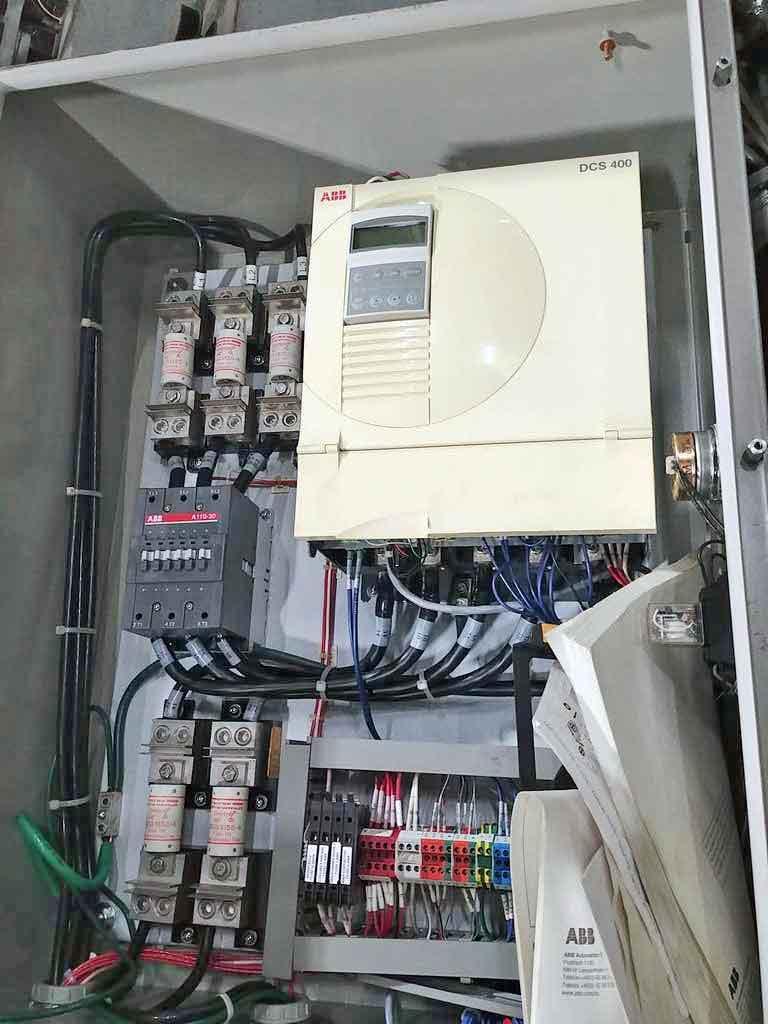

ABB DCS-400 SCR Control - New in 2003
Common Drive with Recoiler
Overall Size: 86" L x 55" W x 59" High
-Scrap Winder:
AC Drive Motor
Wichita Clutch

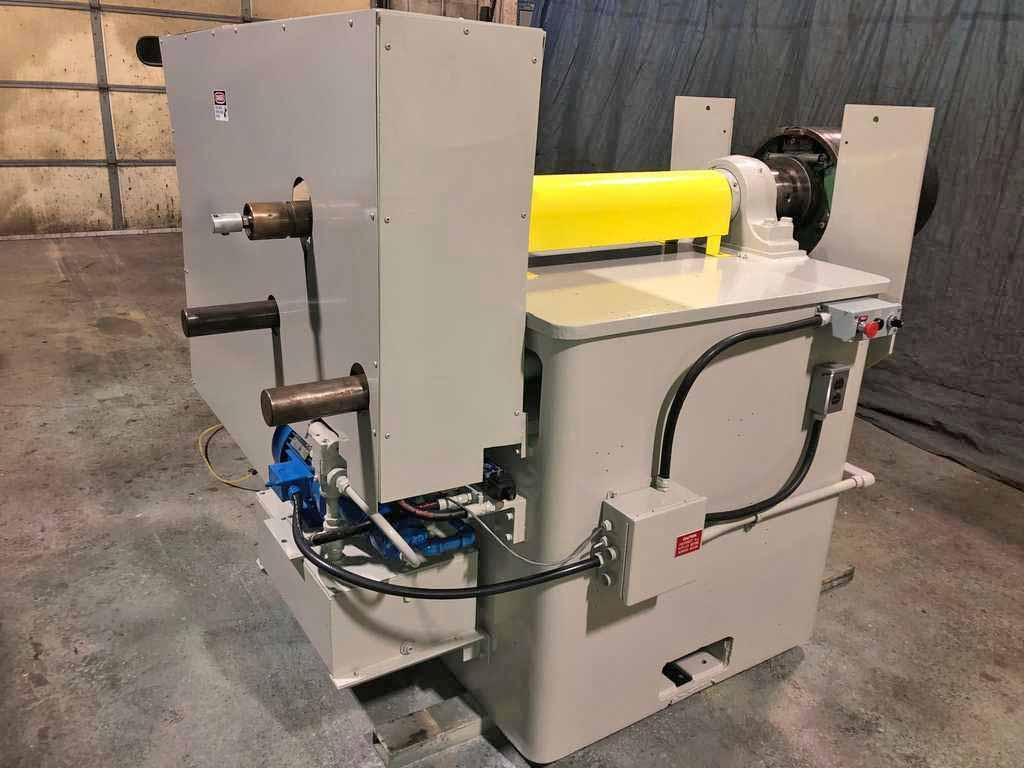

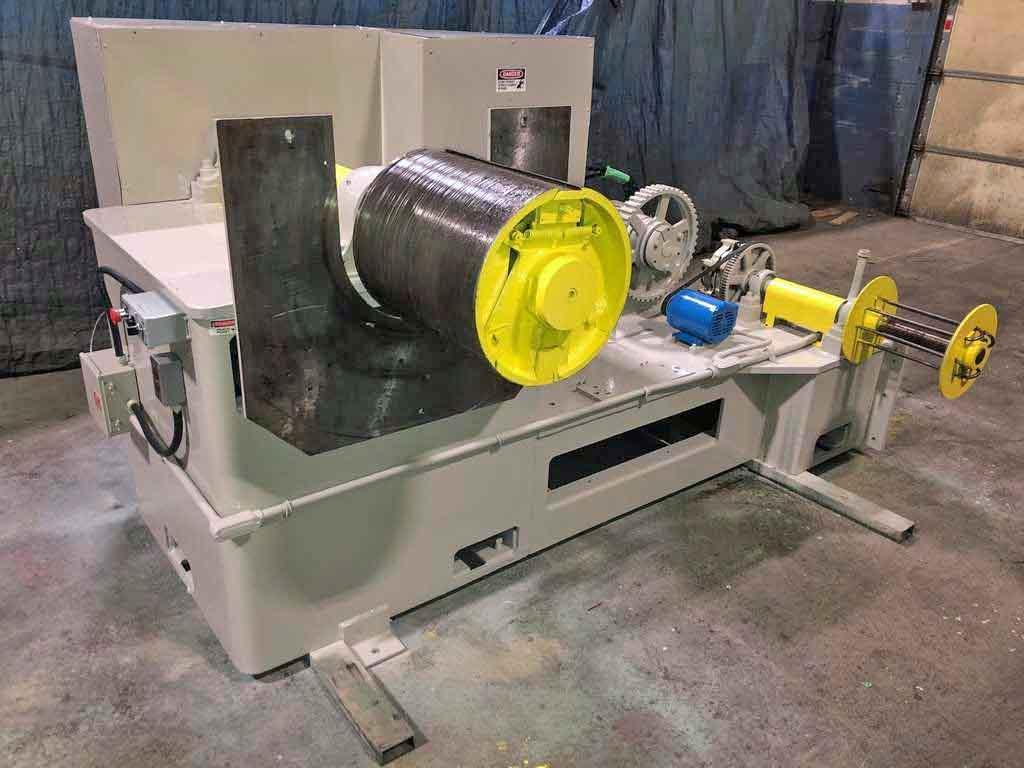

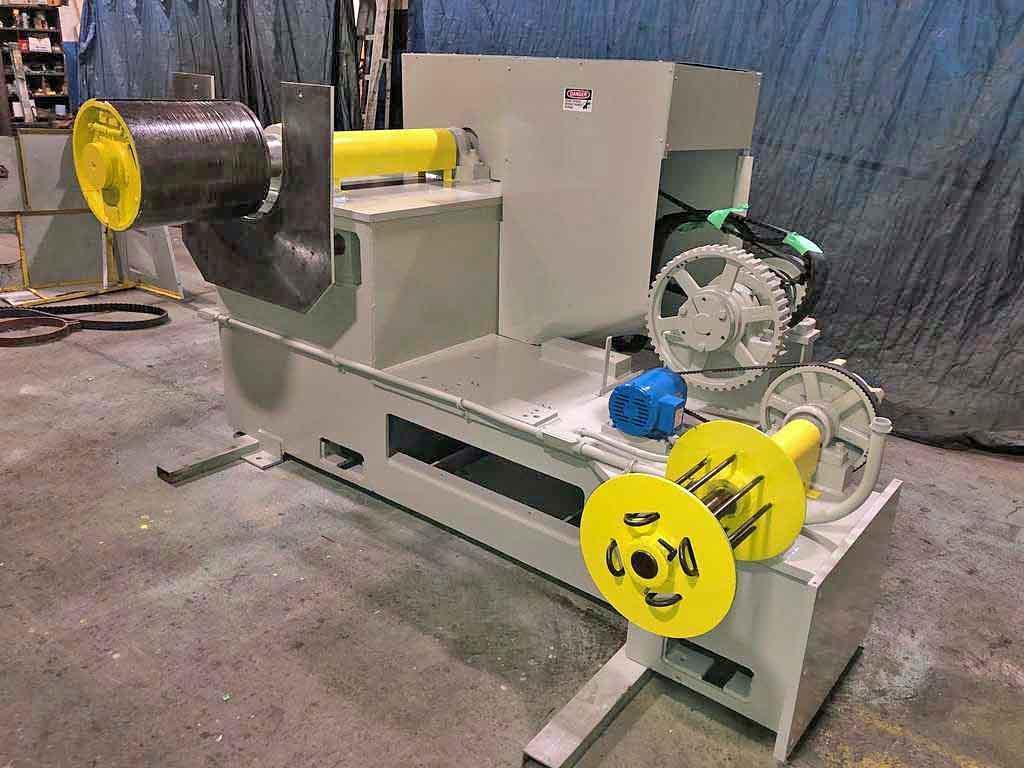

-Recoiler:
16" Dia. x 18" Face Drum
Manual Expansion
Material Slot
Hydraulic Pushoff
Wichita Water Cooled Brake
Passline: 49.5" from Floor to Center of Drum
(Common Drive from Slitter Head)
Self-Contained Hydraulic Power Unit
3 HP AC Motor, 230/460 V
Overall Size: 118" L x 88" W x 66" High
-Overarm Separator: New in 2021

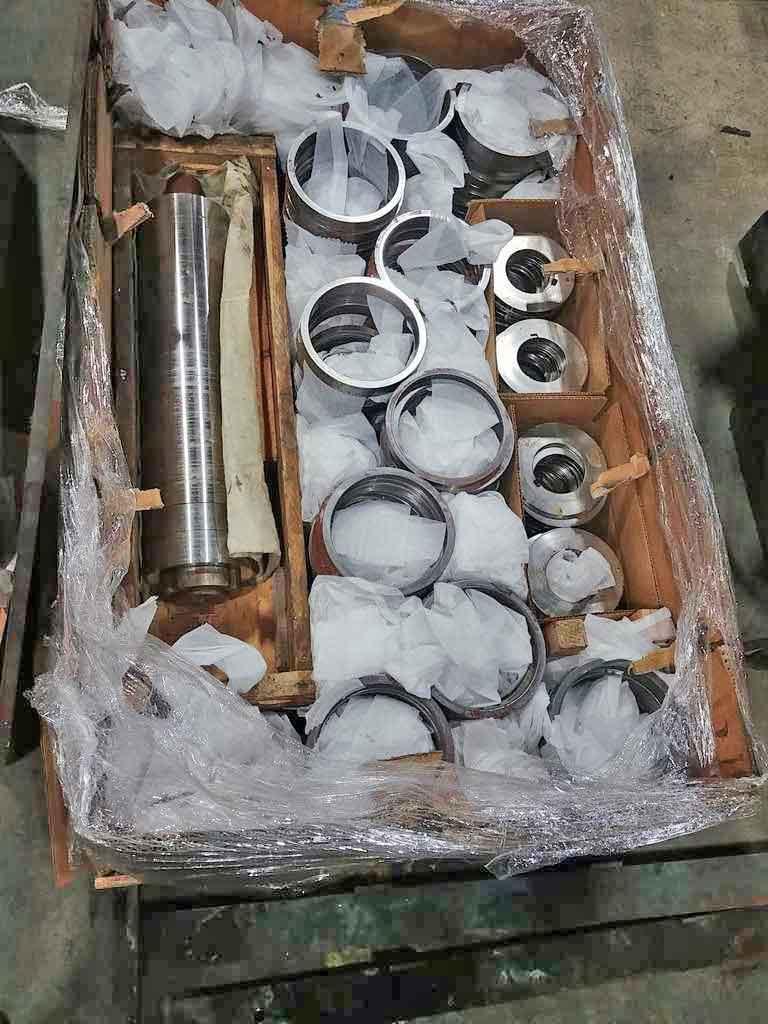

-Tooling Included:
Knife count (Approximate):
-0.500" x 5.337 od.: 11
-0.245" x 5.685 od.: 3
-0.198" x 5.723 od.: 32
-0.185" x 5.636 od.: 6
-0.124" x 5.493 od.: 10
-0.124" x 5.285 od.: 5
Spacers (Approximate):
-3.000": 2
-2.000": 4
-1.000": 6
-0.500": 9
-0.375": 6
-0.310": 7
-0.250": 7
-0.187": 5
-0.125": 8
-0.091": 8
-0.031": 10
Steel Stripper Rings (Approximate):
-1.000": 13
-0.500": 23
-0.375": 12
-0.323": 16
-0.250": 22
-0.217": 6
-0.185": 7
-0.125": 28
-0.090": 12
-0.062": 19
-0.030": 14

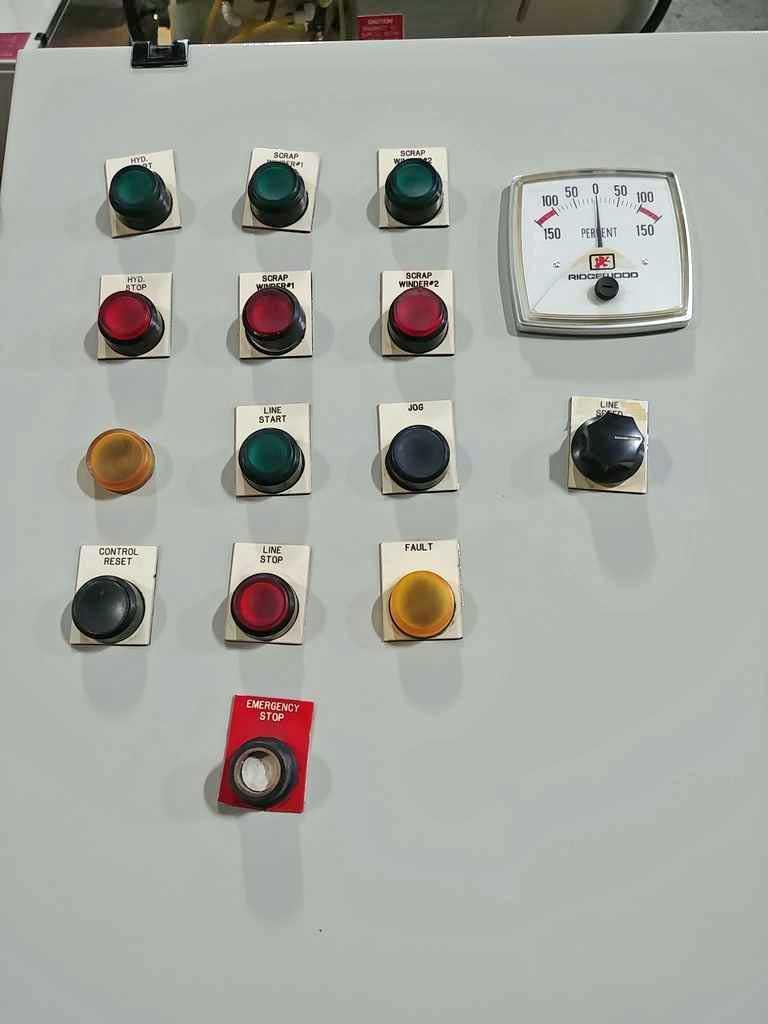

-Main Operators Panel: New in 2003
