12" x 4.00" x 8,000# Loopco Slitting Line
Material: CRS, HRS, Mild Steel, Galv. Stainless, P&O
Shear Strength: 50,000 PSI Max.
Strip Width: 12" (14" Untrimmed)
Gauge: 0.015" - 0.125"
Coil Weight: 8,000 lbs.
Coil I.D.: 16" - 20" Entry & Exit
Coil O.D.: 52"
Line Speed: Low Speed Range: 400 - 1200 FPM (Coil Build-up)
High Speed Range: 800 - 1200 FPM (Coil Build-up)
Helper & Loop Slitting: up to 1000 FPM
Electrics: 460 V, 3 Ph, 60 Hz
Line Direction: Right to Left
Consisting of:

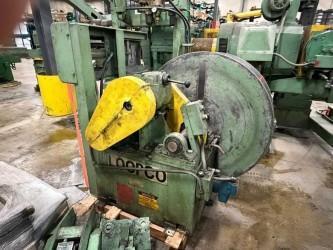

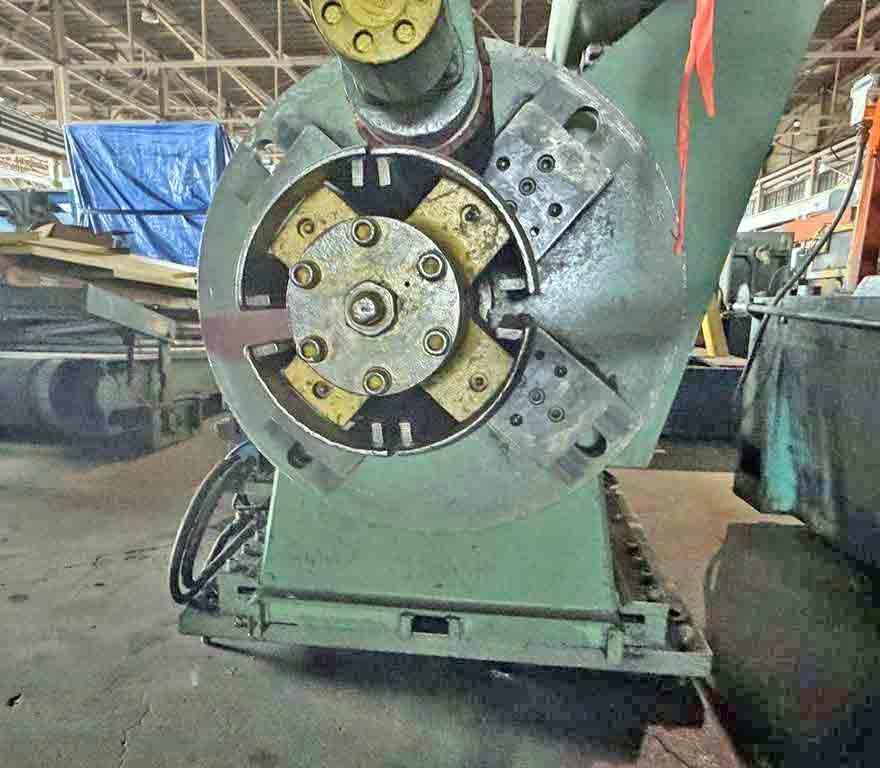

-Uncoiler:
Hydraulic Expansion
AC Motor Threading Drive
Sliding Base
Holddown Roll
Wichita Water Cooled Brake
-Peeler Table:

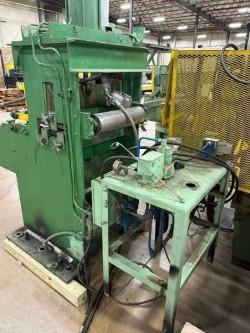

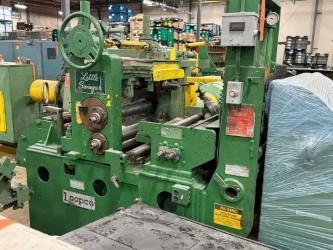

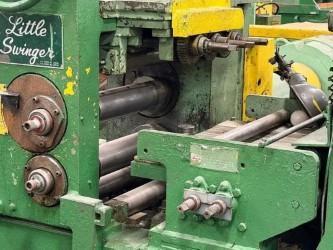

-Slitter Head: Little Swinger Model

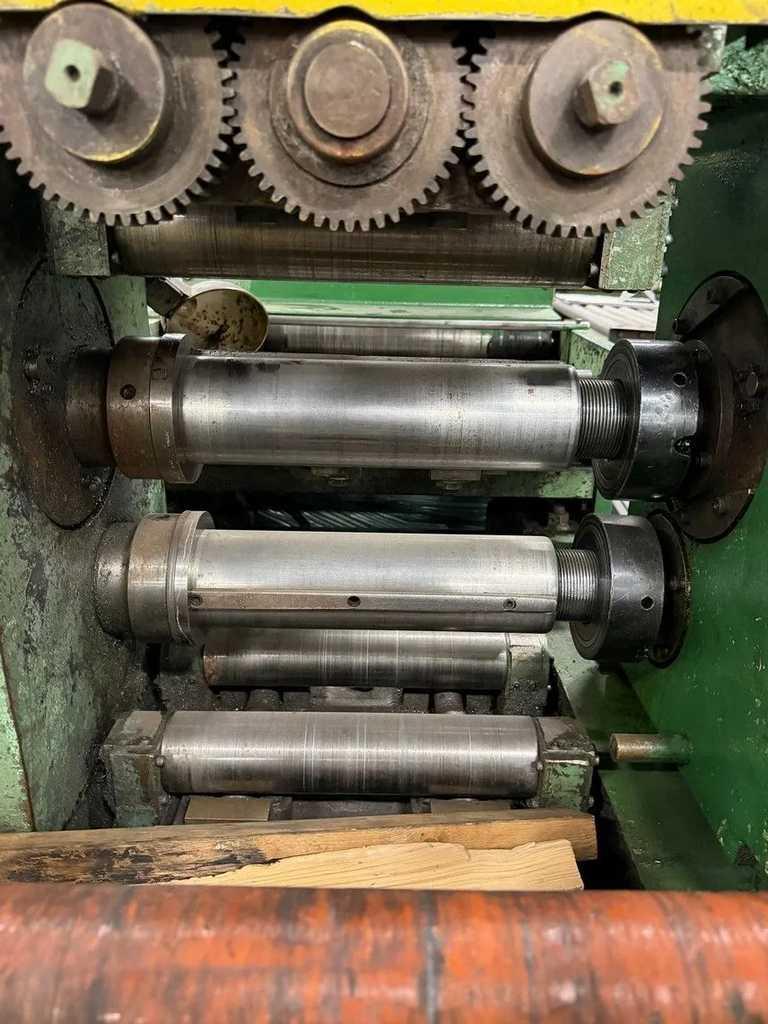

4.00" Dia Arbors
Single Eccentric Arbor Adjustment
Steel Stripper Ring Assembly
Entry Hyd. Crop Shear
Entry Side Guides
Exit Catenary Rolls
50 HP DC Motor w/Blower
850 to 2550 RPM, 500 V
Reducer Ratio 5.635:1
-Pit Table:
-Scrap Winder:
Oscillate Wind
Manual Scrap Ball Removal
Motor Driven

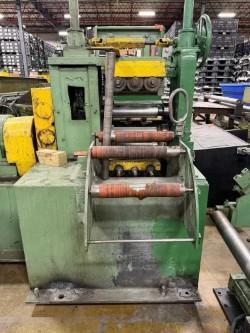

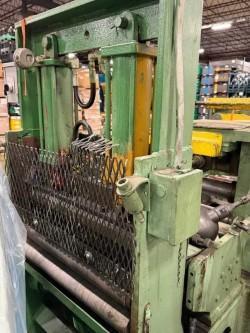

-Tension Stand:
Drag Board Type
Hydraulic Cylinder for Clamping Pressure
Entry Catenary Rolls
Entry Separator Tooling Bar

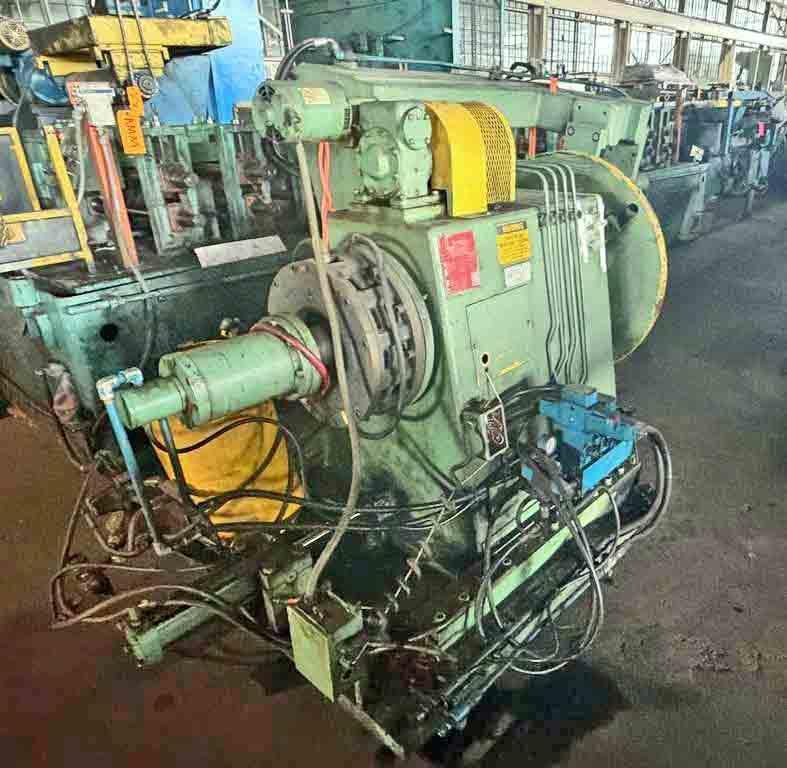

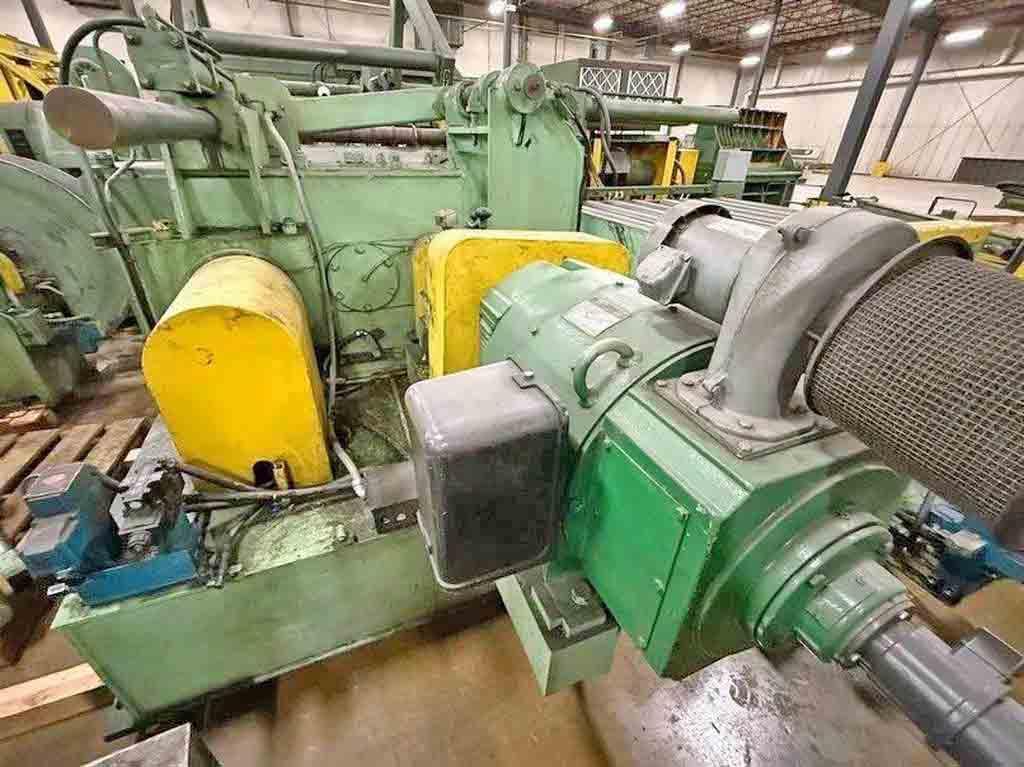

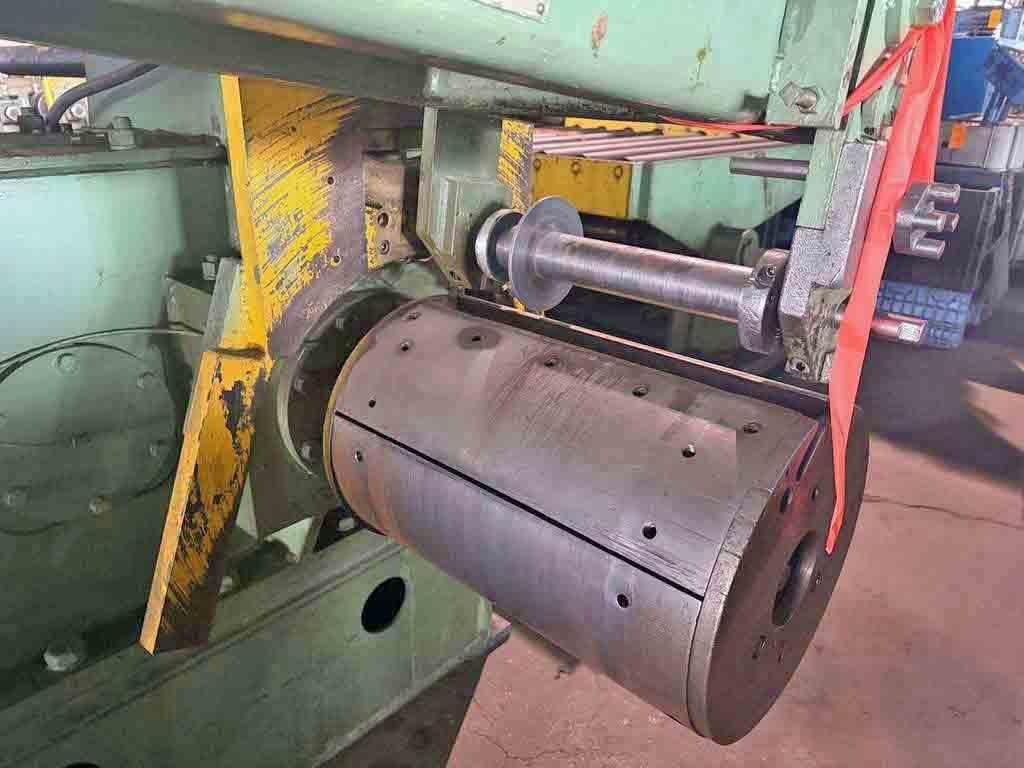

-Recoiler:
16" Dia. Drum w/20" Bolt-On Pads
Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
Integral Reducer
Drive-All 2 Speed Transmission
1:1 and 2:091 Ratios
60 HP DC Motor
550 to 2550 RPM, 500 V

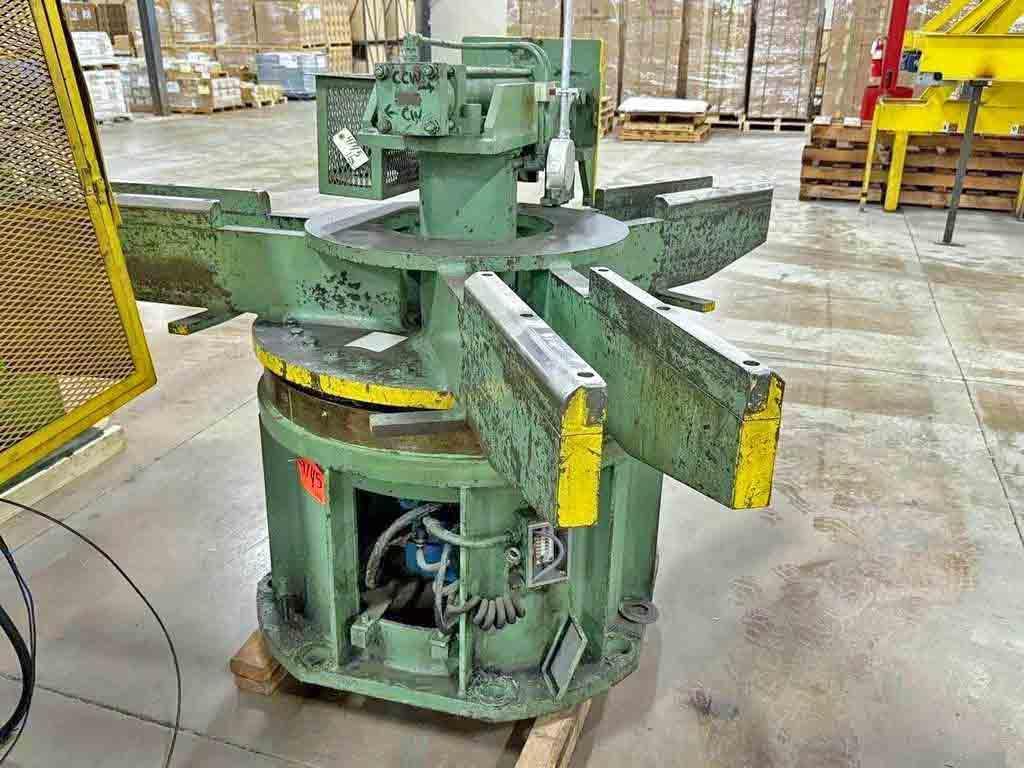

-3 Exit Arm Turnstile:
C Hook Type Arms
Hydraulic Pushoff
Powered Rotation

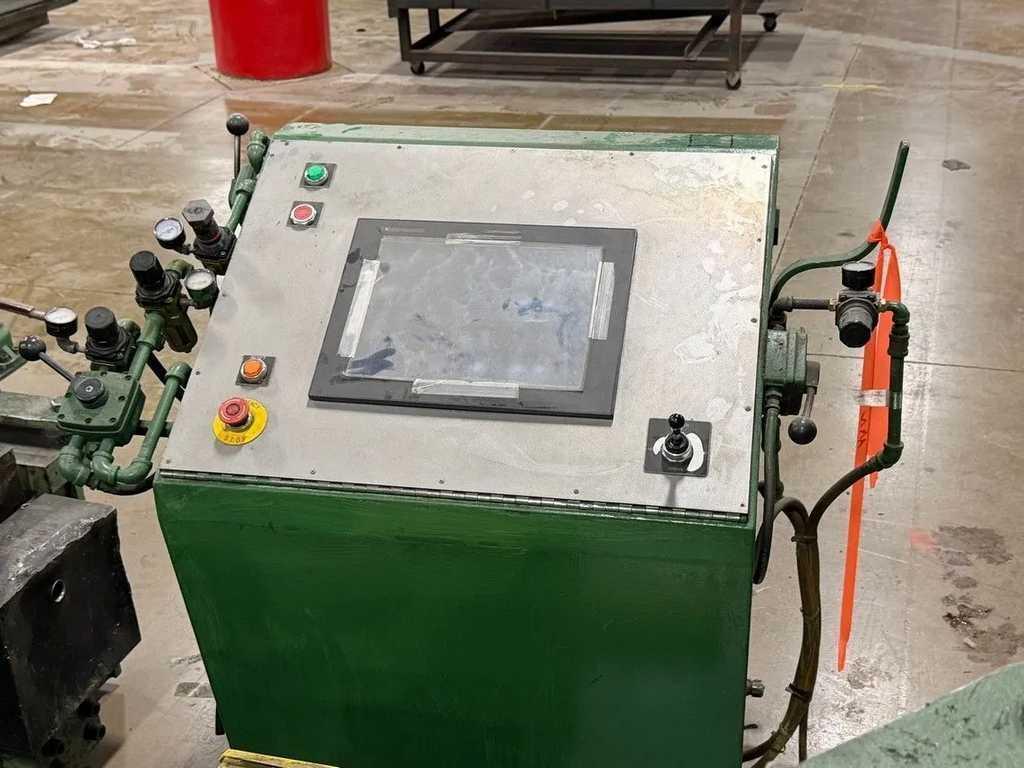

-Operators Control Panel:

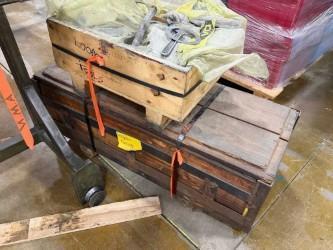

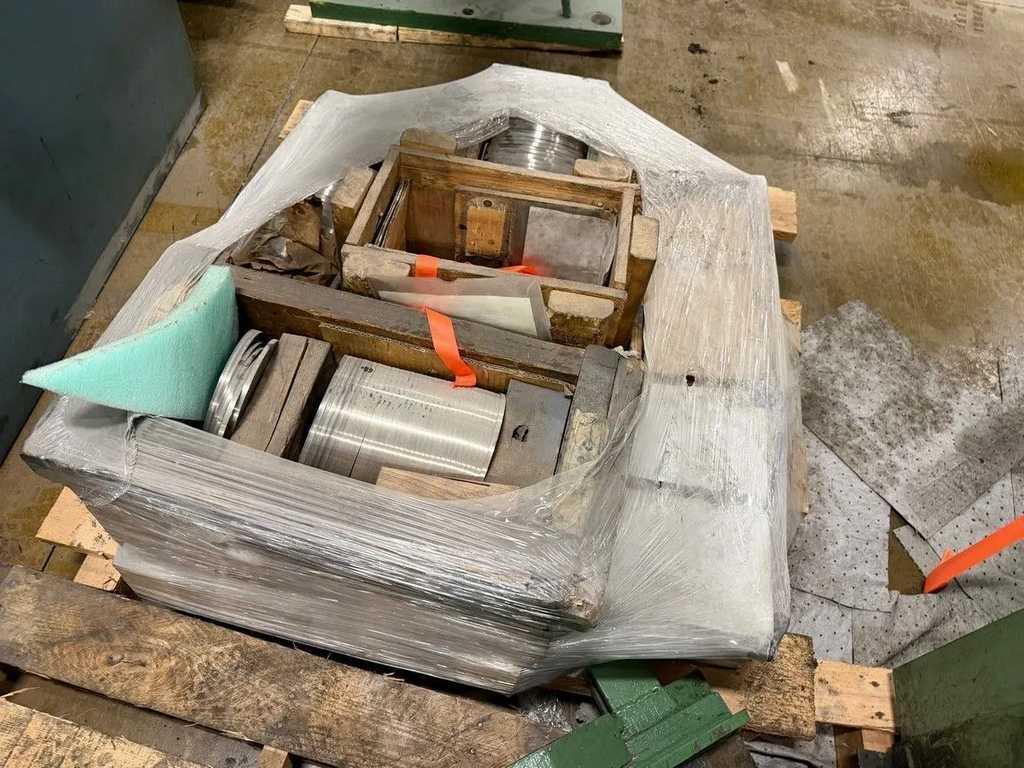

-Slitter Tooling:
