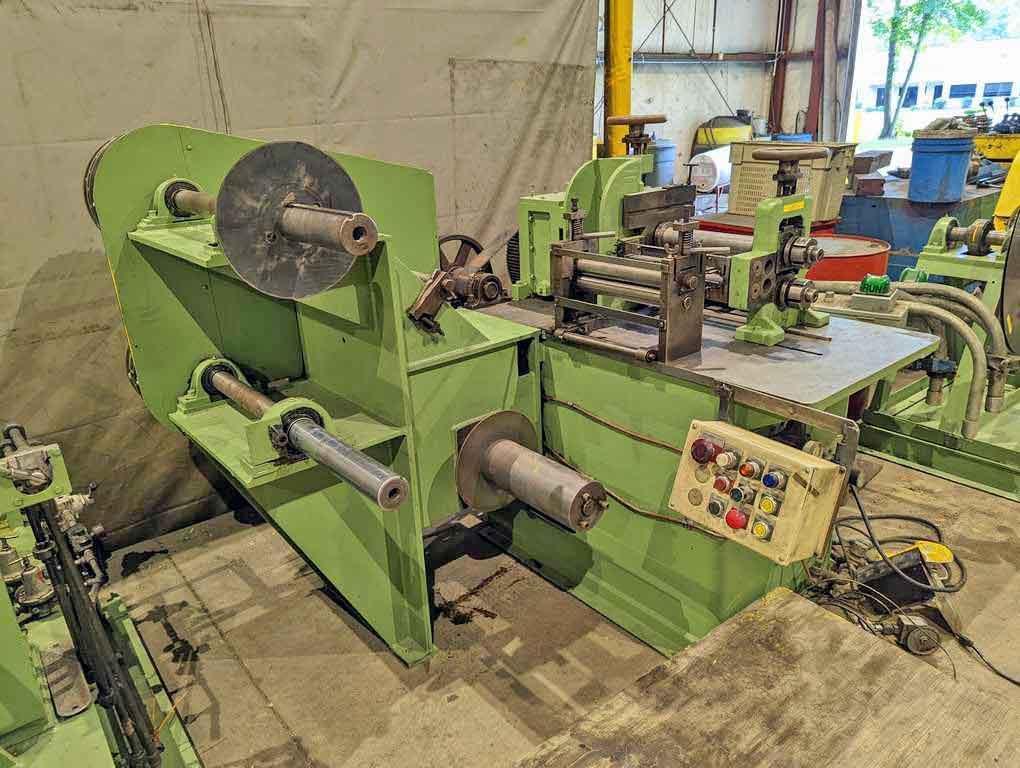

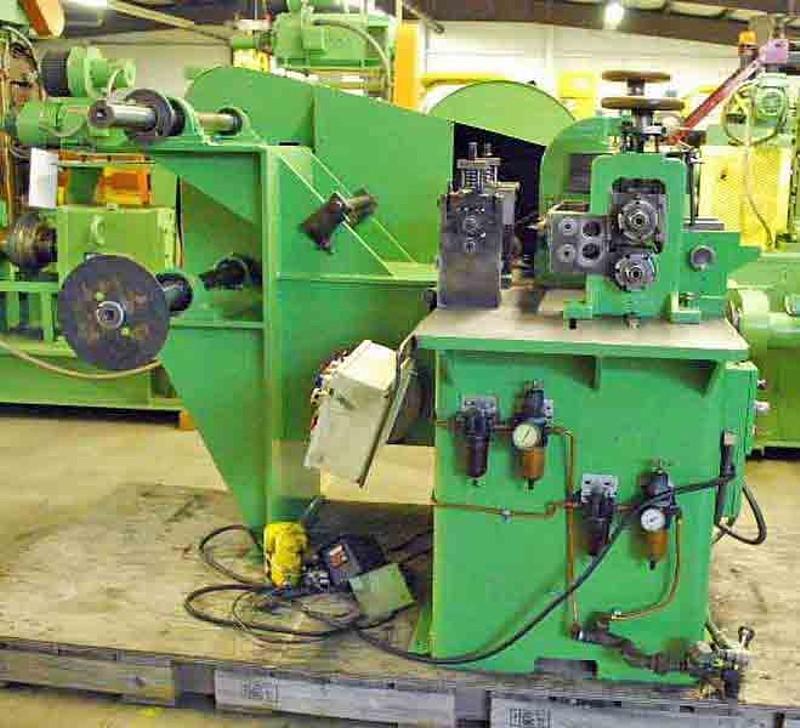

12" x 2.50" x 1,000# Ruesch Slitting Line STOCK#3201

Brand
RUESCH

Model

Stock #
3201

Condition
Good

Year

Location
Toledo, Ohio
United States

Specifications

Max Width of Workpiece 12 inches
Max Thickness of Workpiece (in.) 2.50 inches
Weight 1000 pounds

Equipped With

-Ruesch Model Number:         76
-Type Slitter:                Pull Through Finger Set Up
-Line Direction:              Right to Left

Material:
 Type:  Beryllium Copper, High Carbon and Stainless Steel
 Width:  2" to 12" (50mm - 305mm)
 Thickness:
 -Per Original Specs:  0.001" - 0.020" (0.025mm) - 0.508mm)
 -As Used:  0.003" - 0.025" (0.076mm - 0.625mm)

Coil Size:
  Minimum I.D.:  6" (152mm)
  Maximum O.D.:  16" (406mm) Approx.
  Max. Coil Weight:
  -Per Original Specs:  600 lbs. (270 KG)
  -As Used:  1,000 lbs. (450 KG)

Consisting of the following:

-Note: Payoff to be supplied by the purchaser

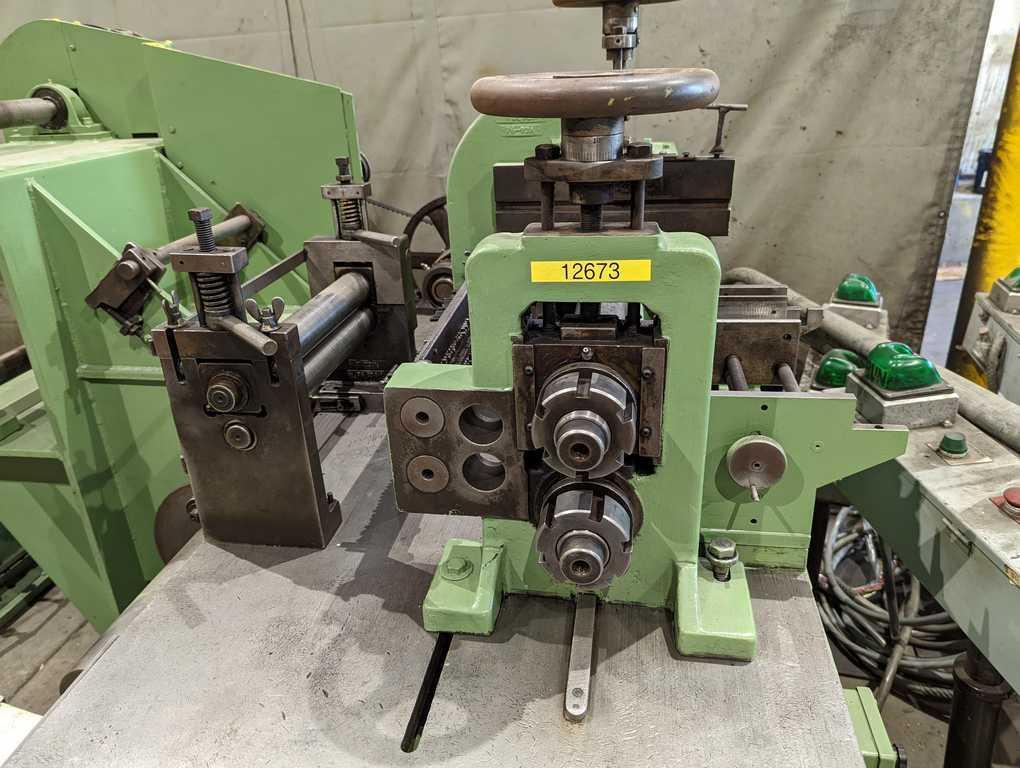

-Slitter Head:
  Arbor Size:  2.50" (63.5mm) Dia. x 13" (330mm) Face Width
  Knife Diameter:  5.50" (140mm) Max.
  Spacer Diameter:  3.750" (94mm)
  Slitting Speed:  0 - 250 FPM (0 - 76M/Min.)
  Number of Cuts:  15 in 0.020" (0.050mm) Thick Material @ 250 FPM (76M/Min.)
  Maximum Stock Width:  12" (305mm)
  Floor to Tip of Cutters:  38" (965mm) Approx.
  Entry Side Guides:  Manual Adjustment
  Slitter Housing:  Ruesch 76-93A
  Dual Handwheel Adjust
  Wooden Fingers
  Finger Stabilizer:  Screw Type
  Digital Counter:  Red Lion
  Drive Motor:  7.50 HP, 1745 RPM, 440 V., 3 PH, 60 HZ, Variable Speed
    With Eaton Dynamatic Adjustospeed Drive

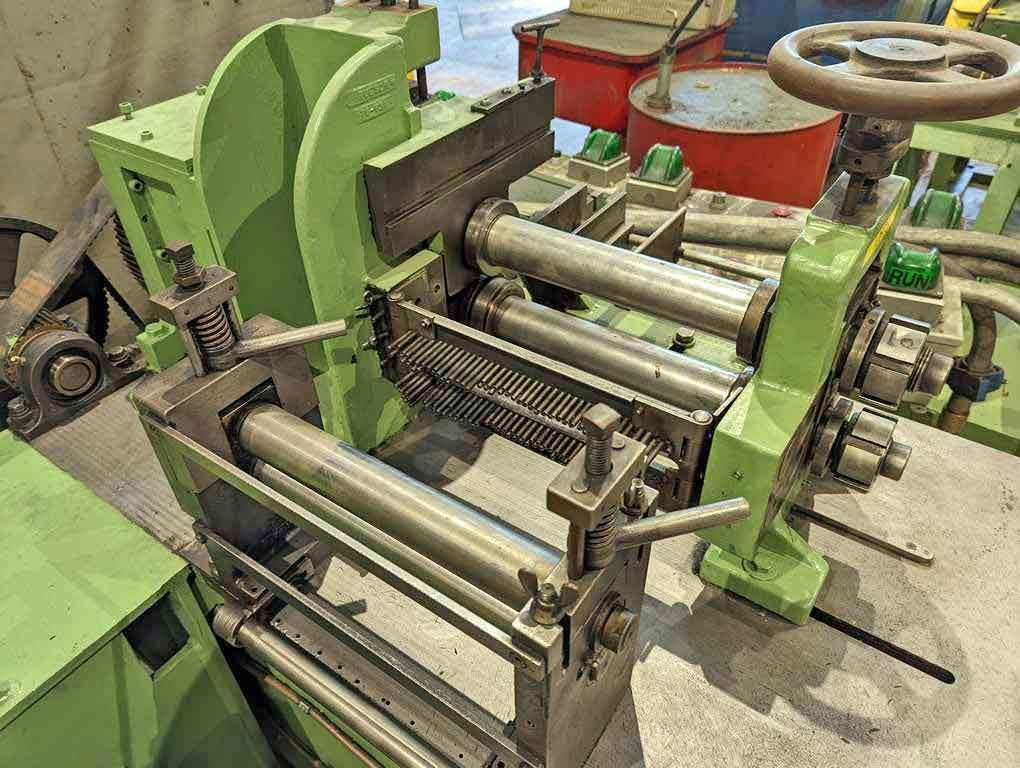

  Exit Pinch Rolls:  2" (50mm) Dia. x 13" (330mm) Width

-Scrap Winder:
  Drum Diameter:  5.50" (140mm)
  Drum Width:  14.50" (368mm)
  Driven from Main Drive

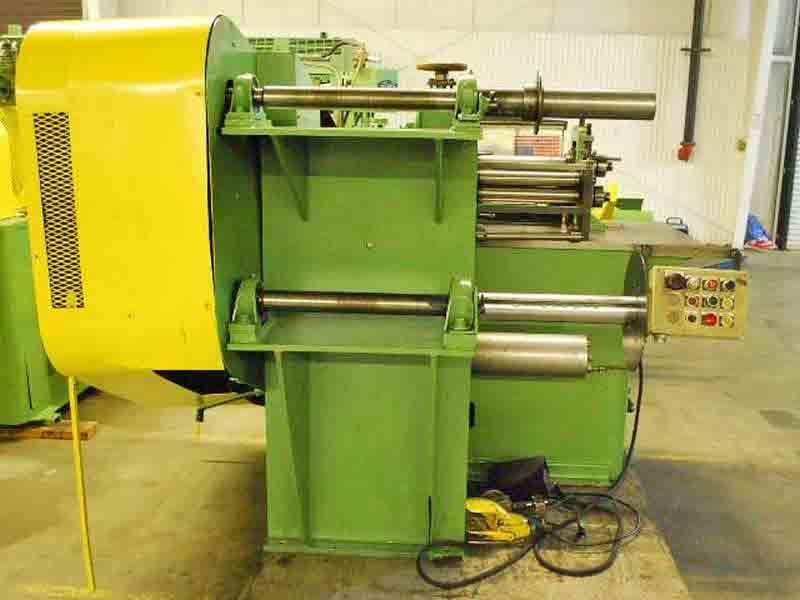

-Recoiler:
  Quantity:  2
  Shaft Diameter:  2.875" (71.12mm)
  Shaft Width:  16" (406mm)

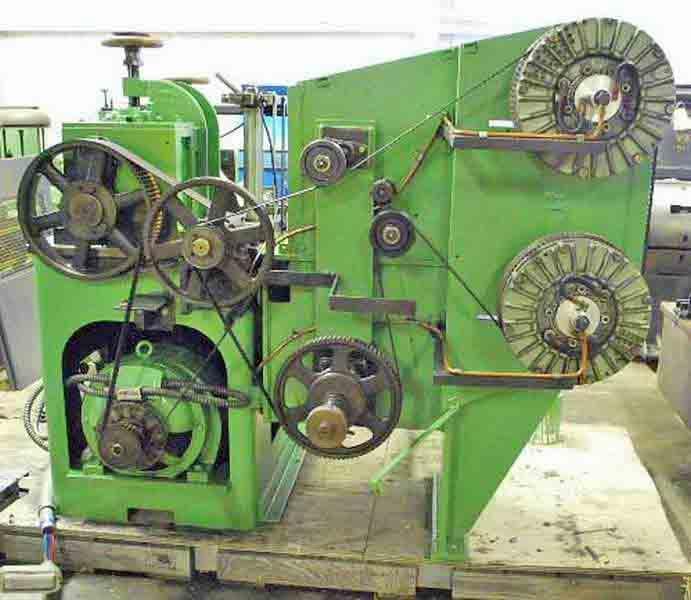

  Chain Driven from Main Drive

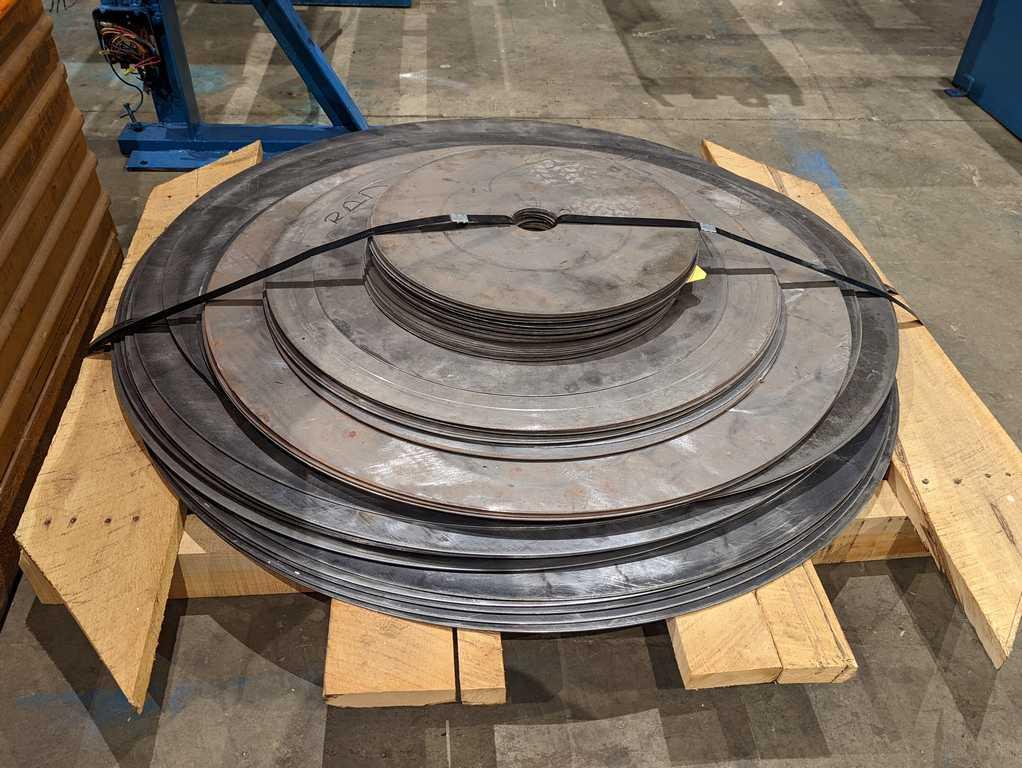

  Uses Separator Disks

-Overall Size: 77" L x 73" W x 59" High

-Approx. Weight of Machine:  2,200 lbs. (1000 KG)

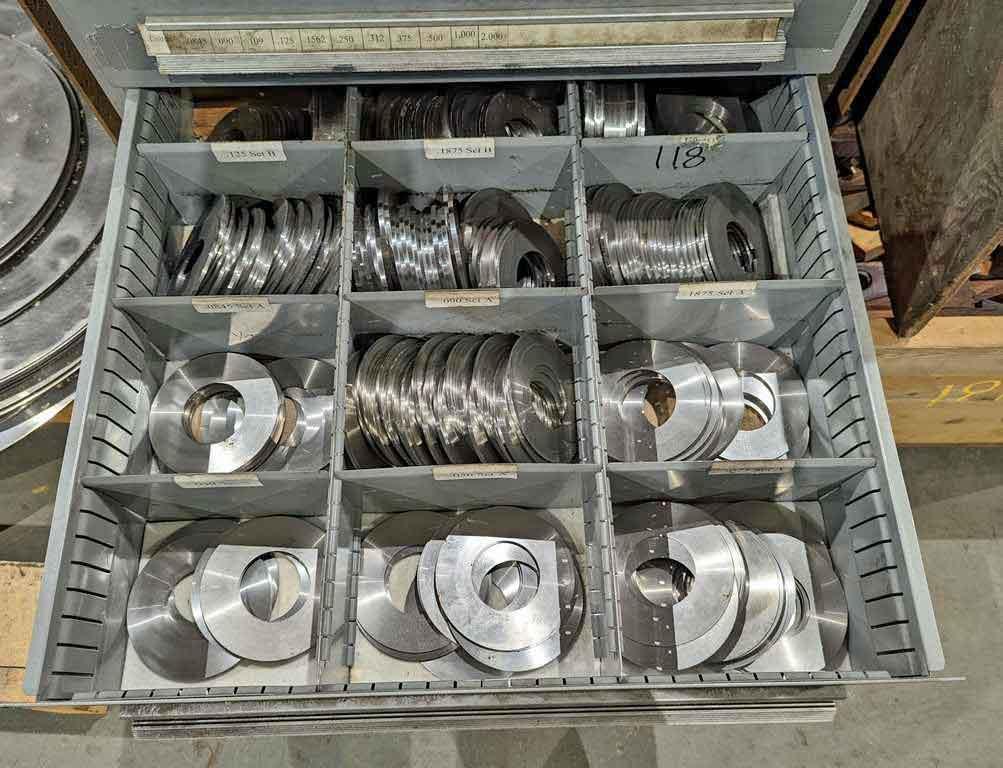

-Large Quantity of Tooling Available

-In Storage:Toledo, OH
