Specifications
| Roll Diameter |
4 inches |
| Number of Stands |
12 |
Equipped With

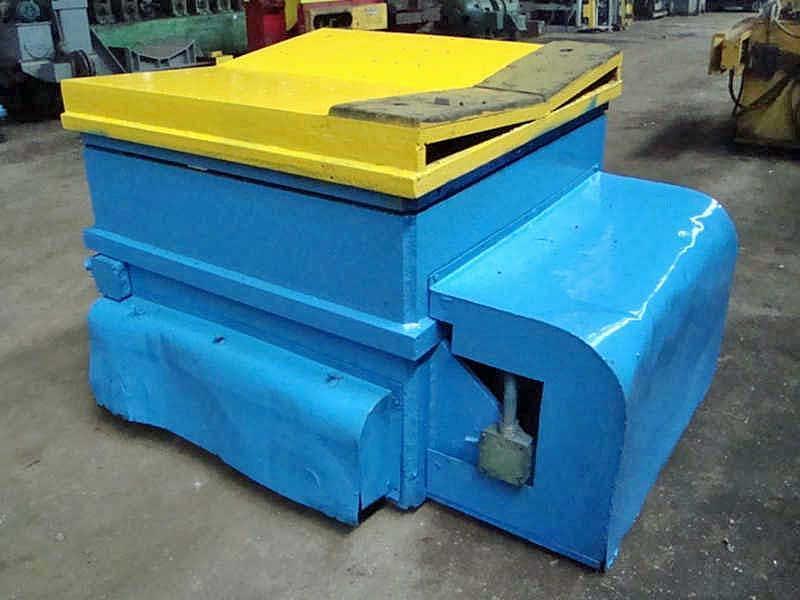

-Coil Car: Dahlstrom
Model: 2SCL
Capacity: 15,000 LBS.
Lift: 12"
Travel: 48"
Table: 42" x 41"
Wheel Drive: Reliance Gearmotor
1 HP AC Motor, 1535 RPM, 220/440 V, 3 PH
Raise/Lower Drive: 3 HP AC Motor, 220/440 V, 3 PH
Overall Dimensions: 57" x 50" x 35" Table Height
Weight: 2,000 Lbs.

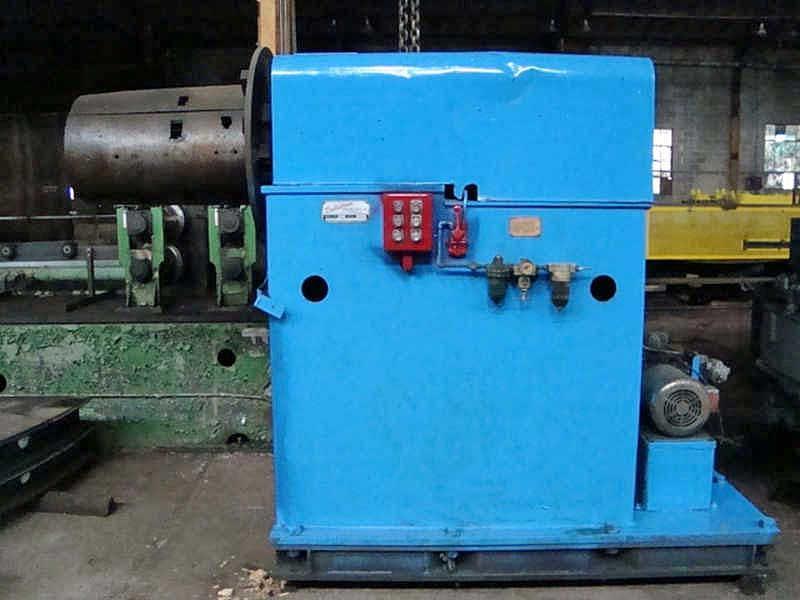

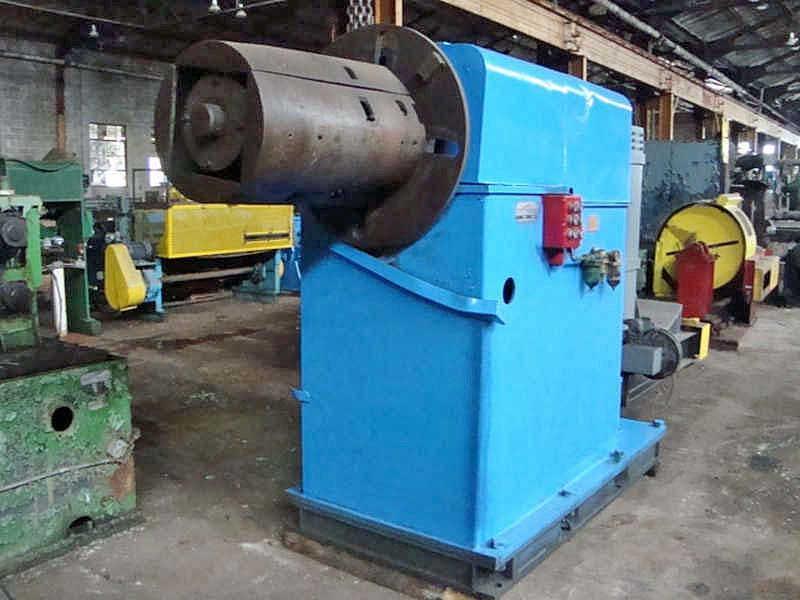

-Uncoiler: Dahlstrom
Model: 15H-30 1925
Capacity: 15,000 lbs.
Coil I.D. Range: 19" - 25"
Hydraulic Expansion
Mandrel Length: 30"
4 Leaf Mandrel
Hydraulic Motor Threading Drive
Self-Contained Hyd. Power Unit
3 HP AC Motor, 1725 RPM, 208/220/440 Volt, 3 PH
Dimensions: 90" L x 46" W x 86" High
Weight: 8,000 Lbs.
-Peeler/Straightener: B & K
Model 455-26F
S/N: 101
Hydraulic Actuated Peeler Table
Entry Driven Pinch Rolls
27" W x 5.625" Dia. Rolls
Hydraulic Cylinder Loaded
5 Roll Flattener:
2 over 3 Design
4.50" Dia. x 27" Face Rolls
Independent Parallel Adjustment on 2 Top Rolls
5 HP AC Drive Motor, 1800 RPM,
Right Angle Reducer w/50:1 Ratio
Line Speed: 45 - 135 FPM

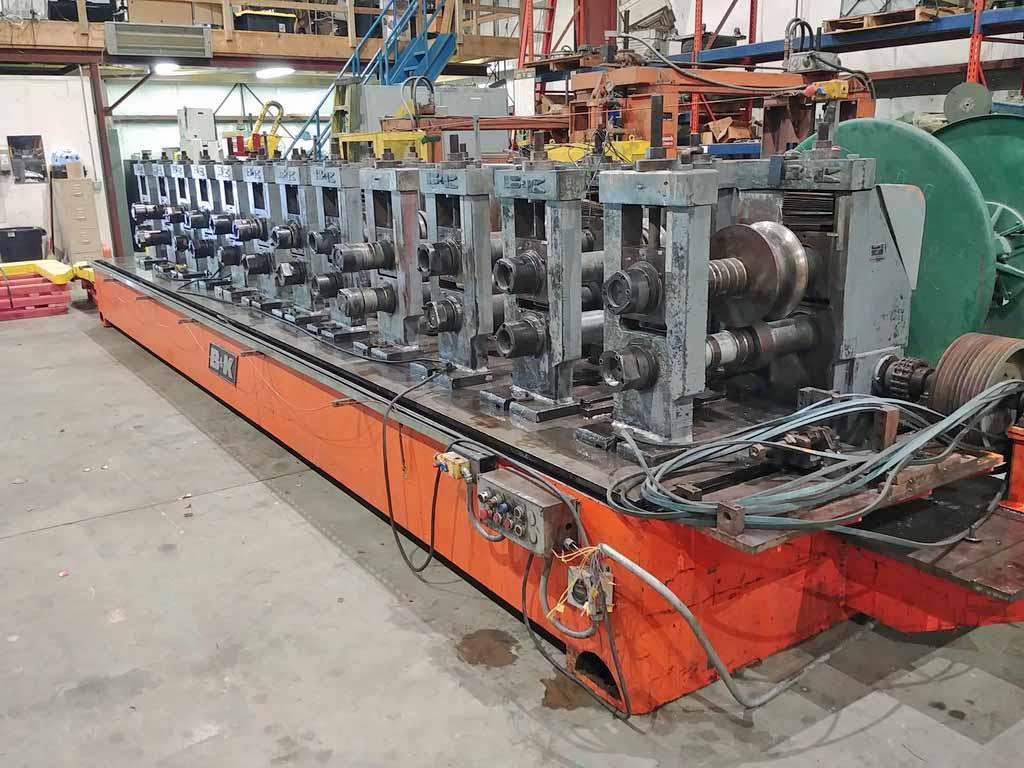

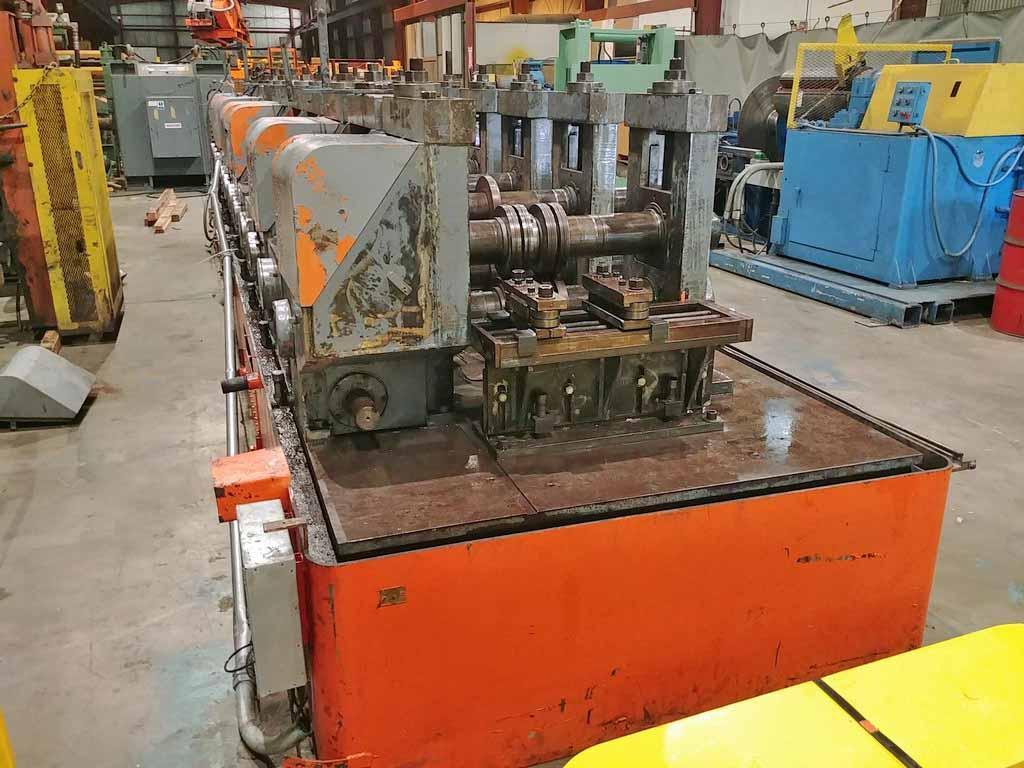

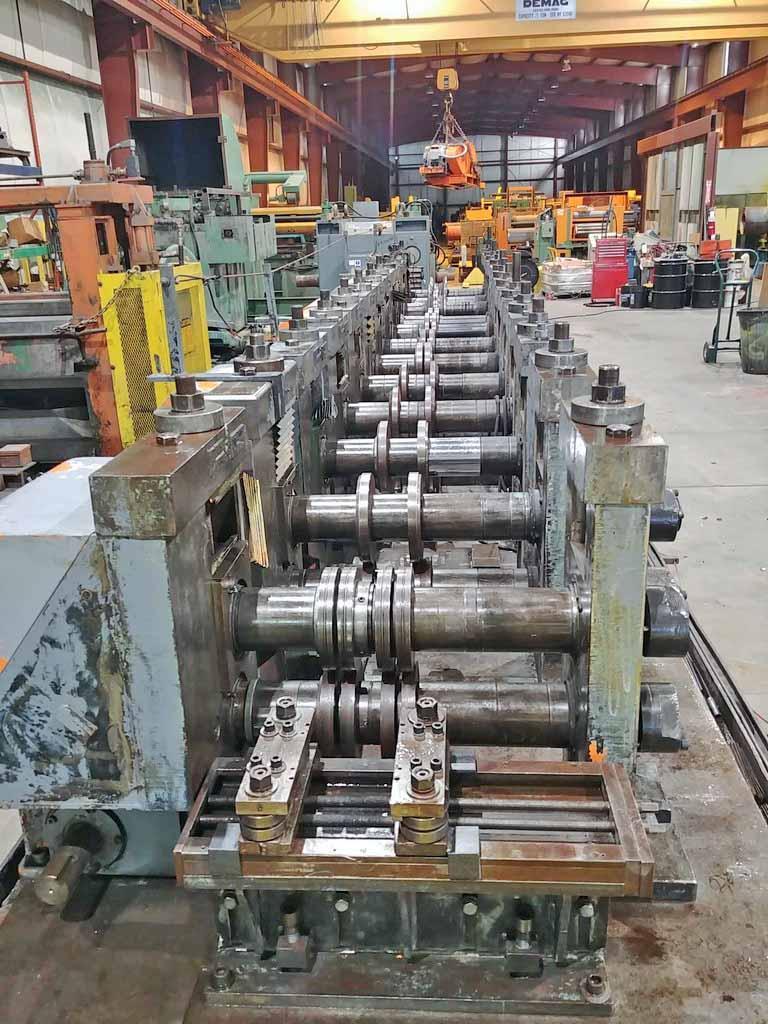

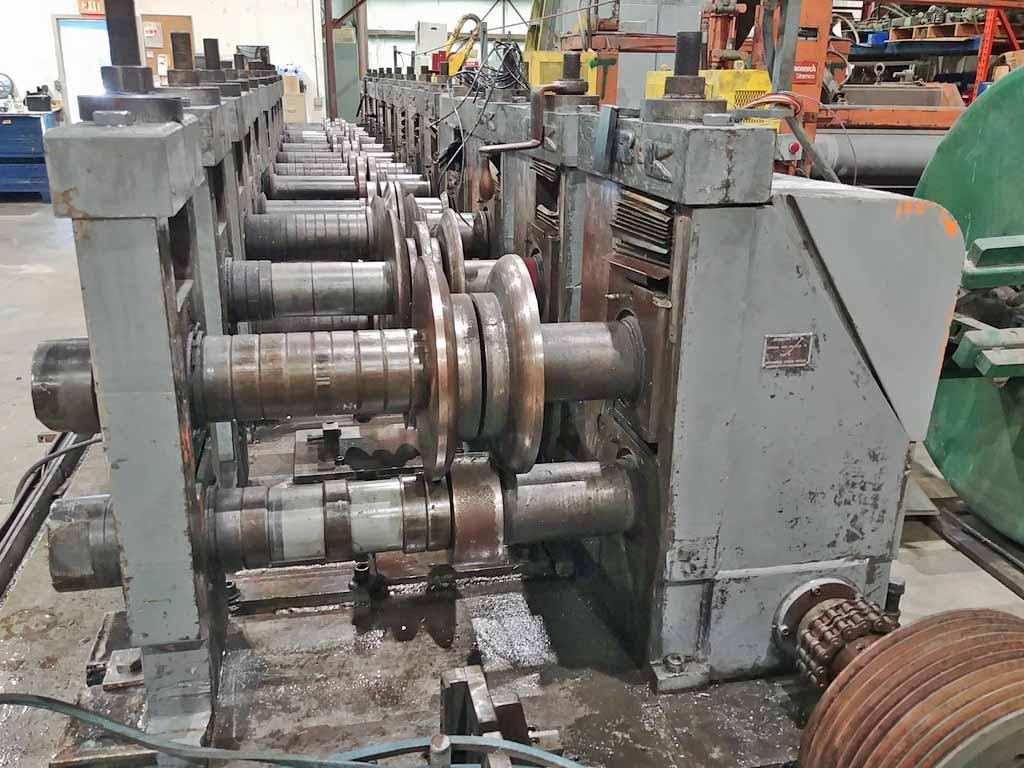

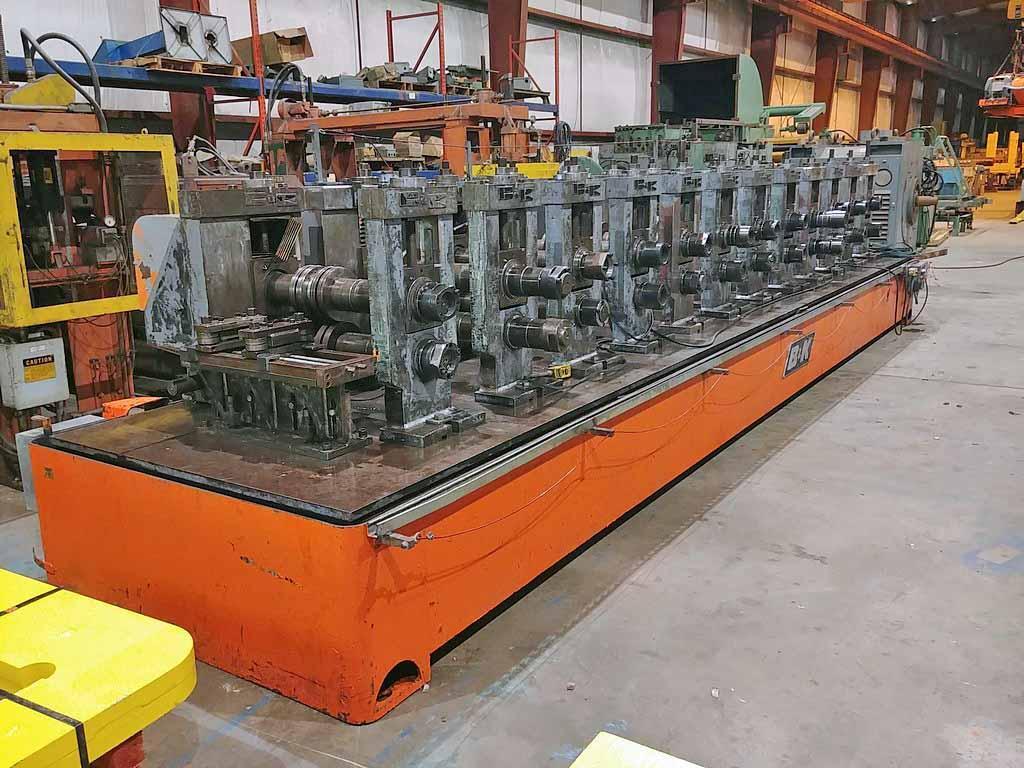

-Rollformer: B&K
Number of Stands: 12
Spindle Diameter: 4.00"
Roll Space: 25"
Horizontal Centers: 24"
Vertical Adjustment: 5.50" (8.25" - 13.75")
Distance from Bed to Center of Bottom Spindle: 11"
Passline Height: 40"

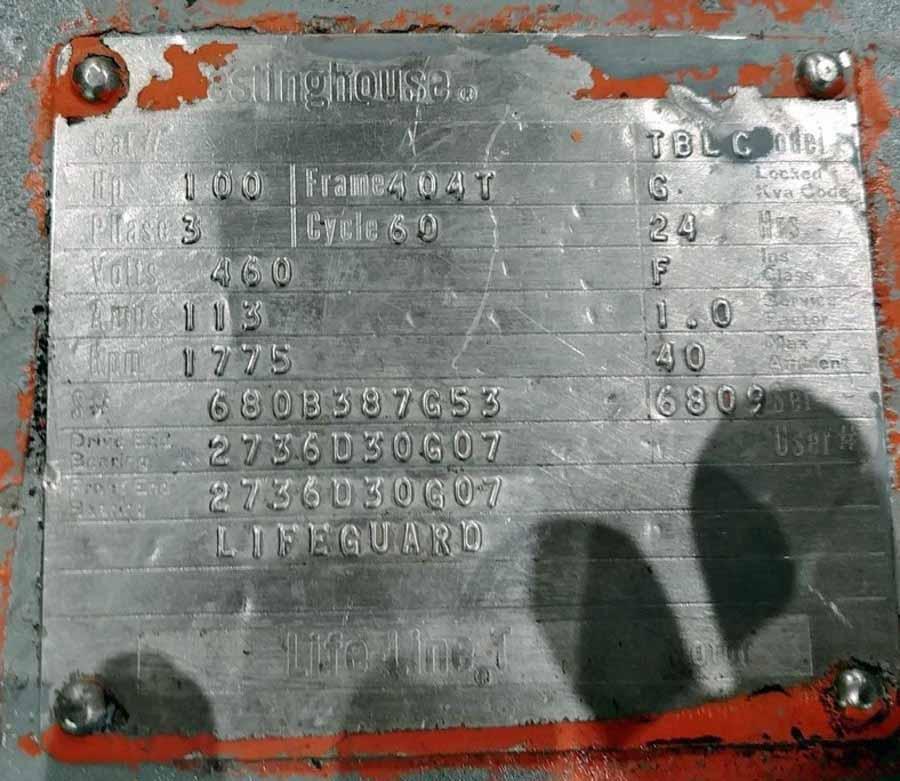

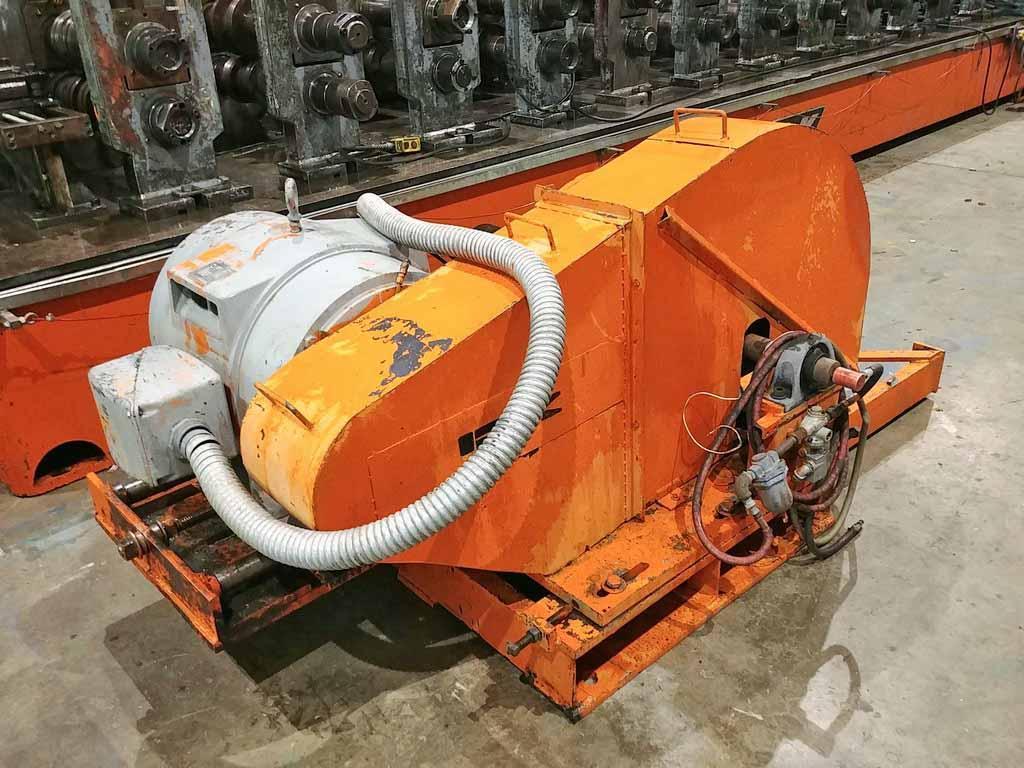

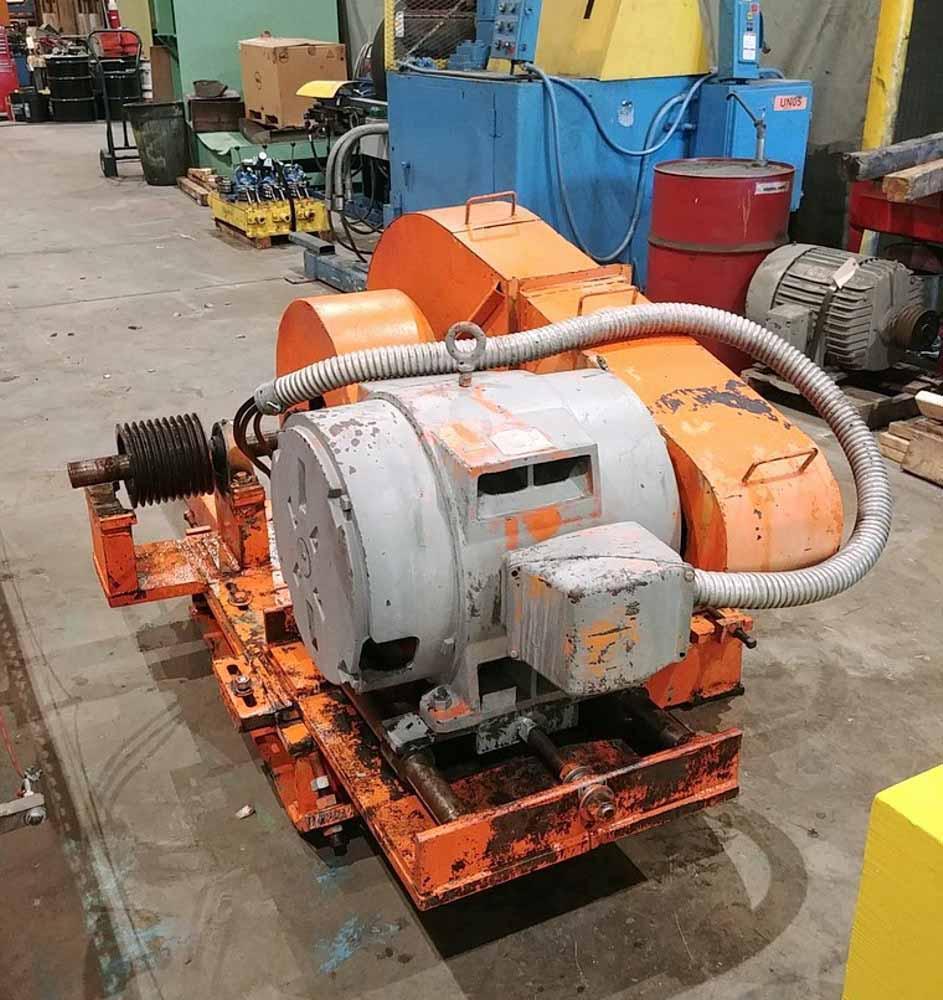

100 HP Westinghouse AC Motor, 1775 RPM, 460 V

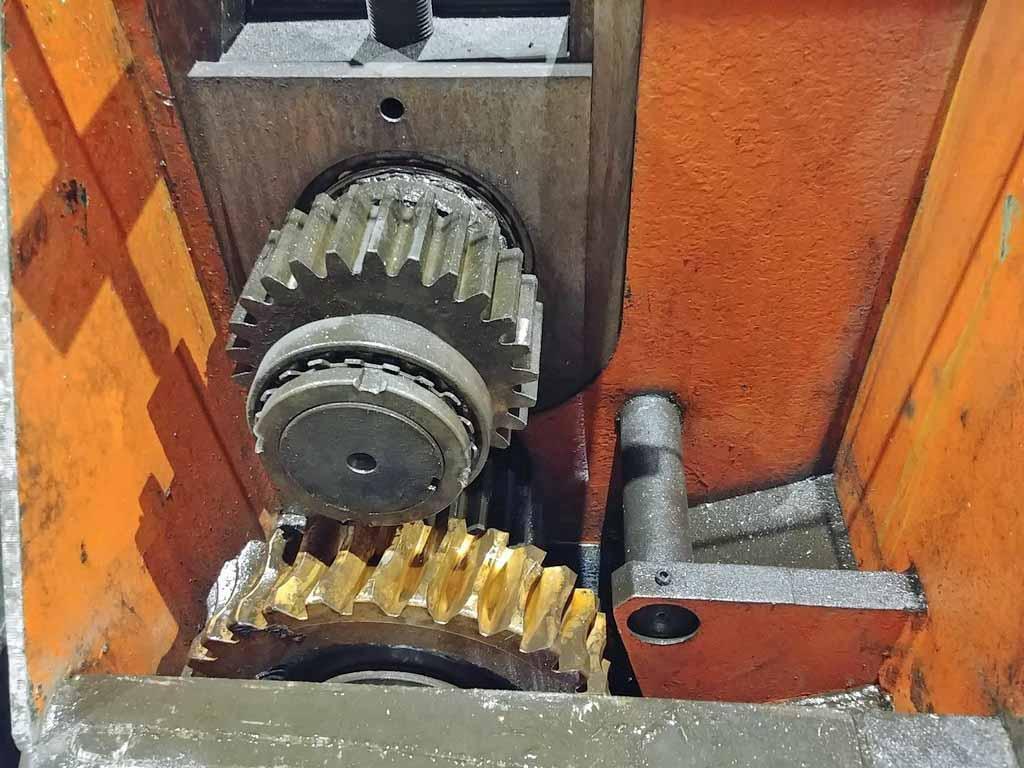

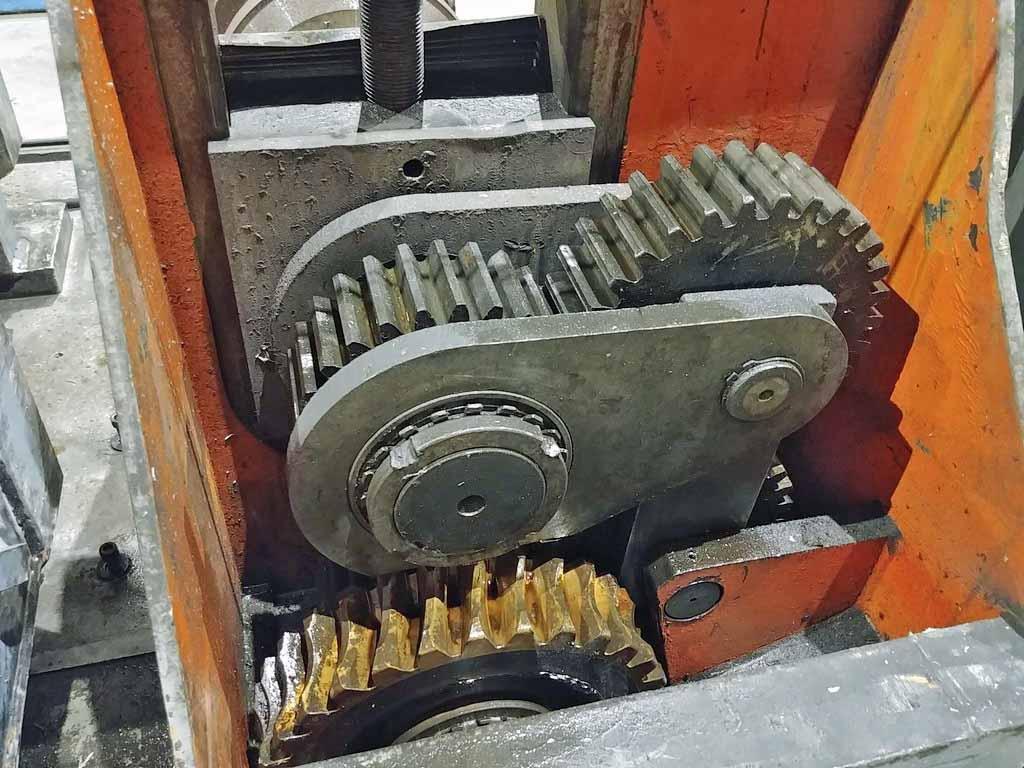

Gear Driven Machine

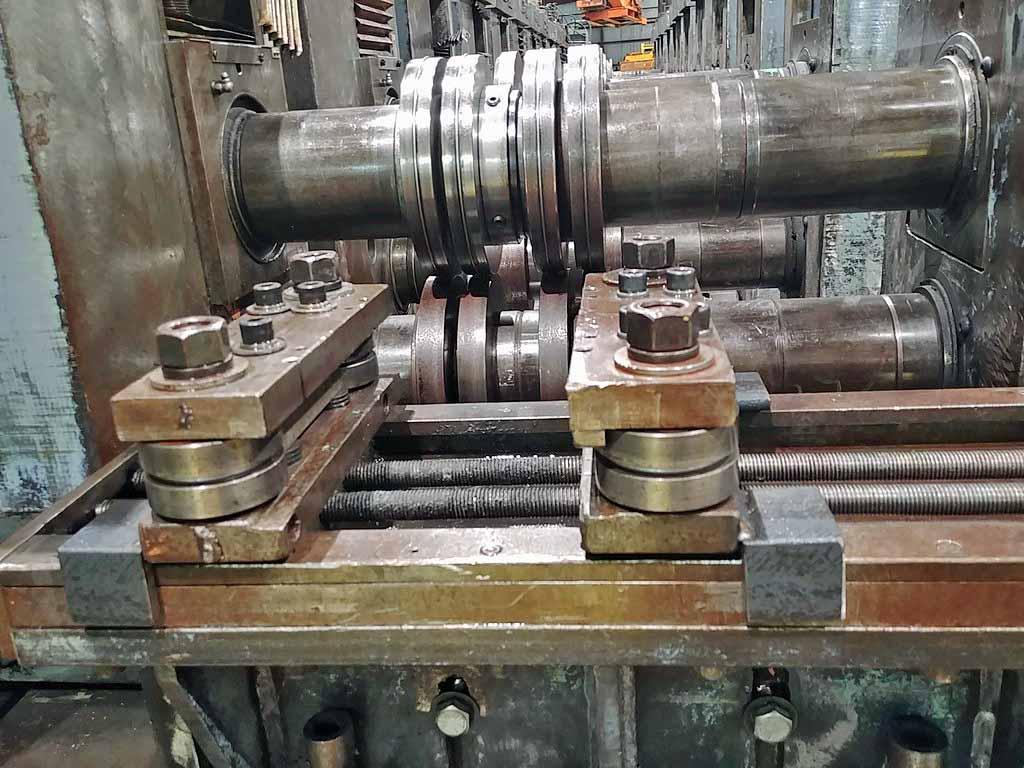

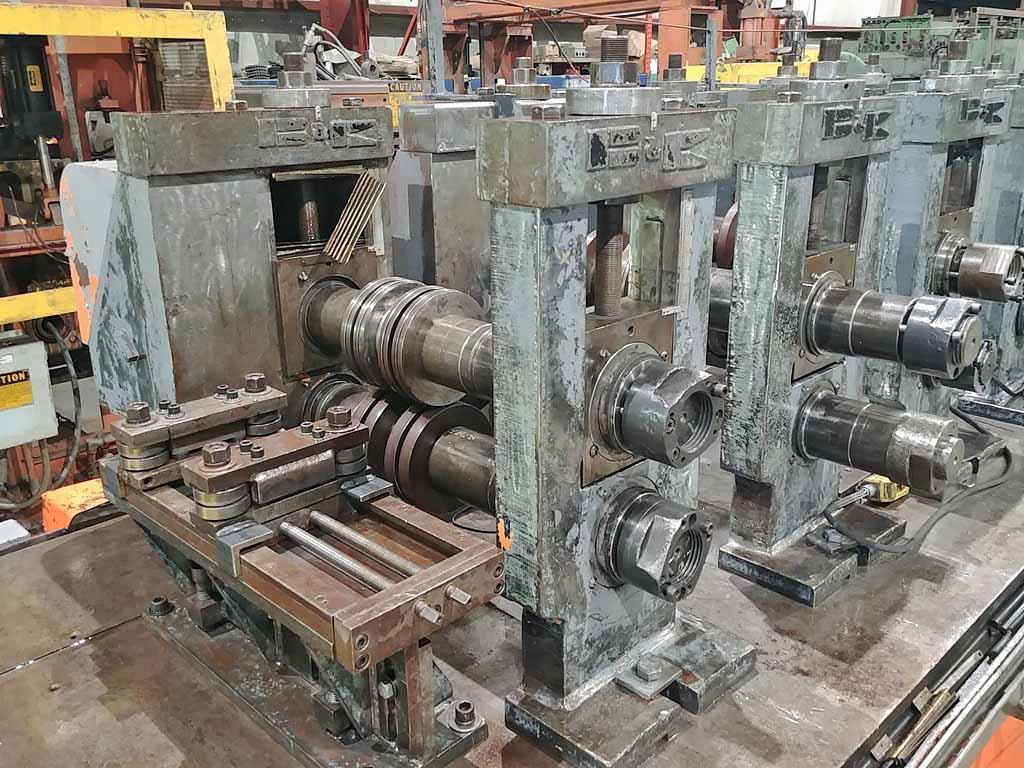

Entry Edge Guides
Overall Size: 336" L x 79" W x 71" High
40,000 Lbs (approx.)

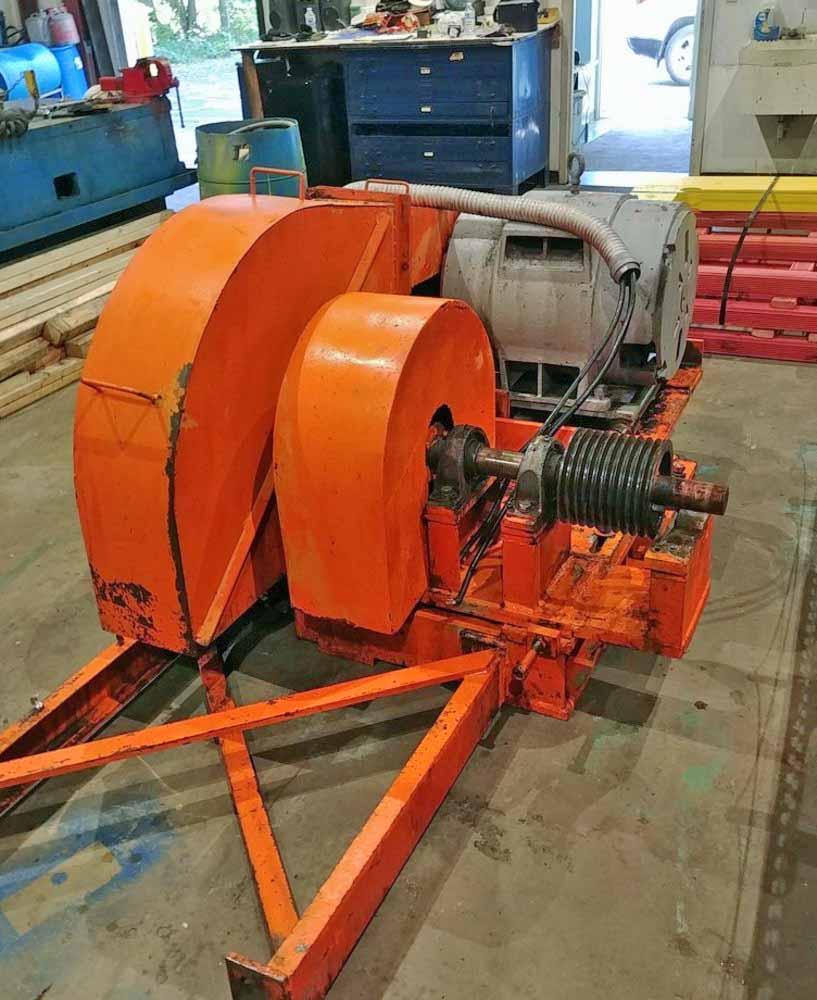

20 HP Reliance AC Motor
1760 RPM, 220/440 V, 60 HZ.
Belt driven to the flywheel
Air Clutch and Brake

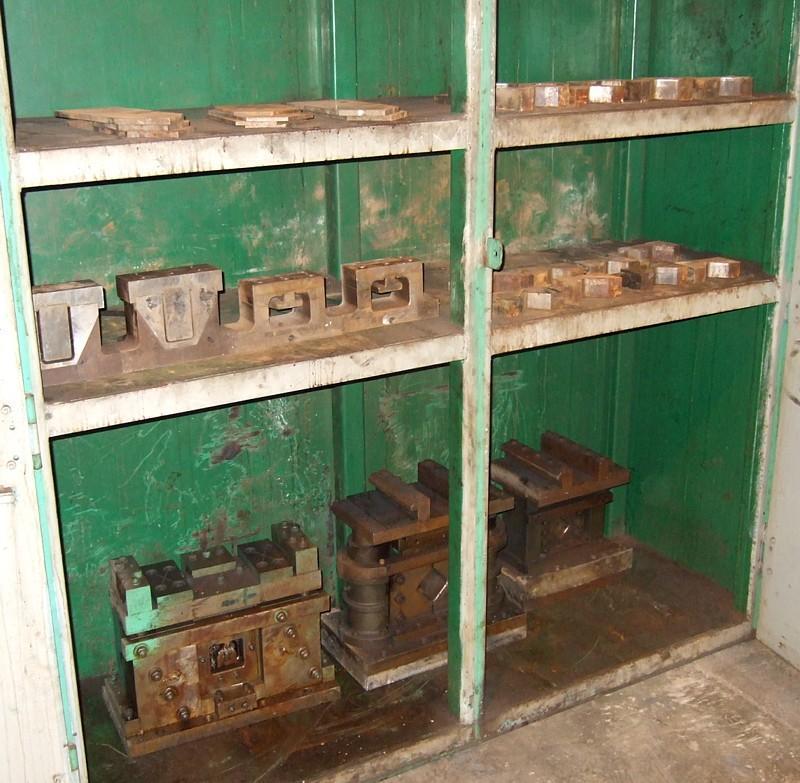

(Mill is presently Tooled for a "G" Shape Channel)

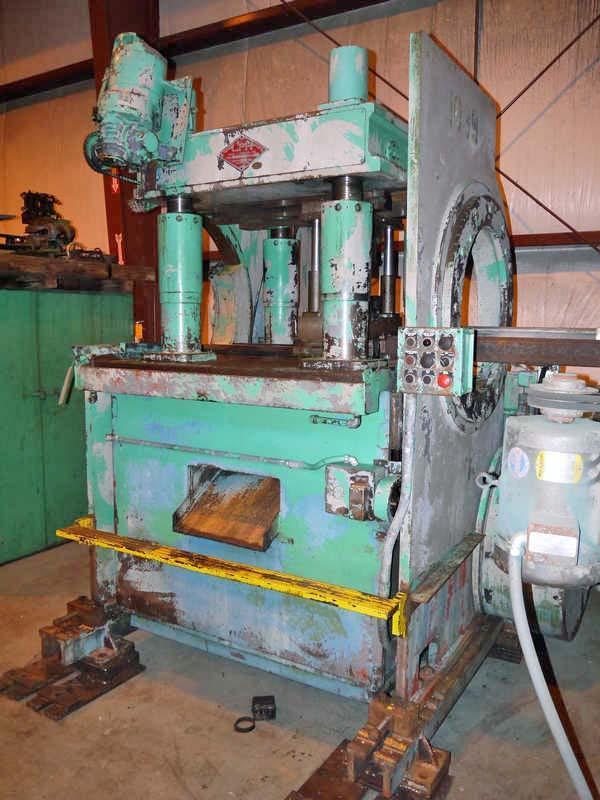

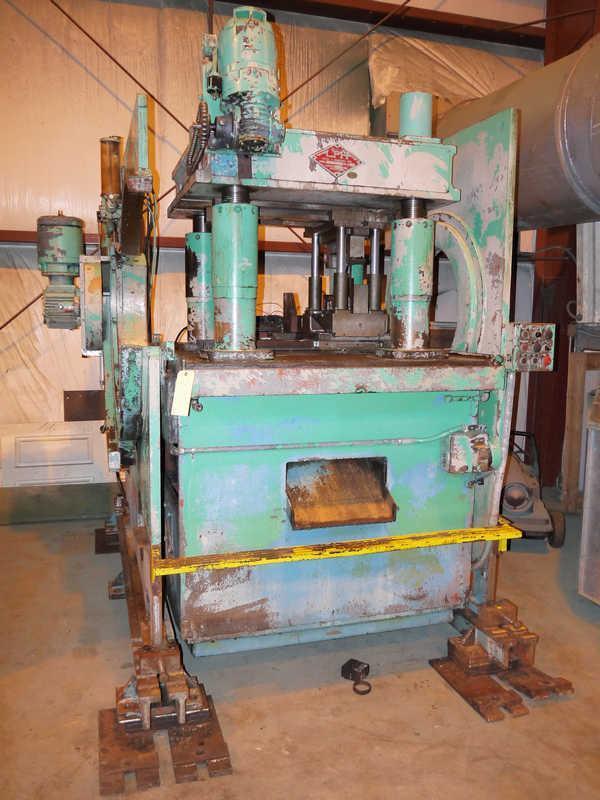

-Alpha 150 Ton Cut-Off
Model: S2-150-24-24
4 Post Mechanical Cut-Off
Capacity: 150 Ton
Bed Size: 52.5" x 52.5"
Distance Between Posts: 24.25" Approx.
Speed: 300 FPN
Stroke: 8" Approx.
Strokes Per Minute: 30 Approx.
Pass Line Height:57"
